AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–19

05–13

End Of Sie

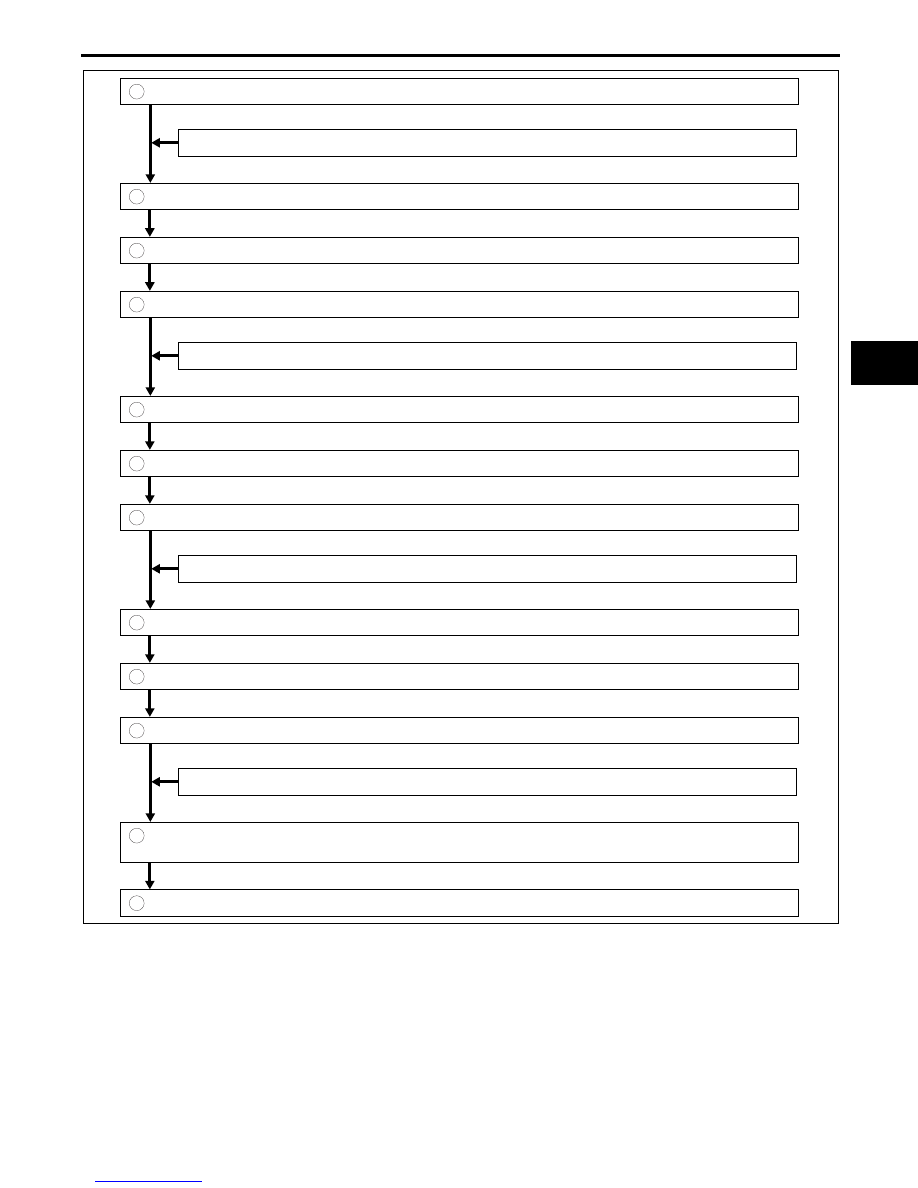

INPUT SHAFT ROTATES CLOCKWISE.

1

C3 CLUTCH OPERATES.

FRONT SUN GEAR ROTATES CLOCKWISE.

2

FRONT INNER PLANETARY PINION GEAR ROTATE COUNTERCLOCKWISE.

3

FRONT OUTER PLANETARY PINION GEAR ROTATES CLOCKWISE.

4

B1 BRAKE AND F1 ONE-WAY CLUTCH OPERATES (LOCKS FRONT PLANETARY CARRIER).

MIDDLE PLANETARY PINION GEAR ROTATES CLOCKWISE.

7

B4 BRAKE OPERATES (LOCKS MIDDLE PLANETARY CARRIER AND REAR RING GEAR).

FRONT RING GEAR ROTATES CLOCKWISE.

5

MIDDLE RING GEAR ROTATES CLOCKWISE.

6

REAR PLANETARY PINION GEAR ROTATES CLOCKWISE.

10

B4 BRAKE OPERATES (LOCKS MIDDLE PLANETARY CARRIER AND REAR RING GEAR).

MIDDLE SUN GEAR ROTATE COUNTERCLOCKWISE.

8

REAR SUN GEAR ROTATE COUNTERCLOCKWISE.

9

REAR PLANETARY CARRIER ROTATE COUNTERCLOCKWISE DUE TO REACTION FORCE OF
REAR PLANETARY PINION GEARS.

11

OUTPUT SHAFT ROTATE COUNTERCLOCKWISE.

12

E5U513ZS5022

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–20

CONTROL VALVE BODY COMPONENT OUTLINE [SJ6A-EL]

E5U051321100N01

• The control valve body supplys oil by switching the oil circuit for the hydraulic pressure generated by the oil

pump. Based on the control signal from the TCM, the solenoid valves are activated to control the hydraulic
pressure to the clutch and brakes, performing gear shift and TCC. In addition, an appropriate amount of oil is
supplied to the torque converter, planetary gears and lubricating parts.

End Of Sie

TCM

CONTROL VALVE BODY COMPONENT

OIL PAN

SIGNAL

OIL PUMP

RETURN

SEND
ATF

GENERATES HYDRAULIC PRESSURE

OIL PUMP
PRESSURE

SHIFT SOLENOID A, B, C, D,
E, F, G

CLUTCHES,
BRAKES

OPERATE
PRESSURE

TORQUE
CONVERTER

SEND ATF

OIL COOLER

RETURN

LUBRICATION

RETURN

PLANETARY
GEAR

LINE PRESSURE
CONTROL SOLENOID

TCC CONTROL SOLENOID

REGULATOR VALVE

MODULATOR VALVE

SHIFT VALVES,
CONTROL
VALVES

ASSURES OPERATION
HYDRAULIC PRESSURE

E5U513ZS5013

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–21

05–13

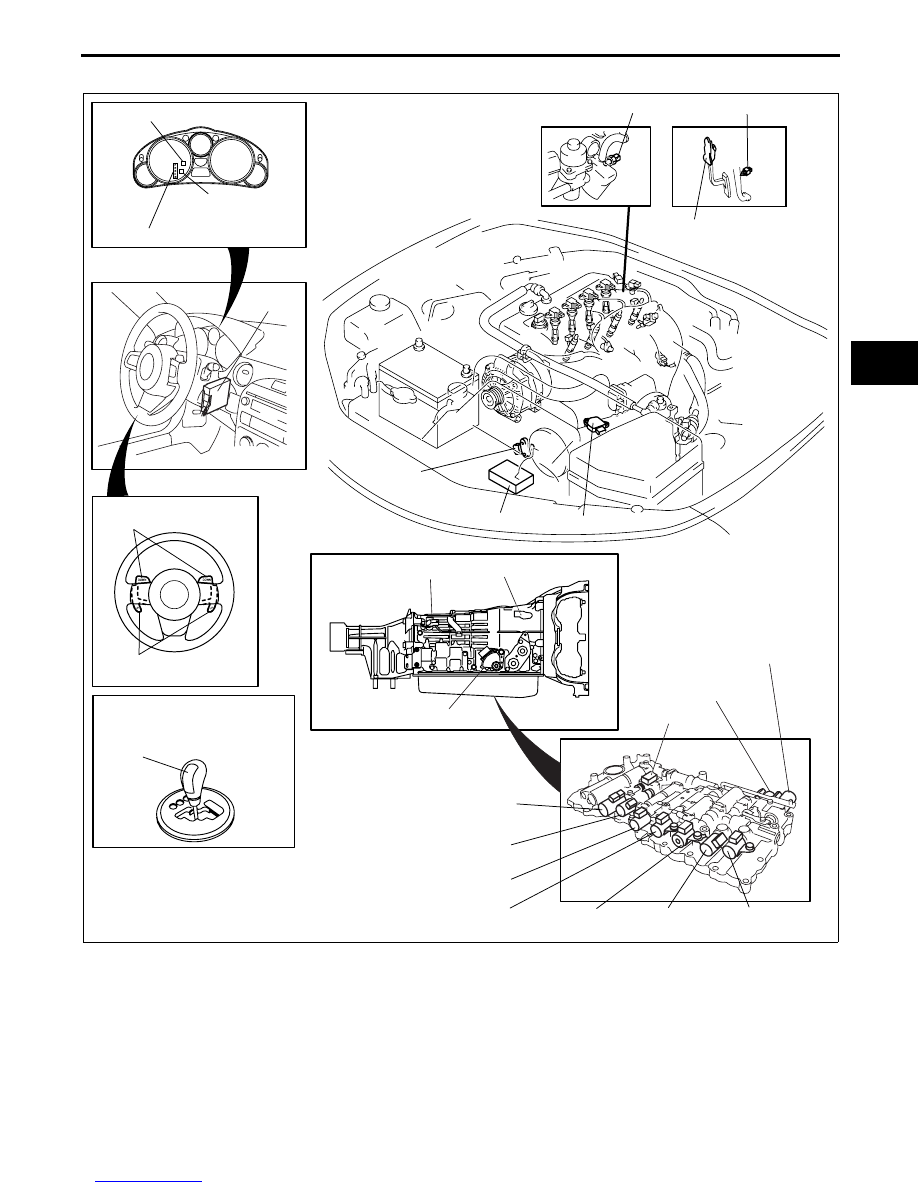

ELECTRONIC CONTROL SYSTEM CONSTRUCTION [SJ6A-EL]

E5U051318901N01

End Of Sie

APP SENSOR

BRAKE SWITCH

ECT SENSOR

CKP
SENSOR

MAF/IAT SENSOR

PCM

SELECTOR INDICATOR LIGHT

AT WARNING LIGHT

GEAR POSITION
INDICATOR LIGHT

TCM

STEERING SHIFT SWITCH
(DOWN SWITCH)

STEERING SHIFT SWITCH
(UP SWITCH)

SELECTOR LEVER COMPONENT

 ·

M RANGE SWITCH

 ·

UP SWITCH

 ·

DOWN SWITCH

TURBINE SENSOR

VSS

TR SWITCH

TFT SENSOR

SHIFT
SOLENOID C

SHIFT
SOLENOID B

SHIFT
SOLENOID D

SHIFT
SOLENOID A

SHIFT
SOLENOID E

LINE PRESSURE
CONTROL SOLENOID

SHIFT
SOLENOID F

SHIFT
SOLENOID G

TCC CONTROL
SOLENOID

E5U513ZS5014

AUTOMATIC TRANSMISSION [SJ6A-EL]

05–13–22

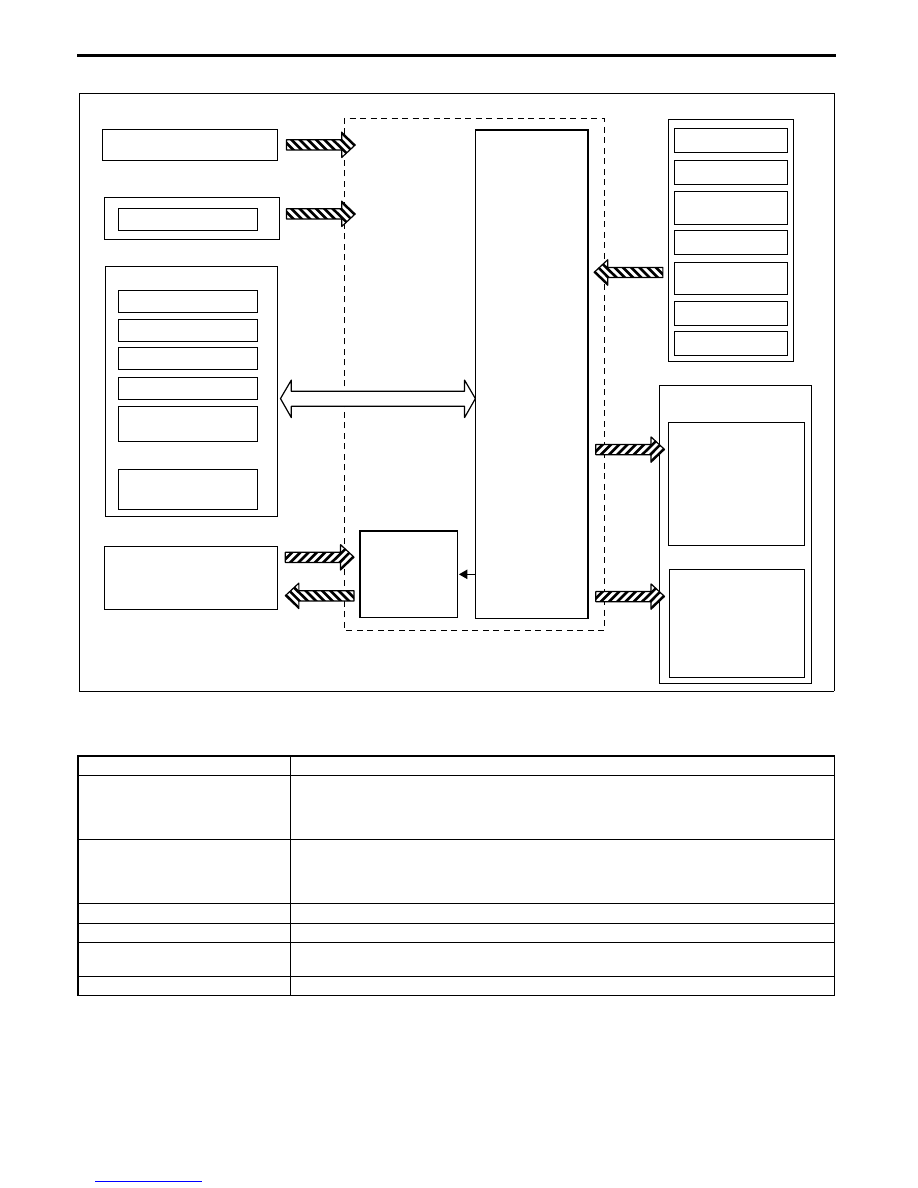

ELECTRONIC CONTROL SYSTEM BLOCK DIAGRAM [SJ6A-EL]

E5U051318901N02

End Of Sie

ELECTRONIC CONTROL ITEMS AND CONTENTS [SJ6A-EL]

E5U051318901N03

End Of Sie

TCM

PCM

CAN

CAN

TRANSMISSION
CONTROL
SYSTEM

TURBINE
SONSOR

TR SWITCH

TFT SONSOR

VSS

INPUT SIGNALS

CONTROL VALVE
BODY COMPONENT

OUTPUT SIGNALS

GEAR POSITION
INDICATOR LIGHT

AT WARNING LIGHT

SELECTOR
INDICATOR LIGHT

SHIFT SOLENOID
A, B, C, D, E, F, G

LINE PRESSURE
CONTROL SOKENOID

TCC COTROL
SOLENOID

INSTRUMENT CLUSTER

BRAKE SWITCH

MAF SENSOR

APP SENSOR

OTHER MODULE

UP SWITCH

DOWN SWITCH

M RANGE
SWITCH

ON-BOARD
DIAGNOSTIC
SYSTEM

INPUT SIGNALS

DLC-2

OUTPUT SIGNALS

CAN

INPUT SIGNALS

CKP SENSOR

ECT SENSOR

ENGINE TORQUE
SIGNAL

ENGINE TORQUE
CONTROL SIGNAL

OUTPUT SIGNALS

INPUT SIGNALS

TFT CHECK CONNECTOR

E5U513ZS5015

Item

Content

Shift control

• Detects engine load and vehicle speed, and switches to optimum gear in accordance

with preset shift program.

• In D range, automatically switches between NORMAL, POWER, DOWN-SLOPE, UP-

SLOPE modes according to specific conditions.

Manual mode shift control

• Shifts to selected gear position by manual shifting of the selector lever forward and

back.

• The up/down operation of the steering shift switch is the same as the manual operation

of the selector lever.

TCC control

• According to preset TCC point, performs TCC operation.

Torque reduction control

• Optimally controls engine output torque when shifting.

Shift learning control

• Performs optimal correction for clutch engagement pressure to reduce changes in

engine performance and/or elapsed transmission.

On-board diagnostic system

• Detects and/or memorizes failure of input/output part and transmission condition.
