CONVENTIONAL BRAKE SYSTEM OUTLINE

E5U041100000N01

• A brake pedal with an intrusion minimizing mechanism has been adopted. As a result, driver safety has been

improved.

• A plunger-type master cylinder has been adopted, improving durability and response.

• A large diameter, single diaphragm power brake unit has been adopted, improving braking force.

• A large diameter, ventilated disc-type front brake has been adopted, improving braking force.

• A large diameter, solid disc-type rear brake has been adopted, improving braking force.

End Of Sie

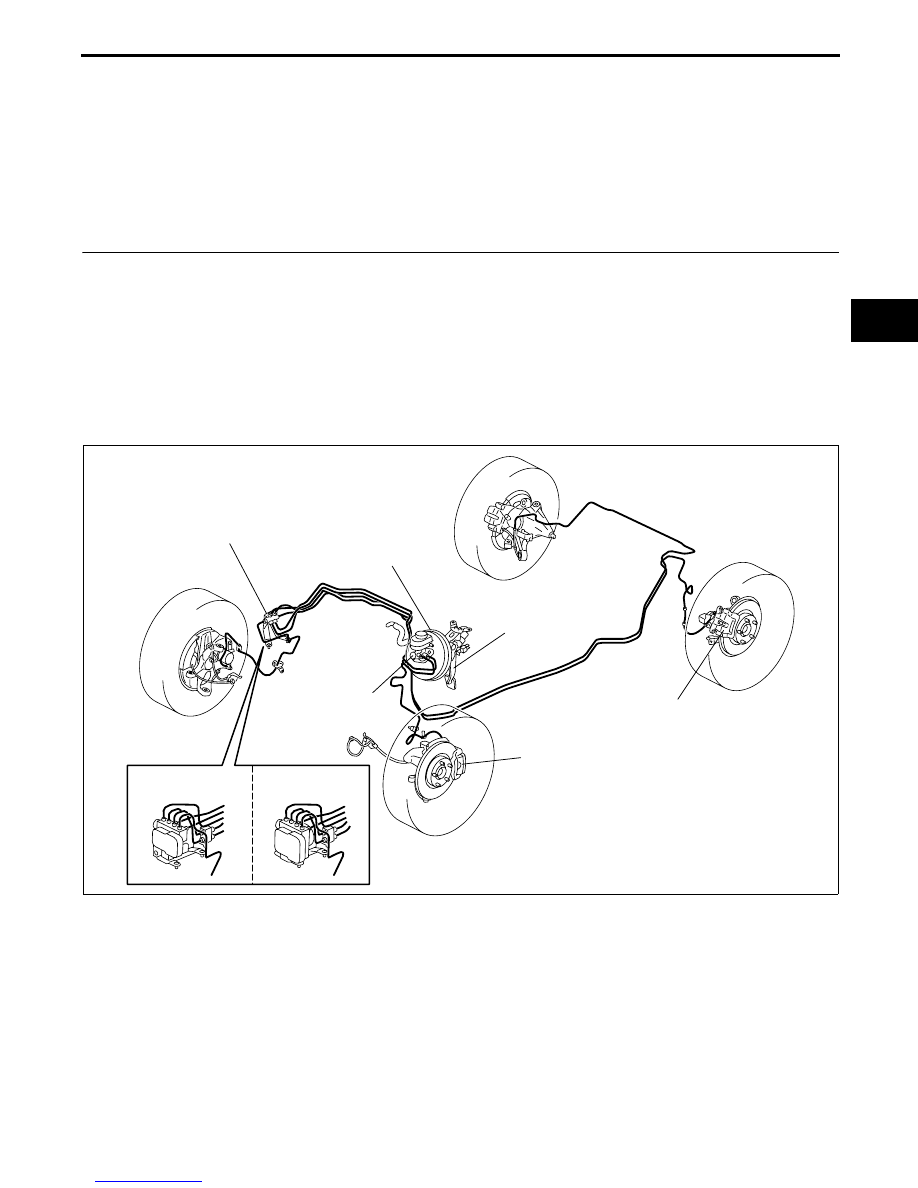

CONVENTIONAL BRAKE SYSTEM STRUCTURAL VIEW

E5U041100000N02

End Of Sie

WITH ABS

WITH DSC

FRONT BRAKE (DISC)

REAR BRAKE (DISC)

BRAKE PEDAL

POWER BRAKE UNIT

MASTER CYLINDER

DUAL PROPORTIONING VALVE
(WITHOUT ABS/DSC)

E5U411ZS5001

CONVENTIONAL BRAKE SYSTEM

04–11–2

INTRUSION-MINIMIZING BRAKE PEDAL FUNCTION

E5U041143300N01

• An intrusion-minimizing brake pedal, which minimizes the amount of rearward pedal thrust in a frontal collision,

has been adopted. Due to this, impact force to the lower body of the driver is softened.

End Of Sie

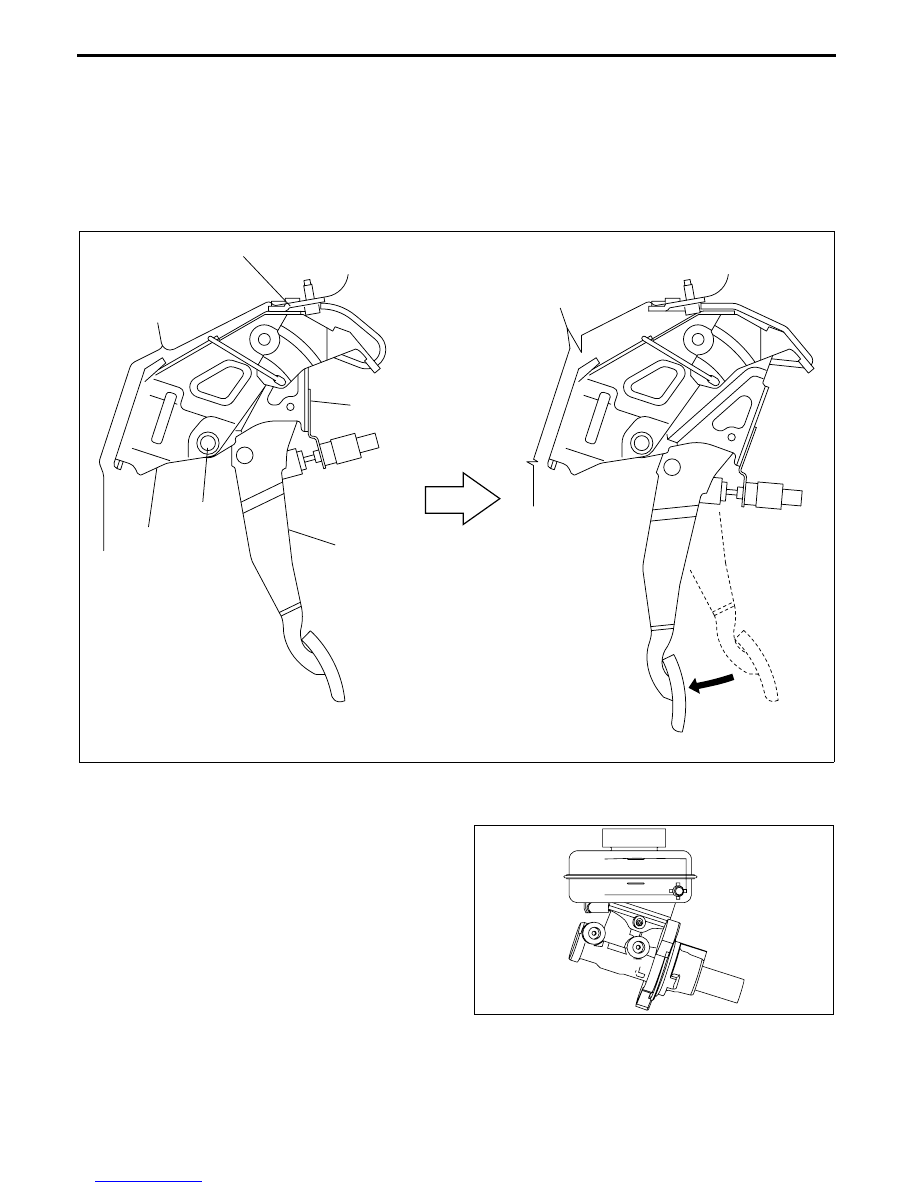

INTRUSION-MINIMIZING BRAKE PEDAL OPERATION

E5U041143300N02

• In a frontal collision, the brake pedal is forced rearward by the movement of the engine and other parts.

• Brackets A and B break away from bracket C, which is fixed to the body.

• Bracket B is freed allowing it and the pedal arm to rotate together at pivot fulcrum D of bracket A, thereby

preventing the rearward movement of the brake pedal.

End Of Sie

MASTER CYLINDER CONSTRUCTION

E5U041143400N01

• A plunger-type master cylinder with a 22.2 mm

{0.87 in} bore has been adopted, improving
durability.

Note

• Plunger type: A system where the cups are

fixed on the cylinder, and the piston slides
through the inner perimeter of the cups.

• For vehicles with DSC, the master cylinder outlet

pipe diameter has been increased, improving
response during DSC operation.

• Except for the reservoir, the master cylinder

cannot be disassembled. Therefore, if there is any
malfunction in the interior of the master cylinder, replace the cylinder component without disassembling.

End Of Sie

BRACKET C

BRACKET B

FULCRUM D

PEDAL ARM

BRACKET A

NORMAL CONDITION

DURING COLLISION

E5U411ZS5002

E5U411ZS5003

CONVENTIONAL BRAKE SYSTEM

04–11–3

04–11

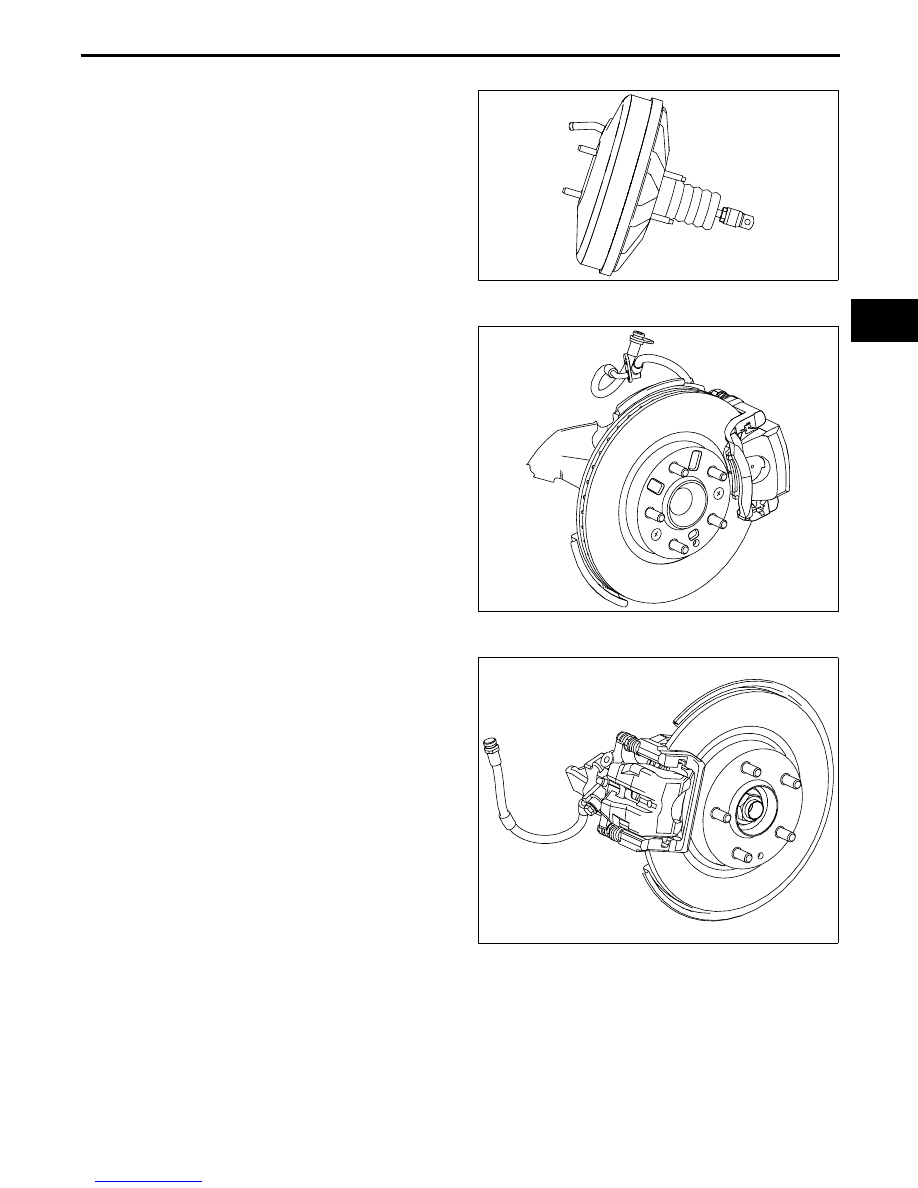

POWER BRAKE UNIT CONSTRUCTION

E5U041143800N01

• A 9-inch, large diameter, single diaphragm type

power brake unit has been adopted for all models,
achieving compatibility between high braking
performance and excellent brake feeling.

End Of Sie

FRONT BRAKE (DISC) CONSTRUCTION

E5U041133980N01

• Large diameter, ventilated disc type front brakes

with a 290 mm {11.4 in} diameter and 22 mm
{0.87 in} thickness have been adopted for all
models, improving braking force and fade
resistance.

End Of Sie

REAR BRAKE (DISC) CONSTRUCTION

E5U041126980N01

• A large diameter, solid disc type rear brake with a

280 mm {11.0 in} diameter and 10 mm {0.39 in}
thickness has been adopted for all models,
improving braking force and fade resistance.

End Of Sie

E5U411ZS5004

E5U411ZS5005

E5U411ZS5006
