EMISSION SYSTEM

01–16–3

01–16

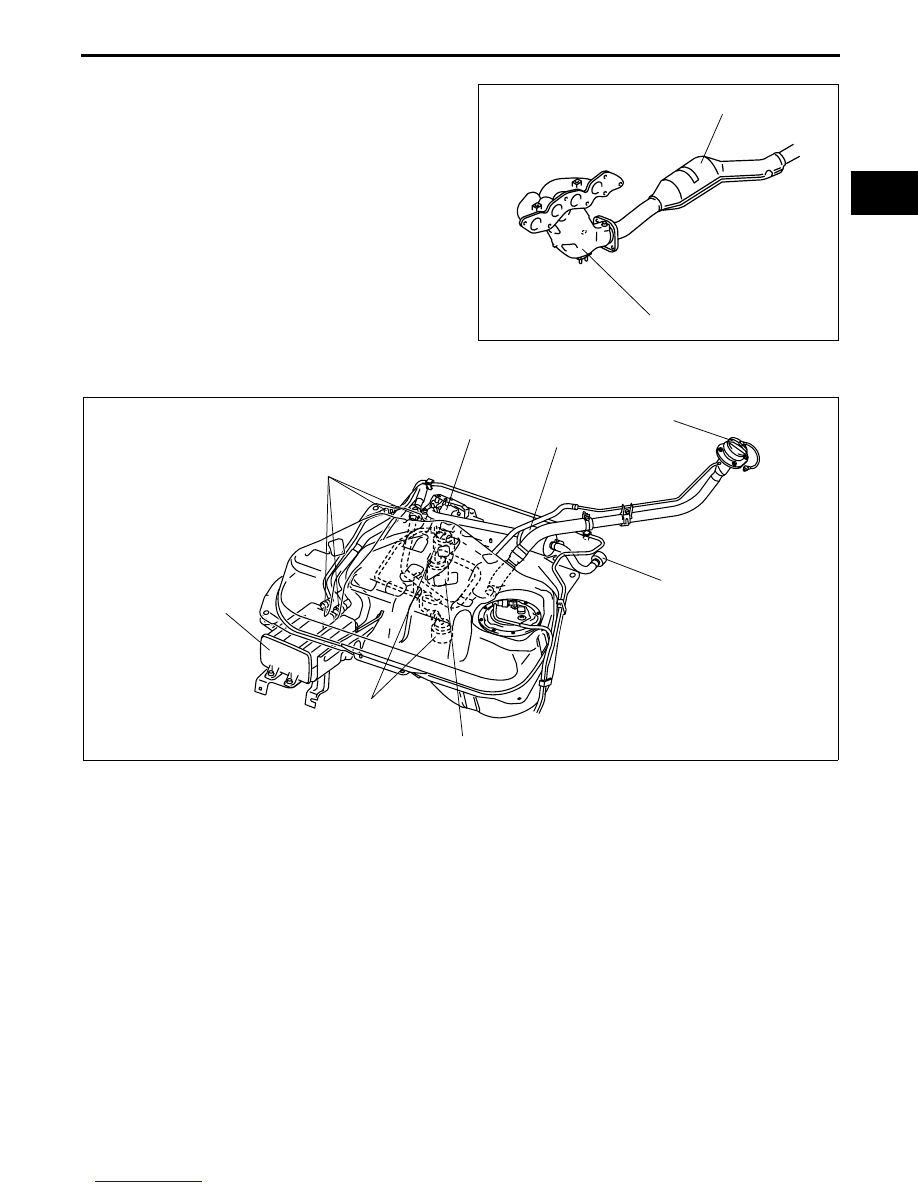

Exhaust System

Fuel Tank Side

End Of Sie

EXHAUST PURIFICATION SYSTEM OUTLINE [LF]

E5U011600010N01

Feature

• The EGI system (fuel injection control, ignition control) burns fuel supplied to the engine at the stoichiometrical

air/fuel ratio for improved purification efficiency of the catalytic converter system.

End Of Sie

WU-TWC

TWC

E5U116ZS5008

FUEL-FILLER CAP

AIR FILTER

EVAP SYSTEM LEAK
DETECTION PUMP

QUICK RELEASE
CONNECTOR (TYPE C)

CHARCOAL CANISTER

ROLLOVER VALVE

FUEL SHUT-OFF VALVE

EVAPORATIVE CHAMBER

E5U116ZS5030

EMISSION SYSTEM

01–16–4

EGR SYSTEM OUTLINE [LF]

E5U011600020N01

Features

• An EGR valve with a stepping motor has been adopted for optimum control according to engine operation

conditions.

• For control of EGR system, refer to CONTROL SYSTEM, EGR CONTROL. (See 01–40–30 EGR CONTROL

OUTLINE [LF], 01–40–30 EGR CONTROL BLOCK DIAGRAM [LF], 01–40–30 EGR CONTROL OPERATION
[LF].)

End Of Sie

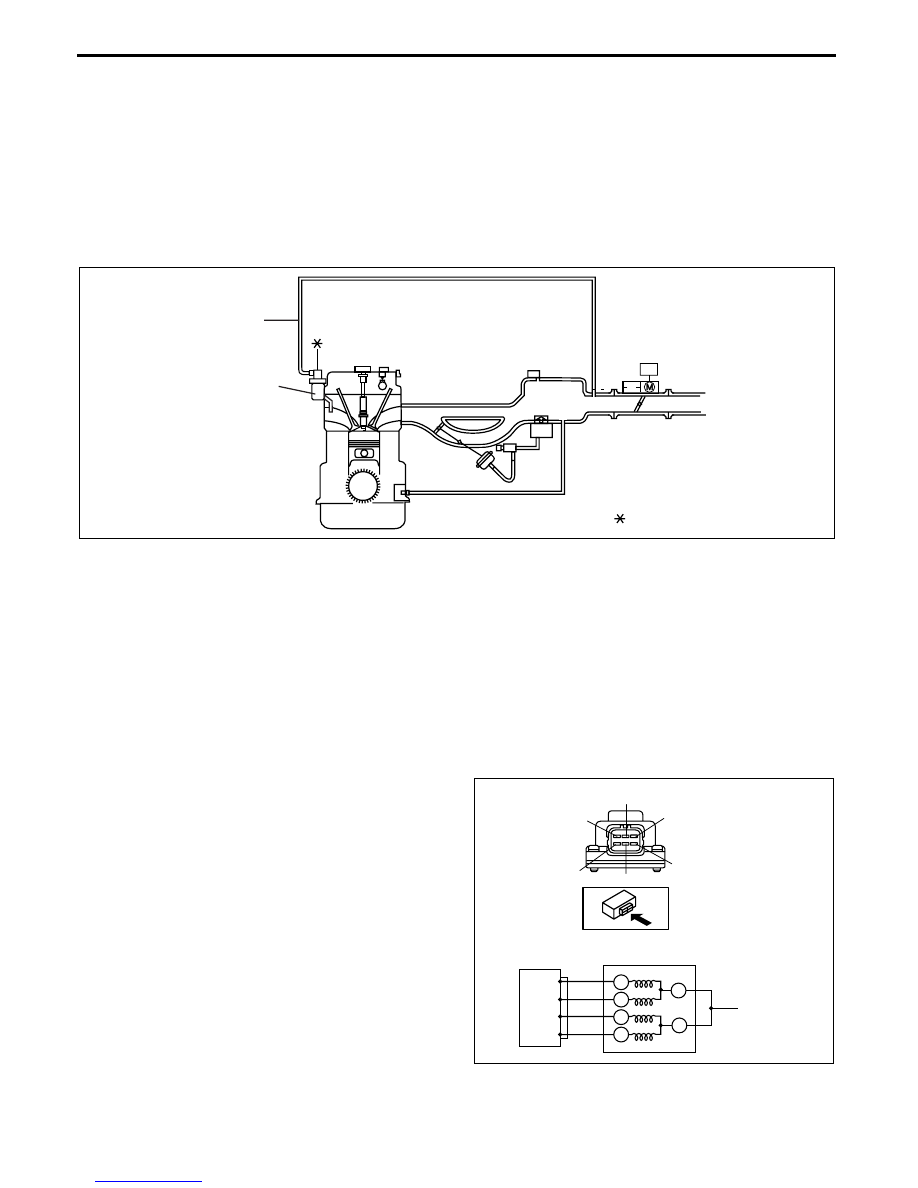

EGR SYSTEM STRUCTURE [LF]

E5U011600020N02

• Consists of an EGR valve and EGR pipe to conduct exhaust gas to the intake air system.

System diagram

End Of Sie

EGR SYSTEM OPERATION [LF]

E5U011600020N03

• The high occurrence of NO

X

 at high temperatures has been reduced by recirculating exhaust gas to the

combustion chamber in order to lower the combustion temperature.

• The exhaust gas flows along the EGR passage in the cylinder head and into the EGR valve. Exhaust gas that

has flowed past the EGR valve flows through the EGR pipe, and is conducted to the dynamic chamber.

End Of Sie

EGR VALVE FUNCTION [LF]

E5U011620300N01

• Adjusts the amount of exhaust gas to be recirculated from the exhaust system to the combustion chamber

based on the EGR control signal from the PCM.

End Of Sie

EGR VALVE CONSTRUCTION/OPERATION [LF]

E5U011620300N02

• Consists of a rotor, coils, and a spring.

• Operates based on the signal from the PCM to

drive the EGR valve stepping motor.

• The PCM determines the optimum EGR valve

opening angle based on the engine speed and
intake air amount when the engine is completely
warmed up and drives the EGR valve.

End Of Sie

EGR VALVE

: TO PCM

EGR PIPE

E5U116ZS5002

A

B

C

E

A

B

F

D

C

D

E

F

EGR VALVE

PCM

MAIN
RELAY

C3U0116S031

EMISSION SYSTEM

01–16–5

01–16

CATALYTIC CONVERTER SYSTEM OUTLINE [LF]

E5U011600050N01

Feature

• Purifies contaminants in the exhaust gas by utilizing a chemical reaction in a three way catalytic converter.

End Of Sie

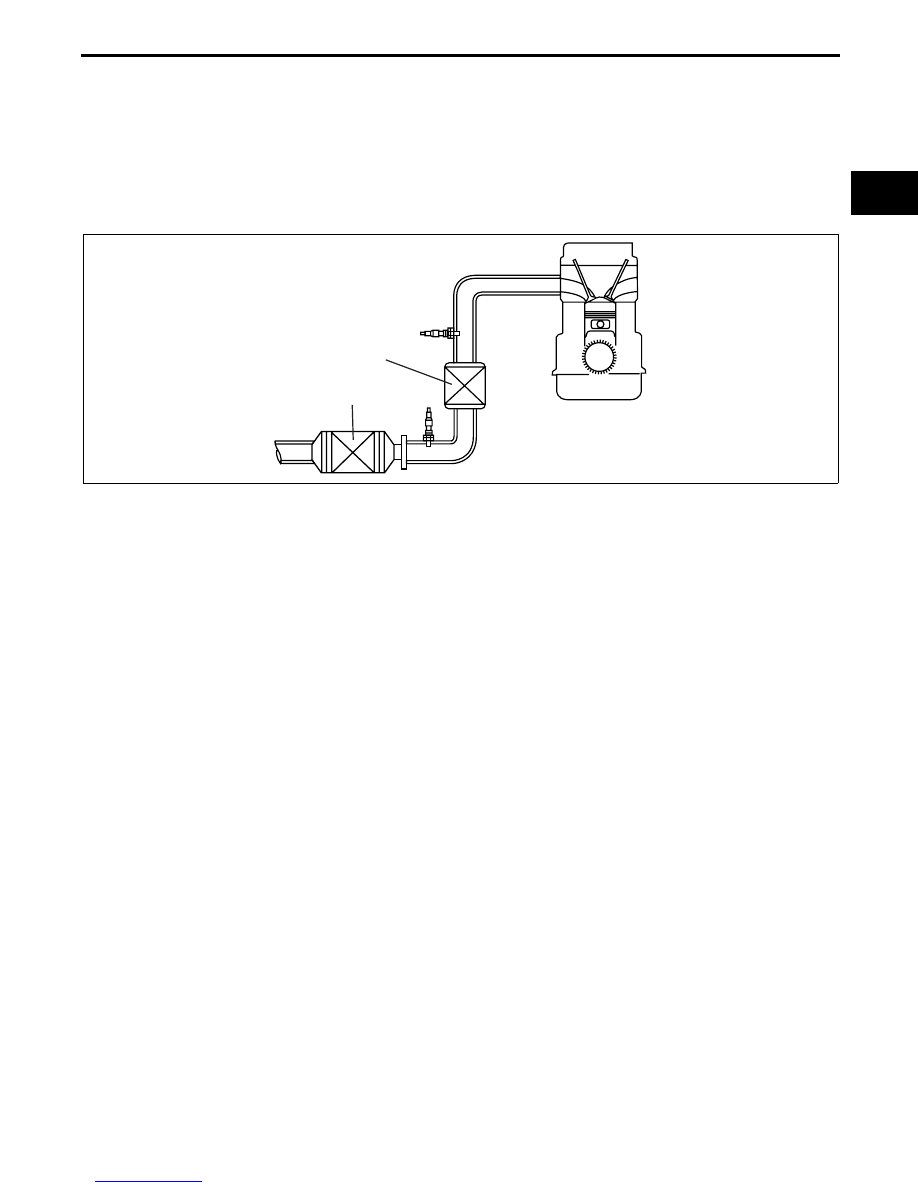

CATALYTIC CONVERTER SYSTEM STRUCTURE [LF]

E5U011600050N02

• Consists of a three way catalytic converter and insulator.

• The WU-TWC utilizing a platinum-rhodium-palladium system has been adopted.

• The TWC utilizing a platinum-rhodium system has been adopted.

System diagram

End Of Sie

CATALYTIC CONVERTER SYSTEM OPERATION [LF]

E5U011600050N03

• Contaminants in the exhaust gas (HC, CO, NO

X

) are purified by oxidization and deoxidization while passing

through the catalytic converter.

— Oxidization process

• Noxious HC (hydrocarbon) and CO (carbon monoxide) are bonded to oxygen which is converted to

non-noxious carbon dioxide and water.
O

2

 + HC + CO

→ CO

2

 + H

2

O

— Deoxidization process

• Noxious NO

X

 (nitrogen oxide) is converted to non-noxious nitrogen and oxygen. A part of the oxygen

generated at this time is used in the oxidization process.
NO

X



→ N

2

 + O

2

End Of Sie

WU-TWC

TWC

E5U116ZS5852

EMISSION SYSTEM

01–16–6

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM OUTLINE [LF]

E5U011600040N01

Feature

• A closed type PCV system has been adopted.

End Of Sie

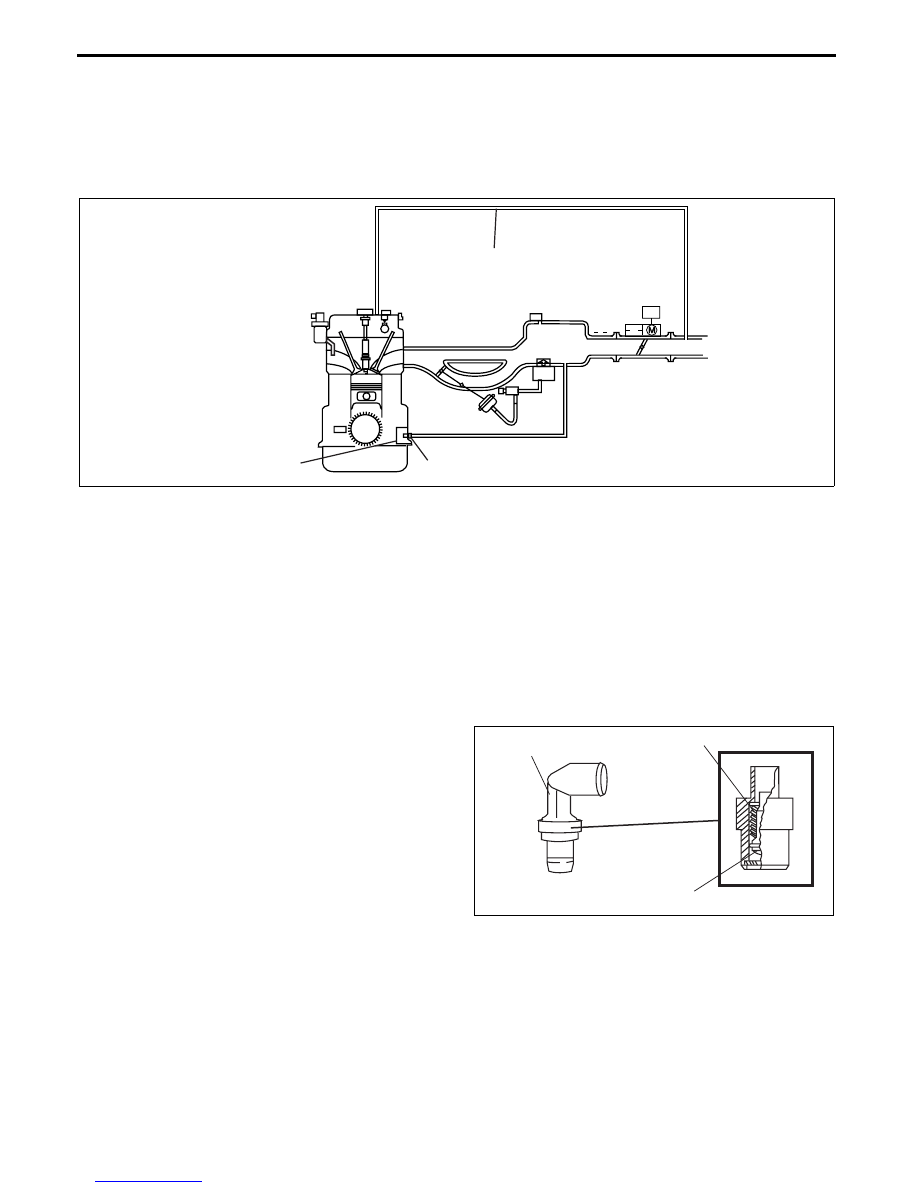

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM STRUCTURE [LF]

E5U011600040N02

• Consists of a PCV valve and ventilation hose.

• The PCV valve is installed on the oil separator.

End Of Sie

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM OPERATION [LF]

E5U011600040N03

• Blowby gas (unburnt gas), including CO and HC exhausted from the crankcase, is forced into the intake air

system and burned in the combustion chamber to prevent its atmospheric release.

End Of Sie

POSITIVE CRANKCASE VENTILATION (PCV) VALVE FUNCTION [LF]

E5U011613890N01

• Adjusts the amount of blowby gas conducted to the intake air system according to the intake manifold vacuum.

• Regulates the air (including blowby gas) passing from the cylinder head cover to the intake manifold during low

load (when vacuum in the intake manifold is high) to ensure an optimum air/fuel ratio.

End Of Sie

POSITIVE CRANKCASE VENTILATION (PCV) VALVE CONSTRUCTION/OPERATION [LF]

E5U011613890N02

• Consists of a spring and valves.

• The PCV valve ensures the passage of blowby

gas by opening the valve according to the intake
manifold vacuum, and adjusts the amount of gas
by spring force.

End Of Sie

OIL SEPARATOR

PCV VALVE

VENTILATION HOSE

E5U116ZS5853

PCV VALVE

TO DYNAMIC
CHAMBER

SPRING

INTERNAL VALVE

FROM OIL SEPARATOR

E5U116ZW5043
