LT230Q TRANSFER BOX. Manual - part 10





TRANSFER BOX

OVERHAUL

23

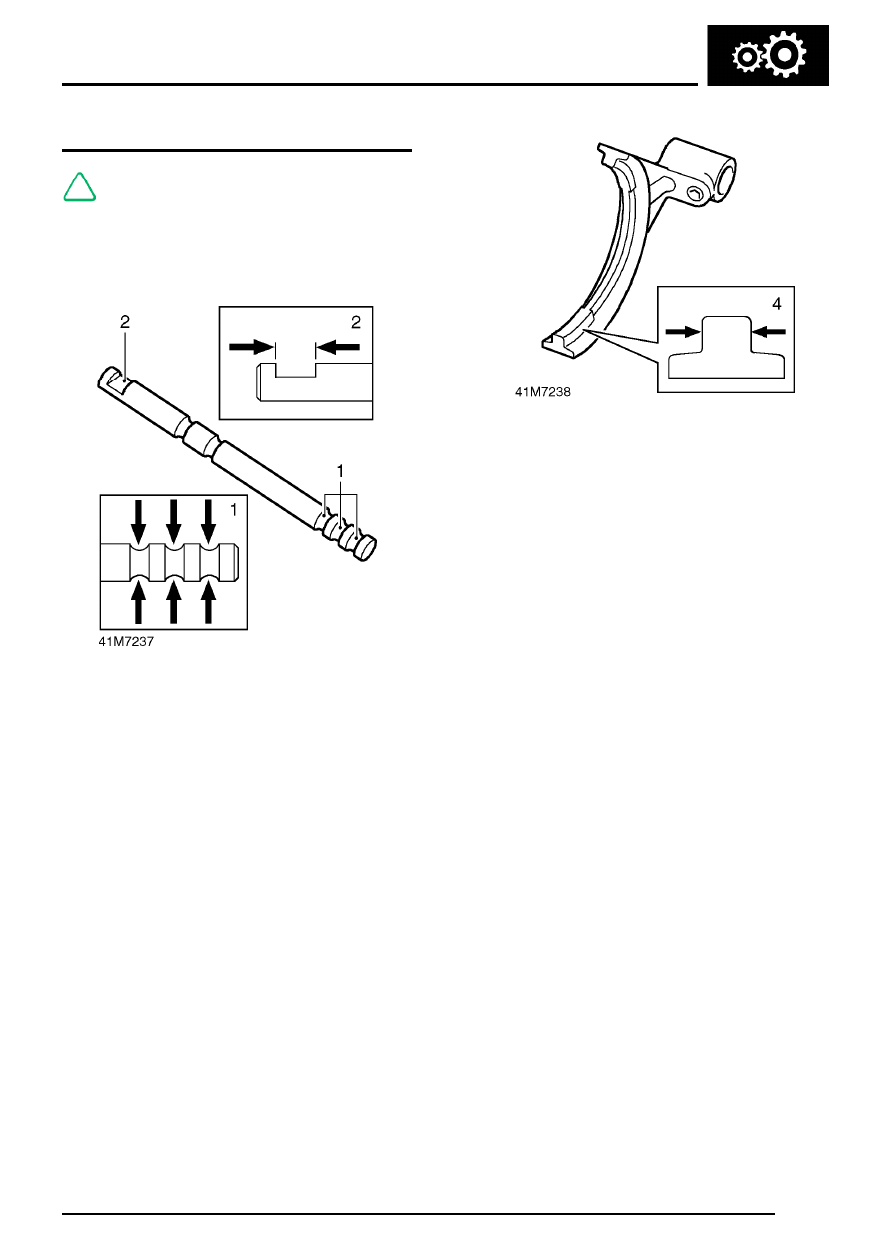

High/low selector fork and shaft

NOTE: There is no need to remove
selector fork from shaft unless fork or
shaft is to be replaced. If fork is removed,

coat threads of set screw with Loctite 290 prior
to assembly.

1. Check detent grooves in shaft for wear.
2. Check high/low selector finger groove width in

shaft:
Groove width = 16.0 to 16.1 mm (0.63 to 0.64
in)

3. Check high/low selector fork for cracks and

wear.

4. Check high/low selector fork finger width:

Finger width = 7.37 to 7.47 mm (0.290 to 0.294
in)

TRANSFER BOX

24

OVERHAUL

Differential

1. Check sun and planet gears for wear, cracks

and chipping of teeth.

2. Check cross shafts and recesses in both

halves of differential carrier for damage and
wear.

CAUTION: Ensure planet gears are
retained with their respective shafts.

3. Check retaining ring for distortion.
4. Check splines of differential for wear and

damage.

5. Check teeth of high/low hub for cracks,

chipping and uneven wear.

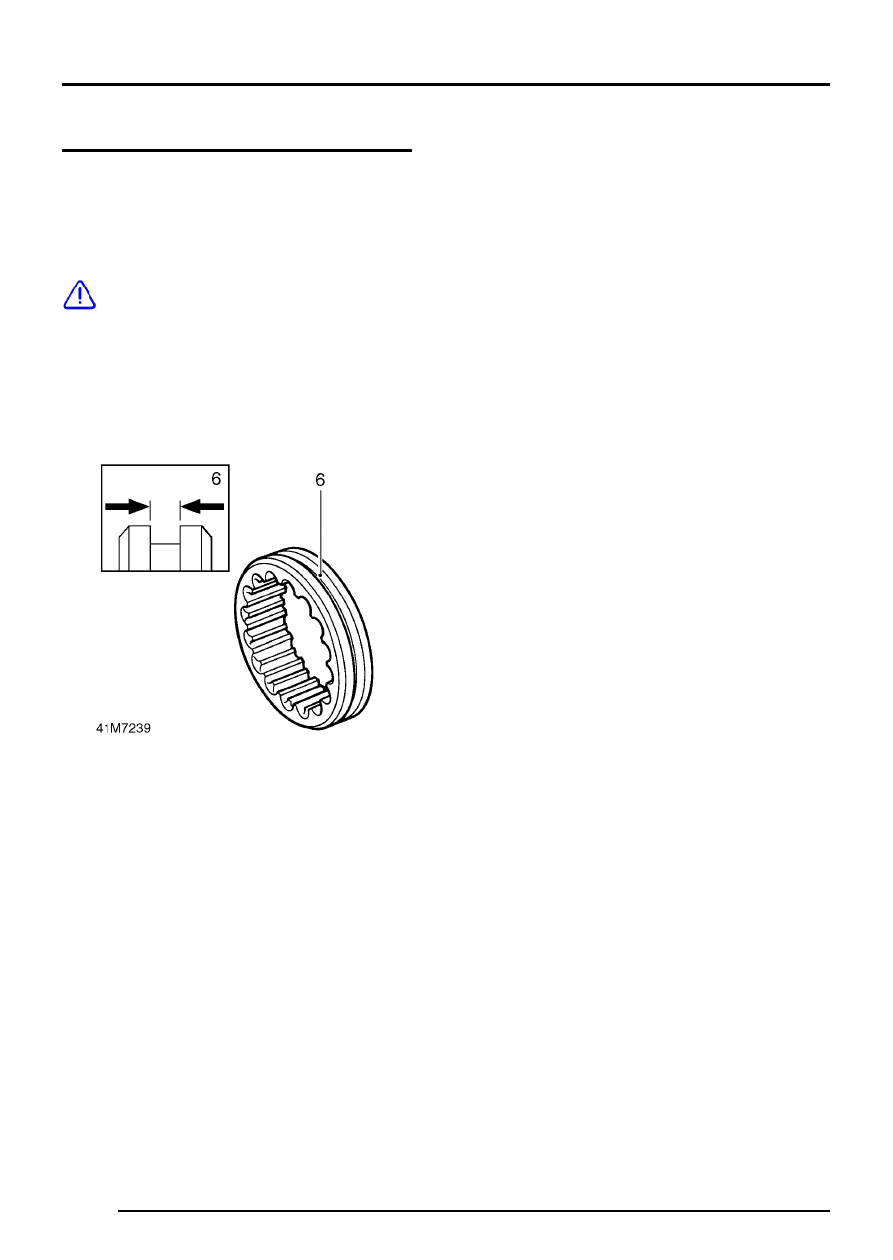

6. Check selector fork groove width in high/low

hub:
Groove width = 7.5 to 7.6 mm (0.295 to 0.3 in)

7. Check splines and teeth of high/low selector

sleeve for uneven wear, cracks, damage and
chipping.

8. Check teeth of high and low range gears for

cracks, chipping and uneven wear.

9. Check high range gear bush for wear and

damage.

TRANSFER BOX

OVERHAUL

25

COMPONENT ASSEMBLING

1. Lubricate all components with recommended

oil.

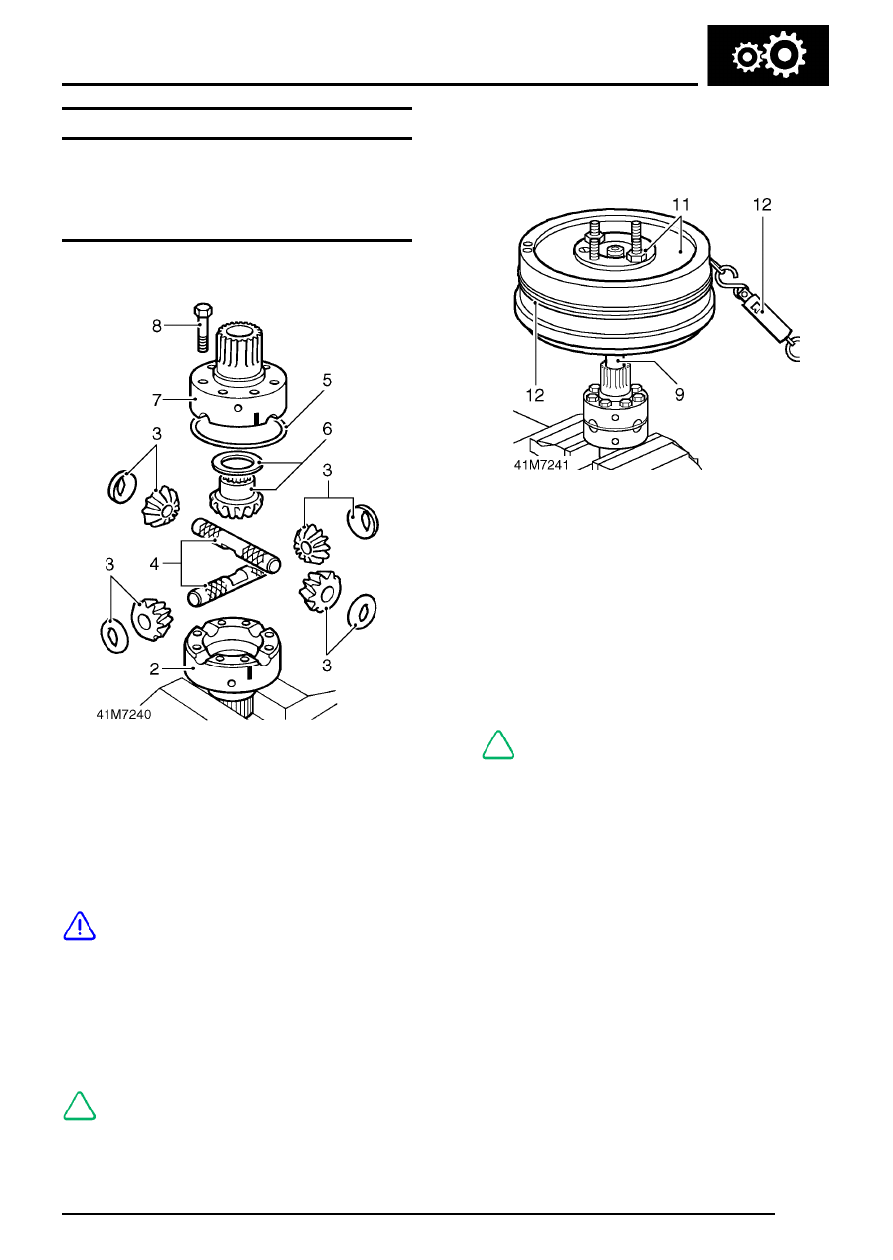

Differential

1. Lightly oil threads of differential bolts.

2. Secure rear half of differential carrier in a

soft-jawed vice.

3. Fit each planet gear to its respective

cross-shaft, fit new dished thrust washer to
each gear.

4. Fit cross-shafts, planet gears and dished thrust

washers in rear half carrier.

CAUTION: Ensure that cross-shafts are in
their correct fitted position in rear half
carrier. Do not fit sun gear into rear half

carrier at this stage.

5. Fit retaining ring.
6. Fit a 1.05 mm (0.04 in) thick thrust washer to

front half carrier sun gear, position gear in front
half carrier.

NOTE: This is the thinnest of the thrust
washers available.

7. Fit front half carrier to rear ensuring that

alignment marks are together.

8. Fit bolts and tighten by diagonal selection to 60

Nm (44 lbf.ft).

9. Insert front output shaft into front half carrier,

check that gears rotate freely.

10. Fit output flange on to splines of output shaft,

do not fit flange nut at this stage.

11. Fit transmission brake drum to output flange,

secure drum using 2 nuts.

12. Secure a length of cord around brake drum,

attach one end of cord to a spring balance.

13. Tension cord and note load to turn figure

recorded on spring balance when brake drum
rotates.

NOTE: Used gears should rotate smoothly
whilst new gears will have a ’notchy’ feel
as they rotate.

TRANSFER BOX

26

OVERHAUL

14. Check figure obtained against specified load to

turn figure:
Used gears = 0.45 kg (1.0 lb)
New gears = 1.72 kg (3.8 lb)

15. If load to turn figure is below that specified,

proceed as follows.

16. Remove front output shaft together with brake

drum.

17. Remove 8 bolts securing front half differential

carrier.

18. Remove front half differential carrier.
19. Remove front half carrier sun gear and thrust

washer.

20. Select a thicker thrust washer from the range

available.

NOTE: 5 thicknesses of thrust washers are
available rising in increments of 0.10 mm
(0.004 in) from 1.05 to 1.45 mm (0.04 to

0.06 in).

21. Position selected thrust washer and sun gear

in front half carrier.

22. Fit front half carrier to rear ensuring that

alignment marks are together.

23. Fit bolts and tighten by diagonal selection to 60

Nm (44 lbf.ft).

24. Fit front output shaft and brake drum and

repeat load to turn check.

25. Repeat above procedures as necessary until

load to turn figure is as specified; record final
figure obtained.

26. Remove brake drum from front output shaft,

remove output shaft.

27. Remove bolts securing front half carrier.
28. Remove front half carrier, remove sun gear

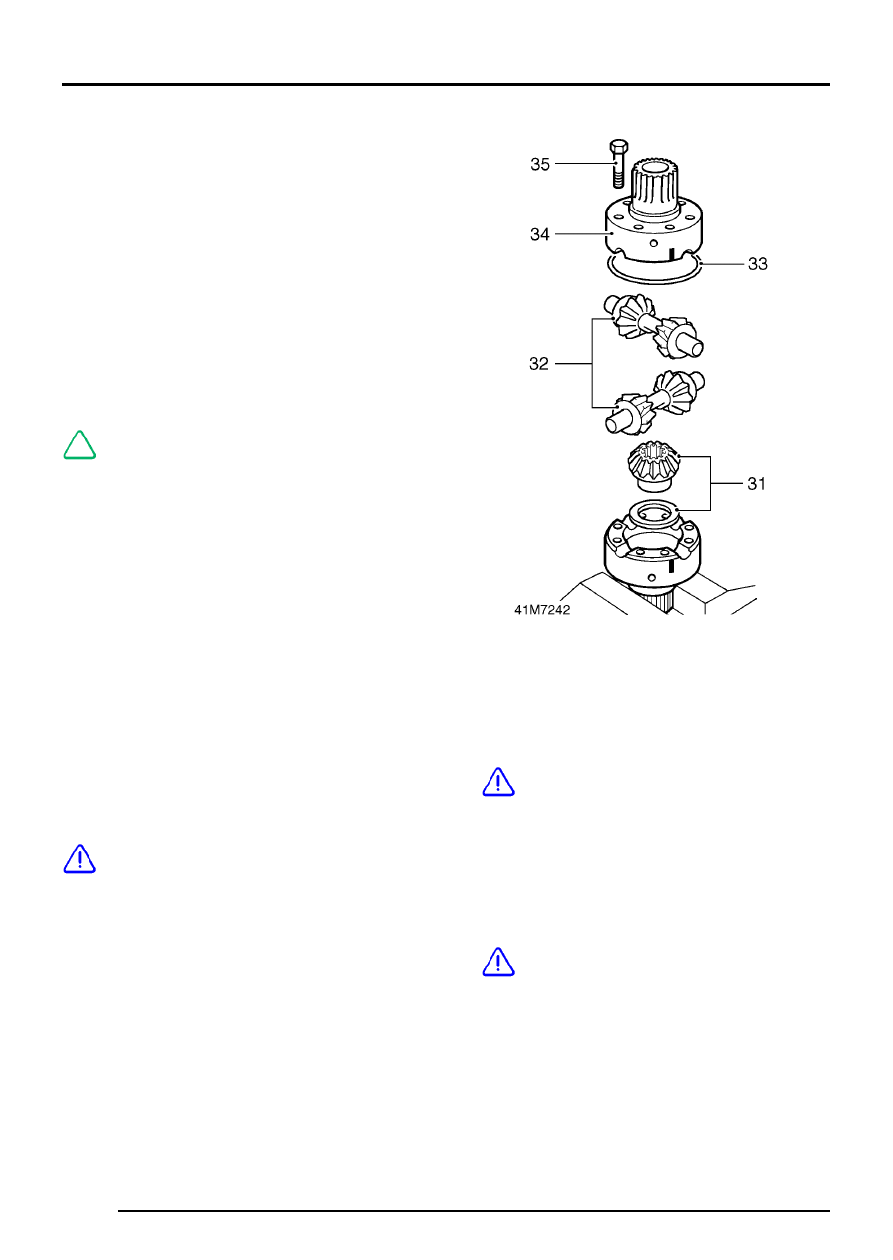

and thrust washer.

CAUTION: Keep selected thrust washer
with sun gear.

29. Remove retaining ring.
30. Remove planet gears and cross shafts.

31. Fit a 1.05 mm (0.04 in) thick thrust washer to

rear half carrier sun gear, position gear in rear
half carrier.

32. Fit planet gears, cross shafts and dished thrust

washers in rear half carrier.

CAUTION: Ensure that planet gears are
fitted to their respective cross-shafts and
cross-shafts are fitted in their correct

location in half carrier.

33. Fit retaining ring.
34. Fit front half carrier to rear ensuring that

alignment marks are together.

CAUTION: Do not fit sun gear and thrust
washer into front half carrier.

35. Fit bolts and tighten by diagonal selection to 60

Nm (44 lbf.ft).
