LT230Q TRANSFER BOX. Manual - part 1





INTRODUCTION

INTRODUCTION

1

INTRODUCTION

How to use this manual

To assist in the use of this manual the section title is
given at the top and the relevant sub-section is given
at the bottom of each page.

This manual contains procedures for overhaul of the
LT230Q transfer box. For all other information
regarding adjustments and removal of oil seals,
consult the Repair Manual for the model concerned.

This manual is divided into 3 sections:

Description and Operation,

Overhaul and

Data, Torque & Tools.

To assist filing of revised information, each
sub-section is numbered from page 1.

Individual items are to be overhauled in the
sequence in which they appear in the Manual. Items
numbered in the illustrations are referred to in the
text.

Overhaul operations include reference to Service
Tool numbers and the associated illustration depicts
the tool. Where usage is not obvious the tool is
shown in use. Operations also include reference to
wear limits, relevant data, torque figures, specialist
information and useful assembly details.

WARNINGS, CAUTIONS and Notes have the
following meanings:

WARNING: Procedures which must be
followed precisely to avoid the possibility
of injury.

CAUTION: Calls attention to procedures
which must be followed to avoid damage
to components.

NOTE: Gives helpful information.

References

Operations covered in this manual do not include
reference to testing the vehicle after repair. It is
essential that work is inspected and tested after
completion and if necessary a road test of the
vehicle is carried out particularly where safety
related items are concerned

Dimensions

The dimensions quoted are to design engineering
specification with Service limits where applicable.

INTRODUCTION

2

INTRODUCTION

REPAIRS AND REPLACEMENTS

When replacement parts are required it is essential
that only Land Rover recommended parts are used.

Attention is particularly drawn to the following points
concerning repairs and the fitting of replacement
parts and accessories.

Safety features and corrosion prevention treatments
embodied in the car may be impaired if other than
Land Rover recommended parts are fitted. In certain
territories, legislation prohibits the fitting of parts not
to the manufacturer’s specification.

Torque wrench setting figures given in this Manual
must be used. Locking devices, where specified,
must be fitted. If the efficiency of a locking device is
impaired during removal it must be renewed.

The terms of the vehicle Warranty may be
invalidated by the fitting of other than Land Rover
recommended parts. All Land Rover recommended
parts have the full backing of the vehicle Warranty.

Land Rover Dealers are obliged to supply only Land
Rover recommended parts.

SPECIFICATION

Land Rover are constantly seeking to improve the
specification, design and production of their vehicles
and alterations take place accordingly. While every
effort has been made to ensure the accuracy of this
Manual, it should not be regarded as an infallible
guide to current specifications of any particular
component or vehicle.

This Manual does not constitute an offer for sale of
any particular component or vehicle. Land Rover
Dealers are not agents of the Company and have no
authority to bind the manufacturer by any expressed
or implied undertaking or representation.

TRANSFER BOX

2

DESCRIPTION AND OPERATION

TRANSFER BOX

DESCRIPTION AND OPERATION

3

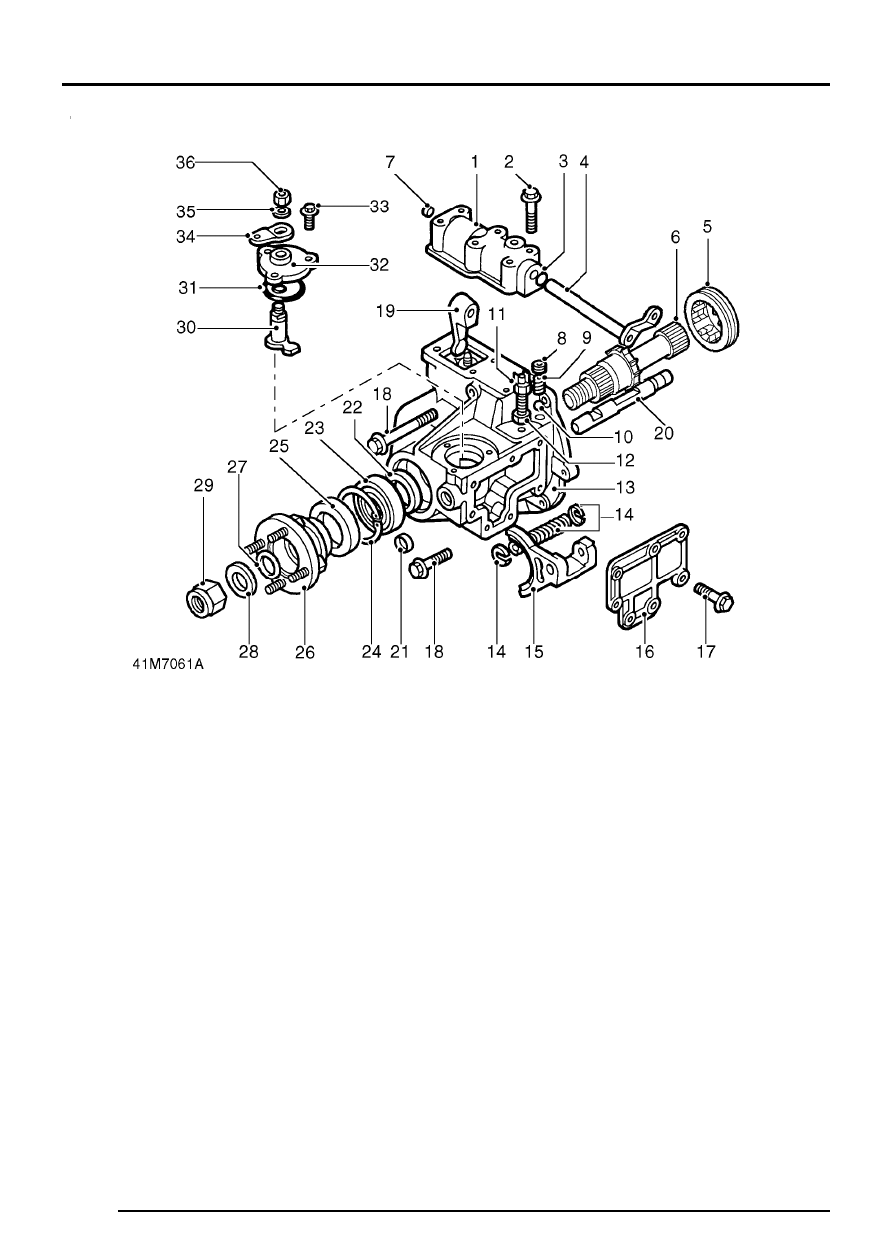

FRONT OUTPUT HOUSING COMPONENTS

1. High/low cross shaft housing
2. Bolt - high/low cross shaft housing
3. ’O’ ring
4. High/low cross shaft and lever
5. Dog clutch
6. Front output shaft
7. Hollow plug
8. Detent plug - differential lock
9. Detent spring - differential lock

10. Detent ball - differential lock
11. Differential lock warning lamp switch
12. Locknut
13. Front output housing
14. Spring and clips - differential lock
15. Differential lock selector fork
16. Cover plate
17. Bolt - cover plate
18. Bolt - front output housing

19. High/low selector finger
20. Differential lock selector shaft
21. Plug
22. Bearing spacer
23. Output shaft bearing
24. Circlip
25. Oil seal
26. Output shaft flange and mud shield
27. Felt washer
28. Steel washer
29. Self-locking nut
30. Differential lock selector finger and shaft
31. ’O’ rings
32. Differential lock selector housing
33. Bolt - housing
34. Selector lever
35. Washer
36. Self-locking nut
