ENGINE

68

OVERHAUL

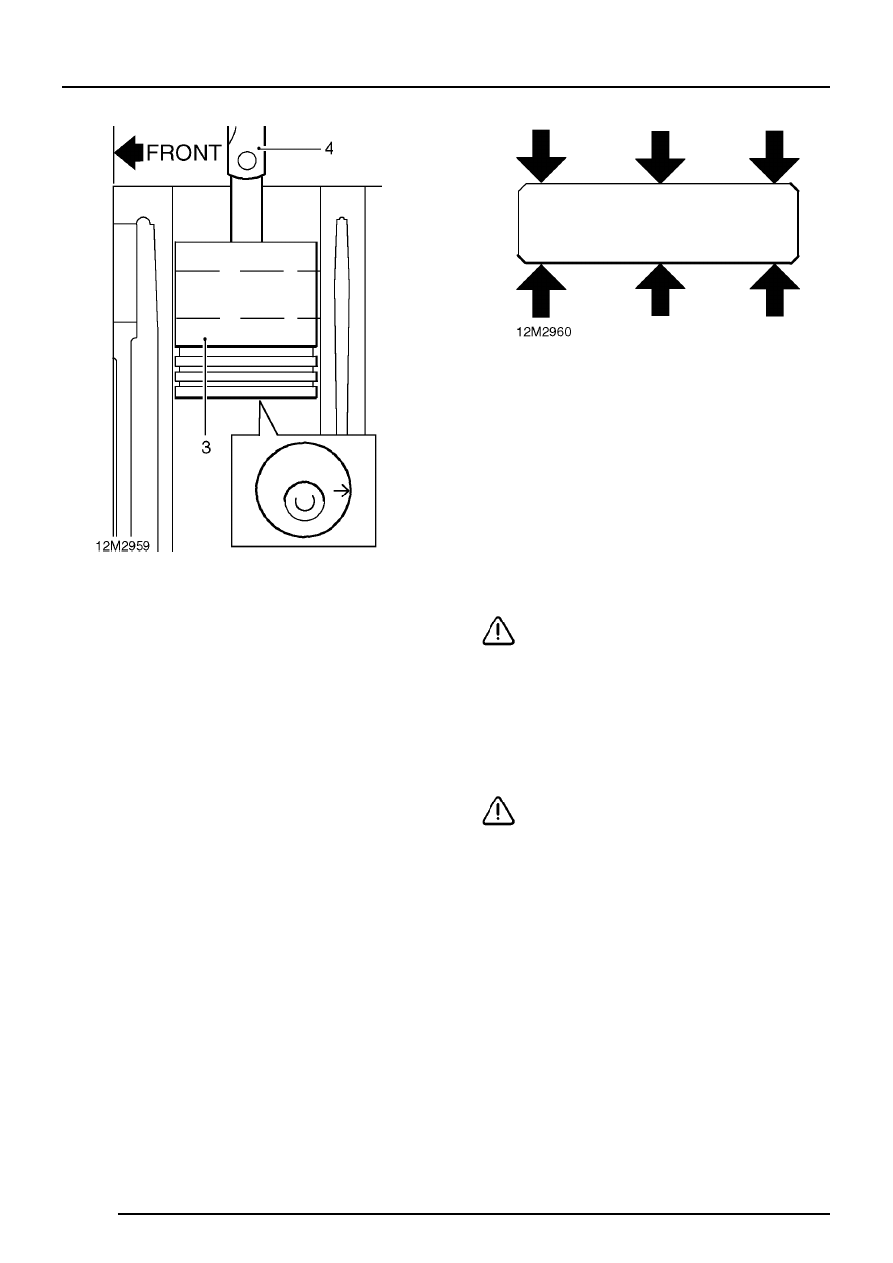

3. Starting with number 1 piston, invert piston and

with arrow on piston crown pointing towards
REAR of cylinder block, insert piston into
number 1 cylinder bore until bottom of skirt is
30 mm from top of bore.

4. Using feeler gauges, check clearance between

left hand side of piston and cylinder bore =
0.075 mm( viewed from front of cylinder block
).

5. Repeat above procedures for remaining

pistons. If piston to cylinder bore clearance for
any piston exceeds figure given, cylinder block
must be rebored.

6. Measure gudgeon pin diameter at each end

and centre of pin.
Diameter = 30.156 to 30.162 mm

7. Renew gudgeon pin and piston as an

assembly if diameter is less than specified or if
excessive pin to piston clearance is evident.

8. Check small end bushes for signs of wear or

overheating, check that gudgeon pins are a
tight, sliding fit in the bushes with no
perceptible side play.

CAUTION: Small end bushes cannot be
replaced, a new connecting rod must be
fitted.

9. Using the fingers only, check that a new

big-end bearing cap nut runs freely on each
connecting rod bolt; if any nut is tight on the
threads, renew both bolts on that connecting
rod.

CAUTION: Retain nuts with their
respective connecting rod bolts.

10. Check connecting rods for alignment -

maximum = 0.127 mm per 25.4 mm of length.
Replace any rod which is misaligned.

ENGINE

OVERHAUL

69

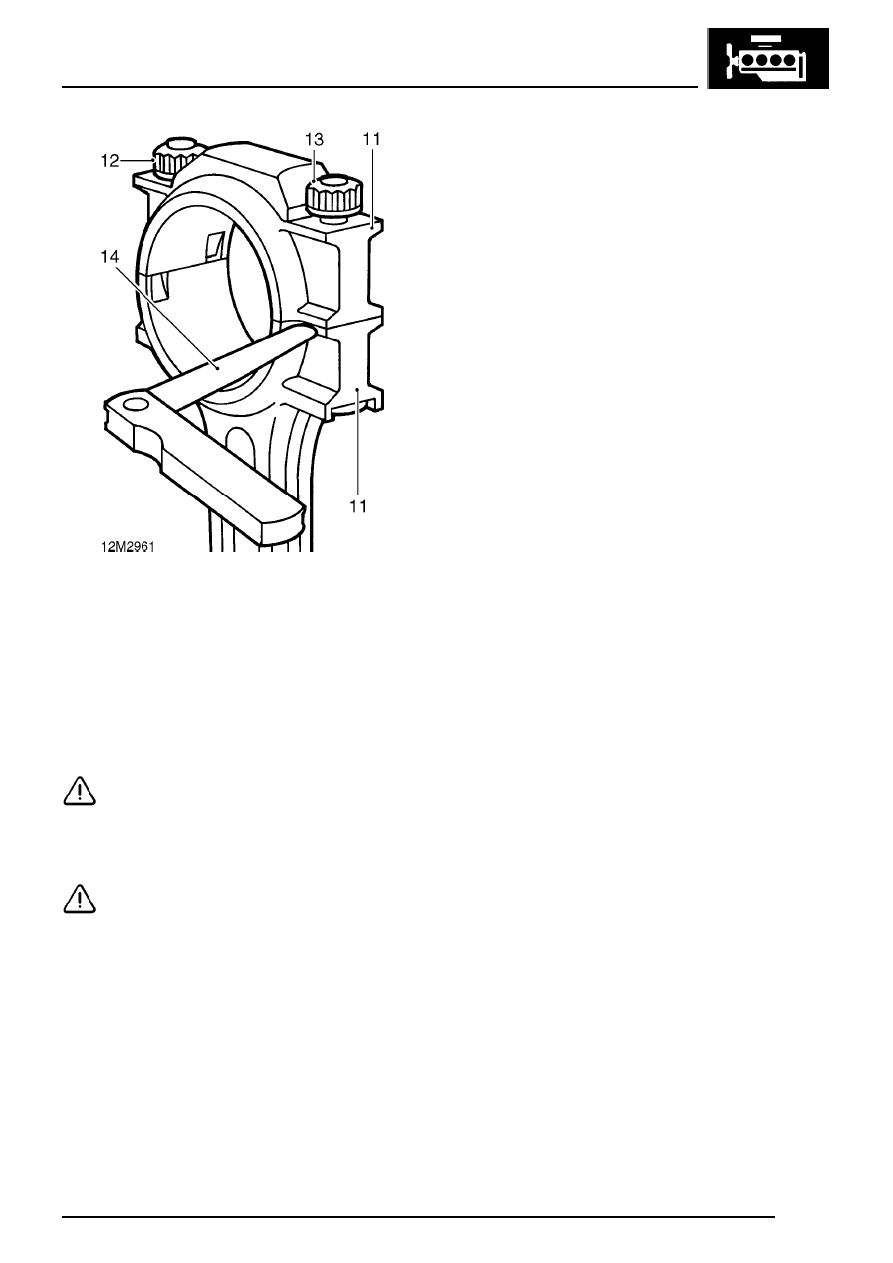

11. Assemble each big-end bearing cap less

bearing shells to its respective connecting rod.

12. Fit and tighten big-end bearing cap nuts to 59

Nm.

13. Slacken the nut on one side of connecting rod.
14. Using feeler gauges, check that there is no gap

between bearing cap and connecting rod on
the side of the cap with the slackened nut.

CAUTION: If clearance exists, connecting
rod must be replaced.

15. Remove nuts and big-end bearing caps.

CAUTION: Retain nuts and bearing caps
with their respective connecting rod

16. Repeat above procedures for remaining

connecting rods.

17. Lubricate gudgeon pins and small end bushes

with engine oil.

18. Assemble each connecting rod and gudgeon

pin to its respective piston ensuring that
bearing tag recess on connecting rod is on
correct side of piston.

19. Fit new circlips to retain gudgeon pins ensuring

they are correctly seated in their grooves.

ENGINE

70

OVERHAUL

Piston rings - checking

CAUTION: Prior to checking piston ring
gaps in cylinder bores, bores must be
inspected, measured and if reboring has

been carried out, the appropriate oversize
pistons and rings used.

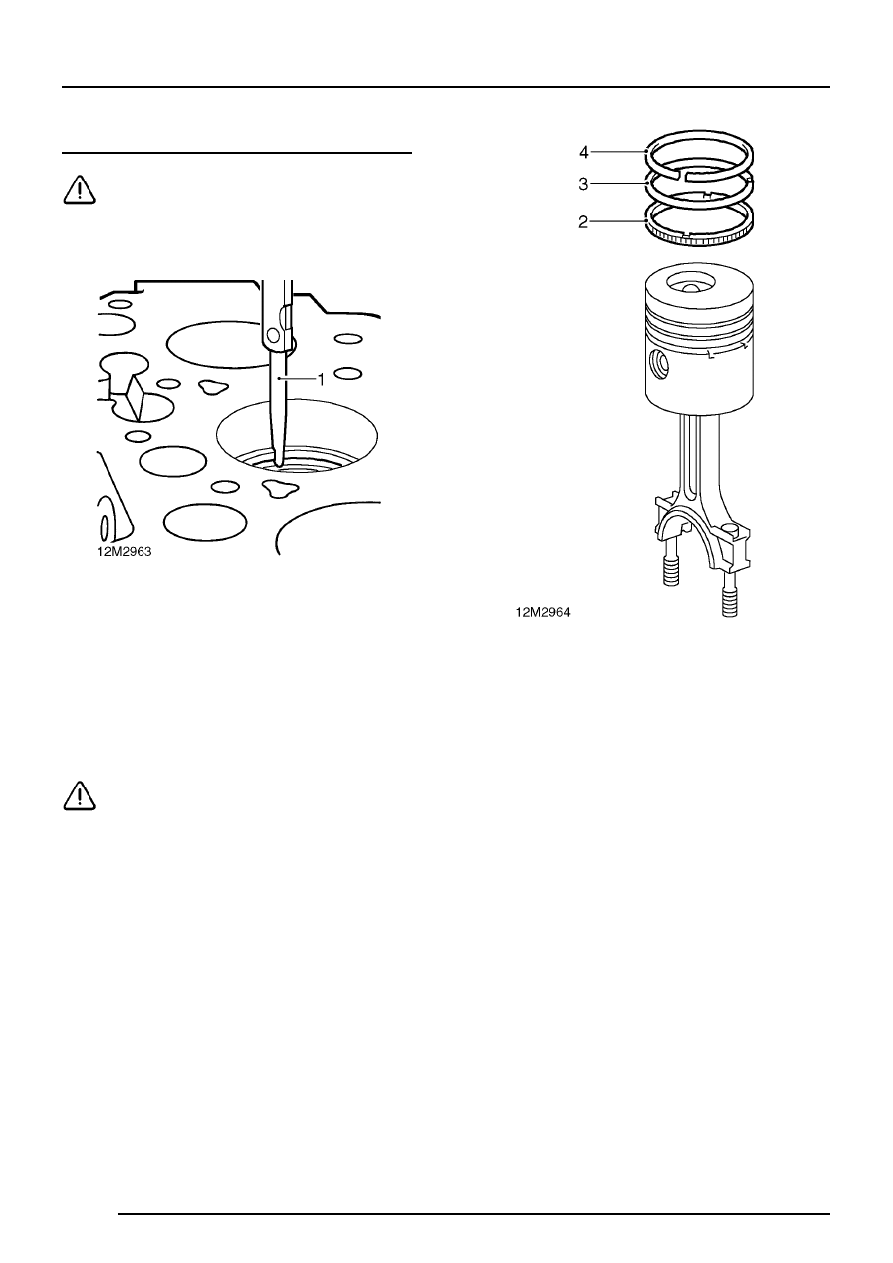

1. Check fitted gap of each new piston ring in turn

with ring positioned half-way down cylinder
bore.
Fitted gap of rings in bores:
Top compression = 0.40 to 0.65 mm
2nd compression = 0.30 to 0.50 mm
Oil control rails = 0.30 to 0.60 mm

CAUTION: Ensure that piston rings are
suitably identified with the cylinder bore in
which they were checked and that they are

fitted to the piston for that cylinder bore.

2. Fit oil control rails and spring to piston.
3. Fit 2nd, narrow compression ring with ’TOP’

marking uppermost.

4. Fit top compression ring with ’TOP’ marking

uppermost.

5. Check that rings are free to rotate in their

grooves.

ENGINE

OVERHAUL

71

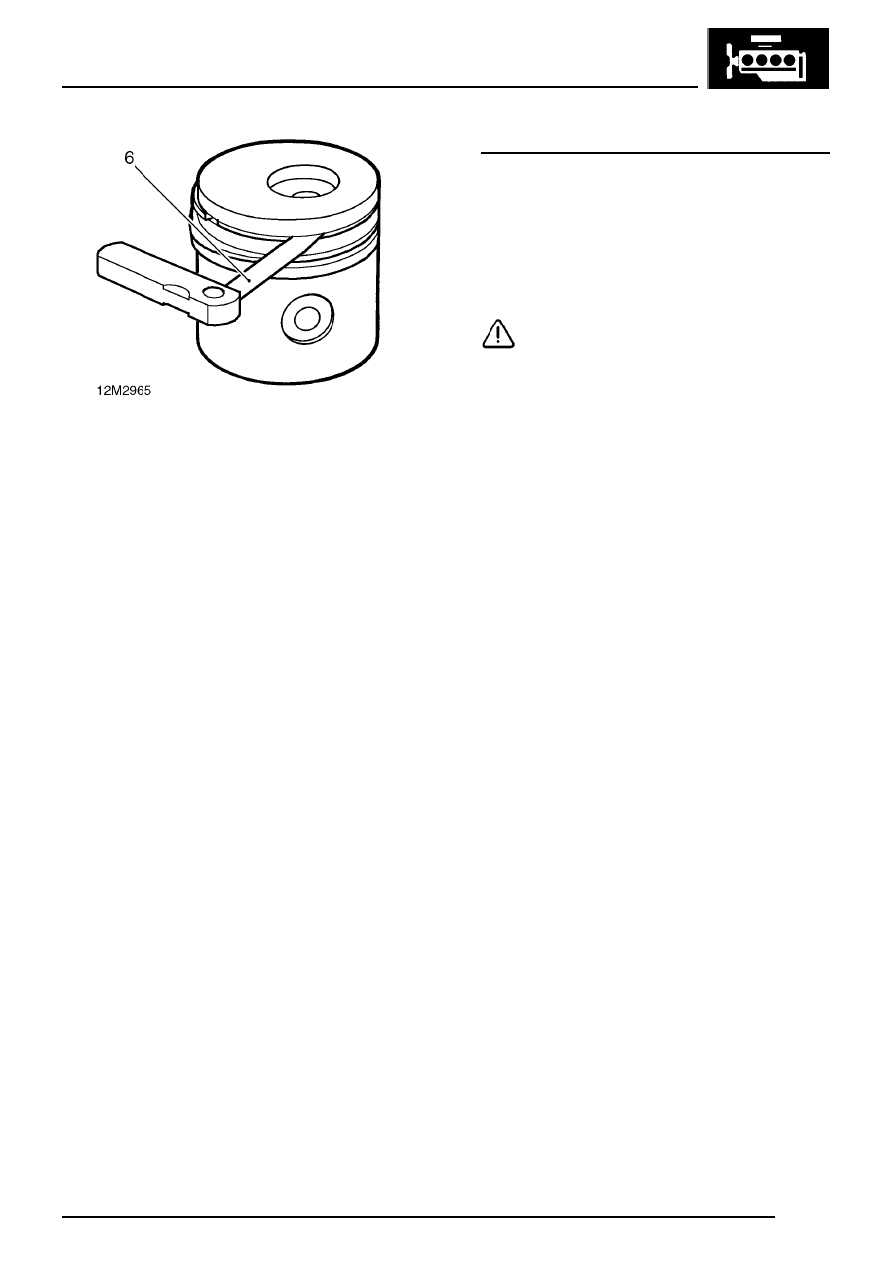

6. Check ring to groove clearances:

Top compression = 0.167 to 0.232 mm
2nd compression = 0.05 to 0.08 mm
Oil control rails = 0.05 to 0.08 mm

7. If new ring to groove clearances are excessive,

new pistons must be fitted.

Oil jet tubes - inspection

1. Check that oil passage in each oil jet tube is

clear.

2. Thoroughly clean banjo bolts.
3. Insert a piece of stiff wire in end of banjo bolt

and check that non-return valve can be
depressed to open position and returns to
closed position under spring pressure.

CAUTION: If non-return valve is not
working correctly, replace banjo bolt.

4. Check sealing washers for damage, replace as

necessary.
