Range Rover Classic. Manual - part 184





86

ELECTRICAL

24

REPAIR

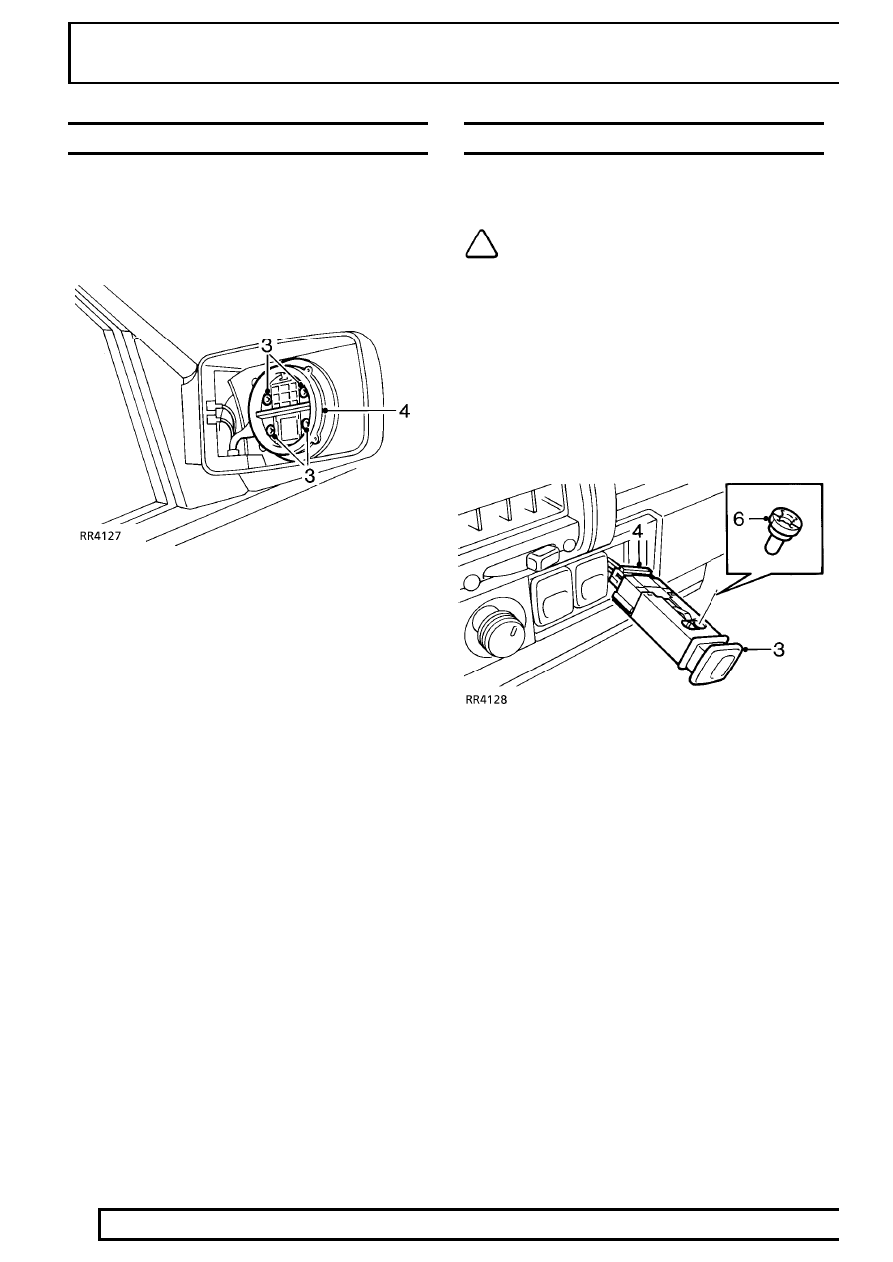

EXTERIOR DRIVING MIRRORS MOTOR

Remove

1. Disconnect battery negative lead.
2. Remove mirror glass.

See CHASSIS AND

BODY, Repair, Exterior Driving mirror

3. Remove 4 screws securing motor.
4. Position motor to obtain access to electrical

connections.

5. Disconnect harness from motor, remove motor.

Refit

6. Position motor, connect harness.
7. Fit and tighten securing screws.
8. Fit mirror glass.

See CHASSIS AND BODY,

Repair, Exterior driving mirroe

9. Reconnect battery negative lead.

CONTROL SWITCHES

Service repair no - 86.65.75 - Switches
Service repair no - 86.45.29 - Bulbs

NOTE: The following operation covers the
exterior driving mirror, rear screen wash,
rear screen wipe and petrol filler flap

switches and bulbs.

Switch replacement

Remove

1. Disconnect battery negative lead.
2. Release turnbuckles, lower driver’s access

panel.

3. Depress lugs retaining appropriate switch, press

switch from panel.

4. Disconnect multiplug from switch, remove

switch.

Bulb replacement

5. Identify bulb to be replaced and remove

appropriate switch.

6. Rotate bulb holder 90 deg. and withdraw it from

switch; discard bulb holder and bulb.

Refit

7. Reverse removal procedure.

ELECTRICAL

25

REPAIR

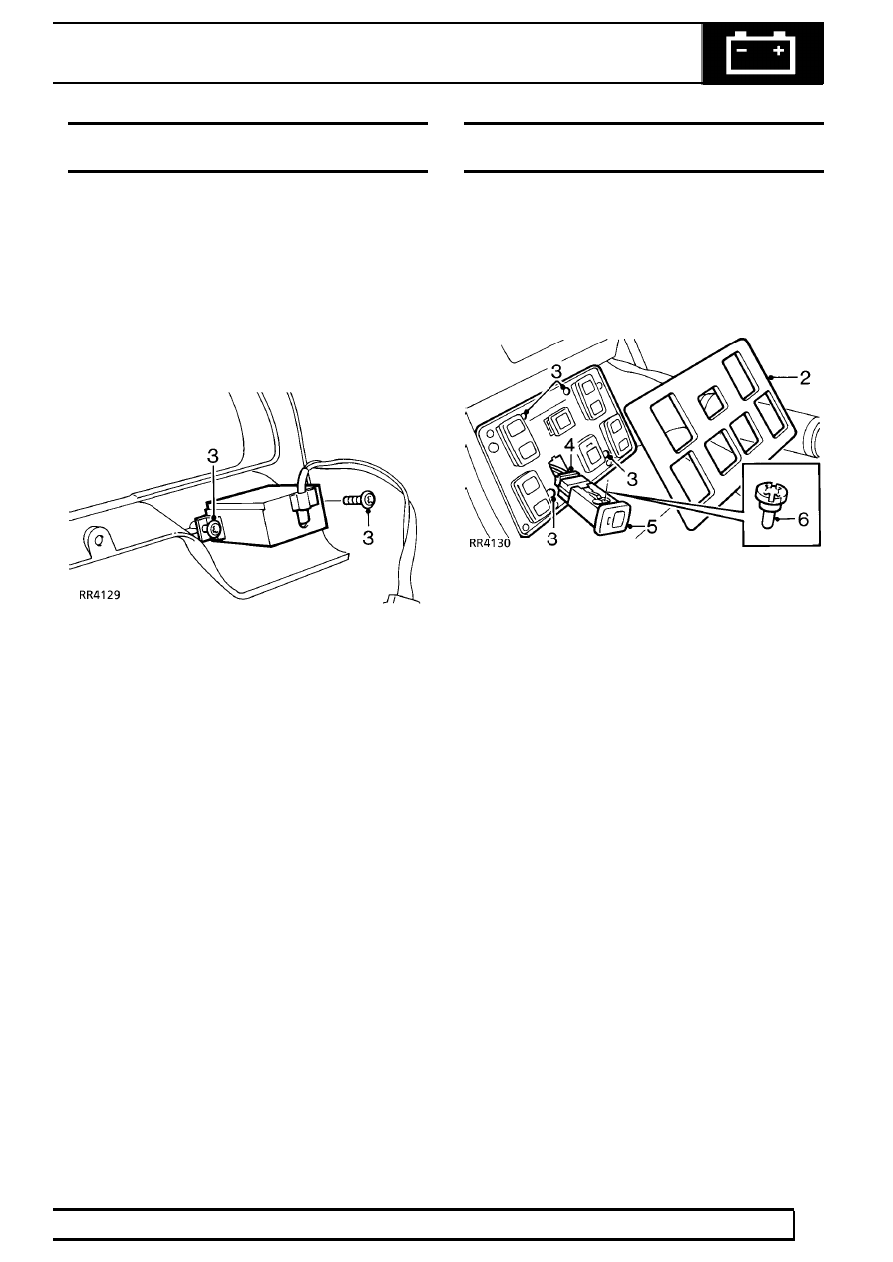

INSTRUMENT ILLUMINATION ELECTRONIC
DIMMER / RHEOSTAT

Service repair no - 86.65.07

Electronic dimming control switch is located in
instrument panel finisher. Rotate control to vary
intensity of illumination.

Remove

1. Disconnect battery negative lead.
2. Remove instrument panel finisher.

See

Instrument Panel Finisher

3. Remove 2 screws securing rheostat, remove

rheostat.

Refit

4. Reverse removal procedure.

WINDOW LIFT/HEATED SEAT CUSHION
SWITCHES AND BULBS

Service repair no - 86.25.16 - Switches
Service repair no - 86.45.29 - Bulb

Switch replacement

Remove

1. Disconnect battery negative lead.

2. Carefully release rear of surround from centre

console.

3. Remove screws, pry window lift switch surround

from glove box.

4. Disconnect multi-plug(s) at rear of switch(es).
5. Apply pressure to rear of switch, push it through

surround.

Bulb replacement

6. Identify bulb to be replaced and remove

appropriate switch.

7. Rotate bulb holder 90˚ and withdraw it from

switch; discard bulb and holder.

Refit

8. Reverse removal procedure.

86

ELECTRICAL

26

REPAIR

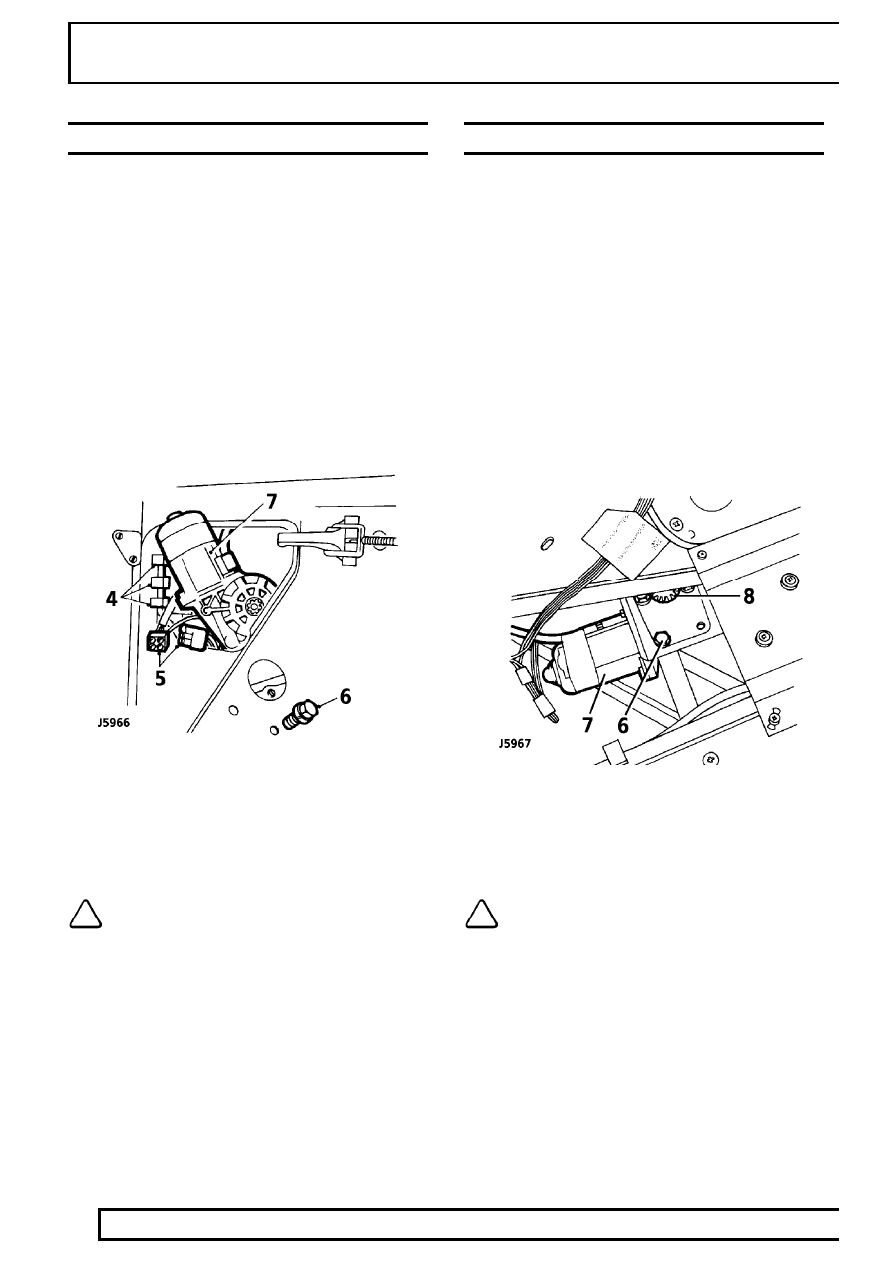

WINDOW LIFT MOTOR - FRONT DOORS

Service repair no - 86.25.04

Remove

1. Ensure that side door glass is fully closed,

secure with adhesive tape.

2. Remove front door trim panel.

See CHASSIS

AND BODY, Repair, Front Door Trim Panel

3. Peel back front top corner of plastic vapour

barrier to reveal window lift motor.

4. Release window lift motor wiring harness from

three retaining clips to allow harness to be pulled
out of opening at front of inner door panel.

5. Disconnect window lift motor multi-plug from

main door harness.

6. Support motor, remove three securing bolts.
7. Remove motor through top front opening of door.

Refit

8. Reverse removal procedure. 1 to 7.

NOTE: Ensure that drive gear is engaged
and correctly aligned with window lift
linkage before fitting securing bolts.

WINDOW LIFT MOTOR - REAR DOORS

Service repair no - 86.25.09

Remove

1. Ensure that side door glass is fully closed,

secure with adhesive tape.

2. Remove rear door trim panel.

See CHASSIS

AND BODY, Repair, Rear Door Trim Panel

3. Carefully detach bottom half of vapour barrier to

reveal window lift motor.

4. Release motor wiring harness from retaining

clips.

5. Disconnect lift motor harness snap connections

from main door harness.

6. Support motor, release three securing bolts.
7. Remove lift motor from lower opening in inner

door panel.

Refit

8. Reverse removal procedure. 1 to 7.

NOTE: Ensure that drive gear is engaged
and correctly aligned with window lift
linkage before fitting securing bolts.

ELECTRICAL

27

REPAIR

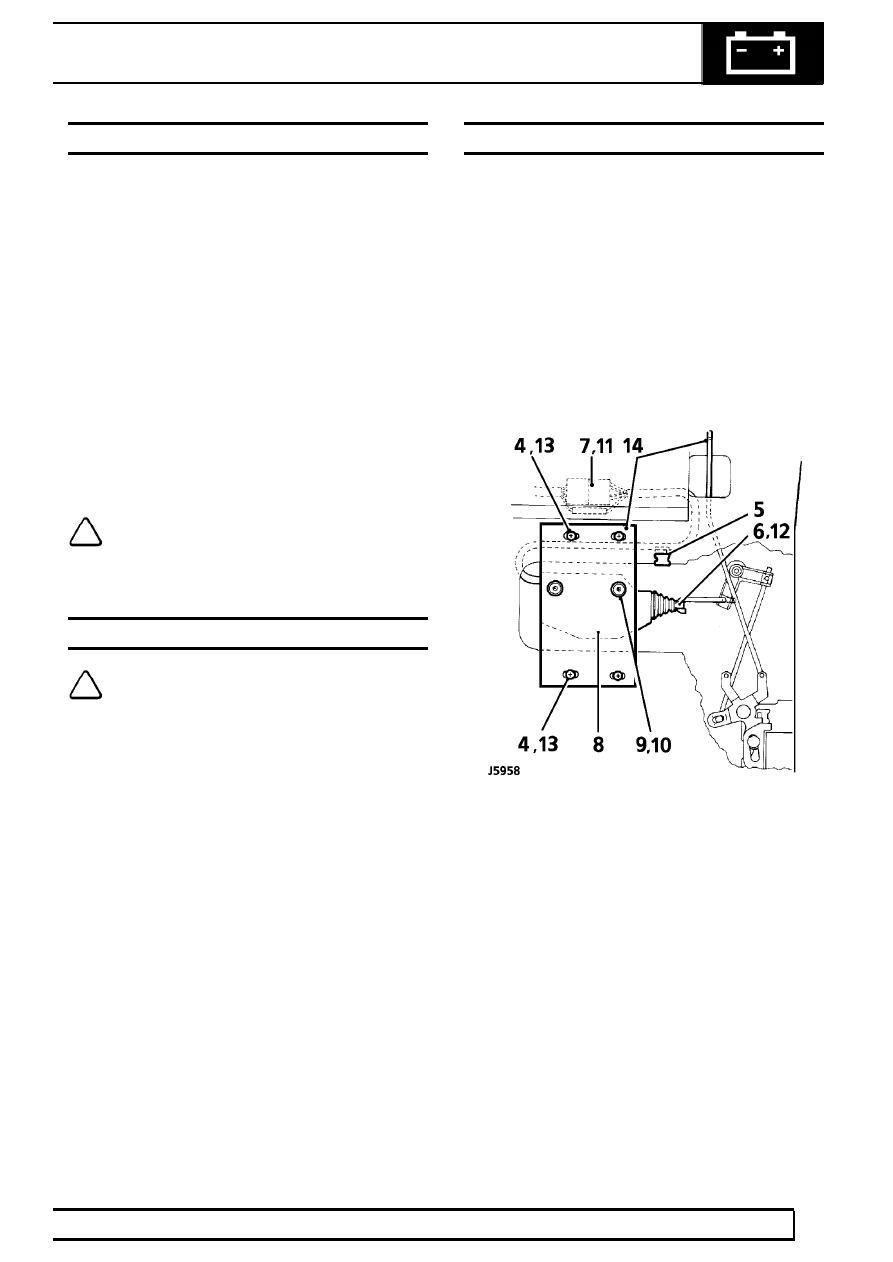

CENTRAL DOOR LOCKING

The central door locking system on four door models
is activated from both driver and front passenger
doors. A switch/lock actuator is fitted in both front
doors.

Front and rear passenger doors can be independently
locked or unlocked from inside vehicle but can be
overridden by further operation of driver’s door locking
control.

On rear doors only, a child safety lock is provided
which can be mechanically pre-set to render interior
door handles inoperative.

Failure of an actuator will not affect locking of
remaining three doors, tailgate or fuel filler flap. A door
with inoperative actuator can still be locked or
unlocked manually, but not fuel filler flap.

NOTE: Actuator units contain
non-serviceable parts. If a fault occurs, fit
a new unit.

HANDSET INITIALISATION

NOTE: New handsets are supplied in pairs.
If a new handset is required, it will require
initialisation to the ECU using the

following procedure:

1. Starting conditions: ignition off, doors unlocked,

bonnet switch depressed.

2. Carry out instructions 3 to 9. within 8 seconds.
3. Switch ignition ON.
4. Switch ignition OFF.
5. Lock doors.
6. Unlock doors.
7. Release bonnet switch.
8. Switch ignition ON.
9. Switch ignition OFF.

If alarm is correctly accessed, horn will sound and
LED will light. It is now possible to programme two
handsets of correct frequency to vehicle alarm ECU.
This must be carried out within two minutes.

10. Press and hold down button on first handset until

dash LED flashes.

11. Repeat instruction 10 for second handset.
12. The LED will extinguish if both handsets have

been initialised correctly.

FRONT DOOR ACTUATOR UNIT

Service repair no - 86.26.08

Remove

1. Ensure window is in its fully closed position.
2. Remove front door trim panel.

See CHASSIS

AND BODY, Repair, Front Door Trim Panel

3. Peel back plastic vapour barrier to expose

actuator unit.

4. Remove four screws and plain washers securing

lock actuator mounting plate to inner door panel.

5. Release cable tie, at trailing edge of door,

retaining electrical cable.

6. Manoeuvre actuator assembly from actuator link.

7. Withdraw actuator assembly, disconnect

multi-plug.

8. Remove actuator assembly.
9. Remove actuator unit by loosening two screws

securing it to mounting plate.
