Range Rover Classic. Manual - part 171





82

AIR CONDITIONING

4

REPAIR

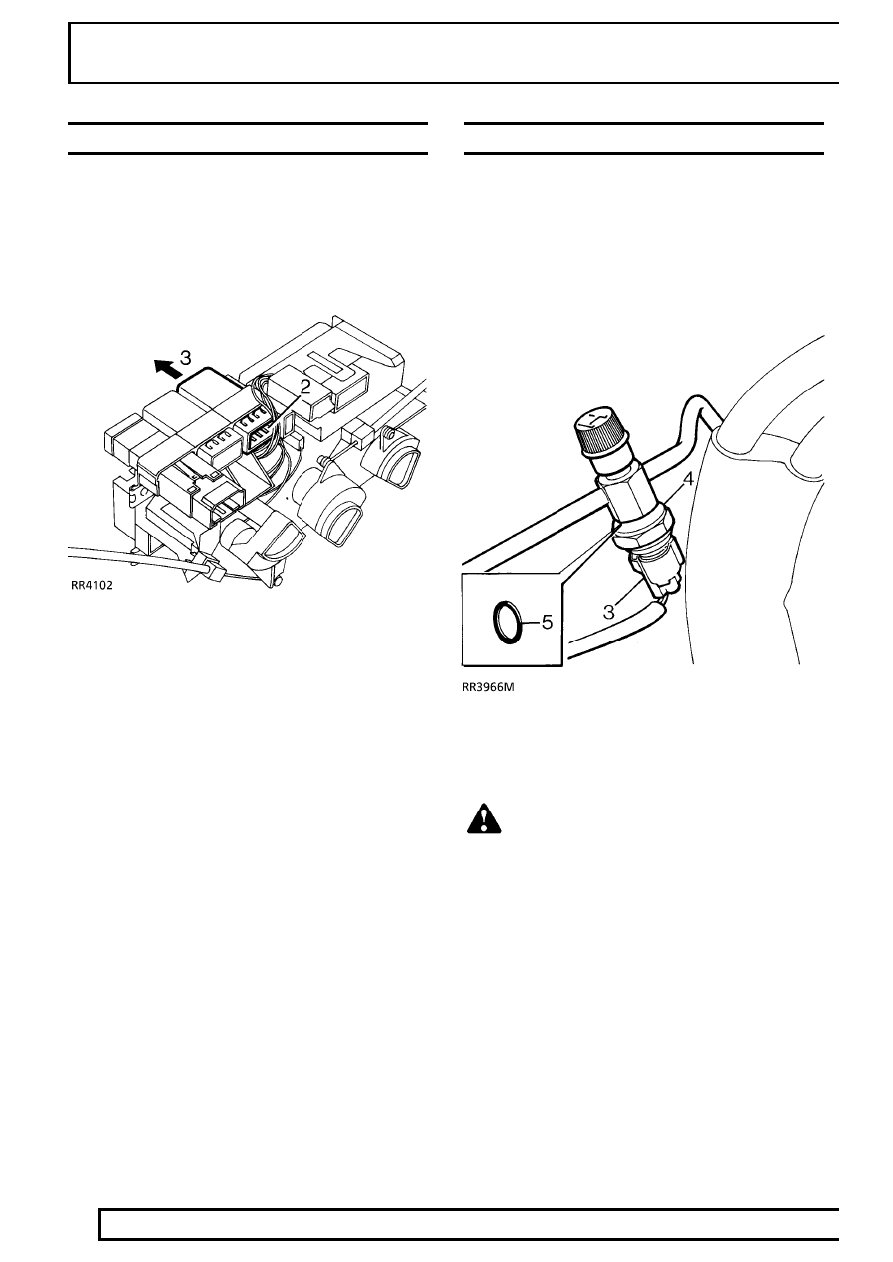

AIR CONDITIONING SWITCH

Service repair no - 82.20.29

Remove

1. Remove fascia centre louvre vent panel.

See

CHASSIS AND BODY, Repair, Dash Panel
Central Louvre Panel

2. Disconnect multiplug from switch
3. From the rear, push switch out of panel.

Refit

4. Reverse removal procedure.

DUAL PRESSURE SWITCH

Service repair no - 82.20.20

Remove

1. Disconnect battery negative lead.
2. Recover refrigerant from system.

See

Adjustment, Refrigerant Recovery Recycling
Recharging

3. Disconnect multiplug from switch.
4. Unscrew switch from adapter. Use a second

spanner to support adapter.

WARNING: Wear eye and hand protection
when disconnecting components
containing refrigerant. Plug all exposed

connections immediately.

5. Remove ’O’ ring from switch.

Refit

6. Reverse removal procedure. Lubricate new ’O’

ring with refrigerant oil and fit to switch.

7. Screw switch into adapter and tighten to

11 Nm.

8. Evacuate and recharge air conditioning system.

See Adjustment, Refrigerant Recovery
Recycling Recharging

AIR CONDITIONING

5

REPAIR

COMPRESSOR

Service repair no - 82.10.20

Remove

1. Disconnect battery negative lead.
2. Recover refrigerant from air conditioning system.

See Adjustment, Refrigerant Recovery
Recycling Recharging

3. Remove screws retaining centre panel to fan

cowl

4. Remove centre panel.

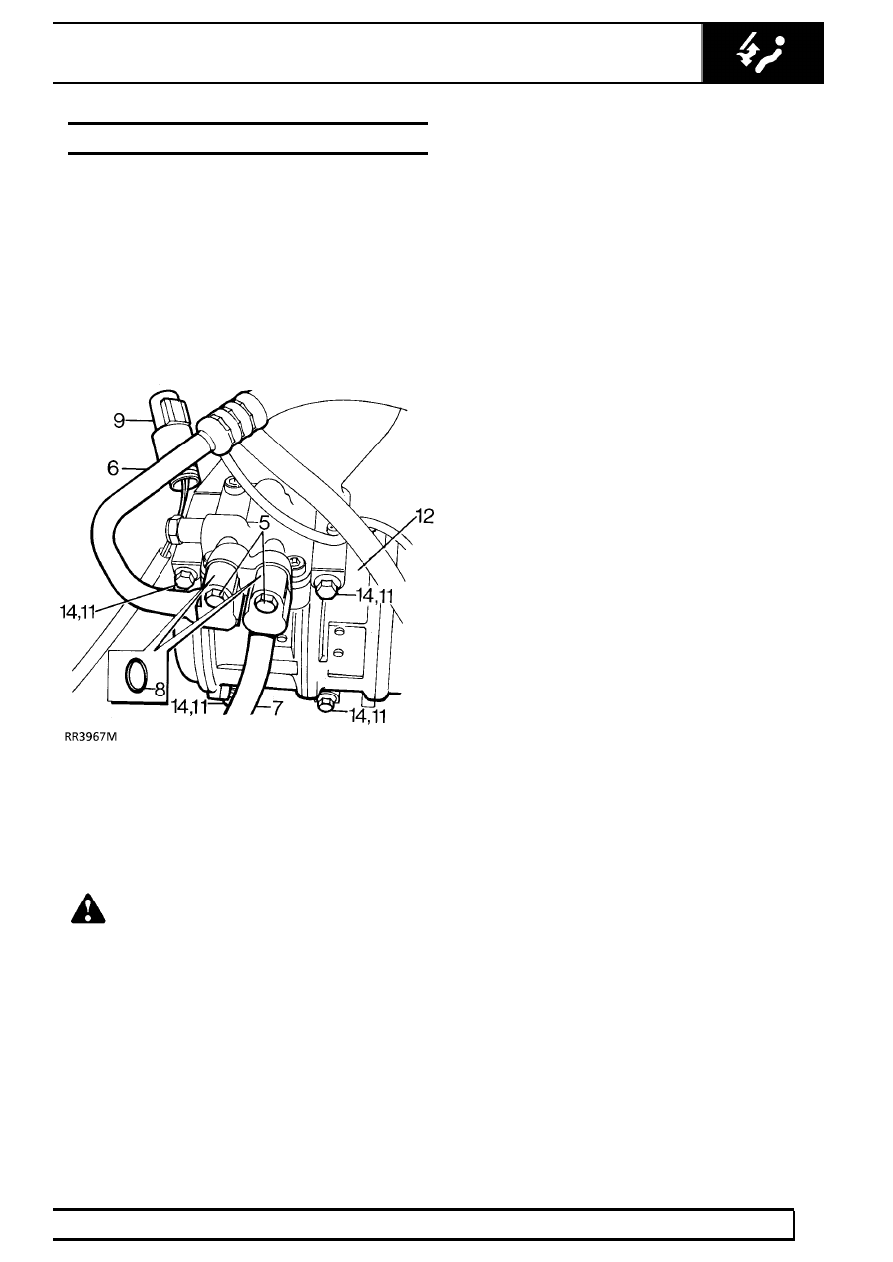

V8i Engine Illustrated

5. Remove 2 bolts securing hose flanges to

compressor.

WARNING: Wear eye and hand protection
when disconnecting components
containing refrigerant. Plug all exposed

connections immediately.

6. Disconnect high pressure hose from

compressor.

7. Disconnect low pressure hose from compressor.
8. Remove ’O’ ring from each flange.
9. Disconnect electrical lead from compressor

clutch.

10. Release drive belt from compressor pulley.

See

ENGINE, Repair, Drive Belt

11. Remove 4 bolts securing compressor to

mounting bracket.

12. Remove compressor from mounting bracket.

Refit

13. New compressor to be fitted: Drain oil from new

compressor outlet port. Drain and measure oil
from old compressor. Measure new oil equal to
amount drained from old compressor, add 30 ml
extra to this amount and refill new compressor
through outlet port.

14. Locate compressor in mounting bracket, fit bolts.

Tighten to

25 Nm.

15. Connect electrical lead to compressor clutch.
16. Fit new ’O’ rings to high and low pressure hose

flanges, lubricate with refrigerant oil.

17. Engage hose flanges, fit bolts. Tighten to

10

Nm.

18. Fit compressor drive belt.

See ENGINE, Repair,

Drive Belt

19. Fit centre panel to fan cowl.
20. Evacuate and recharge air conditioning system.

See Adjustment, Refrigerant Recovery
Recycling Recharging

21. Perform a leak test on disturbed joints.
22. Carry out a functional check.

82

AIR CONDITIONING

6

REPAIR

CONDENSER

Service repair no - 82.15.07

Remove

1. Disconnect battery negative lead.

WARNING: Wear eye and hand protection
when disconnecting components
containing refrigerant. Plug all exposed

connections immediately.

2. Recover refrigerant from system.

See

Adjustment, Refrigerant Recovery Recycling
Recharging

3. Remove front grille panel.
4. Remove battery.

See ELECTRICAL, Repair,

Battery

5. Remove radiator and oil coolers assembly.

See

COOLING SYSTEM, Repair, Radiator/Oil
Coolers

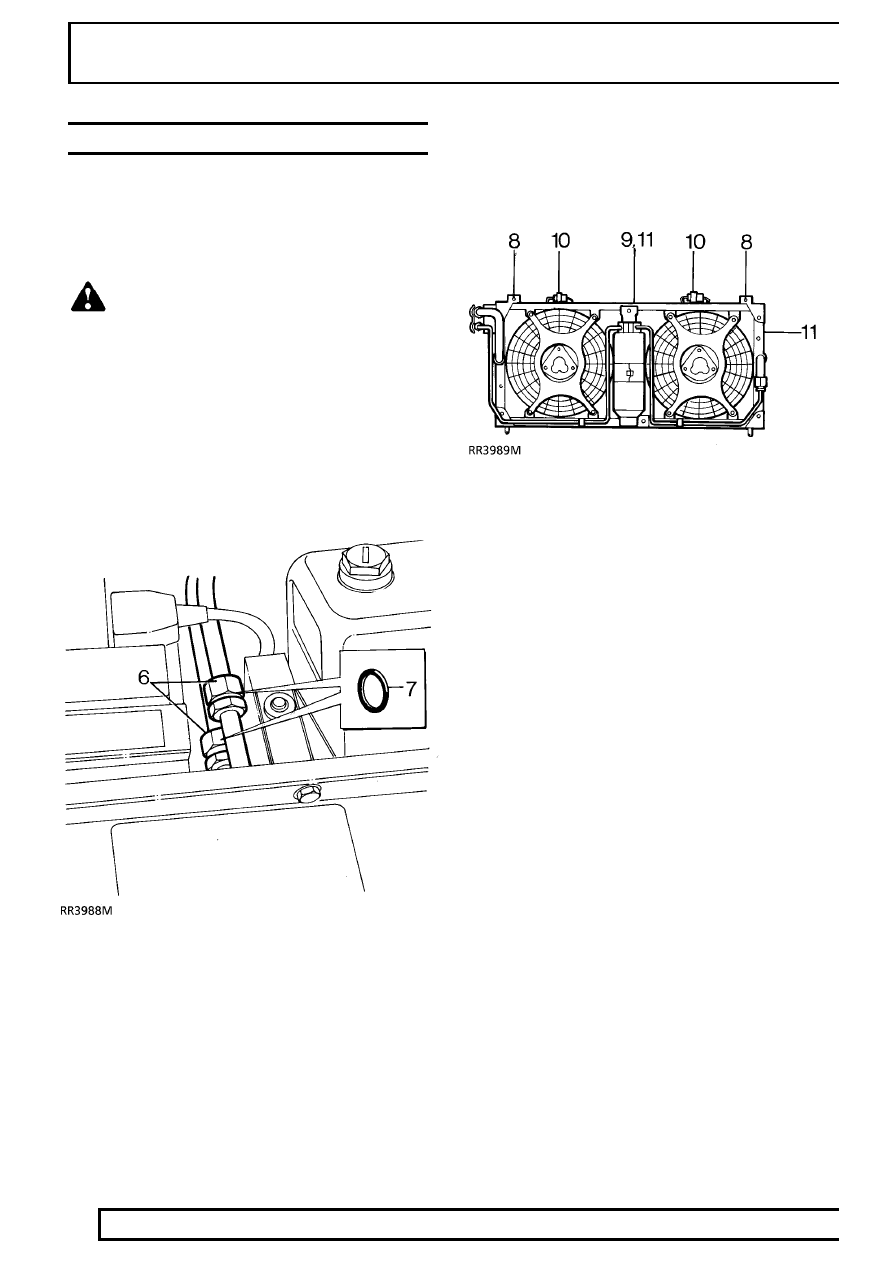

6. Disconnect high and low pressure pipes at

condenser unions.

7. Discard ’O’ ring seal from each union.

8. Remove 2 bolts securing condenser to body.
9. Pull condenser into radiator area.

10. Disconnect multiplug from each fan lead.
11. Remove condenser assembly.

Do not carry out

further dismantling if component is removed
for access only.
Blank off inlet and outlet ports.

AIR CONDITIONING

7

REPAIR

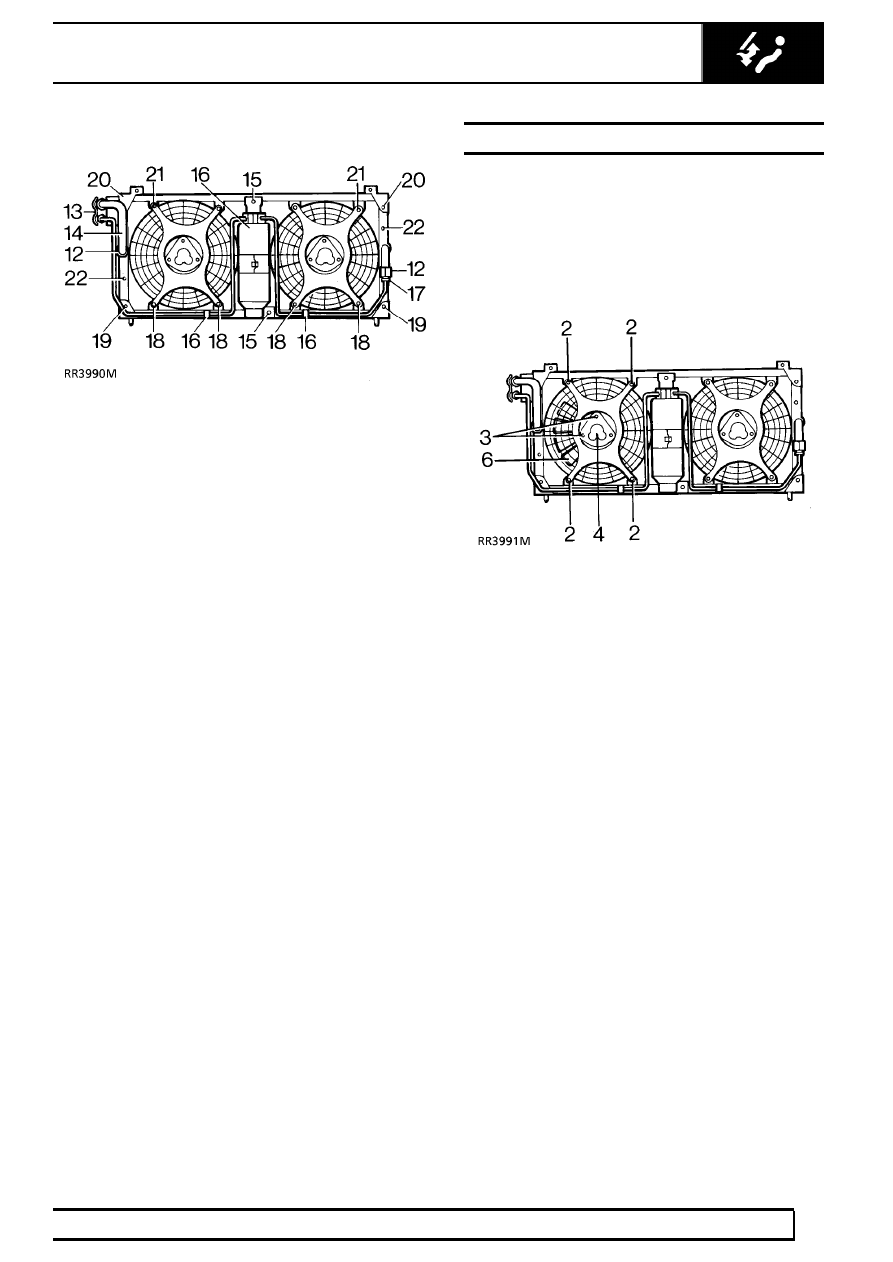

12. Disconnect receiver/drier pipes at condenser

unions.

13. Remove retaining bracket from side pipe.
14. Remove LH pipe from condenser and discard ’O’

ring.

15. Remove 2 screws securing receiver/drier

bracket.

16. Release pipes from lower clips and remove

receiver/drier assembly.

17. Remove ’O’ ring from RH pipe.
18. Remove 2 screws securing lower end of each

fan motor.

19. Remove 2 bolts and remove condenser lower

mounting bracket.

20. Remove 2 bolts and securing condenser upper

mounting bracket.

21. Remove upper mounting bracket and fan motor

assembly.

22. Remove 2 screws securing each side mounting

bracket and remove the brackets.

23. Transfer parts removed to new condenser.
24. Add 40 ml of refrigerant oil to new compressor to

compensate for oil loss.

Refit

25. Reverse removal procedure. 3 to 11.
26. Evacuate and recharge air conditioning system.

See Adjustment, Refrigerant Recovery
Recycling Recharging

27. Carry out leak test on disturbed joints.

See

Adjustment, Leak Test System

28. Check air conditioning operation by carrying out

a System Test.

See Adjustment, System Test

CONDENSER FANS AND MOTORS

Service repair no - 82.15.01 - Motor
Service repair no - 82.15.03 - Fan

Remove

1. Remove condenser assembly.

See Condenser

2. Remove 4 bolts securing fan cowl to condenser.
3. Remove 3 bolts securing fan motor to cowl.
4. Remove fan motor assembly.
5. Remove 3 screws securing fan blades to motor.
6. Remove fan blades.

Refit

7. Reverse removal procedure. Ensuring that wiring

is clipped and no fouling of fan blade can occur.
