Range Rover Classic. Manual - part 165





HEATING AND VENTILATION

3

REPAIR

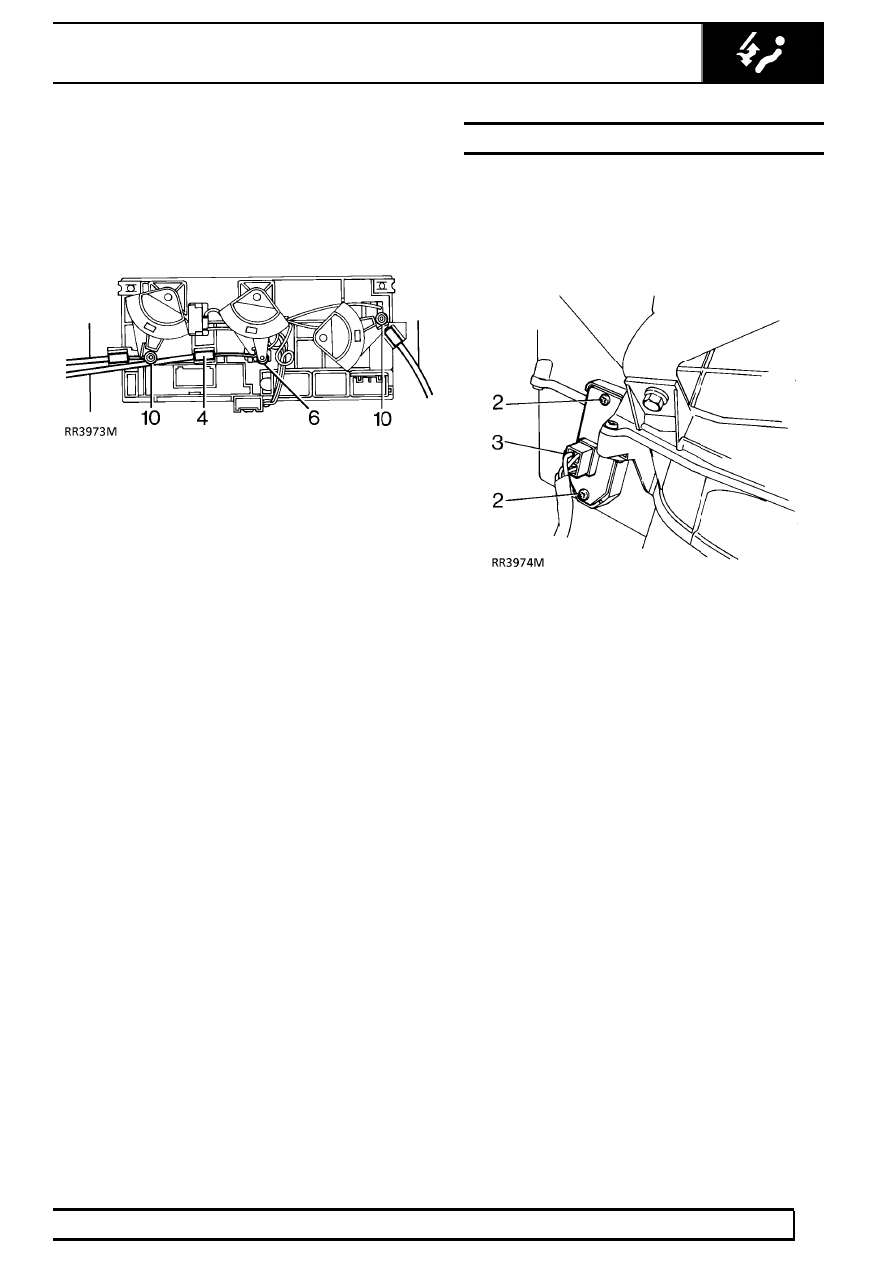

Air direction

3. Set control fully clockwise
4. Release outer cable from 2 clips on unit.
5. Release cable from stud on flap lever.
6. Remove control cable from control lever.

Temperature

7. Set RH control fully clockwise, LH control fully

anti-clockwise

8. Release outer cable from 2 clips on unit.
9. Release cable from stud on flap lever.

10. Remove control cable from control lever.

Refit

11. Reverse removal procedure. Check the

satisfactory function of the controls before fitting
louvre vent panel.

RESISTOR UNIT

Service repair no - 80.20.17

Remove

1. Open glove box, manoeuvre side springs

through cut-outs and lower lid.

2. Remove 2 screws securing resistor unit to

trunking.

3. Disconnect multiplug and remove resistor unit.

Refit

4. Reverse removal procedure.

80

HEATING AND VENTILATION

4

REPAIR

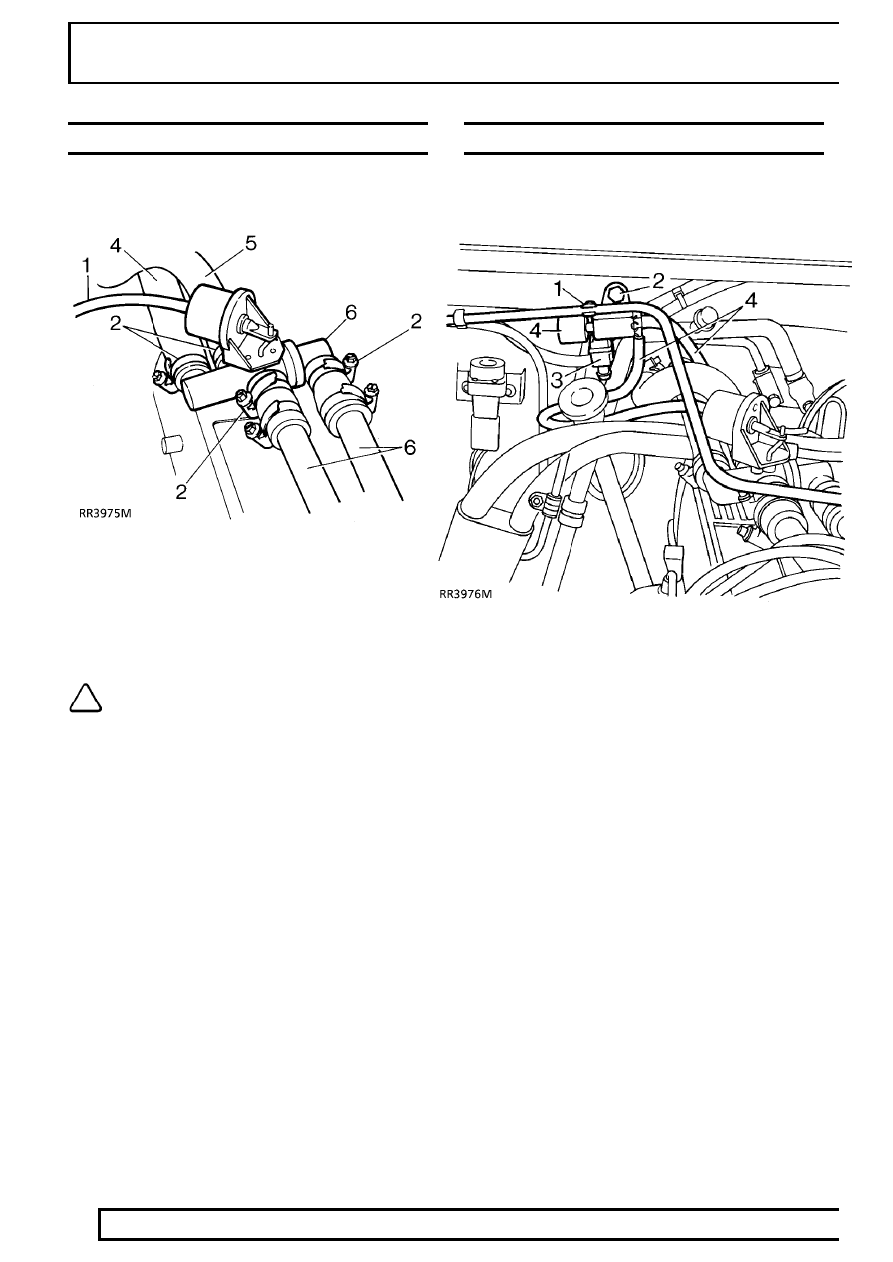

WATER VALVE

Service repair no - 80.10.16

Remove

1. Disconnect vacuum pipe from water valve.
2. Slacken 4 clips securing hoses to water valve.
3. Use a thin blade to break seal between hoses

and nozzles

4. Disconnect heater inlet hose from valve.

NOTE: A quantity of coolant will be
released.

5. Disconnect heater outlet hose from valve.
6. Lever valve from coolant pipe hoses.

Refit

7. Reverse removal procedure. Lightly lubricate

water valve nozzles with petroleum jelly.

8. Reverse removal procedure. Top-up engine

coolant

VACUUM SWITCH - WATER VALVE

Service repair no - 80.10.36

Remove

1. Release emission pipe from retaining clip.
2. Remove bolt securing switch to bulkhead.
3. Disconnect multiplug from switch.
4. Disconnect 2 vacuum pipes and remove vacuum

switch.

Refit

5. Reverse removal procedure.

HEATING AND VENTILATION

5

REPAIR

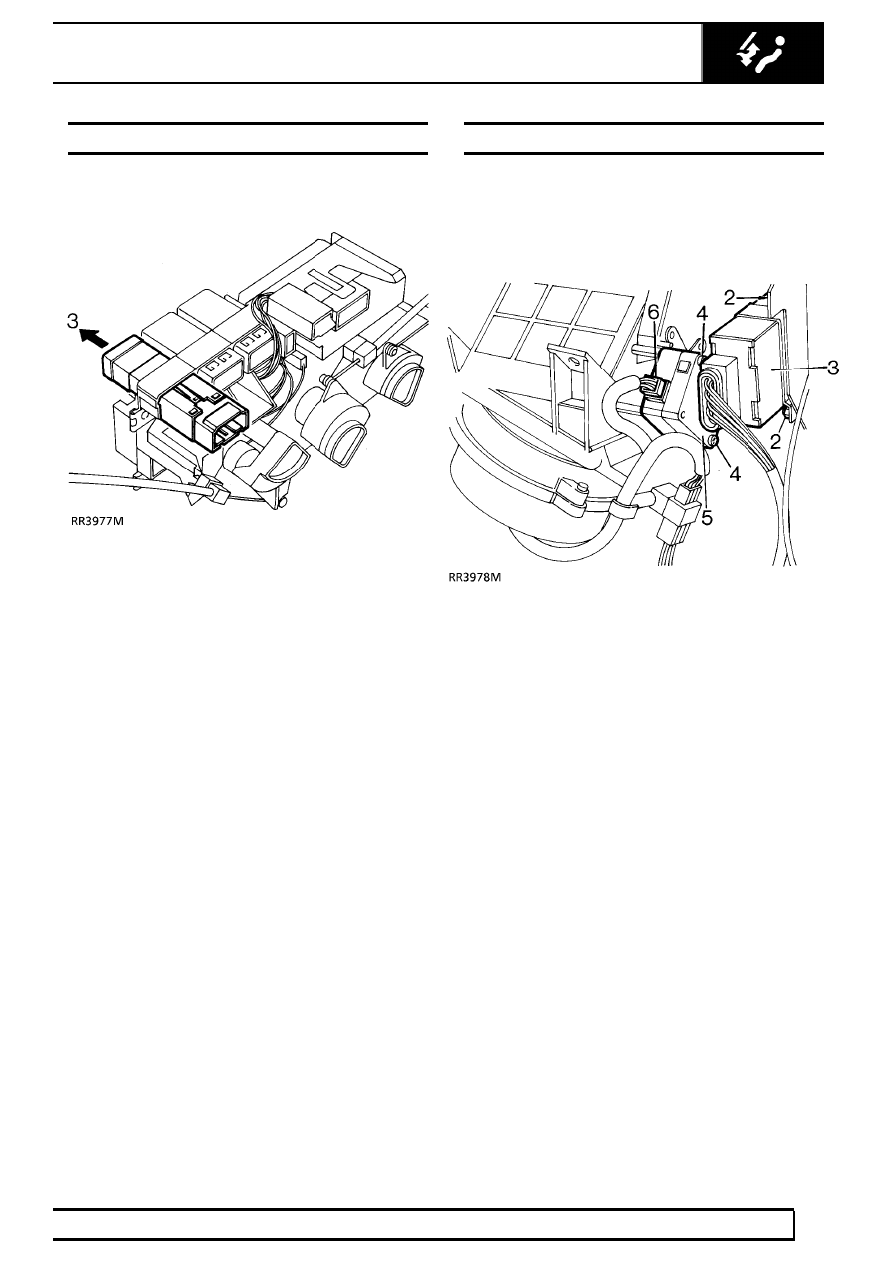

RECIRCULATION SWITCH

Service repair no - 80.10.27

Remove

1. Release fascia centre louvre vent panel from its

fitted position to gain access to rear of panel.
See CHASSIS AND BODY, Repair, Dash
Panel Central Louvre Panel

2. Disconnect multiplug from switch
3. From the rear, push switch out of panel.

Refit

4. Reverse removal procedure.

RECIRCULATION FLAP SOLENOID

Service repair no - 80.10.43

Remove

1. Open glove box, manoeuvre side springs

through cut-outs and lower lid.

2. Remove 2 locknuts securing cruise control ECU

to bracket.

3. Position cruise control ECU aside.
4. Remove 2 screws securing recirculation

solenoid to casing.

5. Release solenoid from lever.
6. Disconnect multiplug and remove solenoid.

Refit

7. Reverse removal procedure.

80

HEATING AND VENTILATION

6

REPAIR

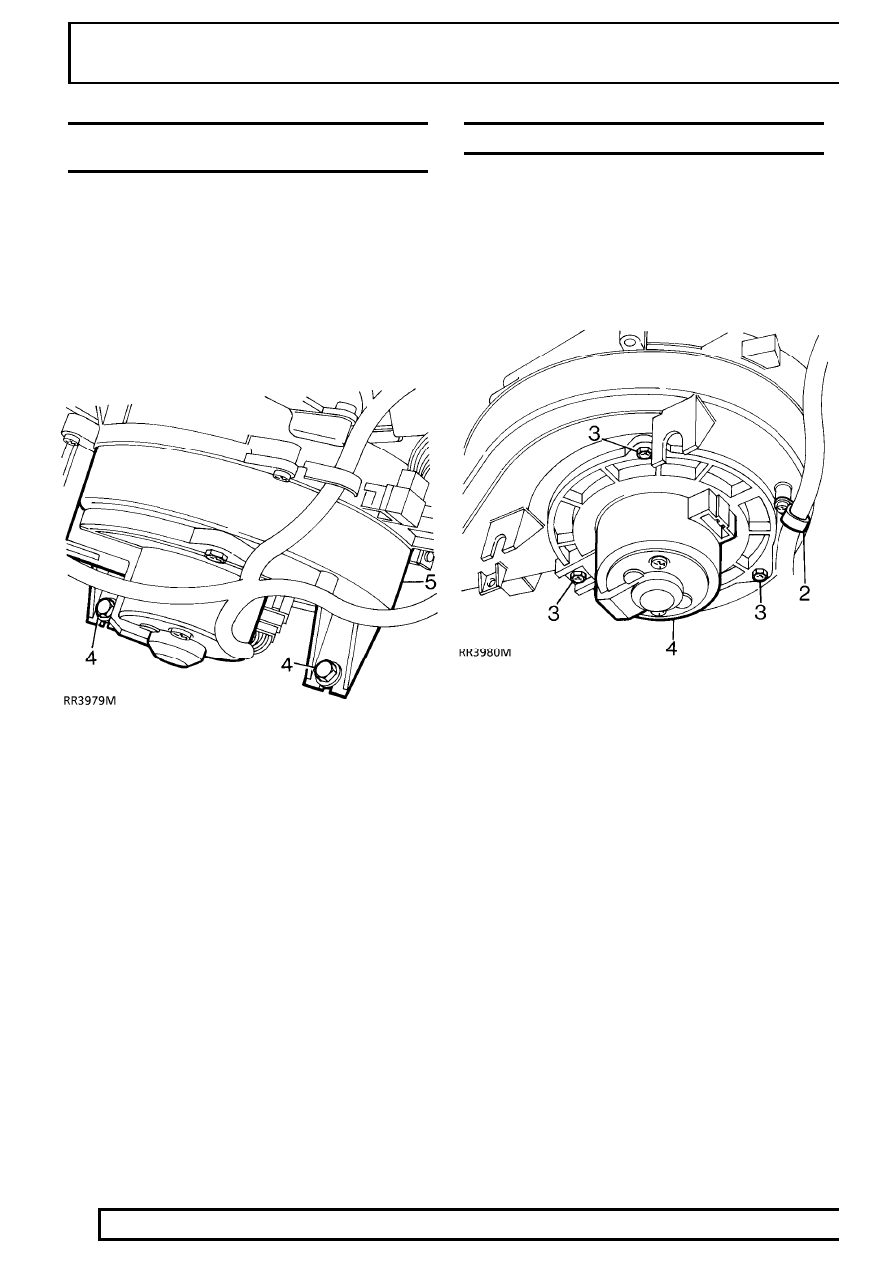

BLOWER MOTOR UNIT - HEATER AND AIR
CONDITIONING

Service repair no - 80.20.17
Service repair no - 82.25.54.

Remove

1. Move seats to rear most position.
2. Disconnect battery negative lead.
3. Remove fascia panel assembly.

See CHASSIS

AND BODY, Repair, Dash Panel Assembly

4. Remove 2 nuts securing lower brackets to

toeboard.

5. Manoeuvre blower unit from heater unit and

remove.

Refit

6. Reverse removal procedure. Ensure seal

between blower and heater unit is tight.

BLOWER MOTOR

Service repair no - 80.20.17
Service repair no - 82.25.33.

Remove

1. Remove blower motor unit.

See Blower Motor

Unit - Heater and Air Conditioning

2. Release wiring harness retaining clip.
3. Remove 3 screws securing casing.
4. Remove blower motor assembly.
