Range Rover Classic. Manual - part 152





CHASSIS AND BODY

31

REPAIR

REAR DOOR LOCK AND HANDLE ASSEMBLY

Service repair no - 76.37.48

Outside door release handle to lock

1. Disconnect connecting rod at rear of door outer

release handle.

2. Rotate rod to adjust operating length as

required, so that door release occurs before
maximum handle movement.

REAR DOOR GLASS AND REGULATOR

Service repair no - 76.31.02 / 76.31.46

Remove

1. Fully close window and secure with tape.
2. Disconnect battery negative lead.
3. Remove trim panel.

See Rear Door - Trim

Panel

4. Remove sill button.
5. Remove plastic vapour barrier.
6. Remove window lift motor.

See ELECTRICAL,

Repair, Window Lift Motor - Rear Doors

7. Remove four window regulator screws with

shakeproof washers.

8. Disengage lifting arm stud from channel and

remove window regulator.

76

CHASSIS AND BODY

32

REPAIR

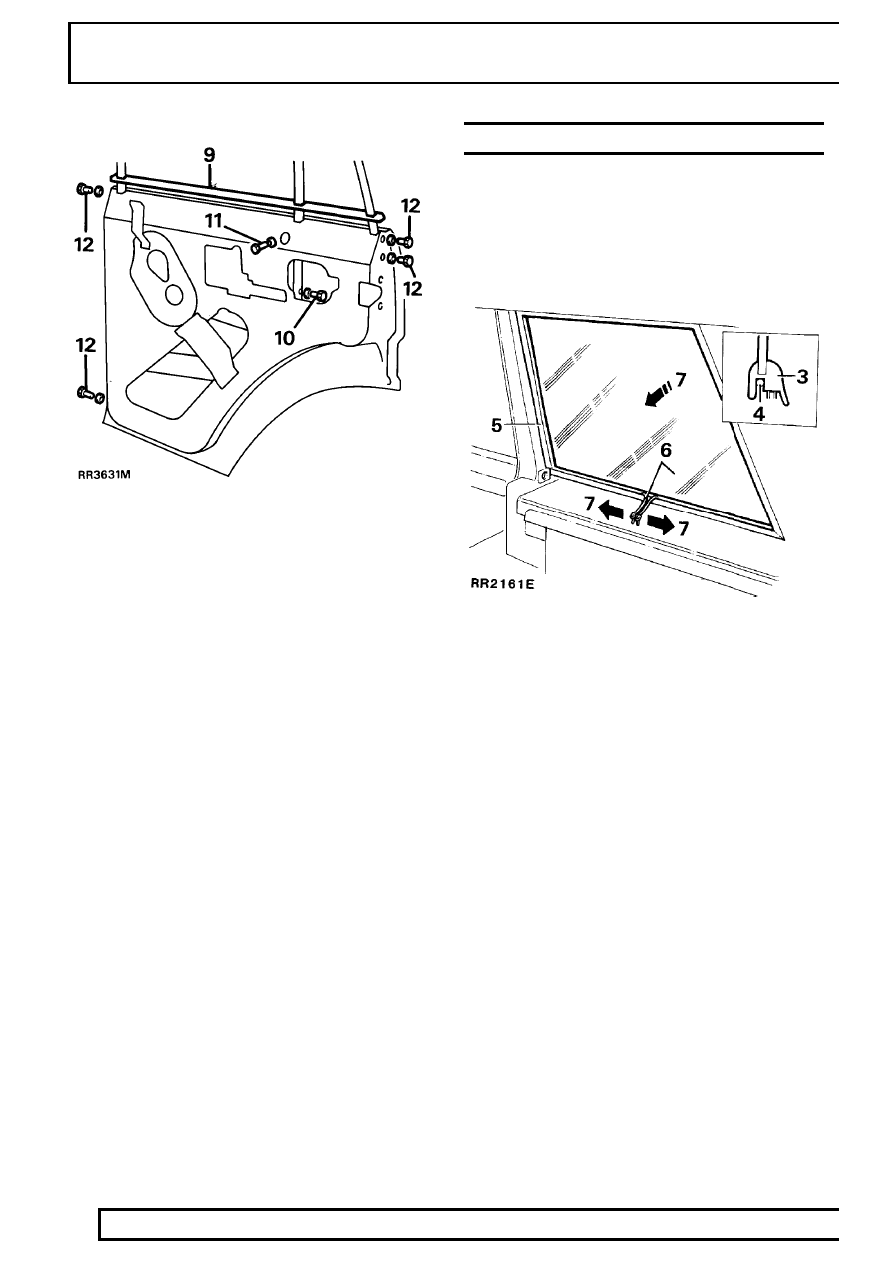

9. Remove waist rail seal from top of door panel.

10. Remove bolt, spring and plain washers which

secures bottom of door frame.

11. Remove bolt, spring and plain washer from door

frame, as shown.

12. Remove two bolts, spring and plain washers

from both door faces.

13. Remove door frame with glass in position.
14. Remove tape and slide glass out of door frame.

Refit

15. Reverse removal procedure. When fitting door

frame align to suit door opening. Then tighten
door frame securing bolts.

REAR QUARTER LIGHT GLASS

Service repair no - 76.81.25

Remove

1. Remove and discard moulding from flange

around opening.

2. Clean area where moulding contacts body.

Refit

3. Fit new moulding to glass.
4. Fit a draw cord around moulding retaining

channel.

5. Coat flange around opening with liquid soap to

aid assembly.

6. Hold glass and moulding to opening. Site draw

cords inside vehicle.

7. With assistance push glass and moulding into

opening. Pull draw cords enabling seal to ride
over flange.

8. Ensure interior trim fits under moulding.
9. Ensure moulding is settled and contacts body.

CHASSIS AND BODY

33

REPAIR

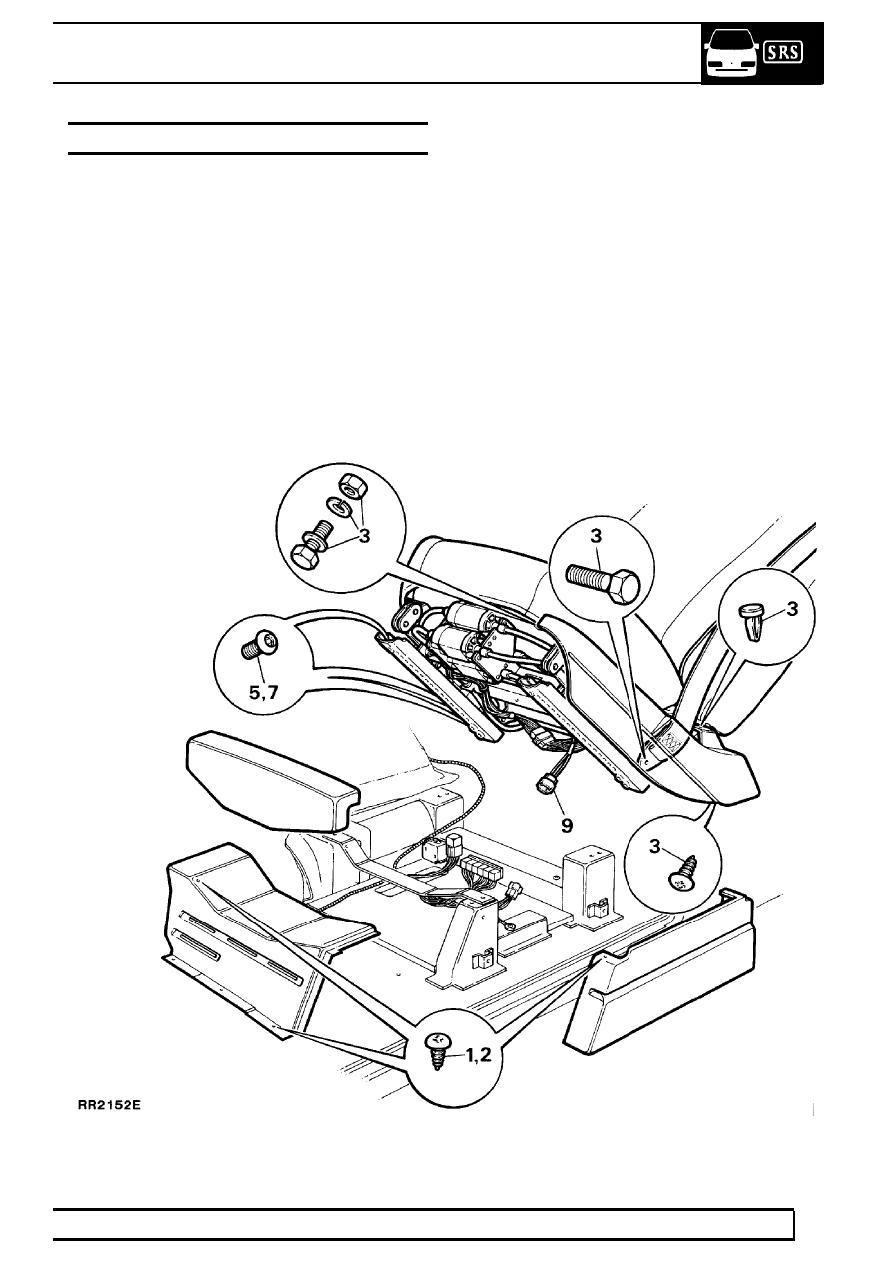

FRONT SEAT ELECTRICAL

Service repair no - 76.77.01

Remove

1. Remove screw securing seat side trim panel and

remove panel.

2. Remove three screws from seat front trim panel.

Remove screw from top of trim panel to seat
base, located below seat base cushion. Remove
panel.

3. Remove three fixings securing cushion side trim

panel. Remove panel. Remove bolt securing
seat belt.

4. Move seat to rearward position. If seat will not

move.

See ELECTRICAL, Repair, Electrical

Seat Failure

5. Remove two screws at front of each slide

channel.

6. Move seat to most forward position.
7. Remove four screws at rear of each slide

channel.

8. Disconnect battery negative lead.
9. Disconnect all electrical multiplugs to seat

electrics.

10. Remove seat.

Refit

11. Reverse removal procedure. Arrange electrical

leads so they can not become trapped by seat
slide mechanism.

76

CHASSIS AND BODY

34

REPAIR

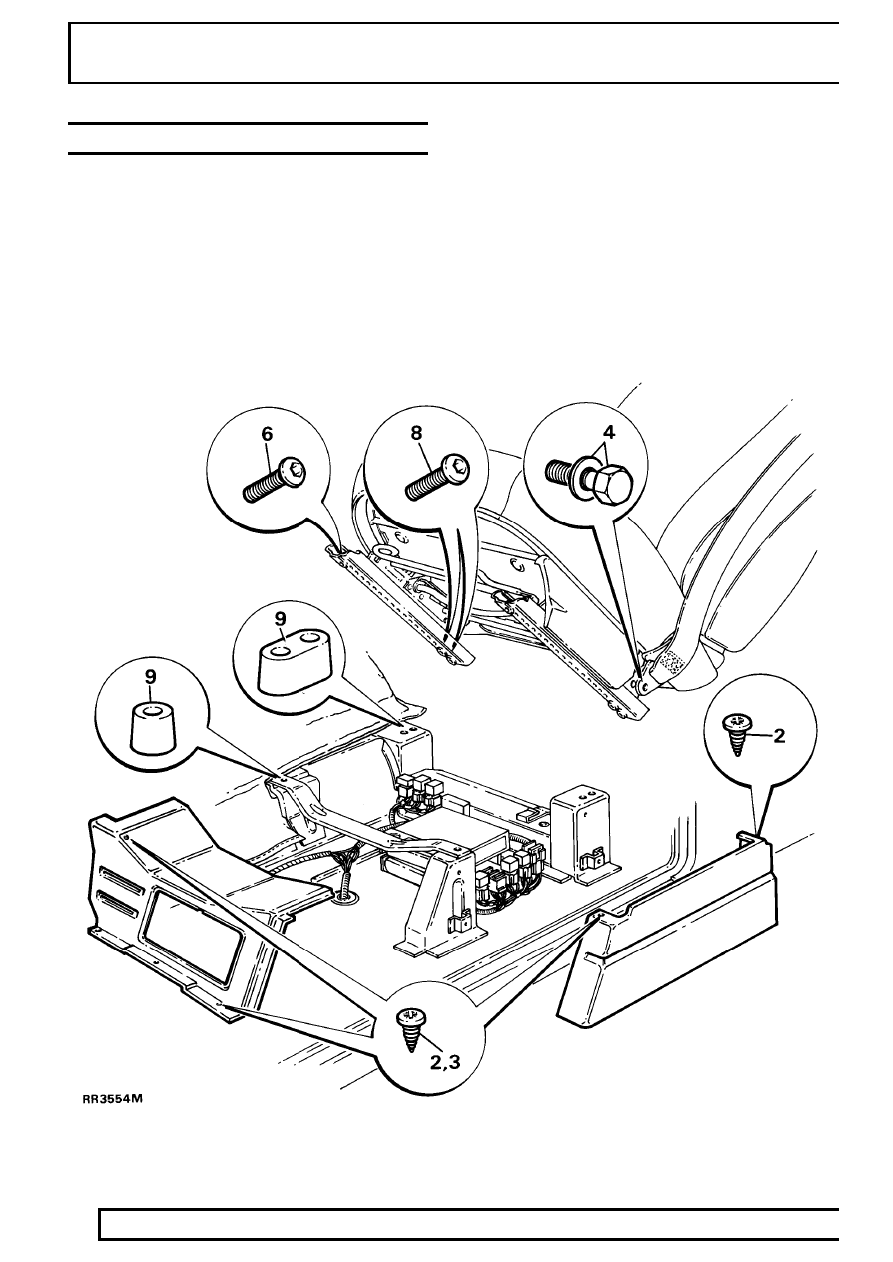

FRONT SEAT MANUAL

Service repair no - 76.70.01

Remove

1. Disconnect battery negative lead.
2. Remove two screws securing side panel and

remove panel.

3. Remove three screws from front trim panel.

Remove screw from top of trim panel to seat
base. Remove panel.

4. Remove bolt and washer securing seat belt.
5. Move seat to rearward position.
6. Remove two screws at front of each slide

channel.

7. Move seat to most forward position.
8. Remove four screws at rear of each slide

channel.

9. Remove seat, retaining spacers between slide

channel and seat base.

Refit

10. Reverse removal procedure.
