Range Rover Classic. Manual - part 131





ABS

3

FAULT DIAGNOSIS

ABS FAULT AND REMEDY CHART

SYMPTOM

POSSIBLE CAUSE

CHECK

REMEDY

ABS warning light on

ABS electrical fault

Check ABS electrical
circuit to identify fault

Change component if

necessary

High sensor air gaps

Push in sensors

Both warning lights ON.

Pedal travel and pedal

force increased

No booster pressure (fluid

loss)

Check reservoir fluid level

and inspect system for

leaks

Rectify as necessary and

refill reservoir

No booster pressure

(pump not operating)

Check electrical supply to

pump

Rectify electrical supply if

necessary

Pump faulty

Change hydraulic pump

Both warning lights ON

(no additional symptoms)

Malfunction of pressure

switch

Disconnect pressure

switch

a) If light remains

illuminated vehicle wiring

faulty

a) Test wiring, change

harness if necessary

b) If lights extinguish

pump defective

b) Change pump

Brake fluid warning light

ON

Fluid loss

Check reservoir fluid level

and inspect system for

leaks

Rectify leakage, refill

reservoir

Reservoir fluid level

switch malfunction

Check fluid level switch

Change reservoir

cap/switch

Pressure switch

malfunction

Check switch with

pressure gauge

a) If wiring faulty

a) Replace harness

b) If switch faulty

b) Change hydraulic

pump

Brake fluid warning light

ON. Pedal travel

increased, foot pressure

normal

Fluid loss from hydrostatic

circuit

Check reservoir level and

inspect system for leaks

Rectify leakage and refill

reservoir

Rebleed as necessary

70

BRAKES

4

FAULT DIAGNOSIS

SYMPTOM

POSSIBLE CAUSE

CHECK

REMEDY

Brake fluid warning light

OFF. Pedal travel

increased, foot pressure

normal

Insufficient bleeding

Rebleed master cylinder

circuit

Master cylinder

malfunction

Change booster and

bleed system

Hydraulic pump runs

constantly

Fluid loss

Check reservoir level and

inspect system for leaks

Rectify leakage as

necessary, refill reservoir

Pump non-return valve

faulty

Change hydraulic pump

Hydraulic pump runs

constantly with warning

lights OFF. Pedal travel

normal.

Malfunction of pressure

switch

Disconnect pressure

switch

Relay switch malfunction

a) If pump stops

a) Change hydraulic

pump

b) If pump continues

running

b) Change relay or cable

Pedal can be moved

downwards under

constant pressure

Seal leaking in master

cylinder

Inspect system for leaks

Change booster unit

Seal leaking in servo unit

Change booster unit

ABS

1

REPAIR

GENERAL SERVICE INFORMATION

NOTE: ABS components ARE NOT
serviceable. Replace components found to
be faulty.

Brake fluid precautions

WARNING: Do not allow brake fluid to
come into contact with eyes or skin.

CAUTION: Brake fluid can damage
paintwork, if spilled wash off immediately
with plenty of clean water.

CAUTION: Use only correct brake fluid. If
an assembly fluid is required use ONLY
brake fluid. Do NOT use mineral oil, i.e.

engine oil etc.

FLUID LEVEL CHECK / TOP UP

1. Park vehicle on level ground.
2. Turn ignition ON, to activate hydraulic pump. If

pump does not activate depress brake pedal
several times until pump operates.

3. When pump stops, check level is between ’MIN’

and ’MAX’ marks.

4. If level is below ’MIN’ mark top up fluid level to

’MAX’ mark on reservoir, using correct fluid.

See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information, Recommended Lubricants and
Fluids

WARNING: Clean reservoir body and filler
cap before removing cap. Use only fluid
from a sealed container.

DO NOT OVER FILL RESERVOIR

DEPRESSURISE SYSTEM

WARNING: Before bleeding the system or
working on any component in the brake
system the following procedure MUST be

carried out to depressurise the accumulator.

1. Switch off ignition.
2. Operate the brake pedal 30 times. Pedal travel

will increase slightly and reduced resistance will
be felt as pressure decreases.

3. Wait for 60 seconds, press the brake pedal four

more times. This procedure will ensure that all
pressure is evacuated from the system.

70

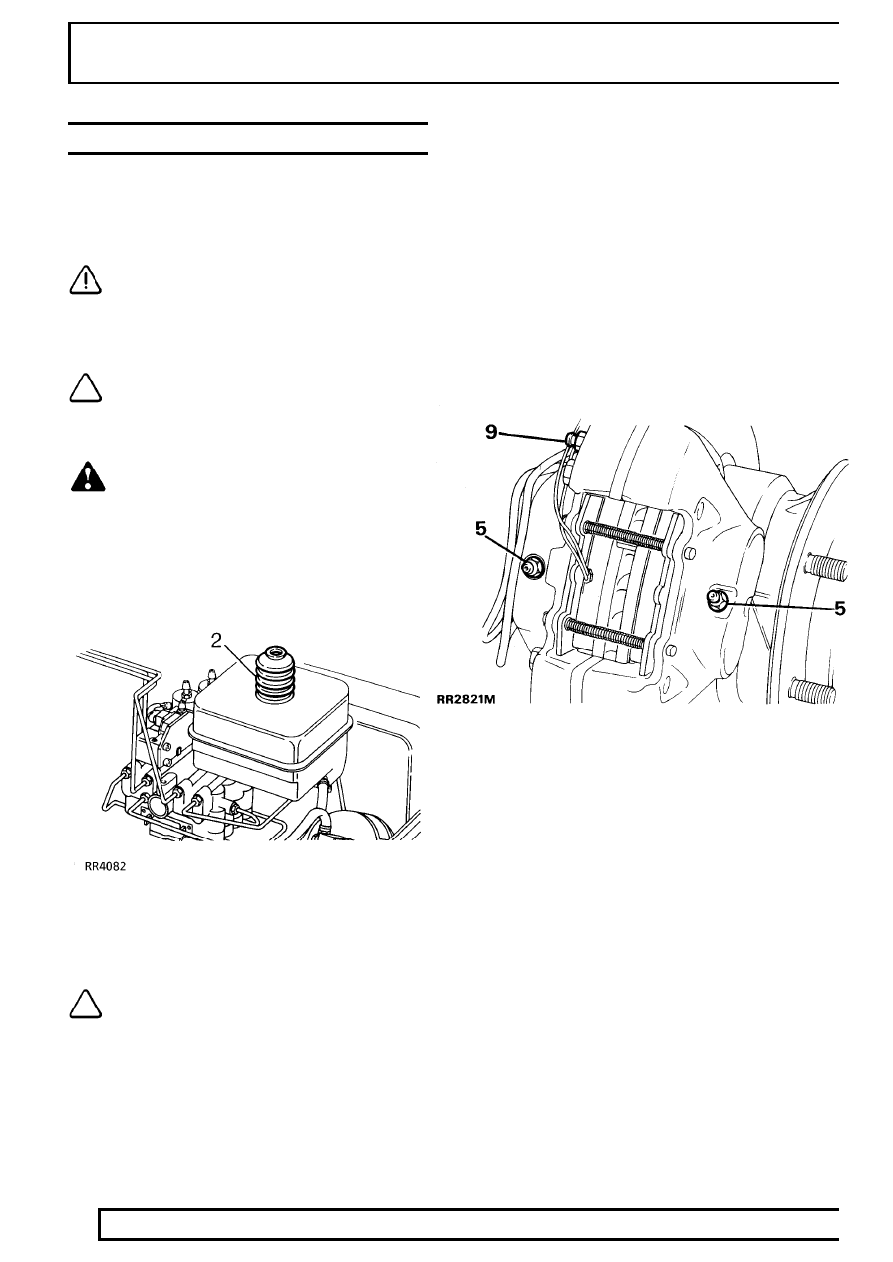

BRAKES

2

REPAIR

BRAKE SYSTEM BLEED (ABS)

Service repair no - 70.25.02

Equipment: Bleed tube and a clean bottle
containing a small amount of clean liquid.

CAUTION: Clean all bleed screws, filler
cap and connections thoroughly using
clean brake fluid only. DO NOT USE

MINERAL OIL I.E. ENGINE OIL ETC.
MAINTAIN CLEANLINESS THROUGHOUT.

NOTE: Do not allow reservoir fluid level to
fall below ’MIN’ level during bleeding.
Regularly check level and keep topped up

to ’MAX’ level.

WARNING: Do not use previously used
brake fluid. Ensure only new fluid is used,
taken from a clean sealed container.

Carefully dispose of unwanted fluid in a sealed
container, marked USED BRAKE FLUID.

1. Switch off ignition and depressurise system.

Ensure ignition remains OFF until instruction 7.

2. Fill fluid reservoir with specified fluid to ’MAX’

level.

NOTE: Time consumed in filling booster
may be reduced by fitting a rubber bellows
unit to filler neck, using hand pressure to

pressurise the reservoir. A spare bellows unit
from booster push rod is suitable for this purpose.
Ensure bellows unit is perfectly clean to avoid
foreign matter entering system. Raising rear of
vehicle will assist fill procedure.

3. Depress brake pedal slowly and progressively

five times, using full pedal stroke. Release pedal
for five to ten seconds, air bubbles will rise into
reservoir.

4. Repeat instruction 3. until some resistance is

felt. If no resistance is felt check clevis pin is
connected to correct (UPPER) hole in brake
pedal

5. Bleed four front caliper lower (hydrostatic) bleed

screws in the conventional manner.
In the order: outer bleed screw driver’s side,
opposite caliper outer bleed screw, inner bleed
screw, inner bleed screw driver’s side. Depress
brake pedal slowly and progressively, locking
bleed screw at bottom of each stroke.

6. Bleed hydraulic pump - open bleed screw on

pump and allow fluid to flow until clear of air
bubbles. Do not use bleed bottle, use a clean
absorbant cloth to prevent fluid spillage.
