Range Rover Classic. Manual - part 91





54

FRONT AXLE AND FINAL DRIVE

2

REPAIR

FRONT BRAKE DISCS

Service repair no - 70.10.10.

Remove

1. Remove front hub assembly.

See Front Hub

Assembly

2. Remove five hub to disc bolts.
3. Tap disc to separate from hub.

Refit

4. Locate disc to hub.
5. Apply Loctite 270 to disc bolts. Tighten to

73

Nm.

6. Check total disc runout with a dial indicator, this

must not exceed 0,15 mm. If necessary
reposition disc.

7. Fit hub assembly.

See Front Hub Assembly

Disc reclamation

8. Check disc thickness. This dimension may be

reduced to minimum thickness of 12 mm.
Machine equal amount off each face.

FRONT AXLE AND FINAL DRIVE

3

REPAIR

FRONT HUB ASSEMBLY

Service repair no - 60.25.01.

Remove

1. Loosen front wheel nuts, jack up vehicle and

lower onto axle stands and remove road wheel.

2. Release brake hose clips and remove brake

caliper. Secure to one side.

3. Lever off dust cap.
4. Remove circlip and drive shaft shim from

driveshaft.

5. Remove five bolts and withdraw driving member

and joint washer.

6. Bend back lock washer tabs.
7. Remove locknut and lock washer.
8. Remove hub adjusting nut.
9. Remove spacing washer.

10. Remove hub and brake disc assembly complete

with bearings.

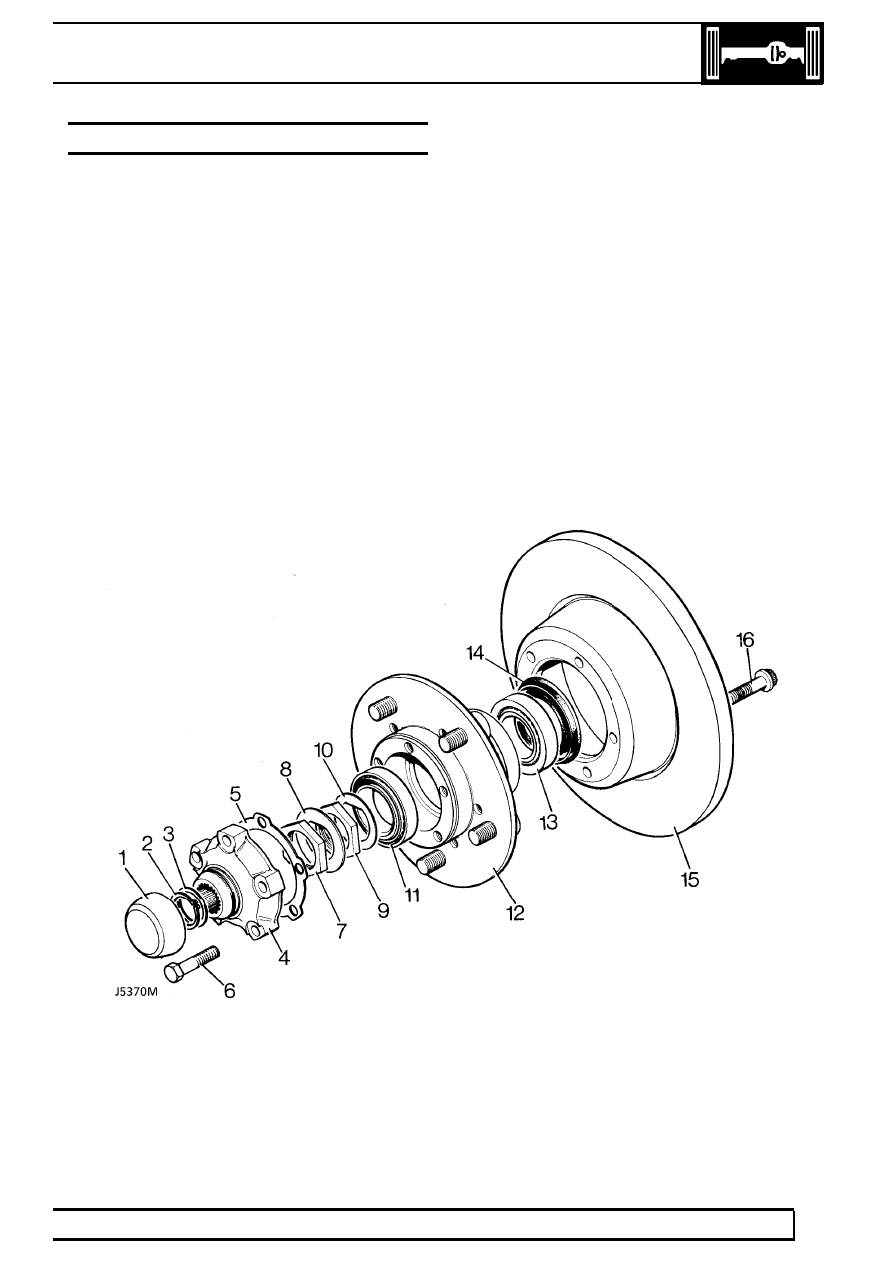

HUB COMPONENTS

1. Dust cap.
2. Drive shaft circlip.
3. Drive shaft shim.
4. Drive member.
5. Drive member joint washer.
6. Drive member retaining bolt.
7. Lock nut.
8. Lock washer.
9. Hub adjusting nut.

10. Spacing washer.
11. Outer bearing.
12. Hub.
13. Inner bearing.
14. Grease seal.
15. Brake disc
16. Disc retaining bolt.

54

FRONT AXLE AND FINAL DRIVE

4

REPAIR

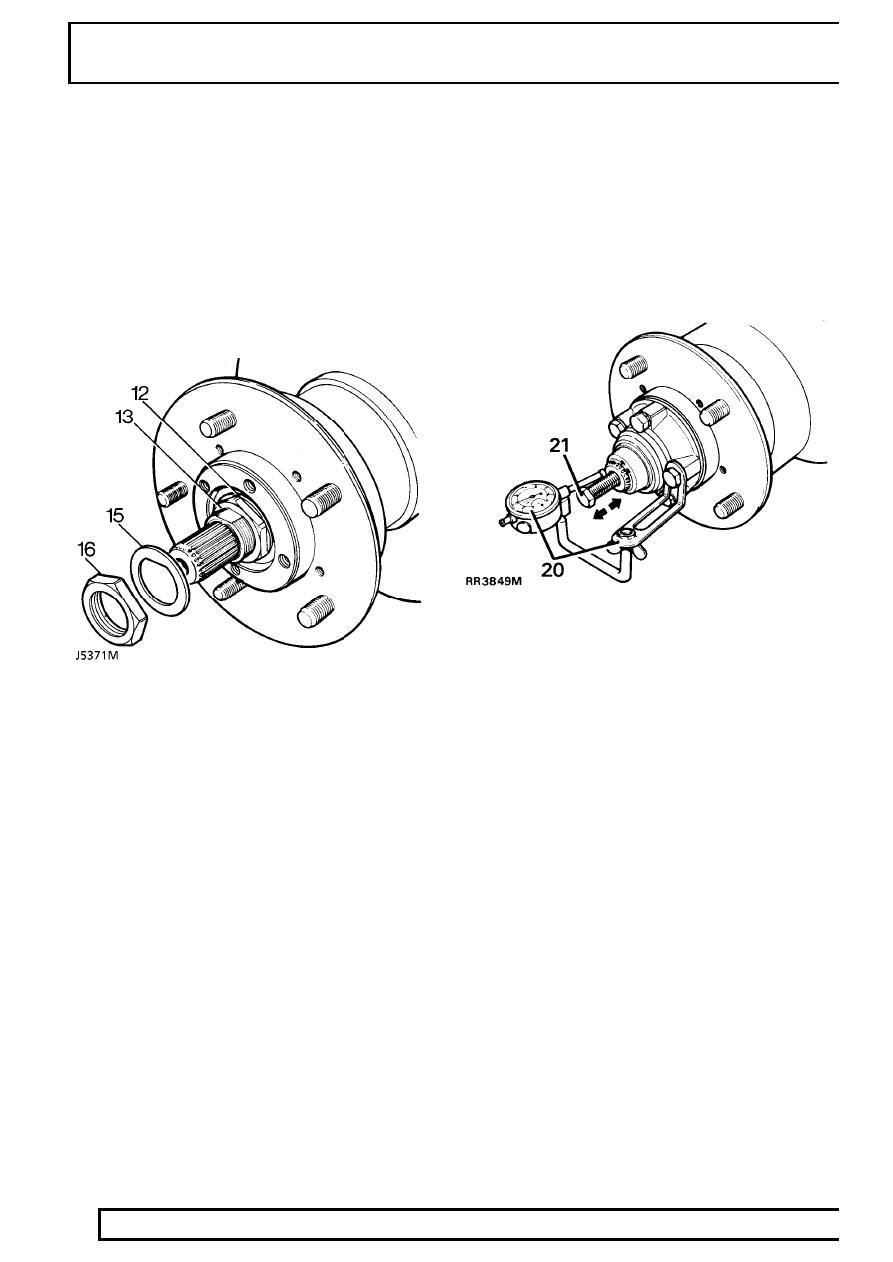

Refit

11. Clean stub axle and drive shaft and fit hub

assembly to axle.

12. Fit spacing washer.
13. Fit hub adjusting nut. Tighten to

61 Nm.

14. Back off adjusting nut 90

°

. Tighten to

4 Nm.

This will give the required hub end float of
0,010mm

15. Fit a new lock washer.

16. Fit locknut. Tighten to

61 Nm.

17. Tab over lock washer to secure adjusting nut

and locknut.

18. Fit a new joint washer to driving member and fit

member to hub and secure with five bolts.
Tighten to

65 Nm.

19. Fit original drive shaft shim and secure with a

circlip.

20. To check drive shaft end play mount a dial

gauge using bracket LRT-99-503 and rest pin in
a loaded condition on end of drive shaft.

21. Fit a suitable bolt to threaded end of drive shaft.

Move drive shaft in and out noting dial gauge
reading. End play should be between 0,08 to
0,25 mm.

22. If end play requires adjustment, remove circlip,

measure shim thickness and fit an appropriate
shim to give required end-play.

23. Remove bolt from drive shaft, fit circlip and dust

cap.

24. Fit brake caliper. Tighten to

82 Nm.

25. Bleed brake system.

See BRAKES, Repair,

Brake System Bleed

26. Fit road wheel, remove axle stands and tighten

road wheel nuts to

126 Nm.

27. Operate footbrake to locate brake pads before

taking vehicle on road.

FRONT AXLE AND FINAL DRIVE

1

OVERHAUL

FRONT DIFFERENTIAL

Service repair no - 54.10.07.

Overhaul

The front and rear differentials are the same. When
overhauling front differential.

See REAR AXLE AND

FINAL DRIVE, Overhaul, Axle Differential
Assembly

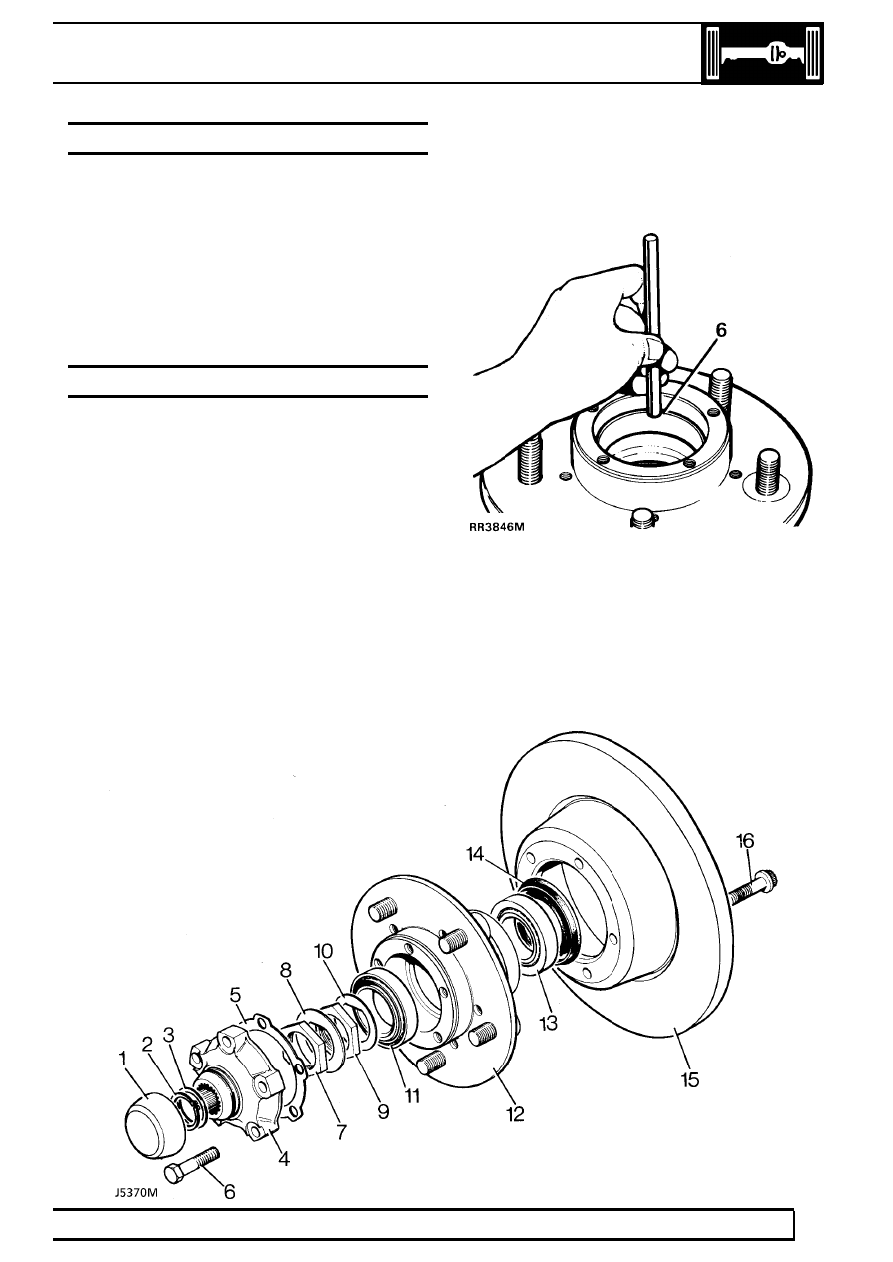

FRONT HUB

Service repair no - 60.26.14.

Overhaul

1. Remove front hub assembly.

See Repair,

Front Hub Assembly.

2. Remove outer bearing.
3. Mark, for reassembly, relationship between hub

and brake disc, if original hub is to be refitted.

4. Remove five bolts and separate hub from brake

disc.

5. Drift out grease seal and inner bearing from hub

and discard seal.

6. Drift out inner and outer bearing tracks.
7. Clean hub and drift in inner and outer bearing

tracks.

8. Pack hub inner bearing with recommended

grease and fit to hub.

HUB COMPONENTS

1. Dust cap.
2. Drive shaft circlip.
3. Drive shaft shim.
4. Drive member.
5. Drive member joint

washer.

6. Drive member

retaining bolt.

7. Lock nut.

8. Lock washer.
9. Hub adjusting nut.

10. Spacing washer.
11. Outer bearing.
12. Hub.
13. Inner bearing.
14. Grease seal.
15. Brake disc.
16. Disc retaining bolt.
