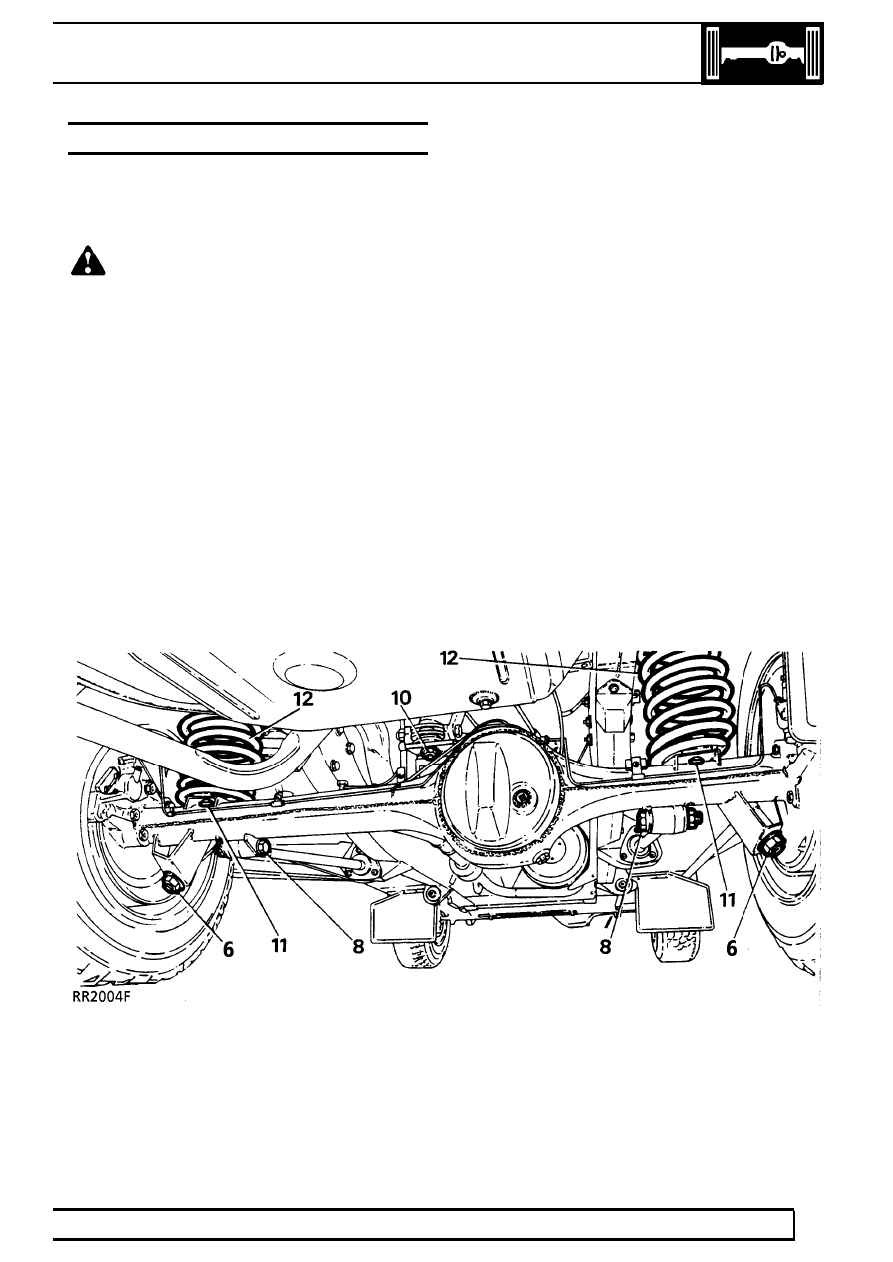

47 PROPELLER SHAFTS 4 REPAIR REAR PROPELLER SHAFT Service repair no - 47.15.03 NOTE: SGF rubber coupling should be left replacement is required. Remove 1. Scribe alignment marks on flanges at both ends of propeller shaft to ensure correct refitting. 2. Remove three nuts and bolts securing flexible coupling to axle flange. 3. Remove nuts securing propeller shaft flange to transfer gearbox. 4. Raise propeller shaft at gearbox end detach coupling from spigot at differential and withdraw NOTE: For replacement of spigot (pinion See REAR AXLE AND FINAL DRIVE, Overhaul, Axle Differential Assembly Overhaul Service repair no - 47.15.12 NOTE: Refer to front propeller shaft non-serviceable item. Refit 5. Locate flexible coupling over spigot, align scribed marks and secure at transfer gearbox. 47 Nm. 6. Secure flexible coupling to axle flange with three nuts and bolts and Tighten to 78 Nm. FLEXIBLE COUPLING NOTE: Flexible coupling should only be Remove 1. Remove rear propeller shaft. See Rear Propeller Shaft 2. Remove nuts and bolts securing flexible coupling to propeller shaft. Refit 3. Reverse removal procedure. Fit nuts and bolts. Tighten to 78 Nm. |
