19

FUEL SYSTEM

4

DESCRIPTION AND OPERATION

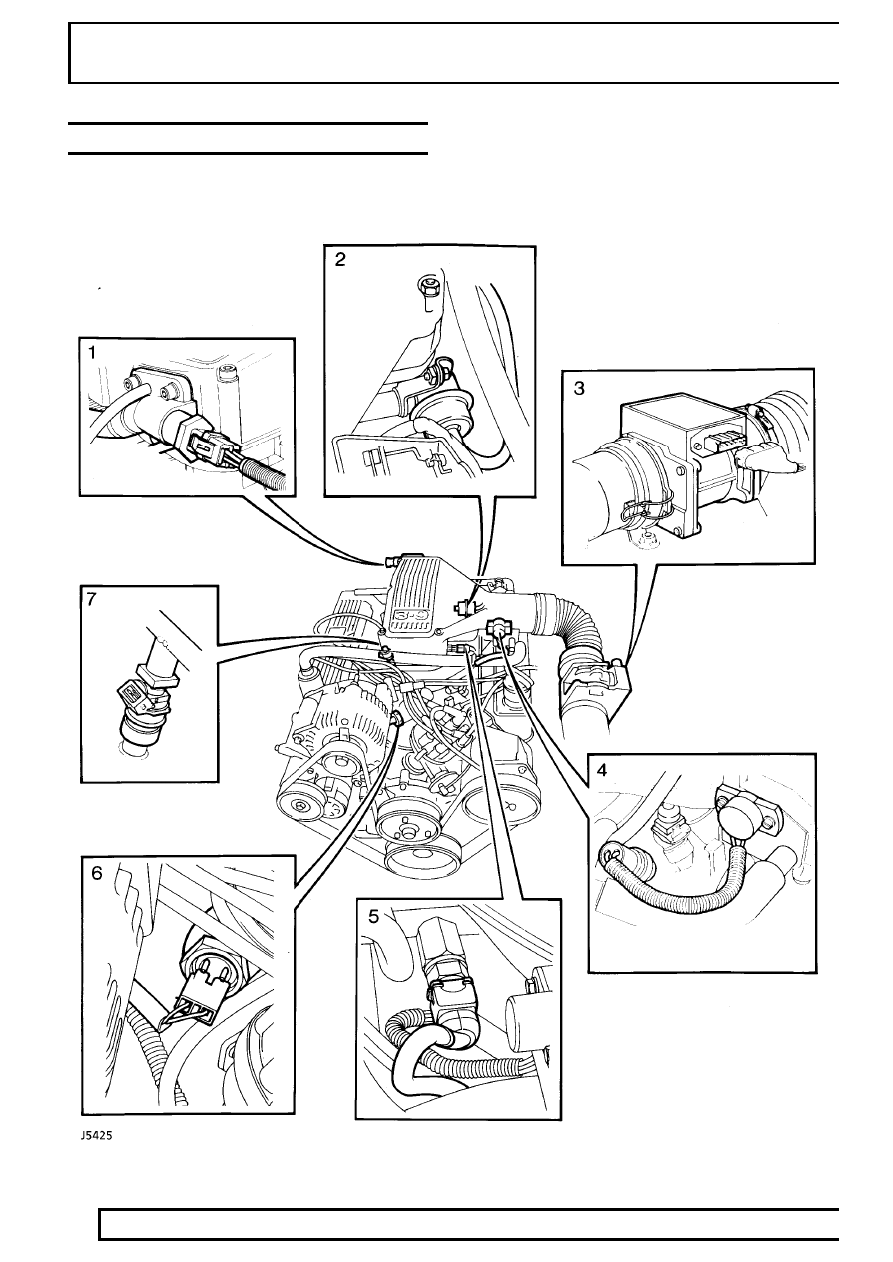

ENGINE MOUNTED COMPONENTS

1. By-pass air valve (stepper motor).
2. Fuel pressure regulator.
3. Air flow meter.
4. Throttle position sensor.
5. Fuel temperature sensor.
6. Coolant temperature sensor.
7. Fuel injector.

MFI

5

DESCRIPTION AND OPERATION

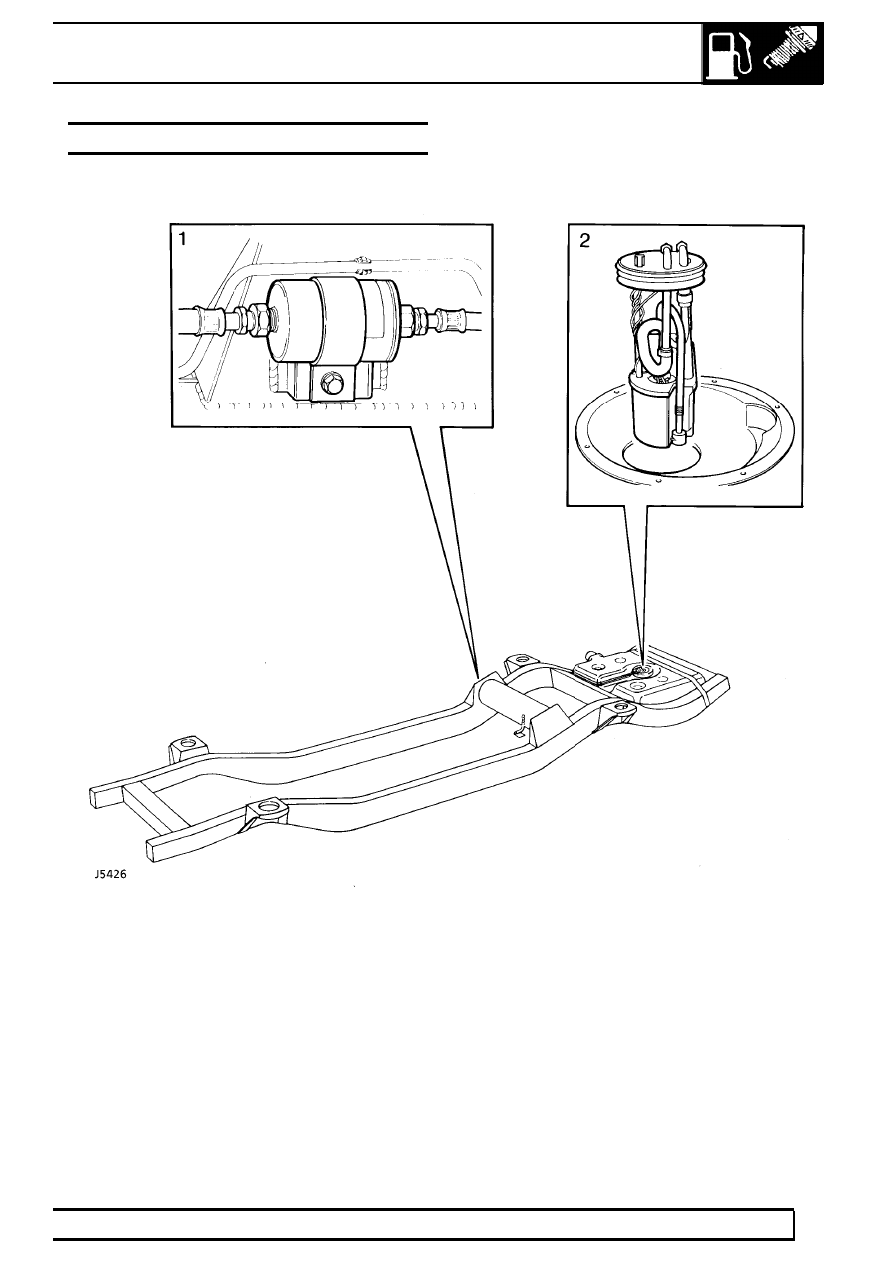

CHASSIS MOUNTED COMPONENTS

1. Fuel filter.
2. Fuel pump (in fuel tank).

19

FUEL SYSTEM

6

DESCRIPTION AND OPERATION

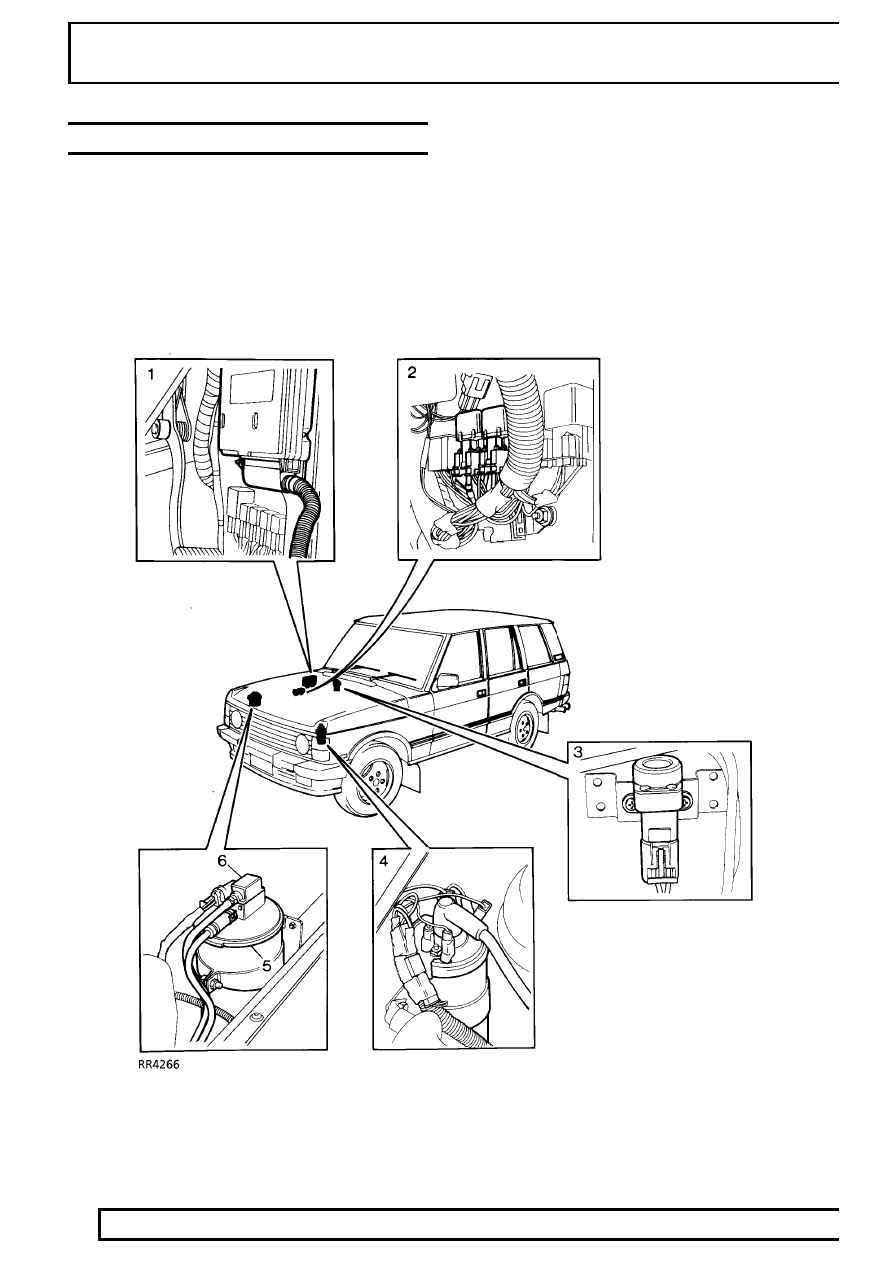

BODY MOUNTED COMPONENTS

1. Engine control module (ECM).
2. Main relay and fuel pump relay.
3. Inertia switch.
4. Ignition coil.
5. Charcoal canister.
6. Purge control valve.

MFI

7

DESCRIPTION AND OPERATION

MICRO PROCESSOR POWER CHECK
(Instrument binnacle - Service use only)

As part of the engine starting procedure, this symbol
will illuminate momentarily.

FUEL INJECTION SYSTEM

CAUTION: The fuel system incorporates
fine metering components that would be
affected by any dirt in the system;

therefore it is essential that working conditions
are scrupulously clean. If it is necessary to
disconnect any part of the fuel injection system,
the system MUST be depressurized. All openings
left open after the removal of any component from
the fuel system, MUST be sealed off to prevent
ingress of dirt.

ENGINE SETTING PROCEDURE

If a major overhaul has been undertaken of the fuel
injection/engine system, the following check and
adjustments must be carried out before attempting to
start the engine.

1. Spark plug gaps.

See ENGINE TUNING DATA,

Information, Engine 3.9 V8i or

See ENGINE TUNING DATA, Information,

Engine 4.2 V8i

2. Ignition timing.

See ELECTRICAL,

Adjustment, Ignition Timing

CAUTION: Catalyst vehicle - if the engine
is misfiring, it should be immediately shut
down and the cause rectified. Failure to do

so will result in irreparable damage to the
catalysts.

NOTE: If the previous checks and
adjustments are satisfactory but the
engine will not start, the ignition and fuel

injection electrical circuits must be checked using
the appropriate recommended equipment.
