Range Rover 2. Electrical Manual - part 178

WARNINGS AND INDICATORS

E2

10

CIRCUIT DIAGRAM

REV: 08/99

[15]

Z142
Instrument
Cluster
[6]

SRS
Warning
Lamp 1

[7]

SRS
Warning
Lamp 2

[15] Control

Unit and
Message
Centre
Display

F

E2-9

7

C0256

Z151
SRS Diagnostic
Control Unit

5

C0230

YR

30

30

33

3

S

Z238
Body Electrical
Control Module
(BECM)

RB

Trailer Auxiliary
Socket

3

C1284

C1283

15

3

RY

GY

15

F 23

10 A

P125a
Engine
Compartment
Fuse Box

3

C0576

G

18

C0067
C0229

1

C0230

Japan only




[7]

[6]

GN

5

C1291

14

GR

12

GP

RY

GP

10

RW

RW




WARNINGS AND INDICATORS

E2

11

CIRCUIT DIAGRAM

REV: 08/99

Z238
Body Electrical
Control Module
(BECM)

X108
Automatic
Transmission Oil
Temperature
Switch

0

1

See Ground
Distribution

E0557

BP

C0686

1

C0686

2

4

X165
Screen Wash
Fluid Level
Switch

0

1

YB

C0620

2

C0620

1

1

C1289

X174
Transfer Box Oil
Temperature
Switch

0

1

See Ground
Distribution

E1355

GB

C0746

6

6

C1287

C0989

1 C0219

1 C0269

S110

B

See Ground
Distribution

E0559

S115

BP

X229
Key–In Switch

[1]

Key Inserted

0

[1]

See Ground
Distribution

E0562

NW

C0672

2

C0672

1

3

C1279

S215

B

Z132
Engine Control
Module (ECM)

11

C0411

18

C0448

C0203

14

C1288

Diesel

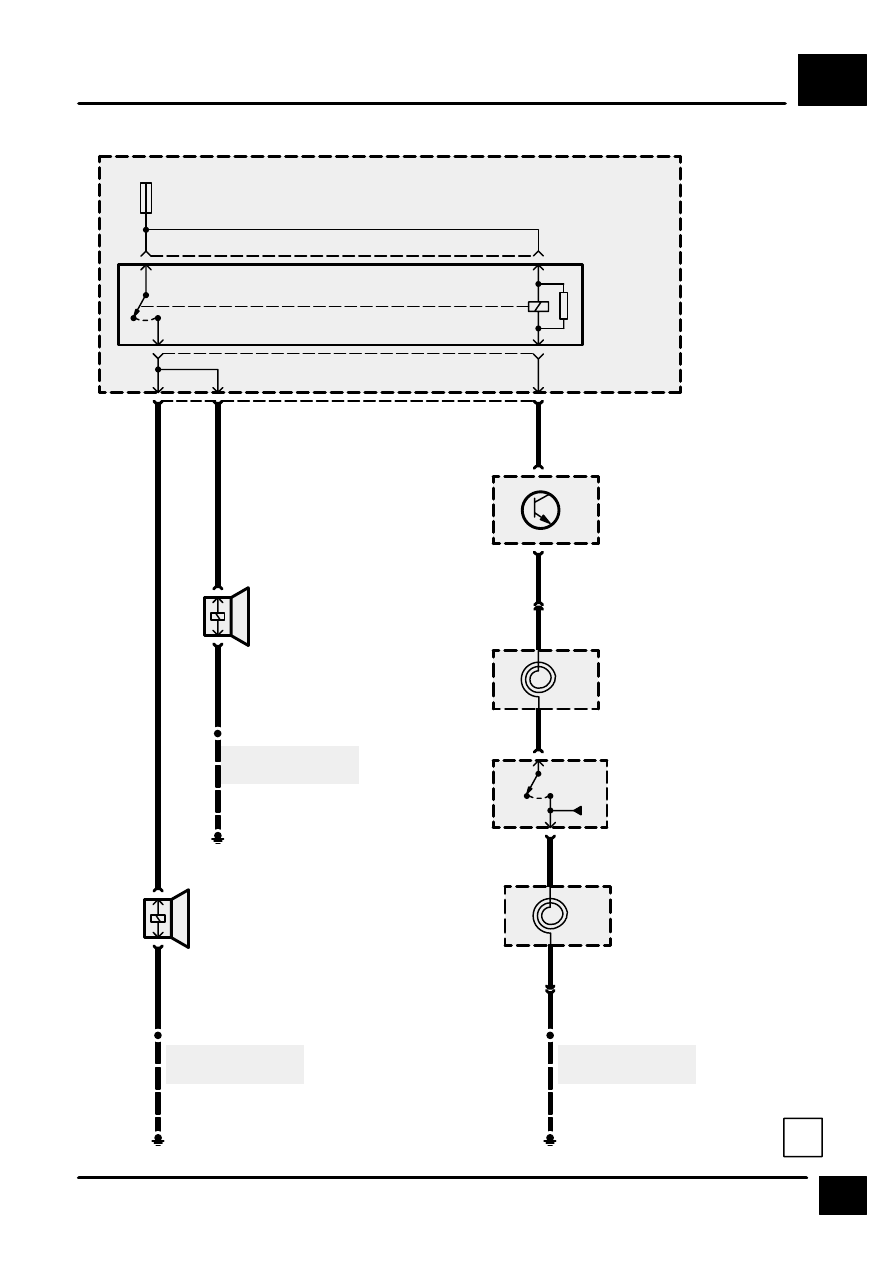

HORNS

E5

1

CIRCUIT DIAGRAM

30

F41

20 A

P125a
Engine
Compartment
Fuse Box

[9]

Horn Relay

30

86

85

87

RL9

[9]

1

C0003

E0557

2

C0003

B

S101

K128
Left Horn

PB

1 C0004

E0560

2 C0004

B

S111

K134
Right Horn

See Ground
Distribution

See Ground
Distribution

PB

5

7

6

C0573

PN

7

C1281

Z238
Body Electrical
Control Module
(BECM)

17

C1278

PB

4

C0082

LGR

Z119
Rotary Coupler

4

C1254

X269
Steering Wheel
Switches

[8]

Horn

0

[8]

6

C1254

PB

PB

Z119
Rotary Coupler

E0562

S215

See Ground
Distribution

5

C0082

B

LGR
