TRANSFER GEARBOX

B6

CIRCUIT OPERATION

2

Neutral Switch (X293) or Clutch Switch–



pin 34

A shift between ranges is possible when the
transmission is in neutral. The Transmission
Gearbox Control Unit (Z256) senses this via a
Park/Neutral Switch (X293) on automatic
transmission vehicles and via either a clutch switch
or a lever neutral switch on manual transmission
vehicles. This signal is passed via the BeCM (Z238).

Interface to “H– Gate”–



pin 35, 15 (automatic

transmission only)

The H–Gate gets the range information via a High
and Low status signal from the output of the
Transmission Gearbox Control Unit (Z256);
e.g. when the vehicle is in High then the High side of
the “H” is illuminated. When a range change to Low
is requested, the Low side of the “H” starts to flash
whilst the High side stays constant. When Low range
is obtained then the flashing light on the Low side
changes to constant and the High side light goes off.

If a range change is requested and not all of the
conditions are satisfied, then the current range will
stay illuminated and the desired range will flash and
continue flashing until all of the parameters are
satisfied or the request is removed.

If the gear lever is placed in the neutral position for
the gearbox and the transfer box then, after a five
second safety delay, the transfer box moves to
neutral and the lights on both side of the “H” are
extinguished.

Interface to Auto Gear Box Control Unit (Z255)
– pin 35

The High/Low signal to the Auto Gear Box Control
Unit (Z255) comes from the High range status lamp.
If the Auto Gear Box Control Unit (Z255) does not
receive the range information, then an incorrect gear
change mode could be selected, i.e. Manual rather
than Sport in High range and vice versa in Low
range. Also, the shift strategy is different between
the Economy modes of High and Low and so poor
shift quality could result.

Automatic Selector Park Interlock

When the gear selector lever is in the  park position,
the shift interlock solenoid is deenergized and
prevents the selector from being moved to another
gear. To free the selector, the Ignition Switch (X134)
must be in position II and the brake pedal must be
depressed.

Current is then supplied to the solenoid through the
PR wire via fuse 13. The solenoid is grounded using
the B wire to the console ground E0808.

The solenoid is now energised, freeing the selector.
The solenoid is energised continuously whilst the
selector lever is in any position other than park and
the Ignition Switch (X134) is in position II.

TRANSFER GEARBOX

B6

3

CIRCUIT DIAGRAM

Z238
Body Electrical
Control Module
(BECM)

C1293

13

4

W

2

23

15

GR

14

NR

30

F 4
30 A

See Ground
Distribution

Automatic
Gearbox

S604

X190
Vehicle Speed
Sensor

E0808

30

U

1

C1319

C0195

P

9

C0989

8

3

C0746

S603

Z256
Transfer Gear
Box ECU

7

C1281

1

21

15

F 7
10 A

W

24

P

C1319

4

Automatic
Transmission

Manual
Transmission

4

C1290

36

4

35

NY

NW

5

C1287

10

29

S601

W

U

Z268
Vehicle Speed
Sensor Shield

Z238
Body Electrical
Control Module
(BECM)

B

B

B

Fuse F11 is only
installed when
towing the vehicle

SCR

F 11*
30 A

*

5

C0903

See Fuse Details

S607

S611

C0868

C1356

TRANSFER GEARBOX

B6

4

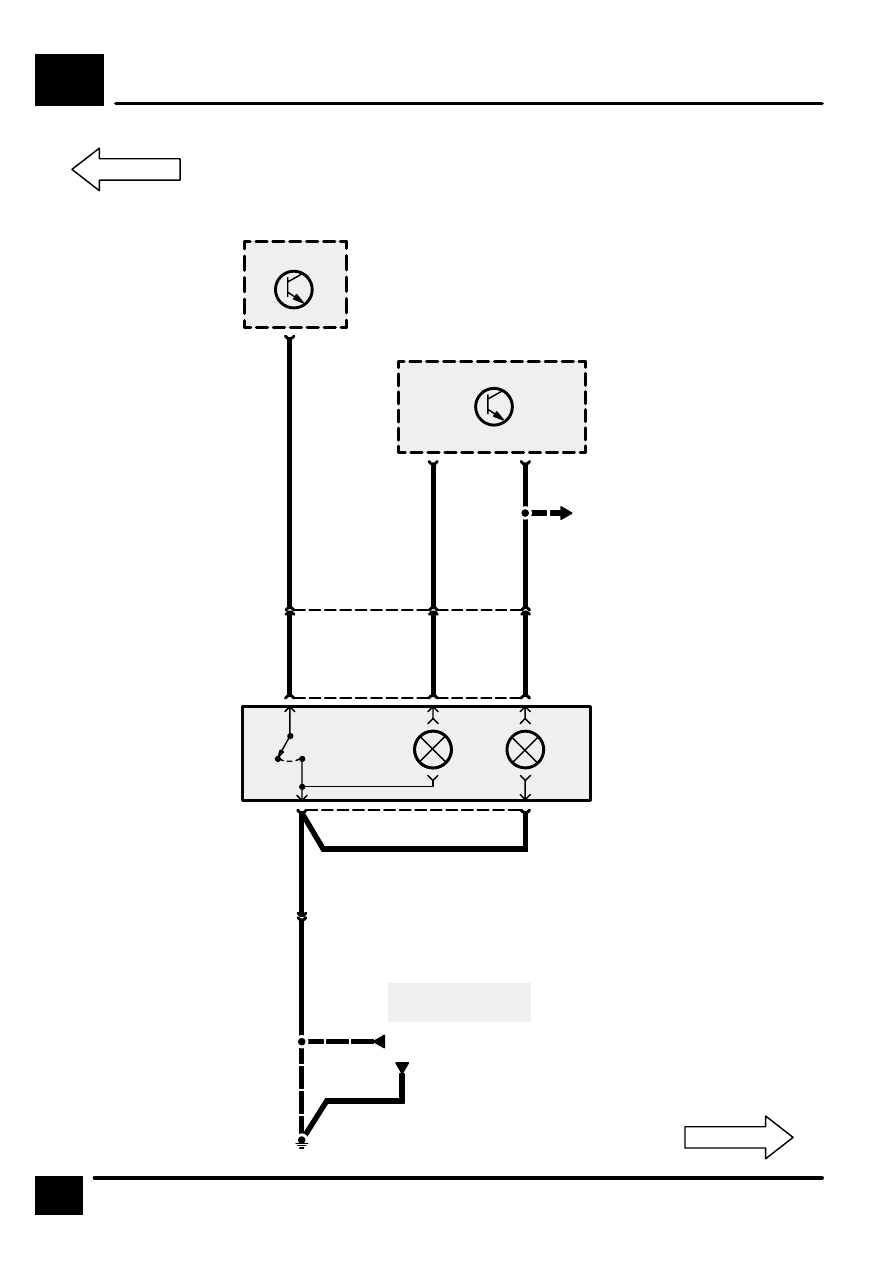

CIRCUIT DIAGRAM

C1287

X297
Transfer Switch
Manual

[1]

Change
Range

[2]

On with Lo
Range
Selected

1

C0685

B

6

B

Z256
Transfer Gear
Box ECU

S607

See Ground
Distribution

E0808

C1319

33

2

B

11

C1290

Z238
Body Electrical
Control Module
(BECM)

3

C0685

RU

15

5

GP

[2]

[1]

0

S612

Interior Lamps

PG

2

C1444

3

4

C1391

C1444

1

C1391

B

Manual
Transmission

TRANSFER GEARBOX

B6

5

CIRCUIT DIAGRAM

Automatic
Transmission

X298
Transfer Micro
Switch/Shift Lock
Solenoid

[1]

Transfer Micro
Switch

[2]

Lo Range
Selected

[3]

Shift Lock
Solenoid (with
Shift Lock only)

[4]

Park Switch

Z256
Transfer Gear
Box ECU

6

C1290

Z238
Body Electrical
Control Module
(BECM)

C1319

33

5

2

C0673

PR

With Shift
Interlock

4

0

[2]

[1]

[3]

1

C0673

E0808

S607

S611

With Shift Interlock

PG

B

B

See Ground
Distribution

30

F 13
20 A

3

6

[4]

B

Ignition and Shift
Interlock

PY
