Range Rover BORG WARNER 44-62 TRANSFER BOX. Manual - part 8





TRANSFER BOX

18

OVERHAUL

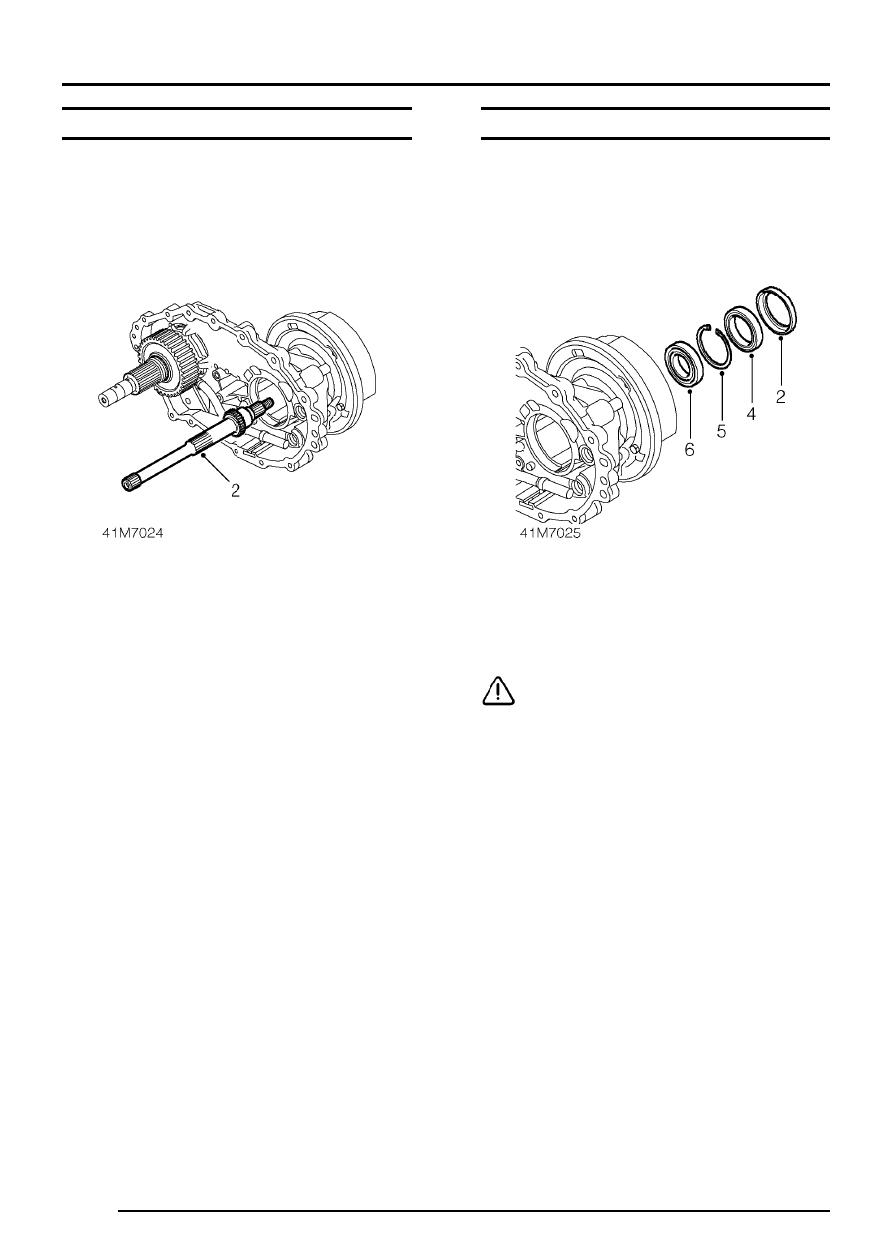

REAR OUTPUT SHAFT

Service repair no - 41.20.18/01

Remove

1. Remove differential unit.

See this section.

2. Remove rear output shaft from rear casing.

Refit

1. Fit rear output shaft to rear casing.
2. Fit differential unit.

See this section.

REAR OUTPUT SHAFT BEARING

Service repair no - 41.20.19/01

Remove

1. Remove rear output shaft.

See this section.

2. Remove dust shroud from transfer box rear

casing.

3. Using a flat bladed screwdriver free of rough

edges, ease oil seal from rear casing.

CAUTION: Do not mark sealing surface on
rear casing.

4. Remove rear output shaft oil seal.
5. Remove circlip retaining rear output shaft

bearing to rear casing.

6. Press out rear output shaft bearing from rear

casing.

TRANSFER BOX

OVERHAUL

19

Refit

1. Clean bearing and rear casing mating

surfaces.

2. Press bearing into rear casing.
3. Fit circlip retaining bearing in rear casing.
4. Clean sealing area of rear casing and running

surface of drive flange. Ensure all traces of
rubber are removed.

CAUTION: Do not use a metal scraper as
this may damage sealing surfaces.

5. Lubricate sealing surfaces of seal with clean

gearbox oil.

6. Using LRT-41-013, fit oil seal to transfer

gearbox rear casing.

7. Fit dust shroud to transfer box rear casing.
8. Fit rear output shaft.

See this section.

INTERMEDIATE SHAFT DRIVE GEAR

Service repair no - 41.20.22/01

Remove

1. Remove drive chain.

See this section.

2. Remove circlip securing drive gear to

intermediate shaft.

3. Remove drive gear from intermediate shaft.

Refit

1. Ensure drive gear and intermediate shaft are

clean and free from burrs.

2. Fit drive gear to intermediate shaft.
3. Fit circlip retaining drive gear to intermediate

shaft.

4. Fit drive chain.

See this section.

TRANSFER BOX

20

OVERHAUL

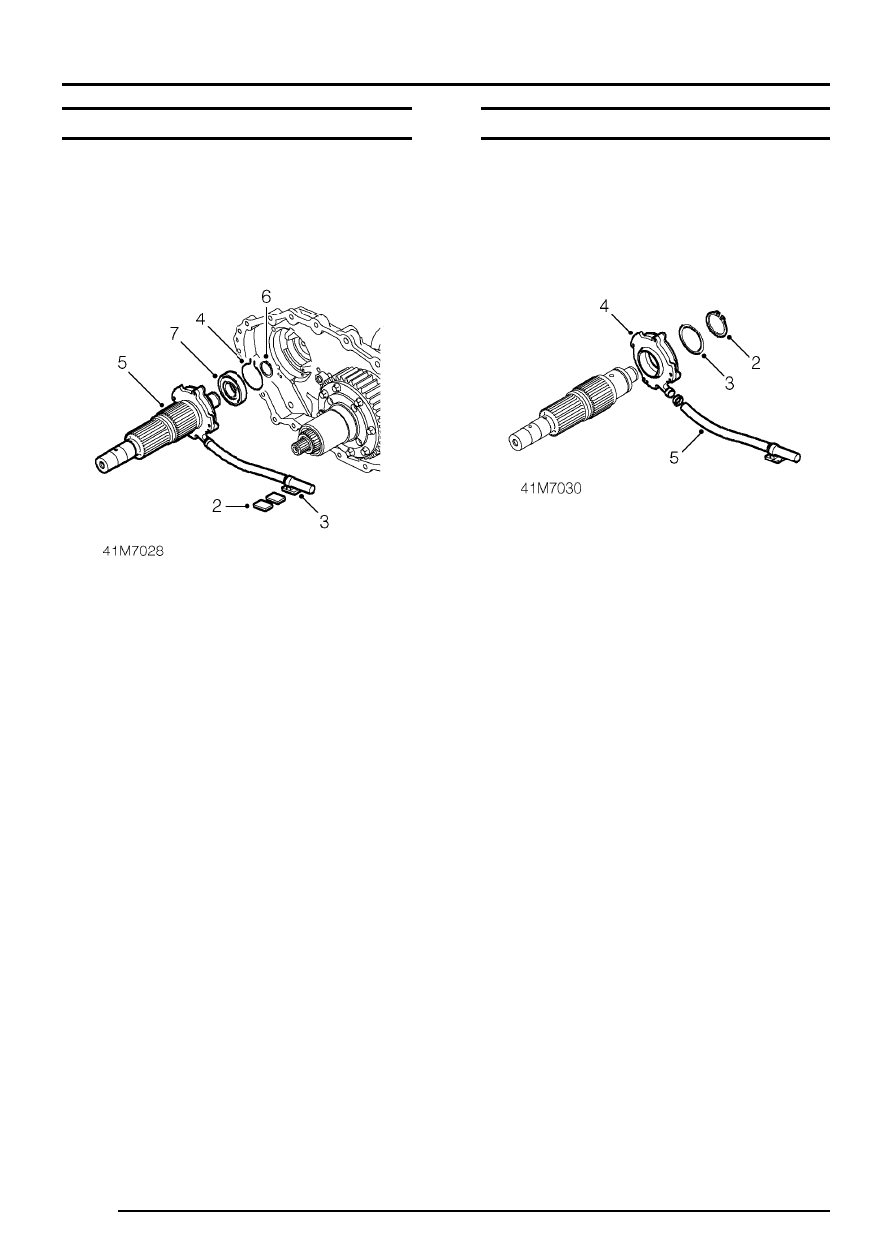

INTERMEDIATE SHAFT REAR BEARING

Service repair no - 41.20.21/01

Remove

1. Remove intermediate shaft drive gear.

See

this section.

2. Remove 2 magnets from rear casing.
3. Release oil strainer clip from rear casing.
4. Expand snap ring retaining intermediate shaft

rear bearing to rear casing.

5. Remove intermediate shaft, oil pump and

strainer assembly from rear casing.

6. Remove circlip retaining intermediate shaft

bearing to intermediate shaft.

7. Using a suitable puller, remove bearing from

rear of intermediate shaft.

Refit

1. Ensure bearing and intermediate shaft mating

surfaces are clean and free of burrs.

2. Press bearing onto intermediate shaft.
3. Fit circlip retaining bearing to intermediate

shaft.

4. Expand snap ring in rear housing and fit

intermediate shaft assembly to rear casing.

5. Ensure snap ring is correctly located to rear

bearing.

6. Fit filter hose clip to rear casing.
7. Fit magnets to rear casing.
8. Fit intermediate shaft drive gear.

See this

section.

OIL PUMP

Service repair no - 41.20.30/01

Remove

1. Remove intermediate shaft rear bearing.

See

this section.

2. Remove circlip retaining oil pump to

intermediate shaft.

3. Remove washer from intermediate shaft.
4. Remove oil pump and hose assembly from

intermediate shaft.

5. Release clip and remove hose from oil pump.

Refit

1. Fit hose to oil pump and secure with clip.
2. Fit oil pump to intermediate shaft.
3. Fit washer and circlip securing pump to

intermediate shaft.

4. Fit intermediate shaft rear bearing.

See this

section.

TRANSFER BOX

OVERHAUL

21

INTERMEDIATE SHAFT

Service repair no - 41.20.20/01

Remove

1. Remove oil pump.

See this section.

2. Remove circlip from intermediate shaft.

Refit

1. Fit circlip to intermediate shaft.
2. Fit oil pump.

See this section.
