Range Rover BORG WARNER 44-62 TRANSFER BOX. Manual - part 1





INTRODUCTION

2

INFORMATION

REPAIRS AND REPLACEMENTS

When replacement parts are required it is essential
that only Land Rover recommended parts are used.

Attention is particularly drawn to the following points
concerning repairs and the fitting of replacement
parts and accessories.

Safety features and corrosion prevention treatments
embodied in the vehicle may be impaired if other
than Land Rover recommended parts are fitted. In
certain territories, legislation prohibits the fitting of
parts not to the manufacturer’s specification.

Torque wrench setting figures given in this Manual
must be used. Locking devices, where specified,
must be fitted. If the efficiency of a locking device is
impaired during removal it must be renewed.

The Terms of the vehicle Warranty may be
invalidated by the fitting of other than Land Rover
recommended parts. All Land Rover recommended
parts have the full backing of the vehicle Warranty.

Land Rover Dealers are obliged to supply only Land
Rover recommended parts.

SPECIFICATION

Land Rover are constantly seeking to improve the
specification, design and production of their vehicles
and alterations take place accordingly. While every
effort has been made to ensure the accuracy of this
Manual, it should not be regarded as an infallible
guide to current specifications of any particular
component or vehicle.

This Manual does not constitute an offer for sale of
any particular component or vehicle. Land Rover
Dealers are not agents of Land Rover and have no
authority to bind the manufacturer by any expressed
or implied undertaking or representation.

TRANSFER BOX

DESCRIPTION AND OPERATION

1

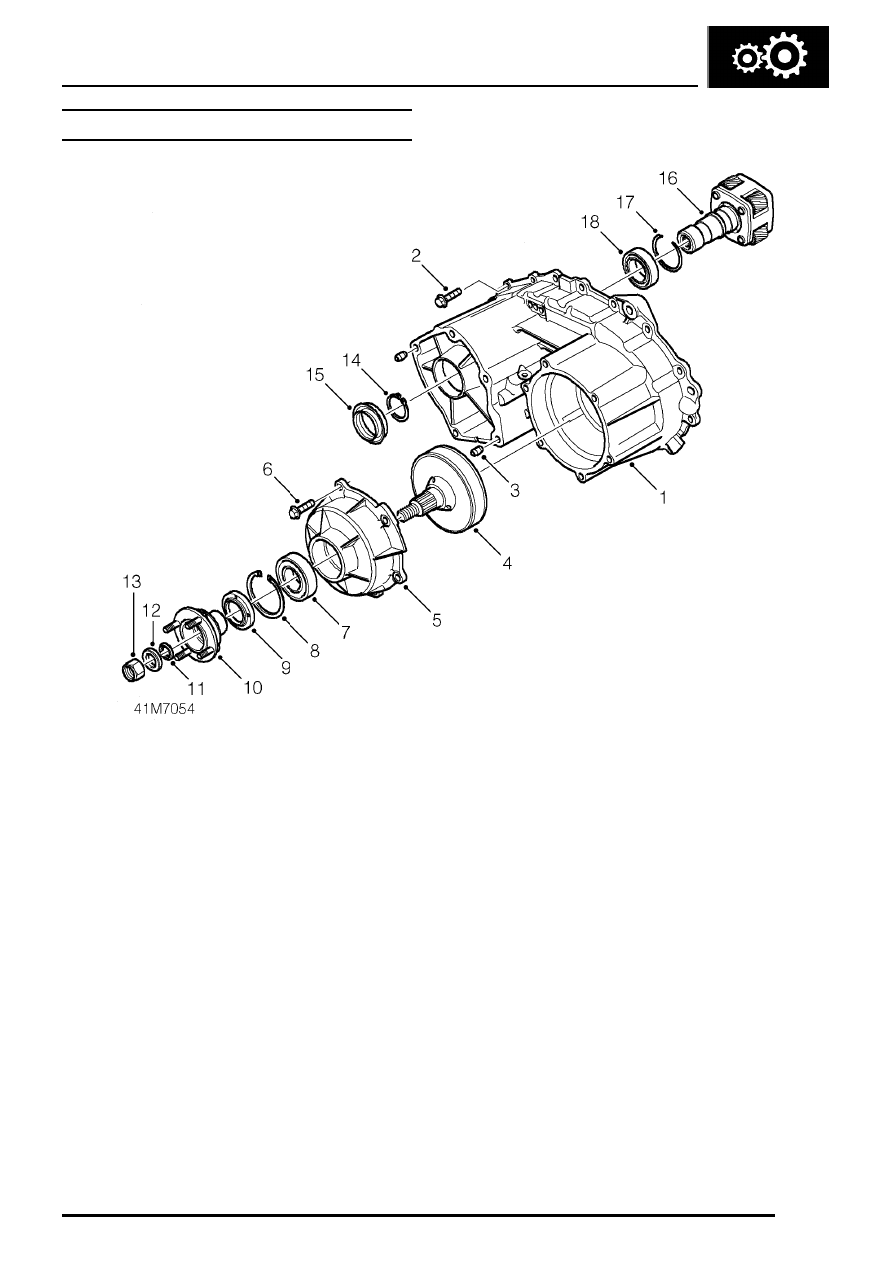

GEARBOX COMPONENTS

1. Front casing - transfer box
2. Bolt - front casing to rear casing
3. Dowel - transfer box to gearbox
4. Viscous coupling
5. Housing - viscous coupling
6. Bolt - viscous coupling housing to front casing
7. Bearing - front output shaft
8. Circlip - bearing retention
9. Oil seal - front output shaft

10. Drive flange - front output shaft
11. Sealing washer
12. Plain washer
13. Nut - drive flange
14. Circlip - epicyclic gear to bearing
15. Oil seal - input shaft
16. Epicyclic gear set
17. Circlip - bearing retention
18. Bearing - input shaft

TRANSFER BOX

2

DESCRIPTION AND OPERATION

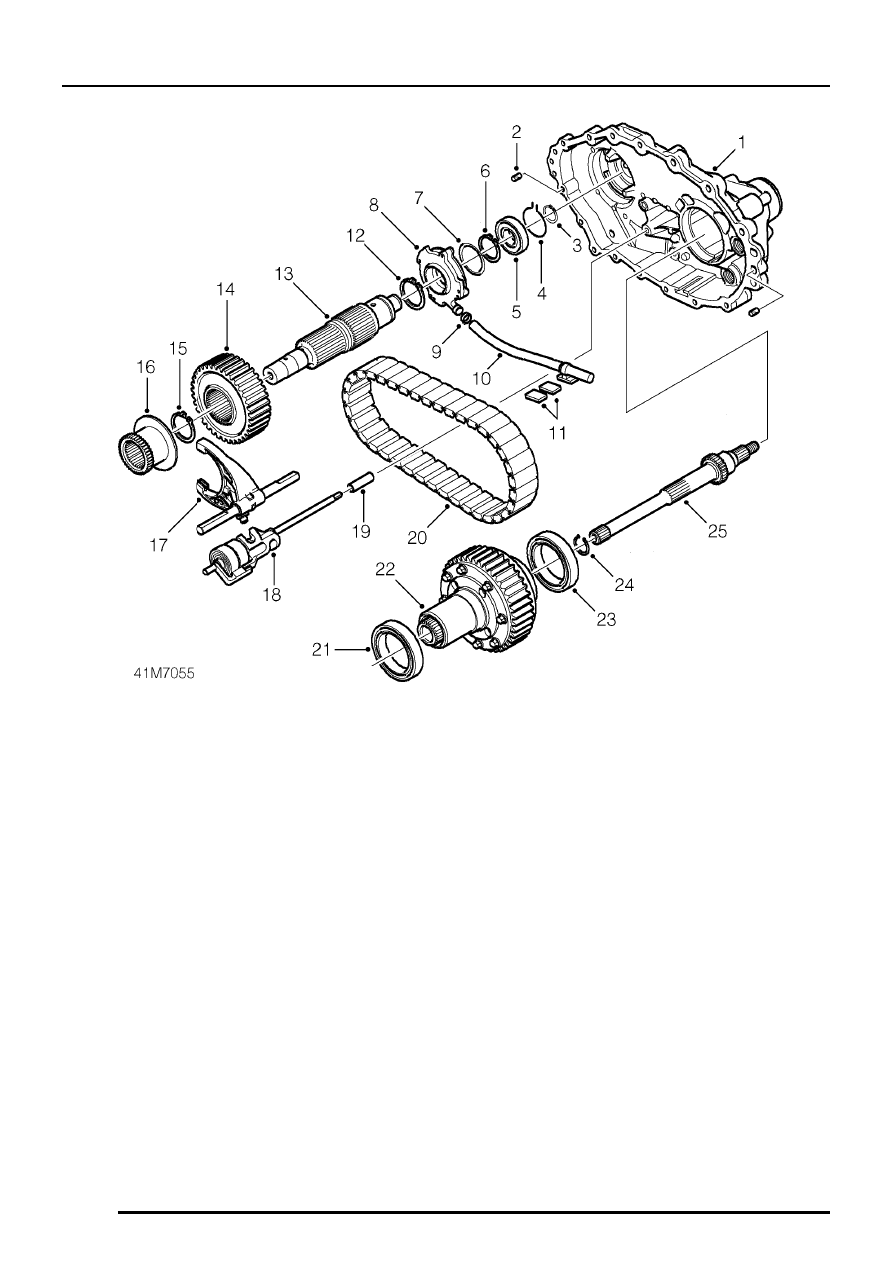

1. Rear casing - transfer box
2. Dowel - front casing to rear casing
3. Circlip - bearing retention
4. Snap ring - bearing to rear casing
5. Bearing - intermediate shaft
6. Circlip - oil pump retention
7. Shim
8. Oil pump
9. Clip - hose to pump

10. Hose and strainer
11. Magnet
12. Circlip - gear retention
13. Intermediate shaft

14. Gear
15. Circlip - gear retention
16. Reduction hub
17. Selector fork assembly
18. Interlock spool
19. Tube spacer
20. Morse chain
21. Bearing - differential
22. Differential assembly
23. Bearing - differential
24. Circlip - gear retention
25. Rear output shaft

TRANSFER BOX

DESCRIPTION AND OPERATION

3

1. Rear casing - transfer box
2. Plug - oil drain
3. Plug - oil fill
4. Sealing washer - temperature sensor
5. Temperature sensor
6. Parking brake assembly
7. Bolt - parking brake to rear casing
8. Bearing - rear output shaft
9. Circlip - bearing retention

10. Oil seal - rear output shaft
11. Dust shroud

12. Drive flange - rear output shaft
13. Sealing washer
14. Plain washer
15. Nut - drive flange
16. Drum - parking brake
17. Screw - drum to flange
18. Oil seal - interlock spool shaft
19. ’O’ ring seal - speed sensor
20. Speed sensor
21. Bolt - speed sensor
22. Bolt - ratio control motor to rear casing
23. Ratio control motor
