Range Rover Automatic Transmission. Manual - part 17

System Information Document

____________________________________________________________________________________________________
_
[ZF_4SPD\Project_Specs]

[Revision:   2.3]

____________________________________________________________________________________________________
_
© Rover Group 1998

Page 39 of 52

7.1.1.10 Fault code 10 – Pressure regulator S/C +12V

7.1.1.11 Fault code 11 – CAN message MD_REIB invalid (FFh)

7.1.1.12 Fault code 12 – MES line 1, Electrical fault

See below, Fault code 13 MES line 2, Electrical fault for details.

System Information Document

____________________________________________________________________________________________________
_
[ZF_4SPD\Project_Specs]

[Revision:   2.3]

____________________________________________________________________________________________________
_
© Rover Group 1998

Page 40 of 52

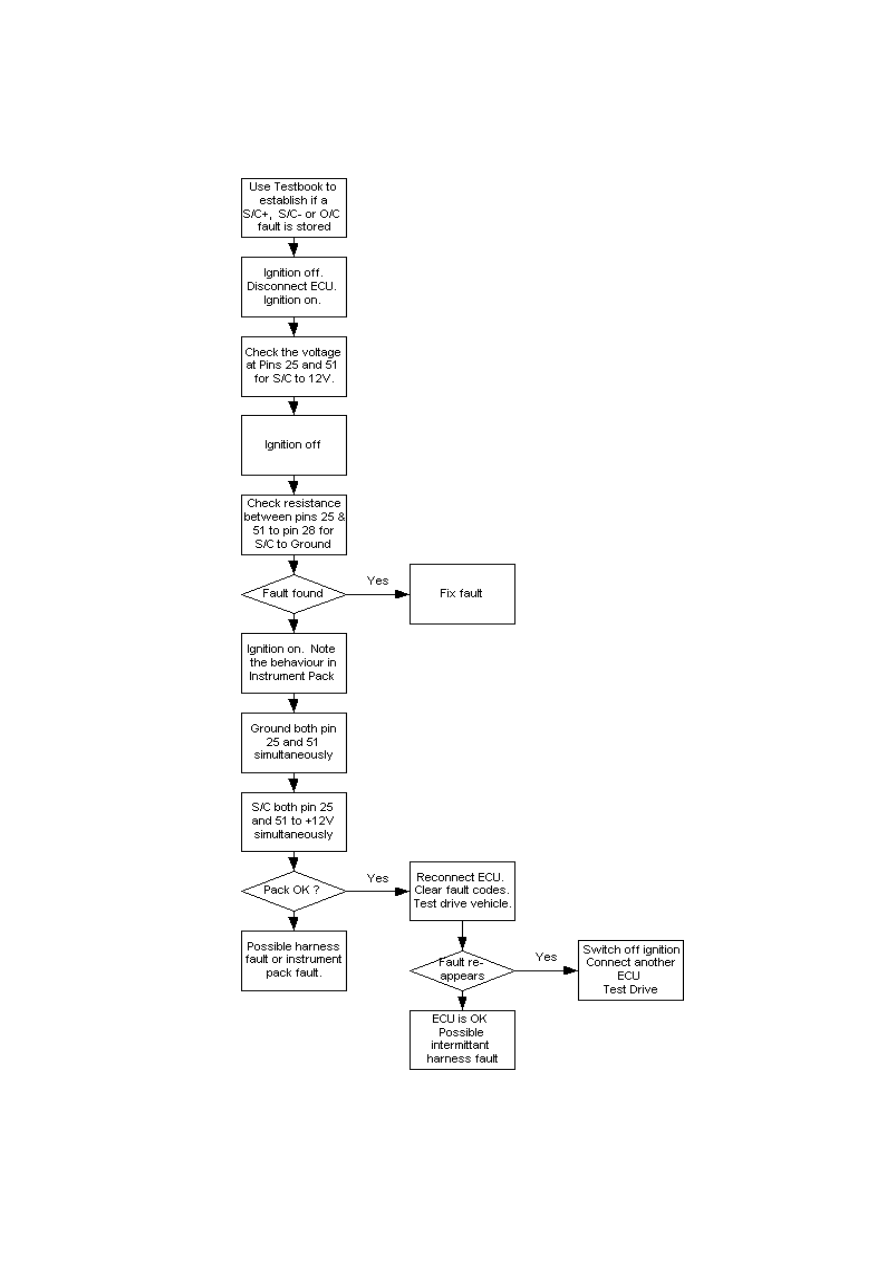

7.1.1.13 Fault code 13 – MES line 2, Electrical fault

System Information Document

____________________________________________________________________________________________________
_
[ZF_4SPD\Project_Specs]

[Revision:   2.3]

____________________________________________________________________________________________________
_
© Rover Group 1998

Page 41 of 52

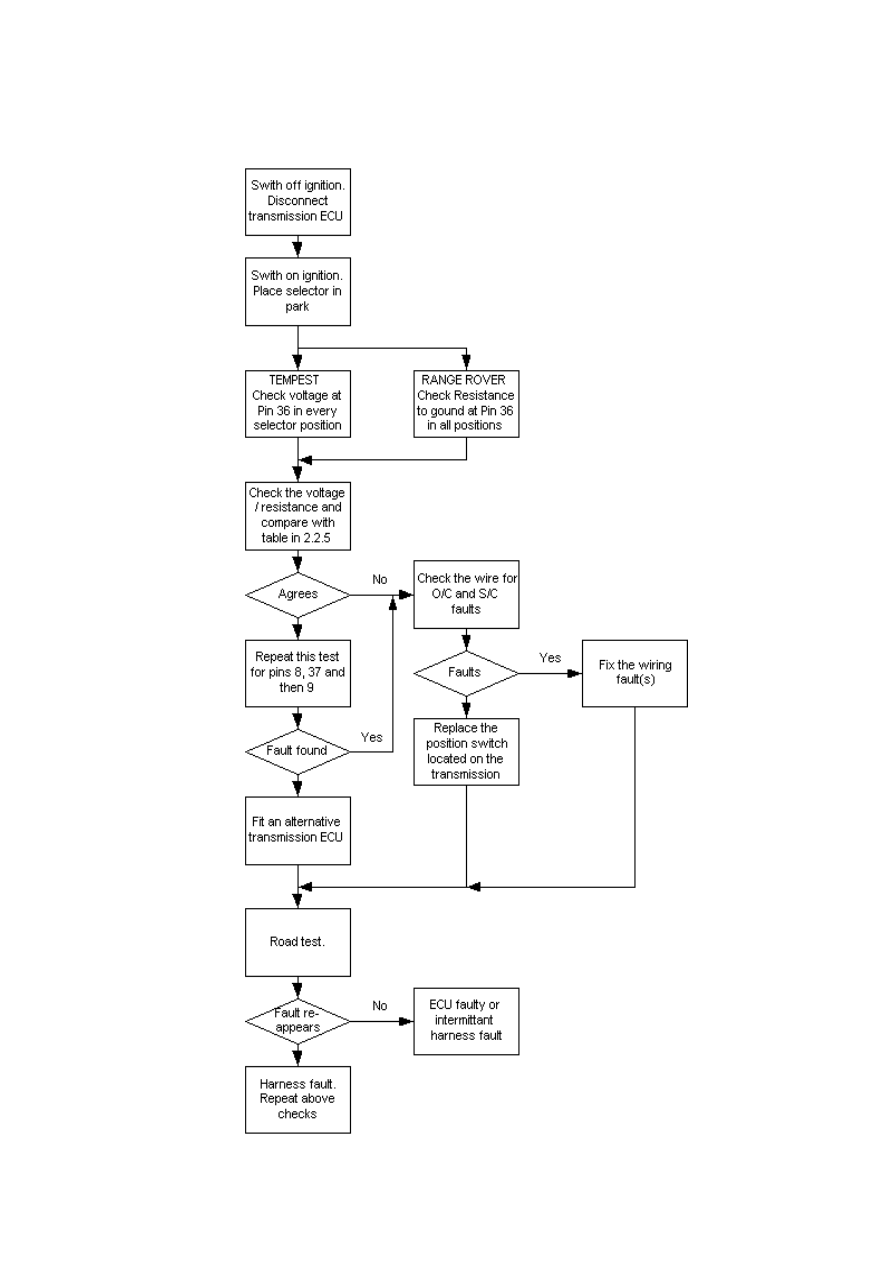

7.1.1.14 Fault code 14 – Position switch monitoring (Permanent)

System Information Document

____________________________________________________________________________________________________
_
[ZF_4SPD\Project_Specs]

[Revision:   2.3]

____________________________________________________________________________________________________
_
© Rover Group 1998

Page 42 of 52

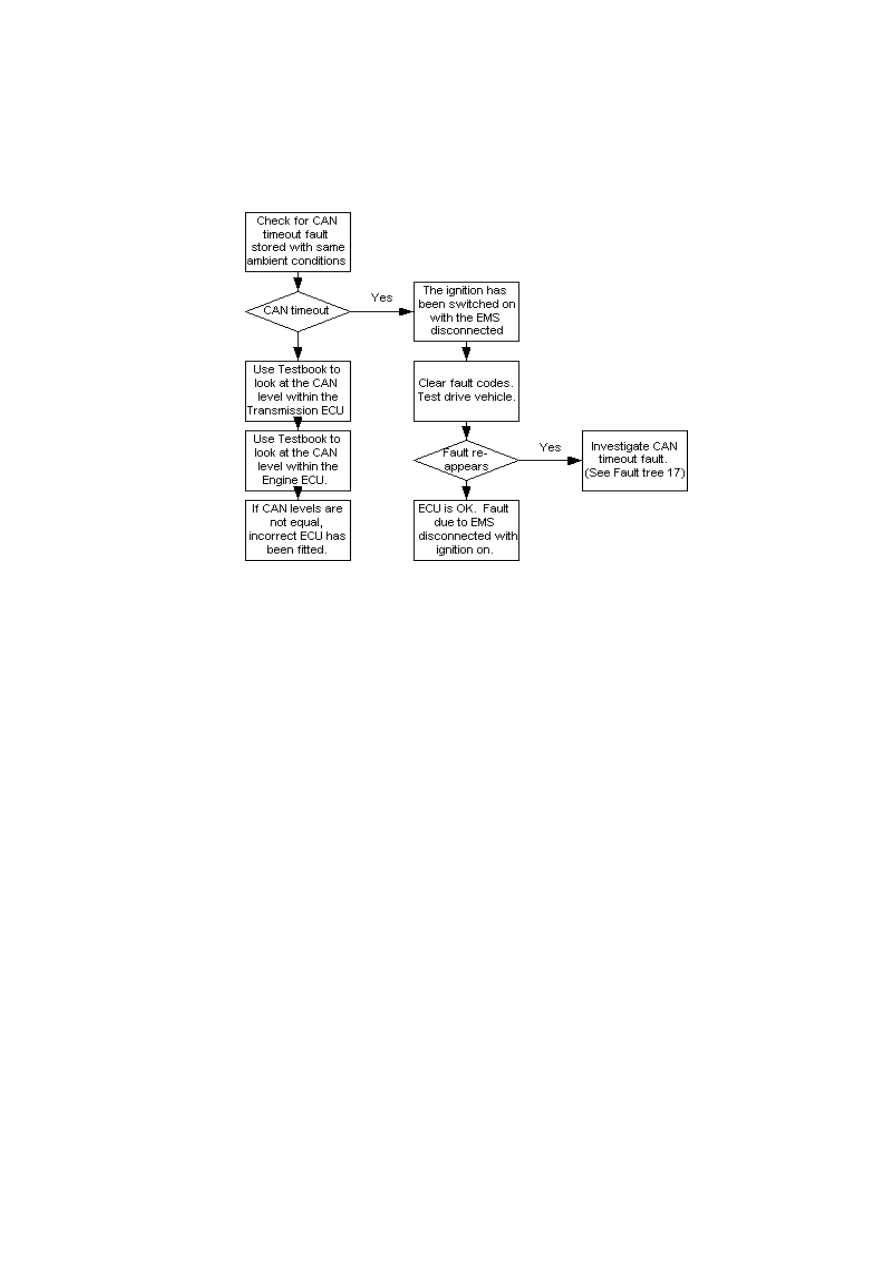

7.1.1.15 Fault code 15 – CAN level invalid
