77

PANEL REPAIRS

NEW RANGE ROVER

6

PROCEDURES

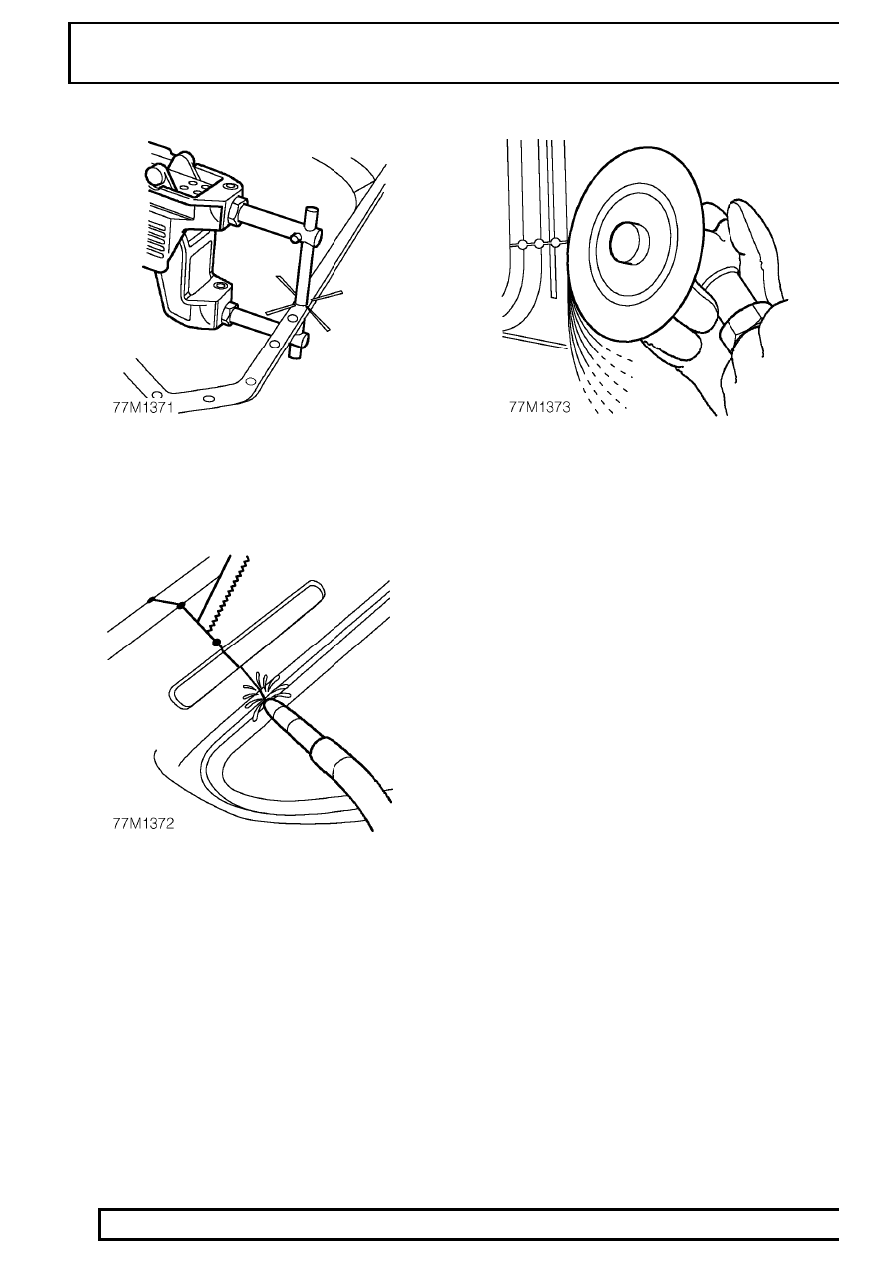

15. Use a resistance spot welder where access

permits. Try to ensure weld quality by using a
weld monitor where possible.

16. MIG tack weld butt joints and re-check alignment

and panel contours where necessary. Ensure
that a gap is maintained to minimise welding
distortion, by inserting a hacksaw blade as an
approximate guide.

17. Dress MIG tack welds using a sander with 36 grit

disc, or a belt-type sander where access is
limited.

PANEL REPAIRS

7

PROCEDURES

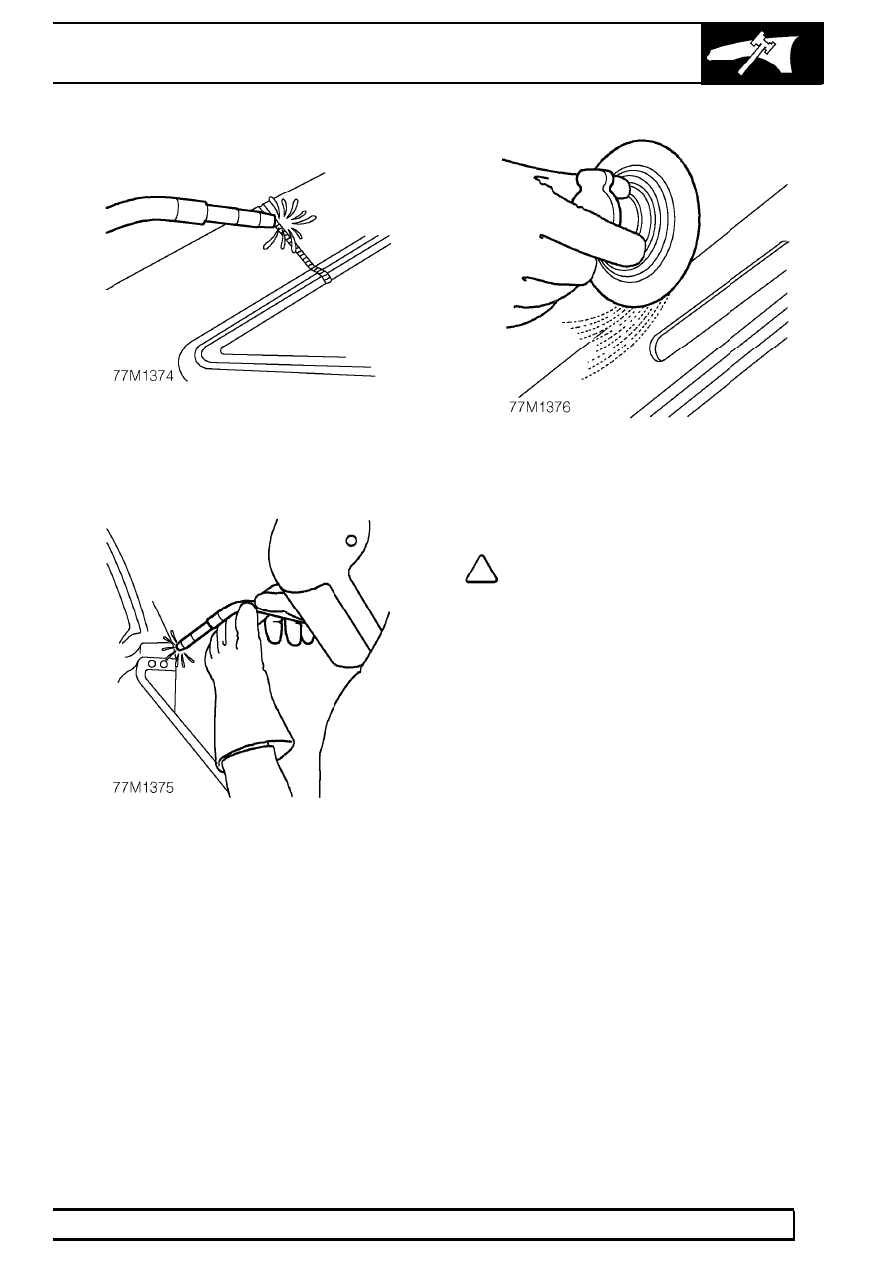

18. MIG seam weld butt joints.

19. Always use MIG plug welds where excessive

metal thickness or lack of access make
resistance spot welding impractical. Make plug
welds either by using holes left by the spot weld
cutter, or through holes punched or drilled for the
purpose.

20. Dress all welds using a sander with 36 grit disc,

or a belt-type sander and/or impregnated wire
brush.

NOTE: Brazing operations, if required,
must be carried out at this point.

Body Trim
The following panel repair operations itemise body
trim components which must be removed for access
during each repair. See Repairs section.

Because of the unpredictable nature of accident
damage, the items listed make no allowance for any
difficulties which may be found in removal and only
apply to an undamaged vehicle. No allowance is
made for any difficulties which may be found during
panel removal. Damaged body trim items must be
renewed as necessary following body repairs.

PANEL REPAIRS

1

REPAIR

VALANCE AND WHEELARCH

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Disconnect all ECUs.
4. Disconnect airbags and sensor system.
5. Remove airbag modules.

See

SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

6. Disconnect alternator.
7. Remove front bumper valance.

See CHASSIS

AND BODY, Repair.

8. Remove extension spoiler front bumper.

See

CHASSIS AND BODY, Repair.

9. Remove front grille.

See CHASSIS AND BODY,

Repair.

10. Remove headlamp.

See Workshop Manual -

ELECTRICAL.

11. Remove bonnet.

See CHASSIS AND BODY,

Repair.

12. Remove bonnet strut.

See CHASSIS AND

BODY, Repair.

13. Remove bonnet lock RH or LH.

See CHASSIS

AND BODY, Repair.

14. Remove wheel arch liner - front.

See CHASSIS

AND BODY, Repair.

15. Remove front door assembly.

See CHASSIS

AND BODY, Repair.

16. Remove ’A’ post trim.

See CHASSIS AND

BODY, Repair.

17. Remove fascia.

See CHASSIS AND BODY,

Repair.

18. Remove front wing.
19. Remove engine.

See Workshop Manual -

ENGINE.

20. Remove gearbox.

See Workshop Manual -

GEARBOX.

Refit

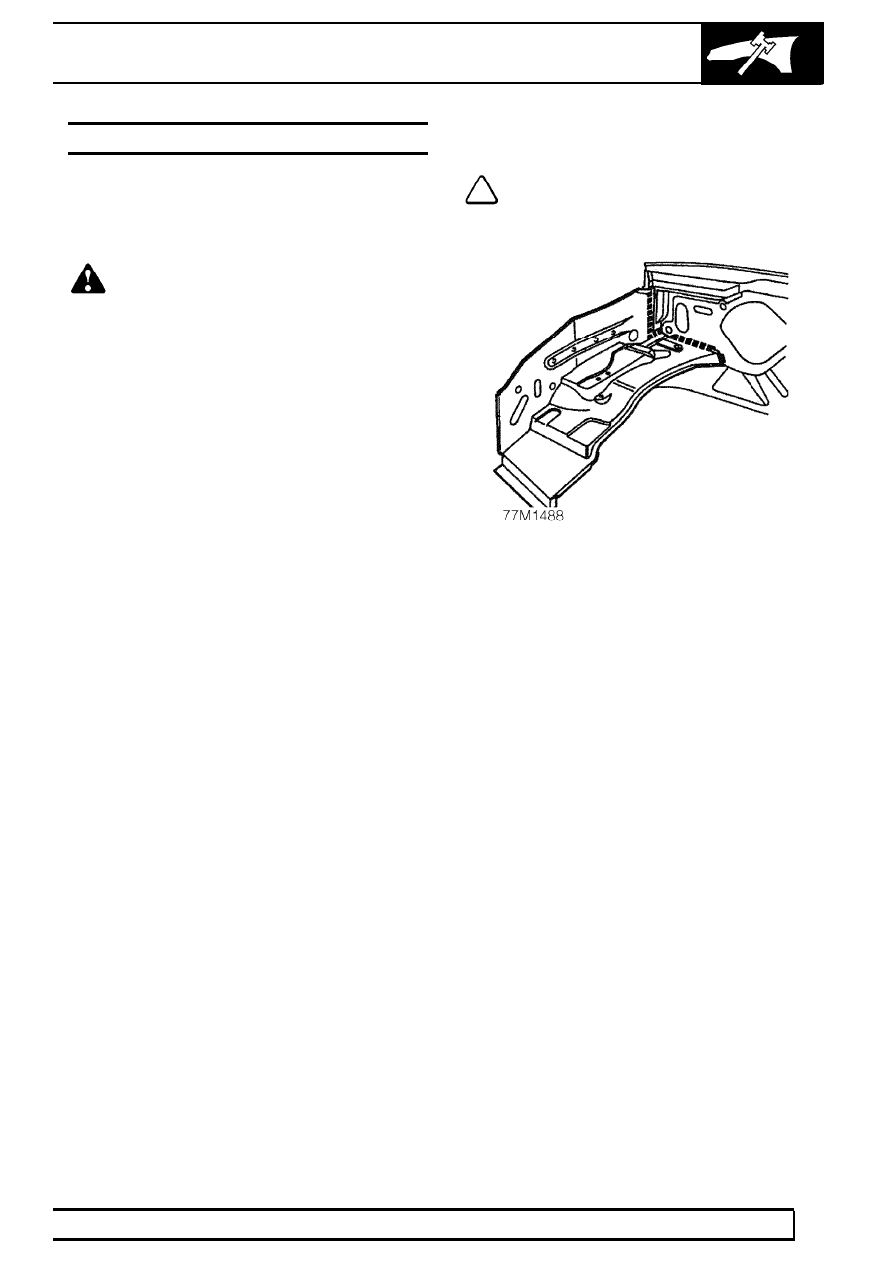

NOTE: In this operation the valance and
wheelarch is fitted in combination with a
front sidemember.

21. Prepare and clean panel joint faces. Punch or

drill holes in new valance and wheelarch for plug
welding as shown.

22. Reverse removal procedure.
23. Remove stands and lower vehicle.

77

PANEL REPAIRS

NEW RANGE ROVER

2

REPAIR

FRONT SIDEMEMBER

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Disconnect all ECUs.
4. Disconnect airbags and sensor system.
5. Remove airbag module.

See

SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

6. Disconnect alternator.
7. Remove front bumper valance.

See CHASSIS

AND BODY, Repair.

8. Remove extension spoiler front bumper.

See

CHASSIS AND BODY, Repair.

9. Remove front grille.

See CHASSIS AND BODY,

Repair.

10. Remove headlamp.

See Workshop Manual -

ELECTRICAL

11. Remove bonnet.

See CHASSIS AND BODY,

Repair.

12. Remove bonnet strut.

See CHASSIS AND

BODY, Repair.

13. Remove bonnet lock RH or LH.

See CHASSIS

AND BODY, Repair.

14. Remove wheel arch liner - Front.

See CHASSIS

AND BODY, Repair.

15. Remove front door assembly.

See CHASSIS

AND BODY, Repair.

16. Remove ’A’ post trim.

See CHASSIS AND

BODY, Repair.

17. Remove front wing.

Refit

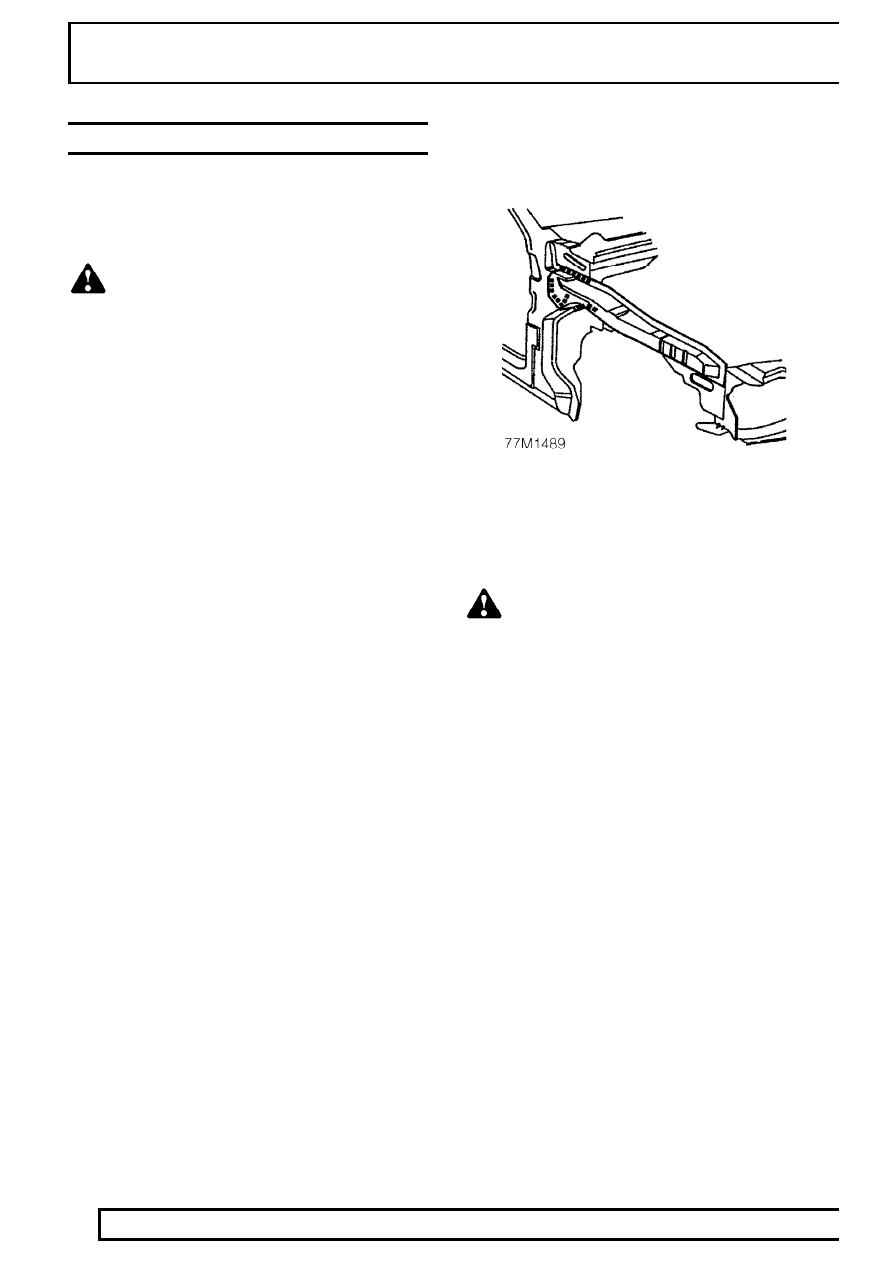

18. Prepare and clean panel joint faces. Punch or

drill holes in new front sidemember for plug
welding as shown.

WARNING: Remove ALL traces of
adhesive from valance upper edge before
plug welding.

19. Reverse removal procedure.
20. Remove stands and lower vehicle.
