GENERAL SPECIFICATION DATA

1

SEALING AND CORROSION PROTECTION

APPROVED MATERIALS

MATERIAL

MANUFACTURER

3M:
Bodygard (08158, 08159)
Weld Thru’ Sealer (08625)
Drip-Chek Clear (08401)
Drip-Chek Heavy (08531)
Flexseal Polyurethane Seam Sealer (08684, 08689, 08694)
Polyurethane Sealer (sachet) (08703, 08783, 08788)
Super Seam Sealer (08537)
Sprayable Sealer (08800, 08823)
Bolted Panel Sealer (08572)
Body Caulking (08568)
Windscreen Sealer (08509)
Gurit-Essex:
Betafill Clinch and Brushable Sealer (Black) (10215)
Betafill Clinch and Brushable Sealer (Grey) (10211)
Betafill Clinch and Brushable Sealer (White) (10220)
Clinch Joint and Underbody Coating (Grey) (10101)
Clinch Joint and Underbody Coating (Beige) (10707)

SEALERS

Kent Industries:
Leak-Chek Clear Putty (10075)
PPG:
Polyurethane Seam Sealer (6500)
Polyurethane Seam Sealer (92)
Terostat Preformed Strip (V11)
Terolan Light Seam Sealer
Teroson:
Terolan Special Brushable Seam Sealer
Terostat 1K PU Seam Sealer (SE20)
Terostat Sprayable Seam Sealer (9320)
Unipart:
Promatch Sealing Compound (UBS605, UBS606, UBS607)
Promatch Bolted Panel Sealer (UBS111)
Wurth:
Sealing Compound (890100, 890101, 890102, 890103, 890104,
890105, 890106)
Astrolan Engine Bay Wax & Cosmetic Wax (DA3241/DA3243)
Weld Thru’ Coating (05913)

04

GENERAL SPECIFICATION DATA

NEW RANGE ROVER

2

SEALING AND CORROSION PROTECTION

Approved materials (continued)

MATERIAL

MANUFACTURER

3M:
Automotive Structural Adhesive (08120)
Aerosol Auto Adhesive (Trim) (08080)

ADHESIVES

Spray 80 Adhesive (08090)
Ciba-Geigy:
Structural Two-Part Epoxy (XB5106/XB5107)

3M:
Spray Schutz (08877)
Body Schutz (08861)
Stone Chip Coating (Textured) (08868, 08878, 08879)
Stone Chip Coating (Smooth) (08158, 08160, 08886)
Croda:
Crodapol Brushable Underbody Sealer (PV75)

UNDERBODY COATINGS

Underbody Wax (PW61)
Dinol:
Tectacote Underbody Wax (205)
Teroson:
Terotex Underseal CP02 (9320)
Unipart:
Promatch Underbody Schutz (UBS410)
Promatch Underbody Wax (PW61)

3M:
Inner Cavity Wax (Transparent) (08909, 08919, 08929)
Inner Cavity Wax (Amber) (08901, 08911, 08921)
Dinol:
Engine Bay & Cosmetic Wax/Lacquer (PW197)

WAX COATINGS

Cavity Wax (PW57)
Engine Bay Cosmetic Wax/Lacquer (4010)
Unipart:
Promatch Cavity Wax (UBS508)

GENERAL SPECIFICATION DATA

3

SEALING AND CORROSION PROTECTION

Approved materials (continued)

MATERIAL

MANUFACTURER

3M:
Zinc Spray (09113)

WELD-THROUGH PRIMERS

ICI:
Zinc Rich Primer (P-565 634)

3M:
Flexible Parts Repair Material (05900)
Cleaner and Wax Remover (1 litre) (08984)
Waterproof Cloth Tape (Y387/YS3998)

GENERAL MATERIALS

Teroson:
Sprayable Aerosol, Water Shedder Repair
Unipart:
Waterproof Tape (GWS121)
Urethane Butyl Tape (BHM605)

04

GENERAL SPECIFICATION DATA

NEW RANGE ROVER

4

SEALING AND CORROSION PROTECTION

MATERIALS APPLICATIONS

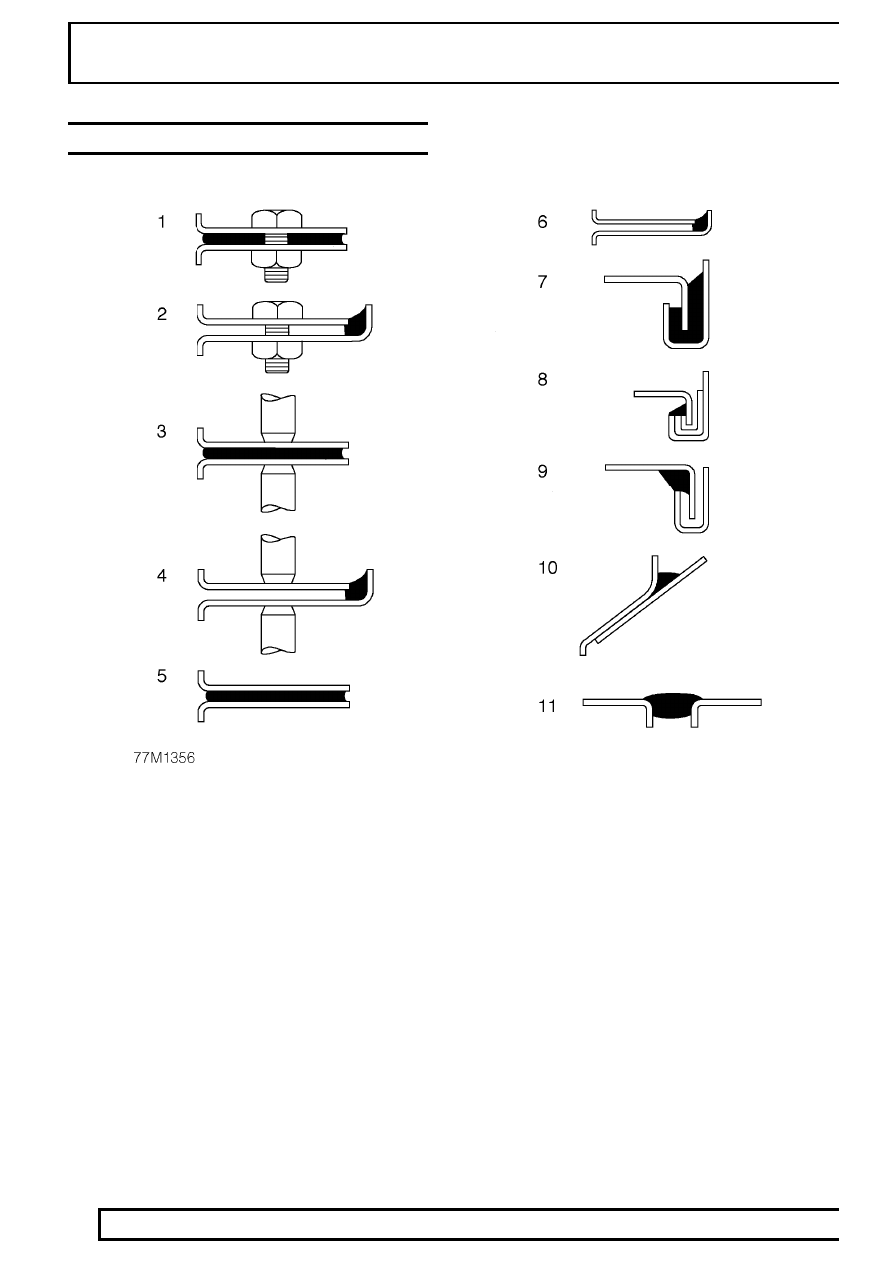

Joint Types:

1. Between bolted panels
2. Between bolted panel edges
3. Between spot welded panels
4. Between spot welded panel edges
5. Between bonded panels
6. Between bonded panel edges

7. Clinch joints (type a)
8. Clinch joints (type b)
9. Clinch joints (type c)

10. Gaps between panels (type a)
11. Gaps between panels (type b)
