GENERAL SPECIFICATION DATA

13

INFORMATION

HYDRAULIC VEHICLE RAMP (FOUR POST)

Use only a ’drive on’ type ramp which supports vehicle
by its own road wheels. If a ’wheel-free’ condition is
required, use a ’drive on’ ramp incorporating a
’wheel-free’ system that supports under axle casings.
Alternatively, place vehicle on a firm, flat floor and
support on axle stands.

TWO POST VEHICLE RAMPS

The manufacturer of RANGE ROVER VEHICLES
DOES NOT recommend using ’Two Post’ ramps
that employ four adjustable support arms. These
are NOT considered safe for Range Rover
vehicles.
If vehicle is installed on a Two Post ramp
responsibility for safety of vehicle and personnel
performing service operations is in the hands of
the Service Provider.

DYNAMOMETER TESTING - VEHICLES WITH
ANTI-LOCK BRAKES (ABS)

WARNING: Do not attempt to test ABS
function on a dynamometer

Four wheel dynamometers

NOTE: Before testing a vehicle on a four
wheel dynamometer disconnect the valve
relay.

See Electrical Trouble Shooting

Manual.
The ABS function will not work, the ABS warning
light will illuminate. Normal braking will be
available.

Provided that front and rear rollers are rotating at
identical speeds and that normal workshop safety
standards are applied, there is no speed restriction
during testing except any that may apply to the tyres.

Two wheel dynamometers

IMPORTANT: Use a four wheel dynamometer for
brake testing if possible.

NOTE: ABS will not function on a two
wheel dynamometer. The ABS light will
illuminate during testing. Normal braking

will be available.

If brake testing on a single rig is necessary it must be
carried out with propeller shaft to the rear axle
removed, AND neutral selected in BOTH main and
transfer boxes.

If checking engine performance, the transfer box must
be in high range and drive shaft to stationary axle
removed.

04

GENERAL SPECIFICATION DATA

NEW RANGE ROVER

14

INFORMATION

EMERGENCY TOWING

CAUTION: The New Range Rover has
permanent four-wheel drive. The following
instructions must be adhered to when

towing:-

Towing the vehicle on four wheels

If it is necessary to recover the vehicle by towing on
all four wheels, ’Transfer neutral’ MUST be selected.

1. With the starter key removed, insert a fuse of 5

amps or more in fuse position ’11’ in the RH seat
fuse box.

2. Turn the starter switch to position ’2’; the transfer

box will now automatically select neutral.

3. Wait until the message centre displays

’TRANSFER NEUTRAL’ and then turn the
starter switch off, position ’0’.

4. Turn the starter switch to position ’1’ to unlock

the steering and leave in this position while the
vehicle is being towed.

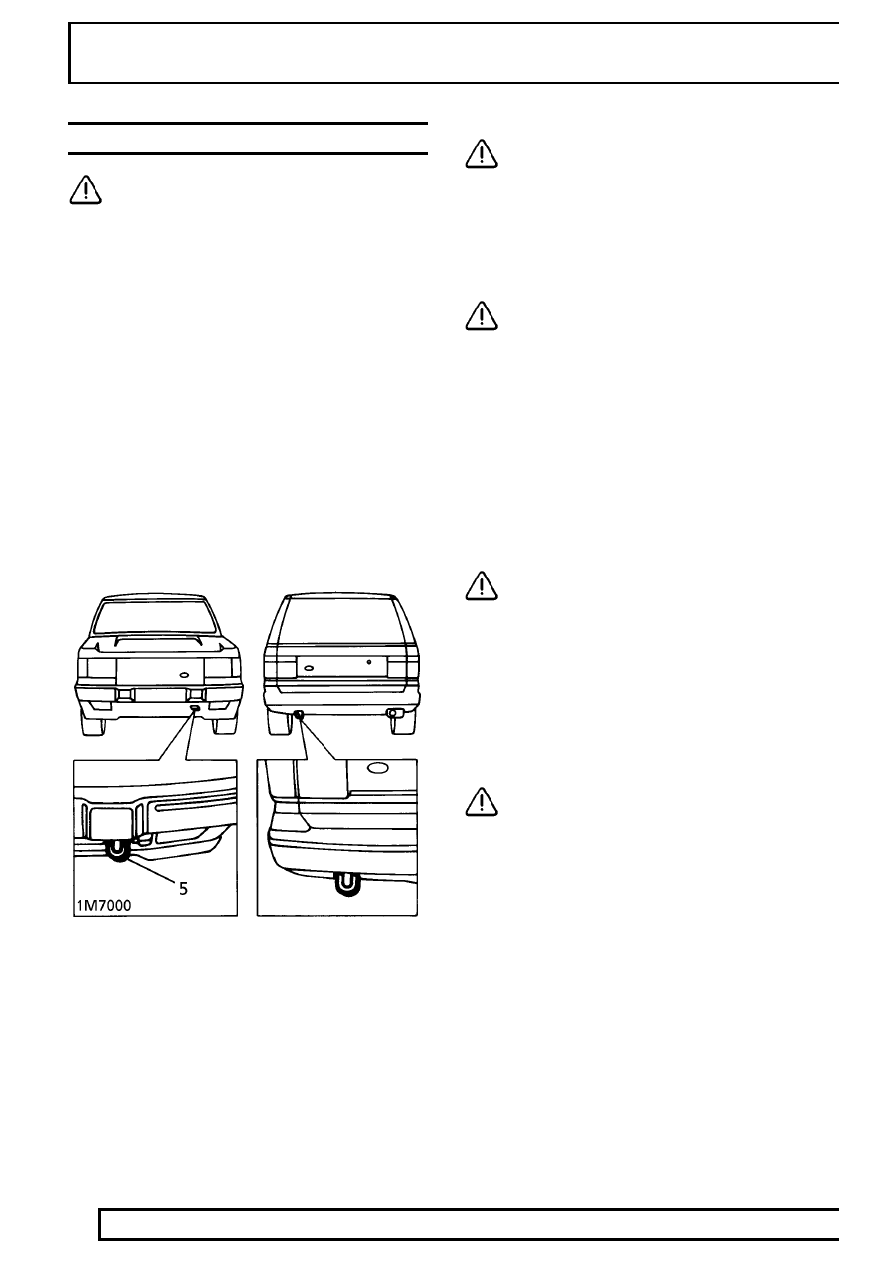

5. Secure tow rope to the front towing eye.
6. Release the parking brake.

CAUTION: The brake servo and power
assisted steering system will not be
functional without the engine running.

Heavier pedal pressure will be required to apply
the brakes, the steering system will require
greater effort to turn the front wheels.
The vehicle tow connection should be used only
in normal road conditions.

CAUTION: DO NOT remove the starter key
or turn the switch to position ’0’ when the
vehicle is in motion.

7. To reactivate the transfer box after towing, turn

the starter switch off to position ’0’ and remove
the fuse from position ’11’. On automatic
vehicles the transfer box will automatically
engage the Low or High gear range.

8. On manual vehicles, first press the range

change switch. The transfer box will then engage
the Low or High gear range.

Suspended tow by breakdown vehicle

CAUTION: To prevent vehicle damage,
front or rear propeller shaft MUST be
removed, dependant upon which axle is

being trailed.

9. To facilitate reassembly, first mark the propeller

shaft drive flanges at transfer box and axle.

10. Remove propeller shaft fixings and lift shaft from

vehicle.

11. If the front axle is to be trailed turn ignition key to

position ’1’ to release the steering lock.

CAUTION: If the rear axle is to be raised,
the steering wheel and/or linkage MUST be
secured in a straight ahead position. DO

NOT use the steering lock for this purpose.

GENERAL SPECIFICATION DATA

15

INFORMATION

TRANSPORTING THE VEHICLE BY TRAILER

If the vehicle should require transporting on a trailer or
the back of a lorry, the air suspension must be set to
’ACCESS’ before being lashed.

See FRONT

SUSPENSION, Description and operation.

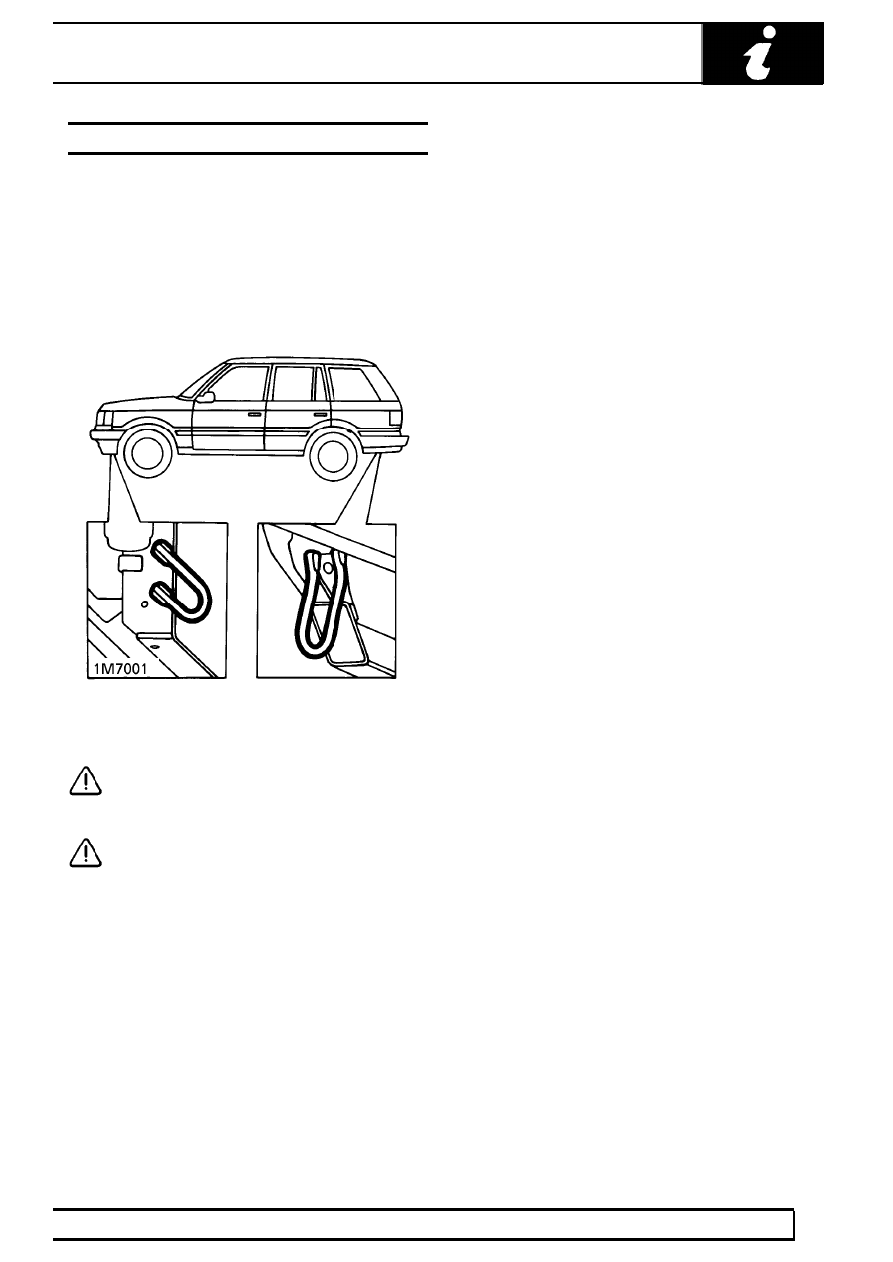

Lashing eyes are provided on the front and rear
chassis cross members to facilitate the securing of the
vehicle, as shown.

CAUTION: DO NOT secure lashing hooks
or trailer fixings to any other part of the
vehicle.

CAUTION: If the air suspension cannot be
set to the ’ACCESS’ position, then the
vehicle must be lashed by its wheels and

not the lashing eyes.

Install vehicle on the trailer and apply park brake.
Select neutral in main gearbox; this will prevent
damage to the parking pawl of the automatic gearbox.

04

GENERAL SPECIFICATION DATA

NEW RANGE ROVER

16

INFORMATION

VEHICLE DIMENSIONS

mm

inches

Overall length

4713

...................................................................

185.6

with Europe/UK towbar

4804

...........................................

189.1

Overall width

1889

....................................................................

74.4

Overall height at standard profile

1817.5

.....................................

71.6

Wheelbase

2745

.......................................................................

108.1

Track:

Front

1540

........................................................................

60.6

Rear

1530

........................................................................

60.2

Turning circle between kerbs

1189 mm (39 ft)

...........................................

STEERING

Power steering box
Make/type

ZF type 8055, recirculating ball steering gear

........................................................................

Steering wheel turns, lock-to-lock

3.2

....................................

Steering pump
Make/type:

V8 engine

ZF type 7691, vane type

................................................................

Diesel engine

ZF type7681, vane type

..........................................................

Steering geometry
Steering wheel diameter

406.4mm (16 in.)

..................................................

Toe-out measurement

0.6 to 1.80mm (0.02 - 0.07 in.)

......................................................

Toe-out included angle

0˚ 5’ to 0˚ 15’

.....................................................

Camber angle

..................................................................

NOTE:

Castor angle

.....................................................................

Check at

Swivel pin inclination static

...............................................

kerbweight
