Range Rover. Manual - part 339





INSTRUMENTS

3

REPAIR

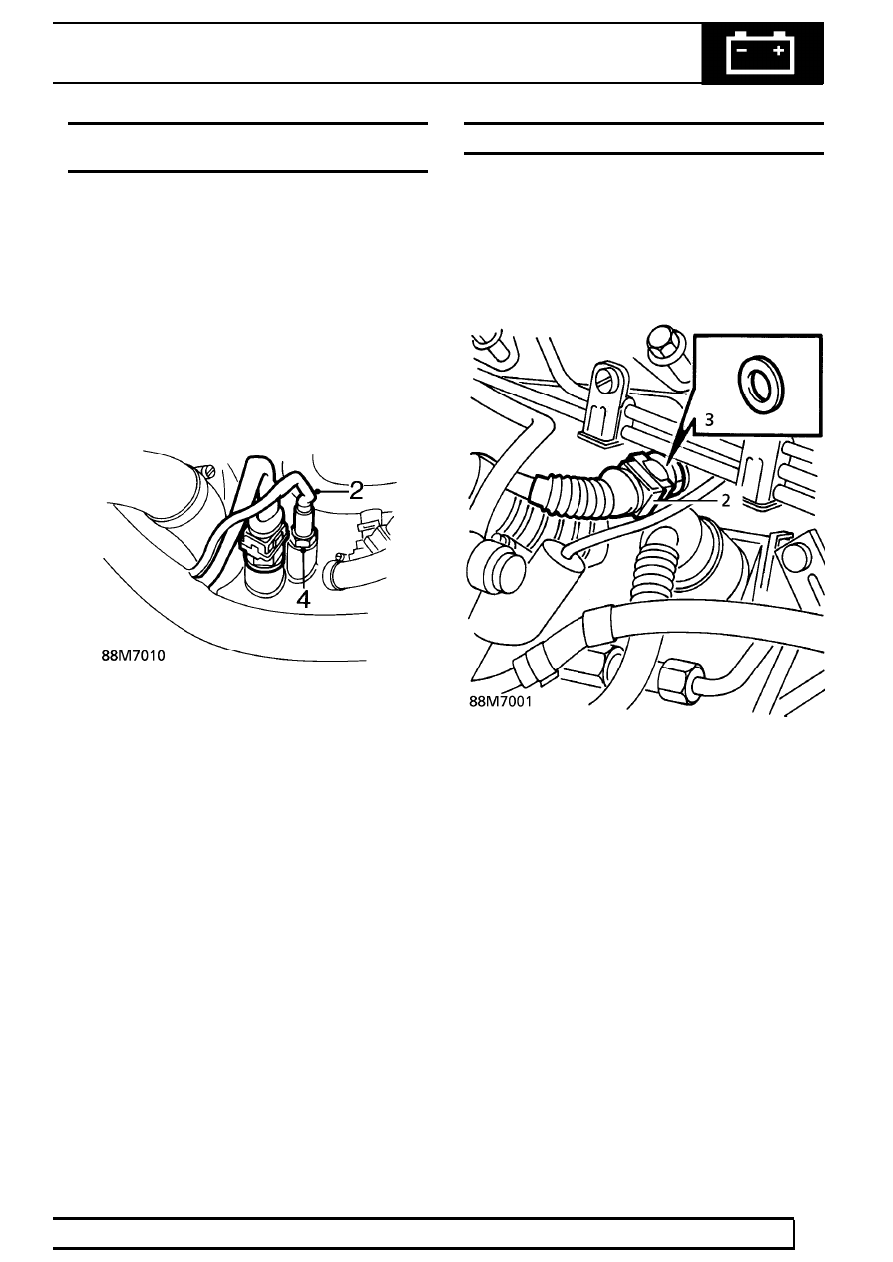

COOLANT TEMPERATURE SENSOR - V8 - UP TO
99MY

Service repair no - 88.25.20

Remove

1. Partially drain cooling system.

See COOLING

SYSTEM, Repair.

2. Disconnect coolant temperature sensor.
3. Position rag around sensor to catch spillage.
4. Remove sensor.

Refit

5. Ensure sensor seat in manifold is clean.
6. Coat sensor threads with Loctite 577.
7. Fit sensor. Tighten to

10 Nm. (7 lbf.ft)

8. Connect sensor.
9. Refill cooling system.

See COOLING SYSTEM,

Repair.

10. Run engine to normal operating temperature.

Check for leaks around sensor.

COOLANT TEMPERATURE SENSOR - DIESEL

Service repair no - 88.25.20

Remove

1. Partially drain cooling system.

See COOLING

SYSTEM, Repair.

2. Disconnect coolant temperature sensor

multiplug.

3. Remove sensor using a deep 19mm socket with

sufficient clearance for connector. Collect
sealing washer and discard.

Refit

4. Ensure sensor seat in cylinder head is clean.
5. Using a new sealing washer, fit sensor. Tighten

to

20 Nm. (15 lbf.ft)

6. Connect multiplug to sensor.
7. Refill cooling system.

See COOLING SYSTEM,

Repair.

8. Run engine to normal operating temperature.

Check for leaks around sensor.

88

INSTRUMENTS

NEW RANGE ROVER

4

REPAIR

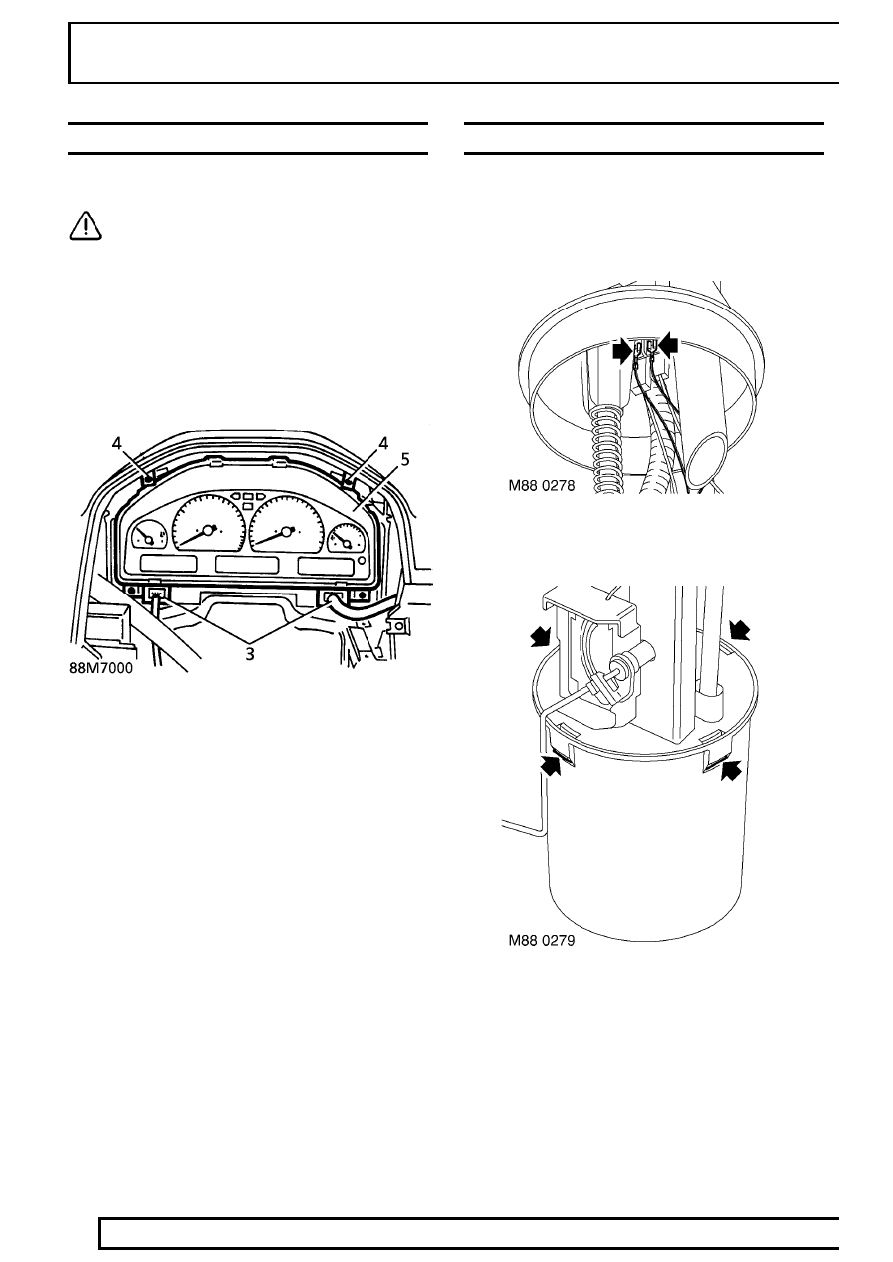

INSTRUMENT PACK

Service repair no - 88.20.01

CAUTION: If vehicle has SRS fitted, both
battery terminals must be disconnected
(negative lead first) prior to removing

instrument pack.

1. Adjust steering column to fully extended/lowered

position.

2. Remove instrument pack binnacle.

See this

section.

3. Disconnect instrument pack multiplugs.

4. Remove 4 screws securing instrument pack to

fascia.

5. Remove instrument pack.

Refit

6. Reverse removal procedure.

FUEL TANK SENDER UNIT

Service repair no - 88.25.32

Remove

1. Remove fuel tank.

See FUEL SYSTEM, Repair.

2. Disconnect 2 sender unit lucars. (1large 1 small

)difficult to disconnect.

3. Carefully release 4 clips around fuel pump

housing, lower housing disengage pump from
mounting.

INSTRUMENTS

5

REPAIR

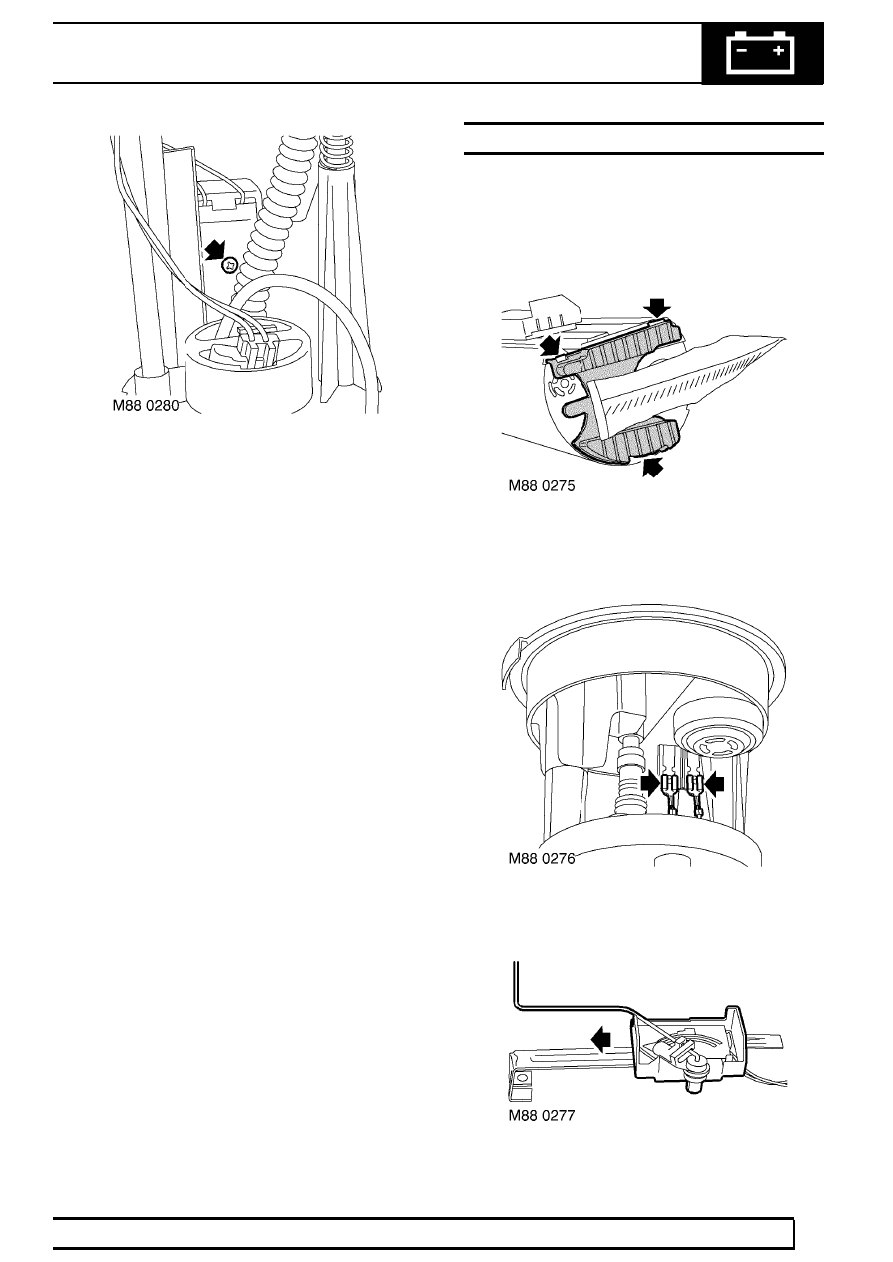

4. Carefully pivot the pump assembly, enabling

access past fuel pipe to pozidrive screw
retaining sender unit.

5. Remove 1 pozidrive screw from sender unit and

move sender aside.

Refit

6. Fit sender unit to mounting on fuel pump

assembly,locate and tighten pozidrive screw

7. Align fuel pump with lugs inside fuel pump

housing.

8. Align housing male and female connectors with

main body, carefully push fully home.

9. Fit sender unit lucar connections

10. Fit Fuel Tank

See FUEL SYSTEM, Repair.

FUEL TANK SENDER UNIT - ADVANCED EVAPS

Service repair no - 88.25.32

Remove

1. Remove fuel tank.

See FUEL SYSTEM, Repair.

2. Carefully release 3 clips retaining fuel gauge

tank unit rubber foot and move aside.

3. Release 2 lucar connections from top of fuel tank

unit, difficult to remove.

4. Carefully slide sender unit toward filter until

bracket clears main assembly then move aside.

88

INSTRUMENTS

NEW RANGE ROVER

6

REPAIR

Refit

5. Fit sender unit bracket to slots in main assembly

and press home.

6. Align clips and fit rubber foot to base of main

assembly.

7. Fit sender lucar connections to top of tank unit,

ensure wires pass through centre ring. Connect
black sender wire to red and blue sender wire to
black.

8. Fit fuel tank

See FUEL SYSTEM, Repair.
