NAVIGATION SYSTEM

9

DESCRIPTION AND OPERATION

GPS Antenna

The GPS antenna is located underneath the air intake
plenum. The antenna is connected to the GPS
receiver via a single co-axial cable and passes signals
received from the GPS satellites to the receiver for
processing.

It is possible for the antenna to lose the signals from
the satellites in hilly or tree lined areas, built up areas
with tall buildings, multi-storey car parks, garages,
tunnels, bridges and during heavy rain/thunderstorms.
When the signal is lost, the navigation computer will
continue to give guidance using memory mapped data
from the CD map until the signal is restored.

Connector Details

SMB Connector 1

Pin 1 - RF signal from GPS antenna

Screen - RF ground

87

NAVIGATION SYSTEM

NEW RANGE ROVER

10

DESCRIPTION AND OPERATION

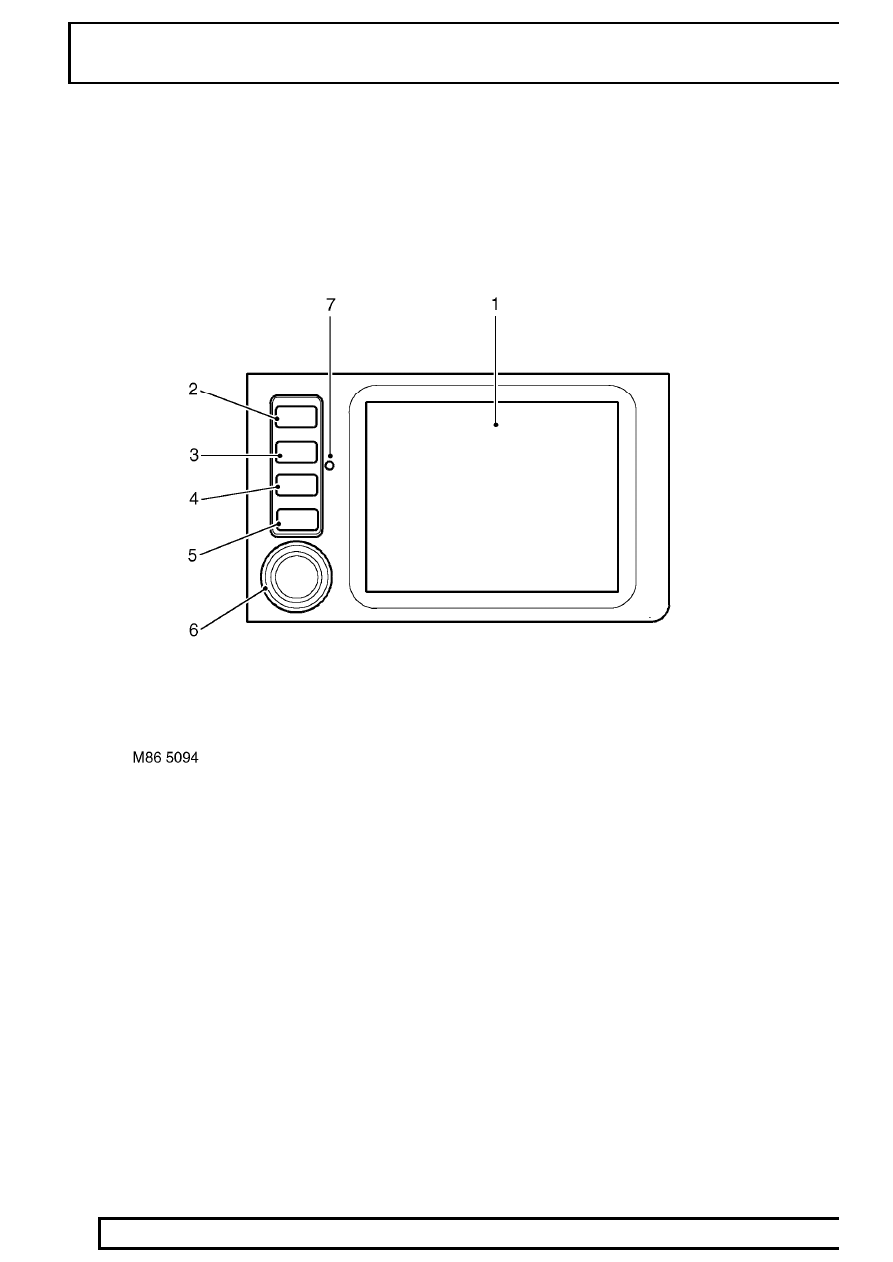

Display and Control Unit

The display and control unit is an integrated display and control unit, which allows the user to operate all the
functions of the navigation system.

1. Liquid Crystal Display (LCD)
2. Mute button
3. RE-RTE (Re-Route) button
4. Menu button
5. Repeat button
6. Navigation rotary controller
7. Photosensor

The display unit is located in the centre of the fascia. The unit comprises of a 127 mm (5 in) colour Liquid Crystal
Display (LCD) screen and controls to operate the navigation functions. The display unit comprises four control
switches, one rotary press menu control and one status LED. A photosensor is used to control the brightness of
the screen in day and night time conditions.

NAVIGATION SYSTEM

11

DESCRIPTION AND OPERATION

The D&C unit is connected with a 12-way MQL connector and a 6 way AMP connector.

C815 - 12 way MQL - White

Pin No.

Description

Input/Output

1

Red Video 50

from Nav Computer

Input

2

Video ground from Nav Computer

Input

3

Green Video & Sync 50

from Nav Computer

Input

4

Video ground from video module II

Input

5

Blue Video from video module II

Input

6

Video ground from video module II

Input

7

LCD Ground from video module II

Input

8

Not used

-

9

Not used

-

10

Not used

-

11

Not used

-

12

Not used

-

87

NAVIGATION SYSTEM

NEW RANGE ROVER

12

DESCRIPTION AND OPERATION

6 way AMP - Black

Pin No.

Description

Input/Output

1

PWM variable illumination signal

Input

2

Ground

Input

3

K-bus

Input/Output

4

+12V Permanent feed

Input

5

+12V Accessory feed

Input

6

Display Frame Rate (60Hz/50Hz) changeover signal

Input
