Range Rover. Manual - part 325





ELECTRICAL

41

REPAIR

HIGH LEVEL STOP LAMP

Service repair no - 86.41.32

NOTE: An access panel is provided in the
upper tailgate trim panel to allow bulb
replacement.

Remove

1. Remove lower trim panel assembly from upper

tailgate.

2. Remove rubber finisher from panel assembly.
3. Release 6 lugs securing halves of trim panel

assembly.

4. Separate finisher halves.
5. Remove 4 screws securing stop lamp assembly

to upper trim half.

6. Remove stop lamp assembly.

Refit

7. Position stop lamp assembly and secure with

screws.

8. Fit rubber finisher to upper trim half.
9. Fit trim halves together and engage lugs.

10. Fit lower trim panel assembly to upper tailgate.

TAIL LAMP

Service repair no - 86.40.70

Remove

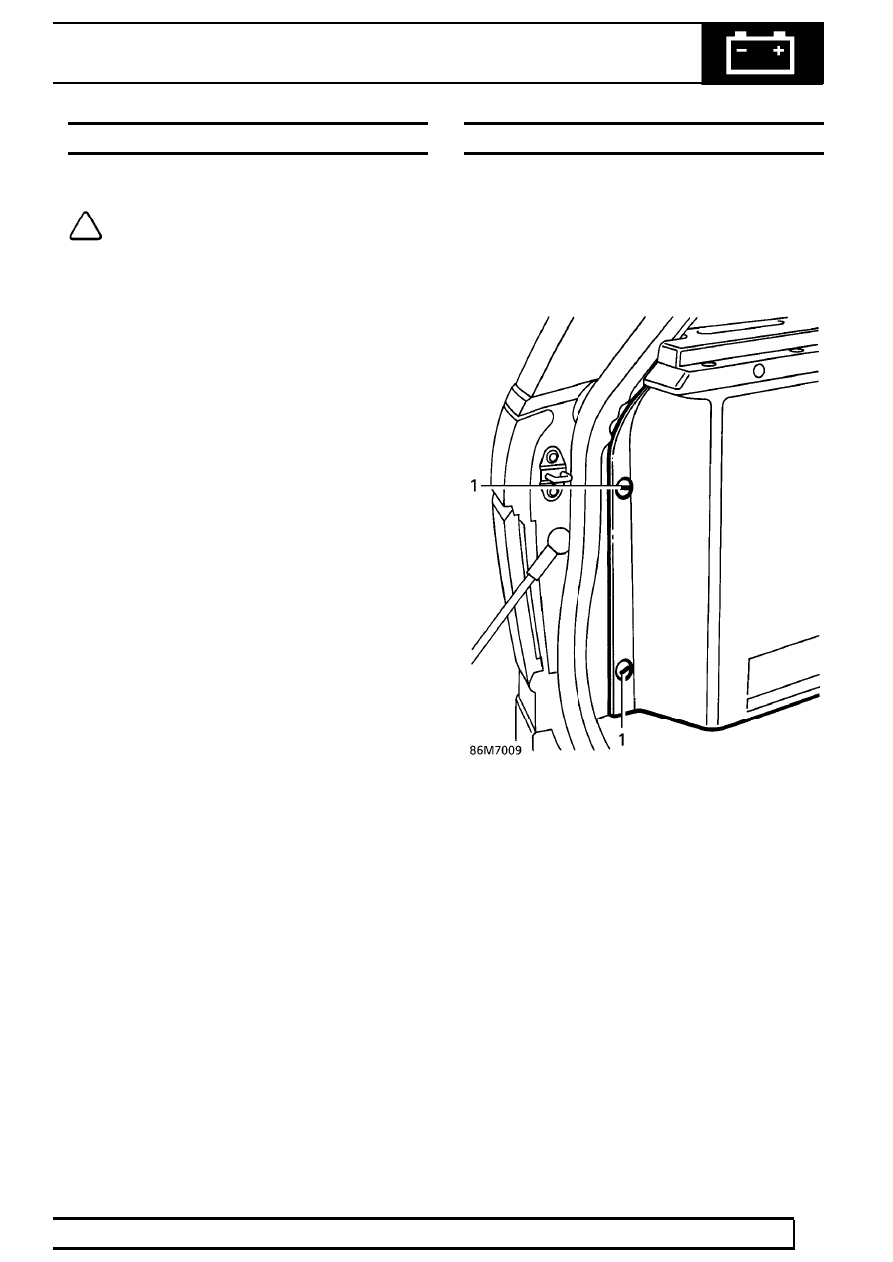

1. Release 2 studs securing rear speaker resonator

cover. Release cover.

2. Remove tail lamp access cover.

86

ELECTRICAL

NEW RANGE ROVER

42

REPAIR

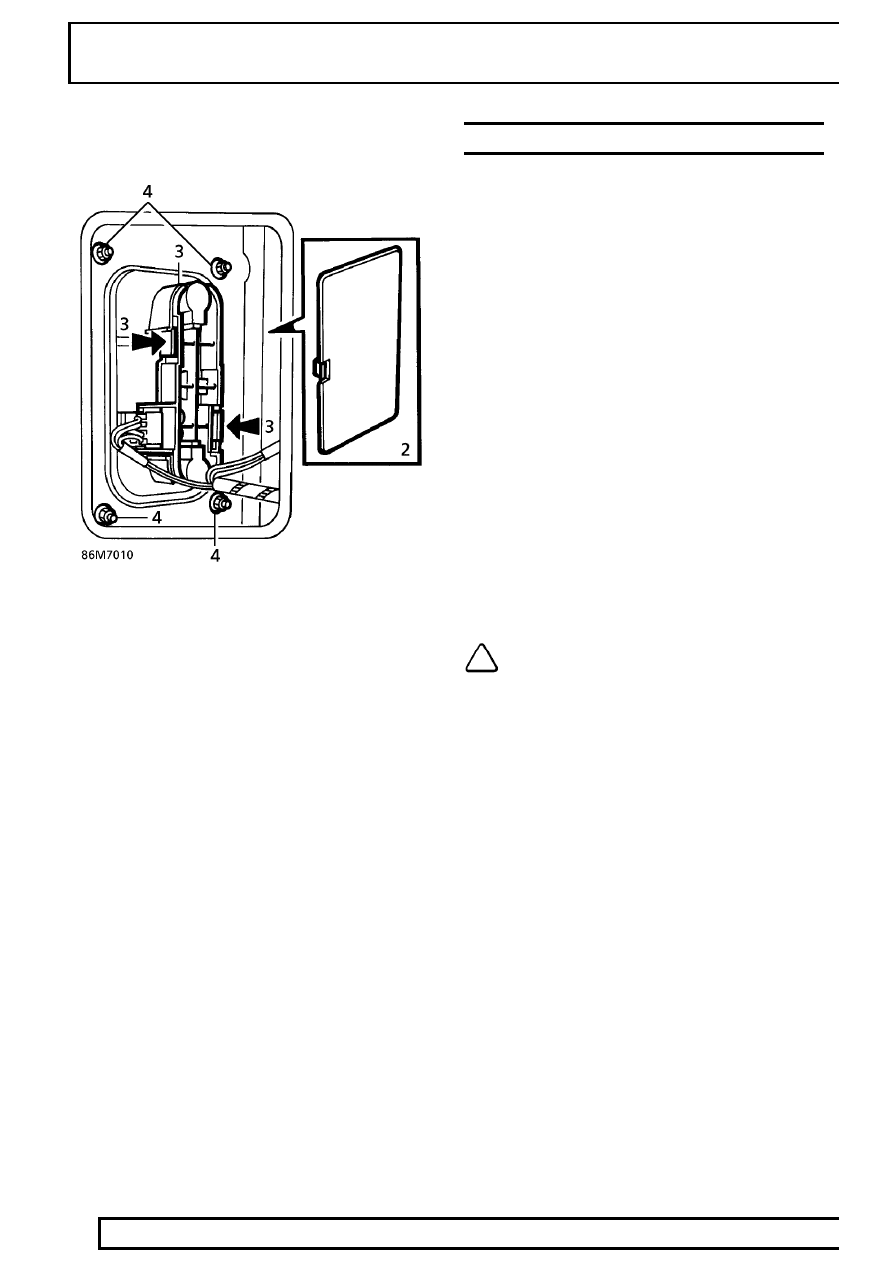

3. Release bulb holder from lamp.
4. Remove 4 nuts. Remove tail lamp.

Refit

5. Reverse removal procedure.

WINDOW MOTOR - FRONT

Service repair no - 86.25.04

Remove

1. Remove front door glass.

See CHASSIS AND

BODY, Repair.

2. Disconnect multiplug from window lift motor.
3. Remove lower regulator plate retaining bolt.
4. Remove bolt securing regulator runner to door

panel.

5. Slacken 2 upper regulator plate retaining bolts.
6. Slide regulator assembly rearwards. Release

from upper retaining bolts.

7. Remove regulator assembly.
8. Remove 3 screws securing window lift motor.
9. Remove window lift motor from regulator.

Refit

10. Fit window lift motor to regulator. Secure with

screws.

11. Fit regulator assembly.
12. Position regulator plate to upper retaining bolts.

Slide regulator forwards. Tighten bolts.

13. Secure regulator runner to door panel with bolt.

NOTE: Position runner midway in its slot.

14. Fit lower regulator plate retaining bolt.
15. Reconnect window lift motor multiplug.
16. Refit front door glass.

See CHASSIS AND

BODY, Repair.

ELECTRICAL

43

REPAIR

WINDOW MOTOR - REAR DOOR

Service repair no - 86.25.09

Remove

1. Remove rear window motor control panel.

See

this section.

2. Remove 3 screws securing motor to control

panel. Remove motor.

Refit

3. Ensure window lift control gear and motor

support are clean. Grease moving parts.

4. Reverse removal procedure.

FASCIA HARNESS - VEHICLES WITH SINGLE
POINT SENSED SRS

Service repair no - 86.70.10

Remove

1. Remove fascia assembly.

See CHASSIS AND

BODY, Repair.

2. Remove passenger airbag module.

See

SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.

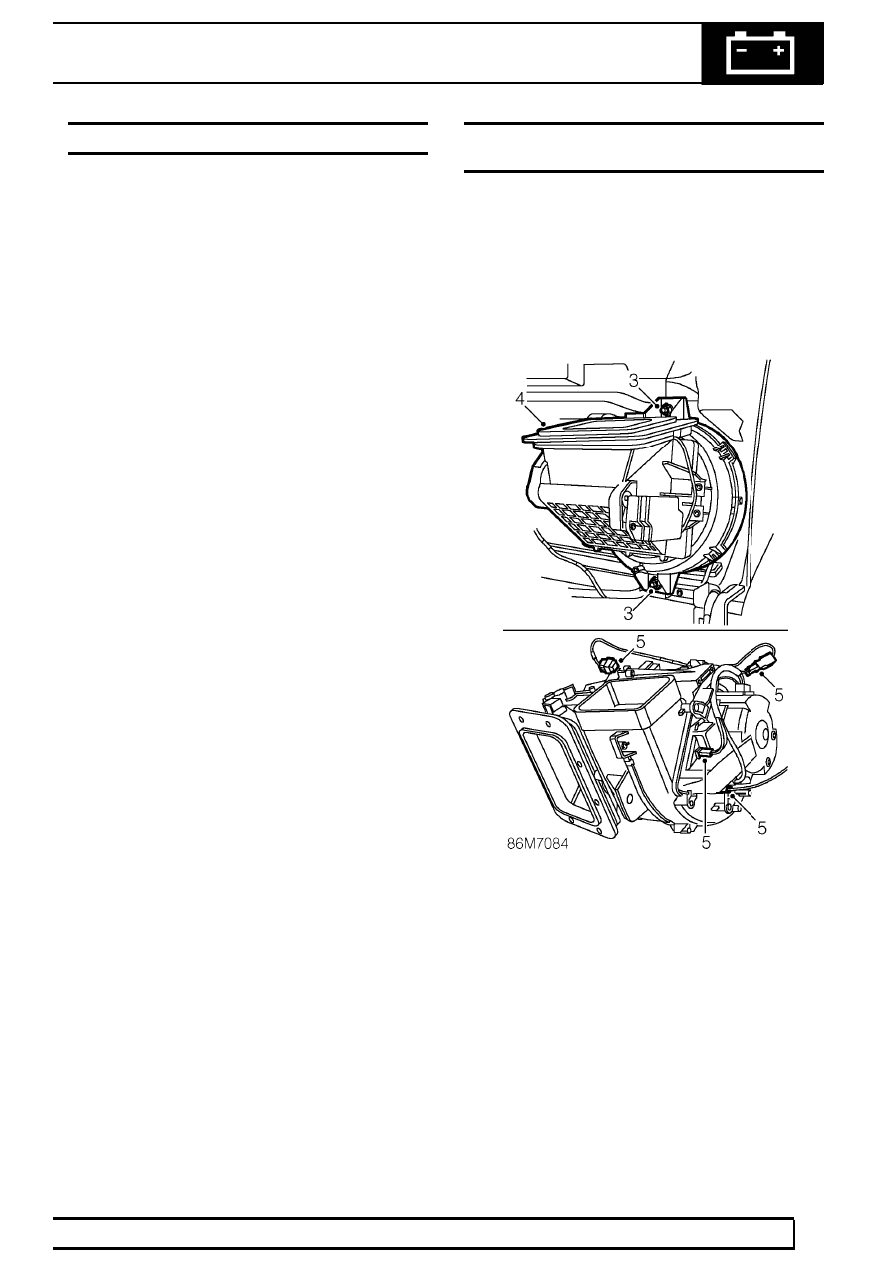

3. Remove 2 nuts securing passenger side heater

blower unit to fascia.

4. Release blower unit from fascia and heater duct.
5. Disconnect 3 multiplugs and 1 Lucar from blower

unit.

6. Remove passenger blower unit.

86

ELECTRICAL

NEW RANGE ROVER

44

REPAIR

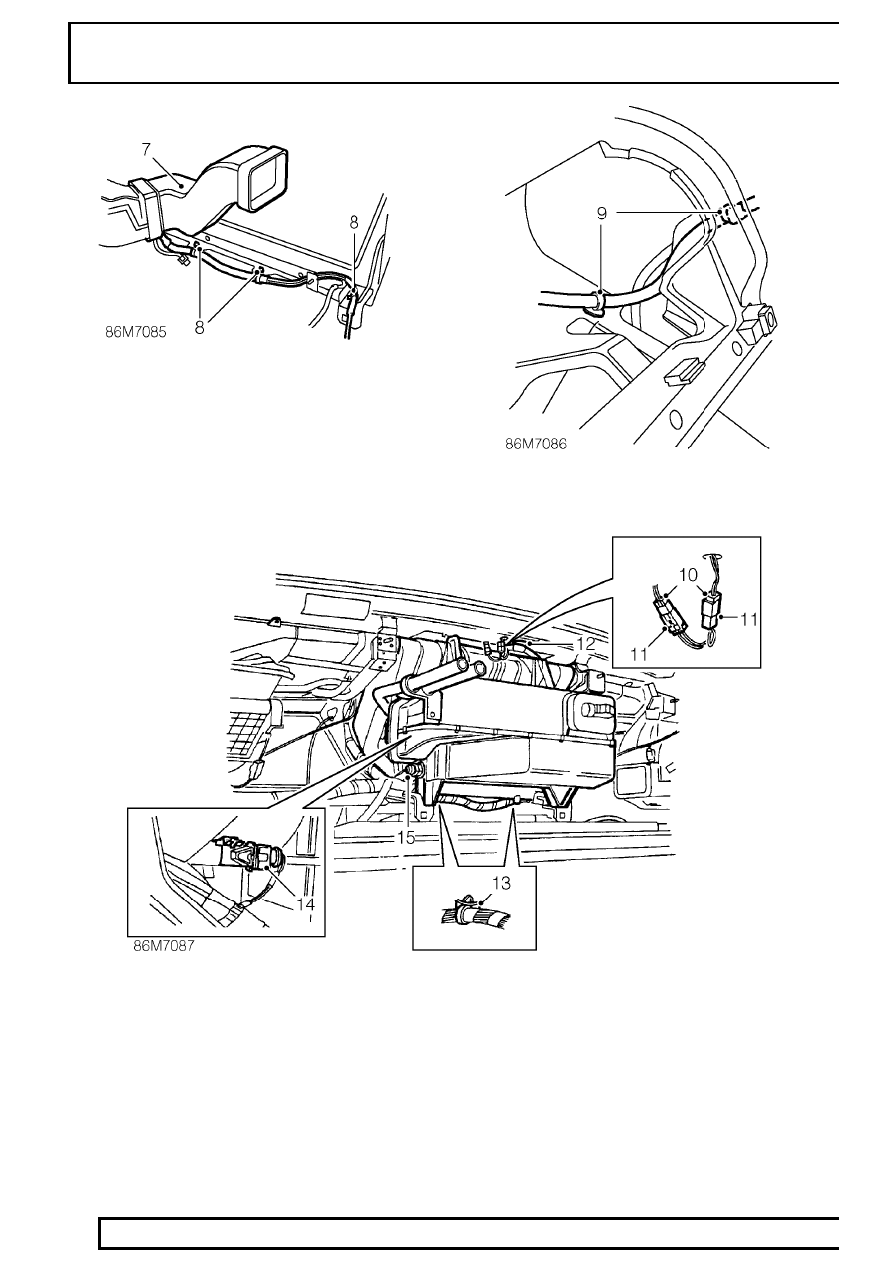

7. Remove heater duct from heater unit.
8. Release 3 clips securing harness to lower LH

fascia.

9. Release 2 clips securing passenger airbag

module harness to fascia.

10. Release sunlight sensor and alarm warning lamp

harness from fascia panel.

11. Disconnect 2 multiplugs from sunlight sensor

and alarm warning lamp.

12. Release clip securing harness to fascia.
13. Release 2 clips securing harness to evaporator.
14. Disconnect multiplug from evaporator sensor.
15. Disconnect multiplug from heater matrix pipe

sensor.
