ELECTRICAL

25

REPAIR

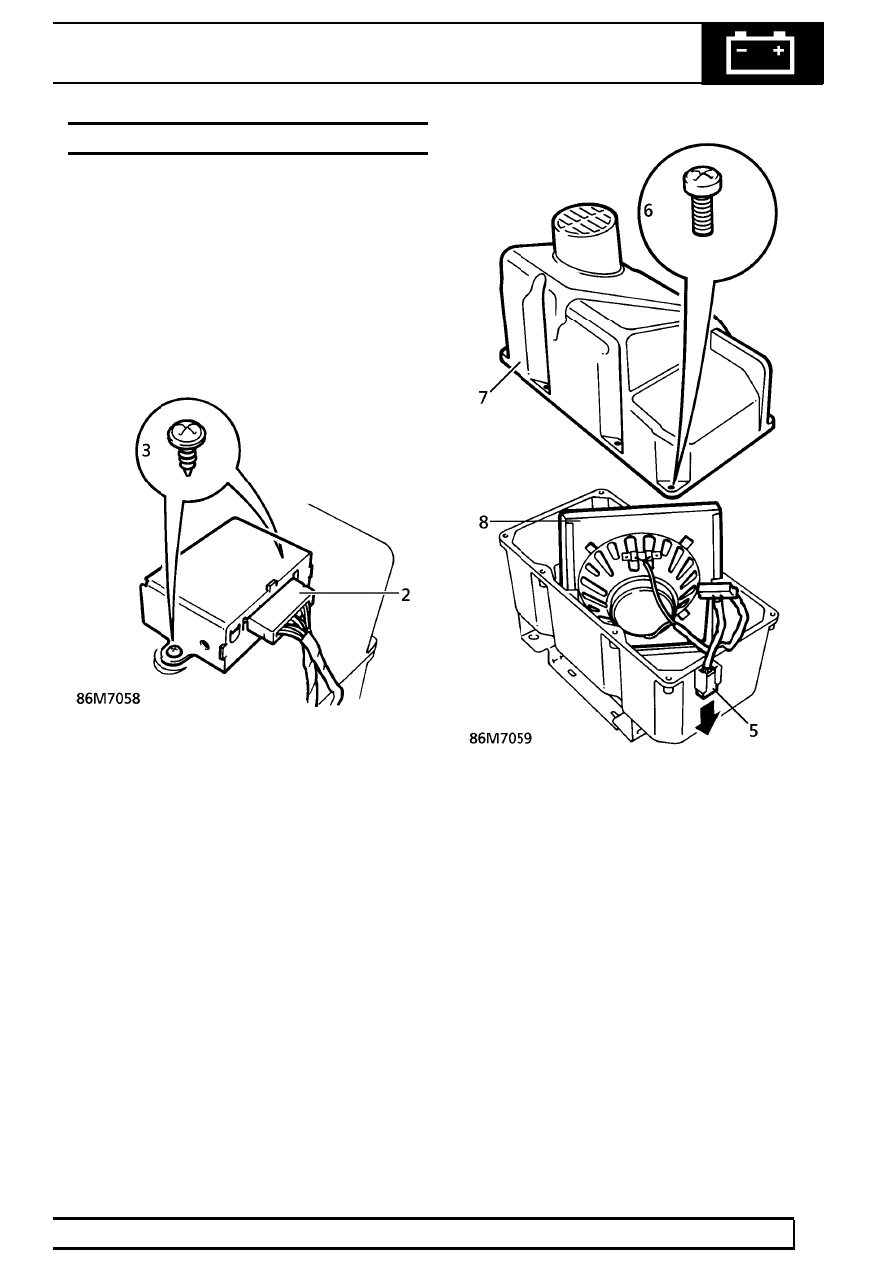

SUBWOOFER UNIT

Service repair no - 86.50.51 - Assembly
Service repair no - 86.50.92 - Speaker
Service repair no - 86.50.52 - Amplifier

Remove

1. Remove subwoofer assembly.

See CHASSIS

AND BODY, Repair.

Amplifier

2. Disconnect multiplug from amplifier.

3. Remove 2 screws securing amplifier to

subwoofer box.

4. Remove amplifier.

Speaker

5. Release multiplug from casing.

6. Remove 8 screws securing subwoofer unit

halves.

7. Remove upper half of unit.
8. Remove speaker.

Refit

9. Reverse removal procedure.

10. Check condition of all foam seals before

assembly.

11. Seal speaker harness to subwoofer unit using

black RTV silicone or similar sealant.

86

ELECTRICAL

NEW RANGE ROVER

26

REPAIR

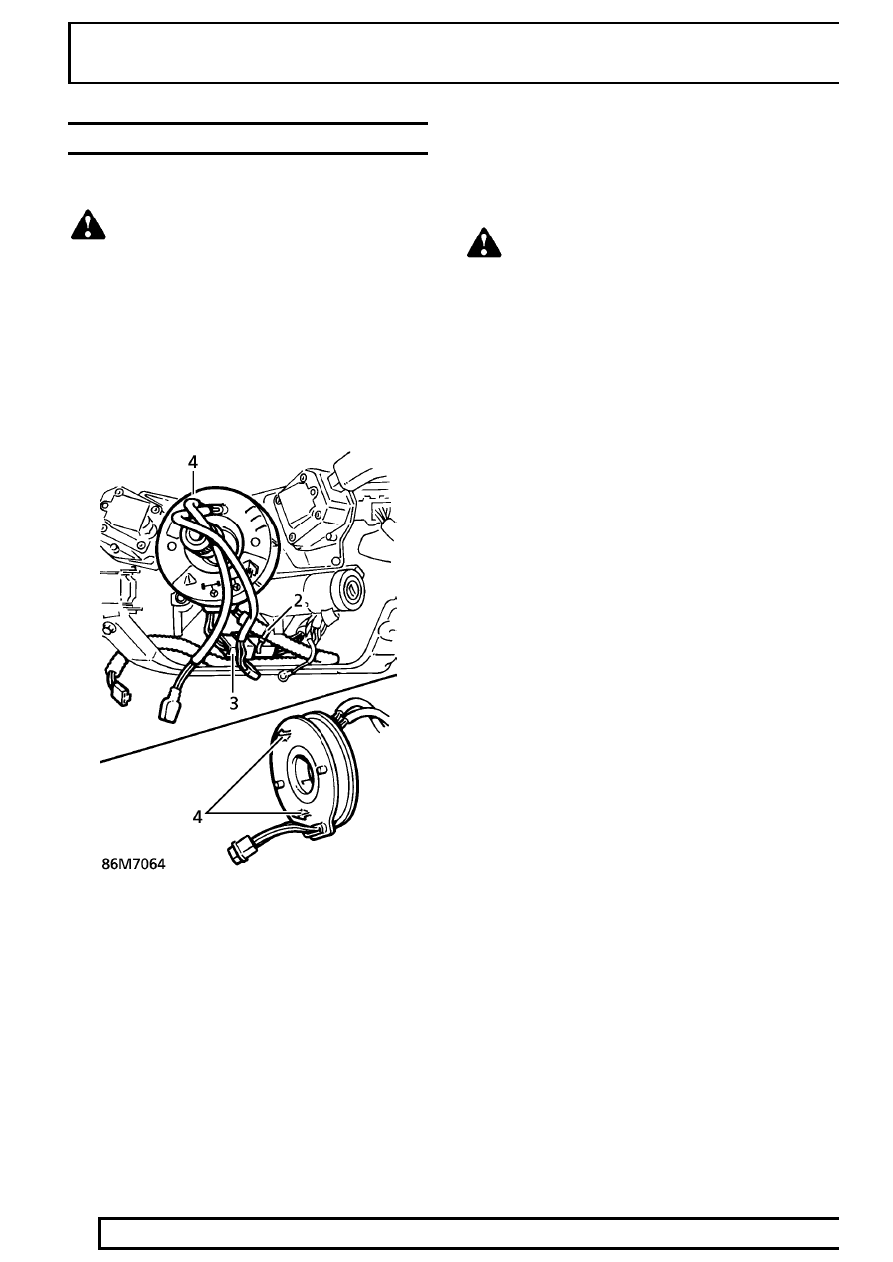

ROTARY COUPLER - STEERING WHEEL AND SRS

Service repair no - 86.65.85

WARNING: Do not turn steering wheel
independently of steering box. Damage to
the internal harness may occur, resulting

in possible malfunction of SRS and steering wheel
mounted switches.

Remove

1. Remove steering wheel.

See STEERING,

Repair.

2. Release SRS harness from clips.

3. Disconnect steering wheel multiplug.
4. Release 2 clips securing rotary coupler. Remove

coupler.

Refit

5. Position rotary coupler. Engage clips.
6. Route SRS harness correctly. Secure to clips.

WARNING: Do not connect SRS
multiplug/’shorting link’ until drivers air
bag module has been fitted.

7. Connect steering wheel multiplug.
8. Fit steering wheel.

See STEERING, Repair.

ELECTRICAL

27

REPAIR

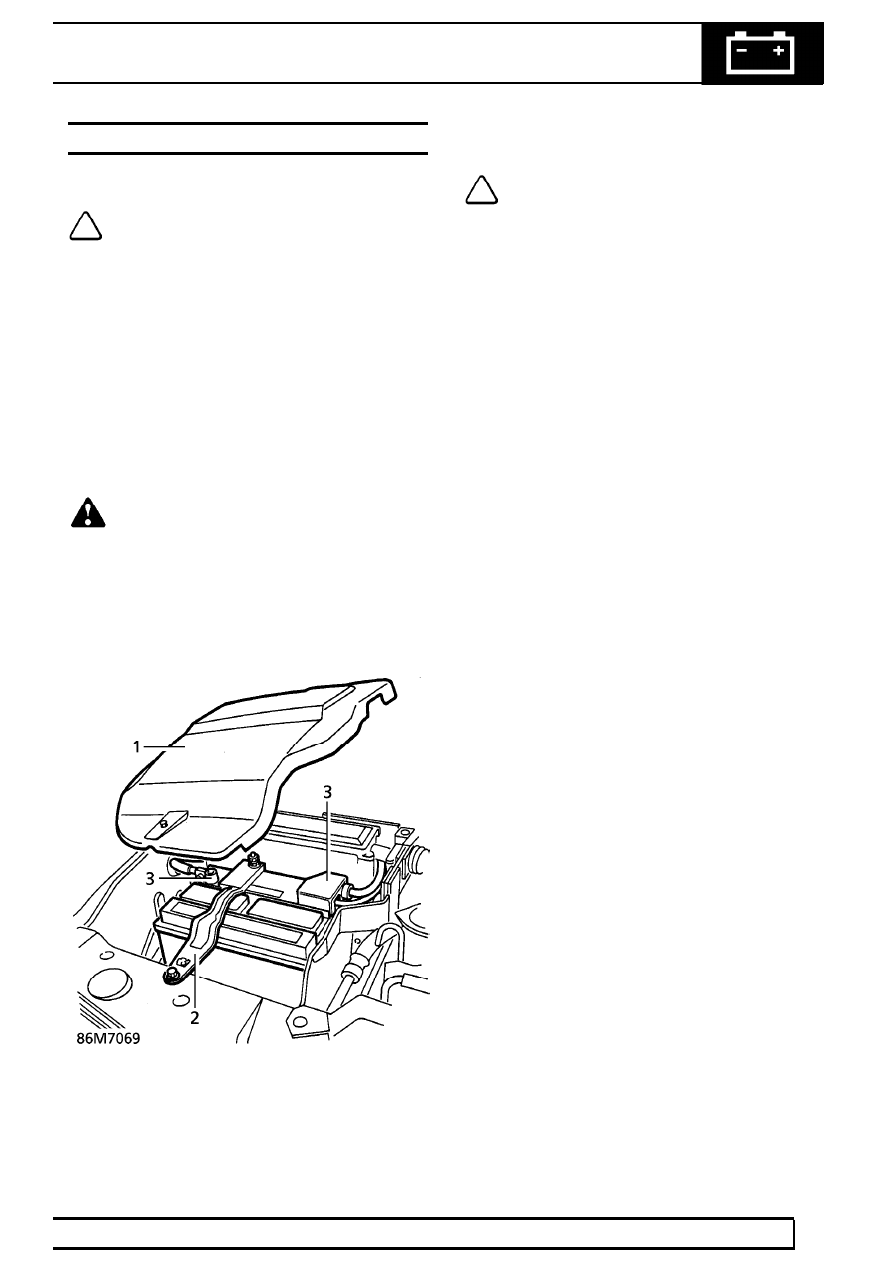

BATTERY

Service repair no - 86.15.01

NOTE: From ’96 MY, vehicles maybe fitted
with a back-up battery, the purpose of
which is to power the anti-theft alarm if the

main battery is disconnected. If the main vehicle
battery is to be removed it is essential to adopt
the following procedure before disconnecting the
terminals in order to prevent the alarm sounding:

1. Turn the starter switch ’on’ and then ’off’.
2. Disconnect the battery WITHIN 17 SECONDS

(if the battery is not disconnected within 17
seconds, the alarm will sound).

Remove

WARNING: Always disconnect negative
lead from battery first. Disconnection of
positive lead with negative lead connected

risks short circuit and severe sparking through
accidental grounding of spanner. Personal injury
could result.

1. Release 3 turnbuckles securing battery cover.

Remove cover.

2. Remove 2 nuts and 1 bolt securing battery

clamp. Remove clamp.

3. Disconnect battery terminals. Remove battery.

Refit

NOTE: Coat battery clamps and terminals
with petroleum jelly before refitting.

4. Reverse removal procedure. Reconnect battery

negative lead.

86

ELECTRICAL

NEW RANGE ROVER

28

REPAIR

BONNET SWITCH

Service repair no - 86.55.89

NOTE: Bonnet switch is integral with RH
bonnet lock.

Remove

1. Remove bonnet switch/lock assembly.

See

CHASSIS AND BODY, Repair.

Refit

2. Reverse removal procedure.

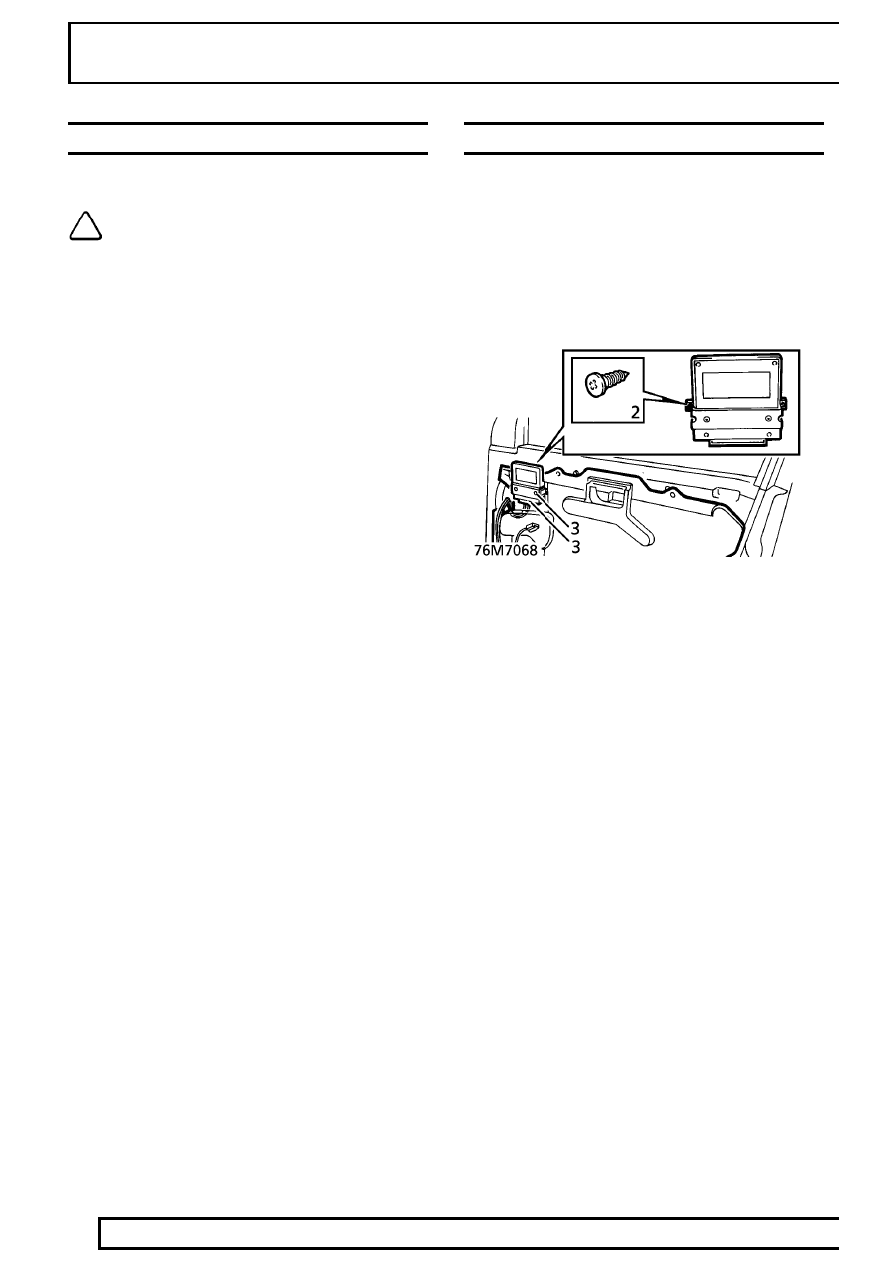

DOOR OUTSTATION

Service repair no - 86.55.99

Remove

1. Remove front door trim casing.

See CHASSIS

AND BODY, Repair.

2. Remove 2 screws securing outstation.
3. Disconnect 3 outstation multiplugs. Remove

outstation.

Refit

4. Reverse removal procedure.
