AIR CONDITIONING

9

DESCRIPTION AND OPERATION

Demist mode (PROG) switch. Push switch that
operates the automatic demist function:

The PROG switch LED illuminates when
demist is selected.

The demist symbol and external air
temperature are displayed.

The inlet air source is set to fresh air.

The blowers are set to the optimum speed.

The LH and RH target air temperatures are
set to maximum.

Distribution is set to windscreen/ side
windows and the related switch LED
illuminates.

The rear screen heater comes on for a
timed cycle or, if already on, restarts the
timed cycle, and the switch LED
illuminates.

The windscreen heaters come on for a
timed cycle or, if already on, restart the
timed cycle, and the switch LED
illuminates.

While in the demist mode, the windscreen
and rear screen heaters can be operated to
reset the timers.

A second press of the PROG switch
cancels the demist mode. All functions
return to their previous settings.

Windscreen/ Side window distribution switch. Push
switch for manual control of air distribution to direct air
through the windscreen and front side windows vents.

Windscreen/ Side window and footwell distribution
switch. Push switch for manual control of air
distribution to direct air through the windscreen, front
side windows and footwell vents.

Footwell distribution switch. Push switch for manual
control of air distribution to direct air through the
footwell vents.

Face and footwell distribution switch. Push switch for
manual control of air distribution to direct air through
the face level and footwell vents.

Face distribution switch. Push switch for manual
control of air distribution to direct air through the face
level and driver’s lap vents.

LH front seat heater switch. Push switch that operates
the LH front seat heater. Operation is independent
from the air conditioning system. The heater remains
active until the switch is pressed again. The switch
LED is illuminated while the heater is active.

Rear screen heater switch. Push switch for control of
the rear screen heater. A timed function that
automatically goes off after approximately 15 minutes,
or immediately if the switch is pressed again. The
switch LED is illuminated while the heater is active.

The exterior mirror heaters are activated for
approximately 10 minutes when either the windscreen
or rear screen heaters are activated. There is no
active indicator or independent control for the exterior
mirror heaters.

82

AIR CONDITIONING

NEW RANGE ROVER

10

DESCRIPTION AND OPERATION

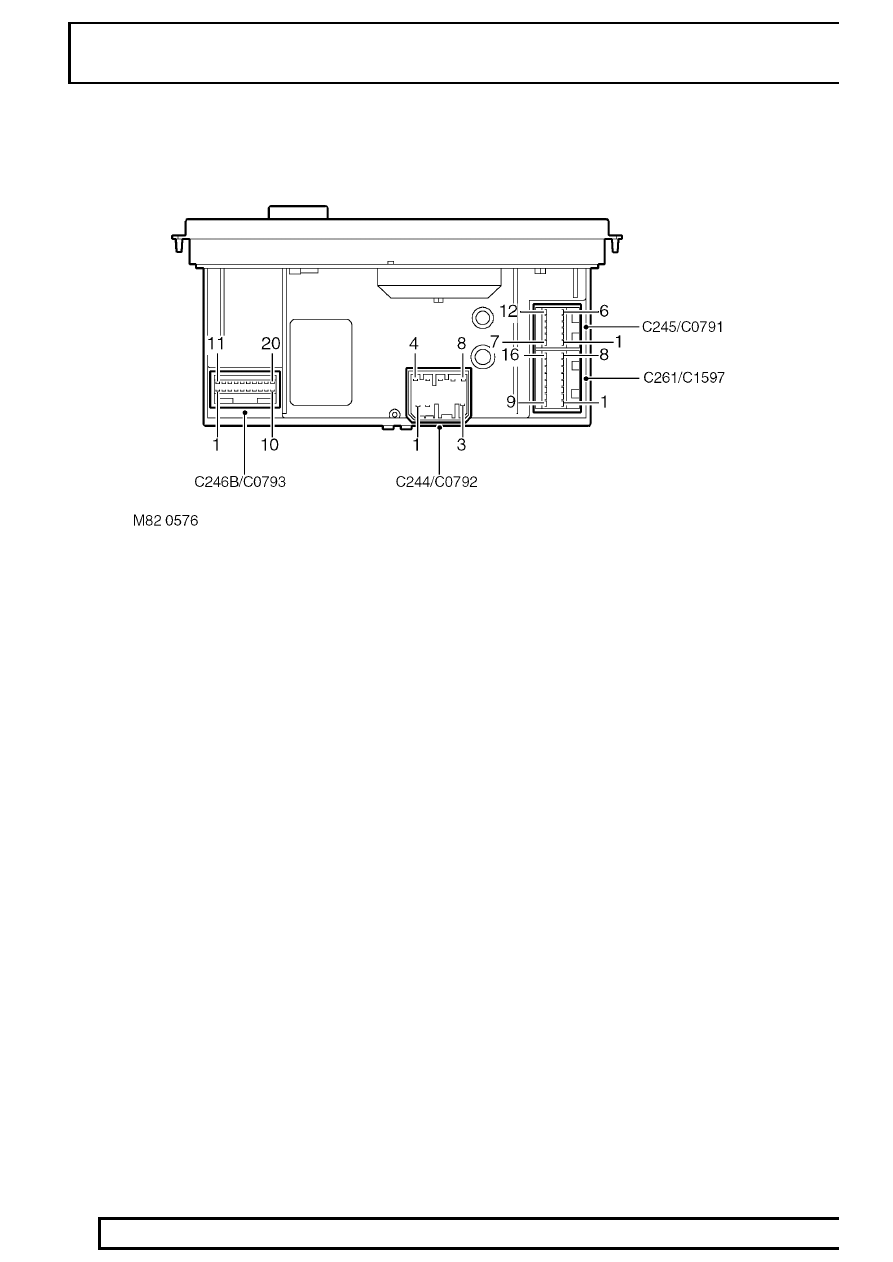

ATC ECU connectors

AIR CONDITIONING

11

DESCRIPTION AND OPERATION

ATC ECU connector pin details

Connector/

Pin No.

Description

Input/Output

C244 (up to
99MY)
C0792 (from
99MY)

1

Auxiliary power supply

Input

2

Battery power supply

Input

3

Ignition power supply

Input

4

Earth

-

5

Windscreen heaters

Output

6

Instrument/ Switch illumination

Input

7

A/C compressor clutch

Output

8

Condenser fans

Output

C245 (up to
99MY)
C0791 (from
99MY)

1

RH blower control

Output

2

RH blower safety

Output

3

RH blower voltage feedback

Input

4

LH blower control

Output

5

LH blower safety

Output

6

LH blower voltage feedback

Input

7

Ambient air temperature sensor (-)

Input

8

Ambient air temperature sensor (+)

Output

9

RH fresh/ recirculated air servo (+/-)

Input/Output

10

RH fresh/ recirculated air servo (+/-)

Input/Output

11

LH fresh/ recirculated air servo (+/-)

Input/Output

12

LH fresh/ recirculated air servo (+/-)

Input/Output

82

AIR CONDITIONING

NEW RANGE ROVER

12

DESCRIPTION AND OPERATION

Connector/

Pin No.

Description

Input/Output

C246B (up to
99MY)
C0793 (from
99MY)

1

Not used

-

2

Heater coolant temperature sensor

Input

3

Not used

-

4

Sunlight sensor

Input

5

Road speed

Input

6

Diagnostics K line

Input/Output

7

Diagnostics L line

Input/Output

8

Engine running (alternator charging)

Input

9

In-car temperature sensor, thermistor supply

Output

10

Sensor earth (evaporator temperature, heater coolant

temperature and sunlight sensors)

Input

11

LCD dimming

Input

12

Evaporator temperature sensor

Input

13

A/C request

Output

14

A/C grant

Input

15

In-car temperature sensor, aspirator earth

Input

16

In-car temperature sensor, aspirator supply

Output

17

Rear screen heater request

Output

18

In-car temperature temperature sensor, thermistor

earth

Input

19

RH seat heater request

Output

20

LH seat heater request

Output
