PANEL REPAIRS

3

SEALING AND CORROSION PROTECTION

Approved materials (continued)

MATERIAL

MANUFACTURER

3M:
Zinc Spray (09113)

WELD-THROUGH PRIMERS

ICI:
Zinc Rich Primer (P-565 634)

3M:
Flexible Parts Repair Material (05900)
Cleaner and Wax Remover (1 litre) (08984)
Waterproof Cloth Tape (Y387/YS3998)

GENERAL MATERIALS

Teroson:
Sprayable Aerosol, Water Shedder Repair
Unipart:
Waterproof Tape (GWS121)
Urethane Butyl Tape (BHM605)

77

PANEL REPAIRS

NEW RANGE ROVER

4

SEALING AND CORROSION PROTECTION

MATERIALS APPLICATIONS

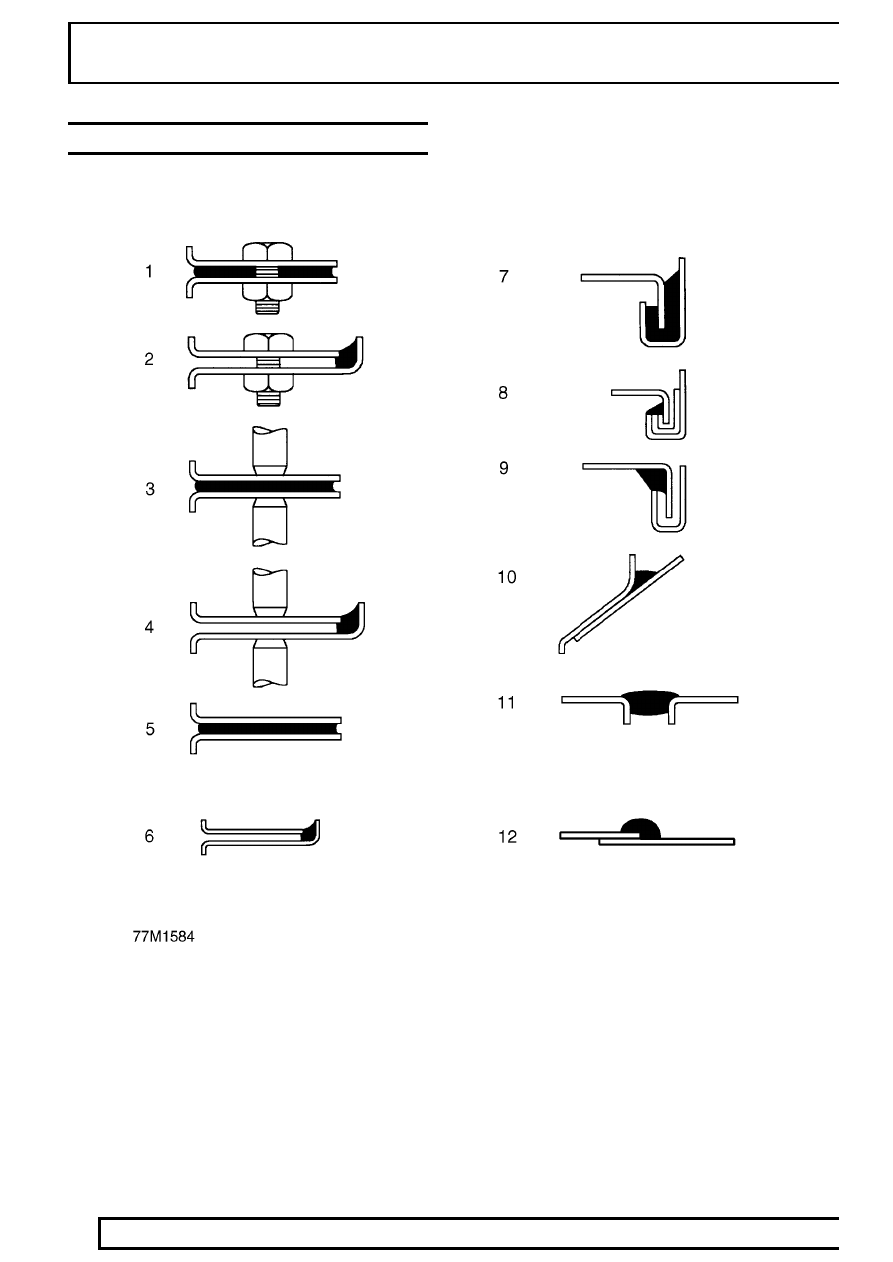

Joint Types:

1. Between bolted panels
2. Between bolted panel edges
3. Between spot welded panels
4. Between spot welded panel edges
5. Between bonded panels
6. Between bonded panel edges

7. Clinch joints (type a)
8. Clinch joints (type b)
9. Clinch joints (type c)

10. Gaps between panels (type a)
11. Gaps between panels (type b)
12. Lap joint

PANEL REPAIRS

5

SEALING AND CORROSION PROTECTION

Materials applications (continued)

MANUFACTURER

MATERIAL/JOINT TYPE

ICI P565 634

Zinc rich primer. Between bolted and spot welded panels,

3M 09113

clinch joints (type a). Brush or spray application.

Teroson Terostat V11

Preformed strip. Between bolted panels. Hand application.

Kent Industries 10075
3M 08401
3M 08572
3M 08684
3M 08689
3M 08694
3M 08703

Seam sealer. Between bolted panel edges. Applicator gun/by hand.

3M 08783
3M 08788
PPG Polyurethane 6500
Teroson 92
Terolan Light
Terostat 1K PU
Terostat 9320
Unipart UBS 605/6/7
Wurth 890100/1/2/3/4/5/6

Ciba-Geigy XBS106/7

Structural adhesive. Between spot welded and bonded panels,

3M 08120

clinch joints (type a). Applicator gun, caulking gun.

3M 08625

Seam sealer. Between spot welded panels. Applicator gun.

Kent Industries 10075
3M 08401
3M 08684
PPG 6500
Teroson 92

Seam sealer light. Between spot welded panel edges.

Terolan Light

Hand applicator gun.

Terostat 9320
Terostat 1K PU
Unipart UBS605/6/7
Wurth 890100/1/2/3/4/5/6

77

PANEL REPAIRS

NEW RANGE ROVER

6

SEALING AND CORROSION PROTECTION

Materials applications (continued)

MANUFACTURER

MATERIAL/JOINT TYPE

Ciba-Geigy XBS106/7

Structural adhesive. Between bonded panels. Caulking gun.

3M 08120

PPG 6500
Teroson 92
Terostat 9320

Semi-structural adhesive/anti-flutter material. Between

Unipart UBS605/6/7

bonded panels. Caulking gun.

Wurth 890100/1/2/3/4/5/6

Kent Industries 10075
3M 08401
3M 08694
PPG 6500

Seam sealer light. Between bonded panel edges.

Teroson 92

Hand applicator gun.

Teroson Light
Teroson 9320
Terostat 1K PU
Unipart UBS605/6/7
Wurth 890100/1/2/3/4/5/6

Gurit-Essex 10211
Gurit-Essex 10215
Gurit-Essex 10220
3M 08531

Seam sealer. Clinch joints (type b). Caulking gun.

3M 08537
3M 08703
3M 08783
3M 08788
