CHASSIS AND BODY

79

REPAIR

7. Remove trim panel and collect 2 foam pads.

Side trims

8. Release 3 studs securing each side trim.

9. Remove 2 side trims.

Refit

10. Reverse removal procedure.

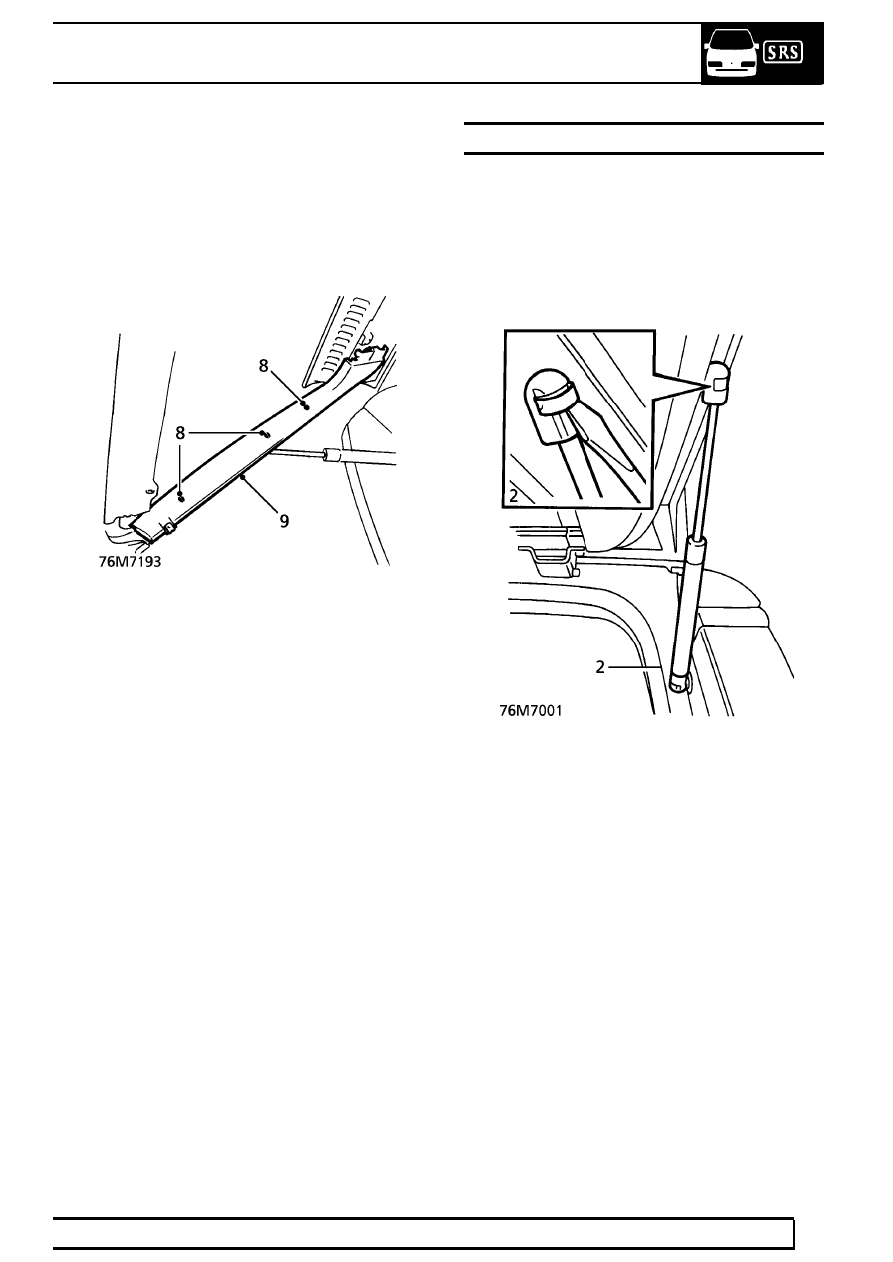

TAILGATE STRUT

Service repair no - 76.40.33

Remove

1. Secure tailgate in open position using suitable

support.

2. Release clips securing strut to ball joints.

Remove strut.

Refit

3. Reverse removal procedure.

76

CHASSIS AND BODY

NEW RANGE ROVER

80

REPAIR

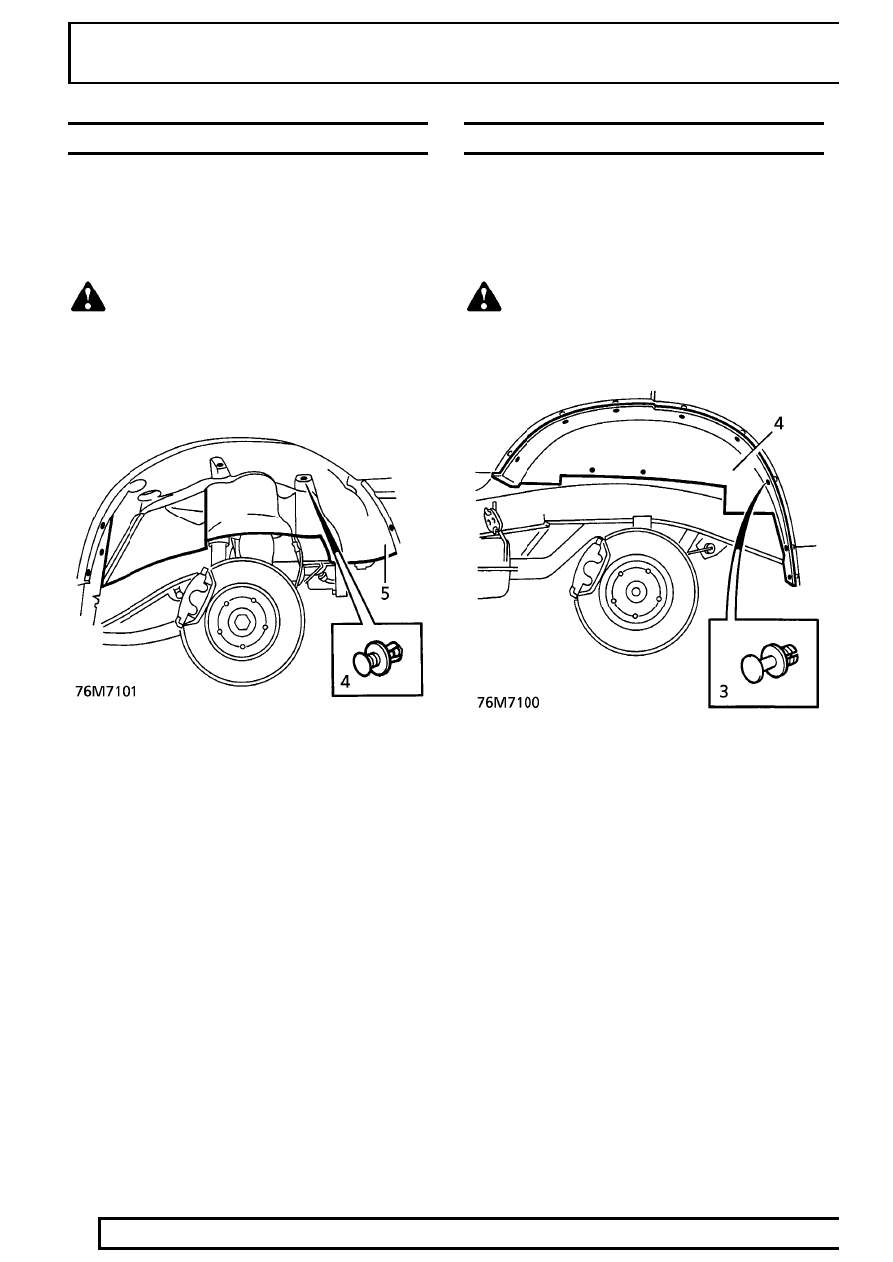

WHEEL ARCH LINER - FRONT

Service repair no - 76.10.48

Remove

1. Raise the vehicle.

WARNING: Support on safety stands.

2. Remove relevant road wheel.
3. Remove 3 screws securing mud flap. Remove

mud flap.

4. Remove 8 studs securing wheel arch liner.

Refit

5. Position liner and secure with trim studs.
6. Fit mud flap and secure with screws.
7. Refit road wheel. Secure with nuts. Tighten to

108 Nm. (80 lbf.ft)

8. Remove safety stands. Lower vehicle.

WHEEL ARCH LINER - REAR

Service repair no - 76.10.49

Remove

1. Raise the vehicle.

WARNING: Support on safety stands.

2. Remove relevant road wheel.
3. Remove screws from wheel arch liner fixings.

Remove fixings.

4. Remove liner.

Refit

5. Position liner. Fit liner fixings. Secure with

screws.

6. Refit road wheel. Secure with nuts. Tighten to

108 Nm. (80 lbf.ft)

7. Remove safety stands. Lower vehicle.

CHASSIS AND BODY

81

REPAIR

WINDSCREEN

Service repair no - 76.81.01

NOTE: The following equipment is
required:

masking tape;
sharp knife;
reciprocating blade, powered cutting knife*, or
cutting wire and handles;
suction lifters;
windscreen repair kit;
sealer applicator gun.

* A reciprocating blade cutting tool, such as ’FEIN
Special Cutter’, is recommended for this operation. A
flat blade, with an effective length of at least 25mm
and a ’U’ shaped blade of at least 30mm is required.

CAUTION: Extreme care is necessary to
ensure that paintwork and trim does not
become damaged during the removal

process.
Particular care should be taken when using
cutting wire and handles to avoid damage to seal
along leading edge of fascia.

WARNING: Wear protective gloves when
handling glass, solvents and primers.

Remove

1. Remove interior mirror.

See this section.

2. Remove plenum panels.

See HEATING AND

VENTILATION, Repair.

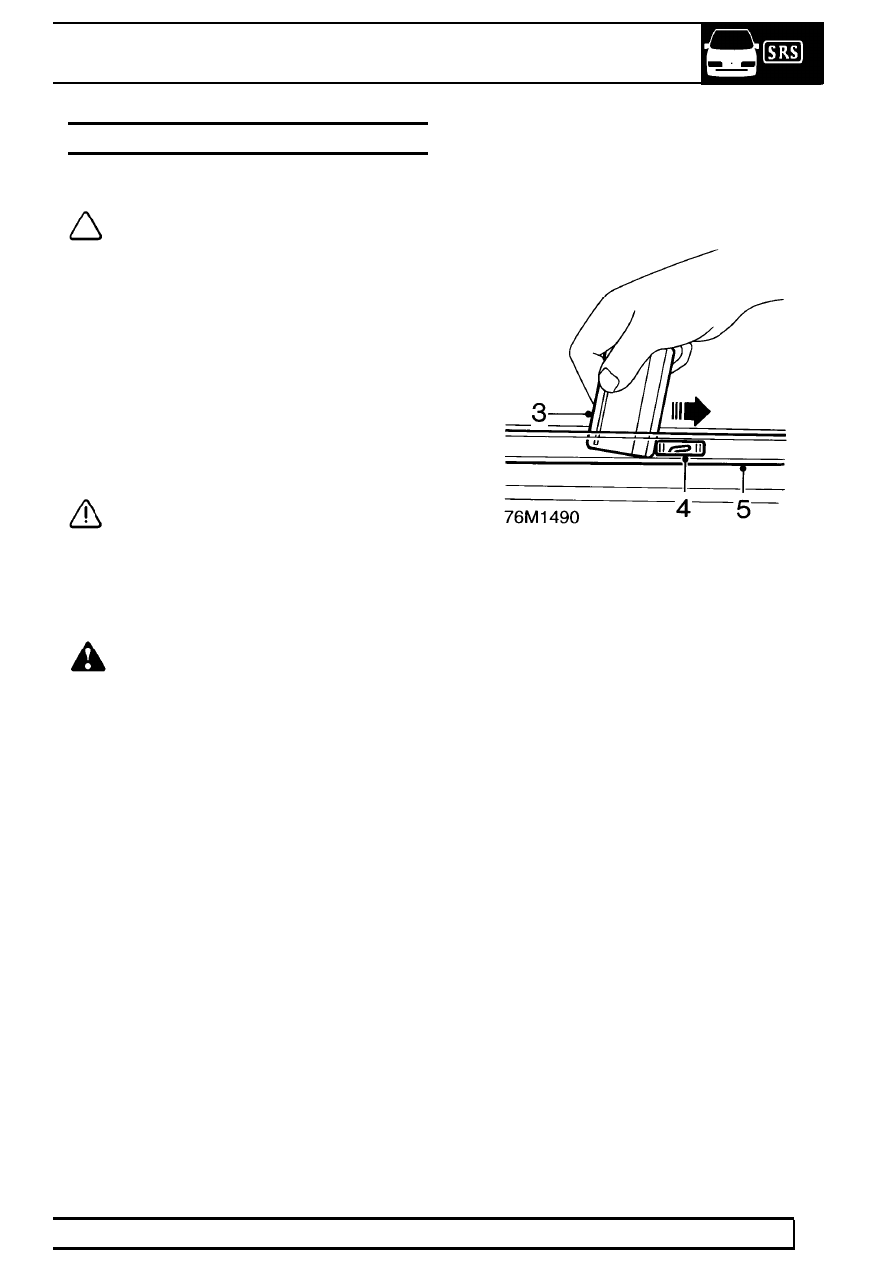

3. Insert a thin plastic strip, such as a credit card,

between windscreen upper finisher and roof
panel.

4. Disengage 8 clips securing upper finisher by

sliding clips towards left hand side of vehicle.

5. Remove upper screen finisher.

76

CHASSIS AND BODY

NEW RANGE ROVER

82

REPAIR

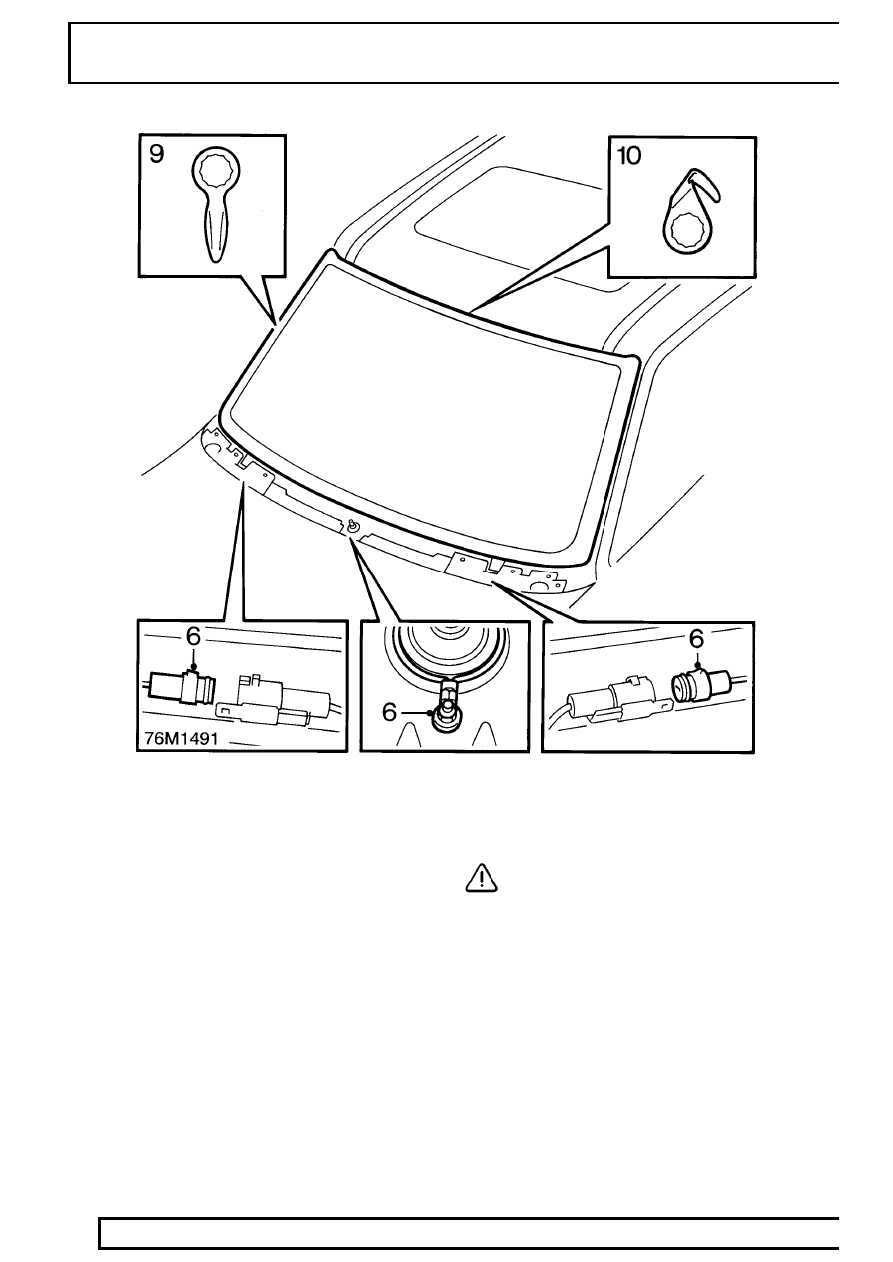

6. If fitted, disconnect heating element multiplugs.

Disconnect heating element earth wire. Tape
heater connections onto windscreen to prevent
fouling during removal procedure.

7. Mask around windscreen aperture to protect

paintwork.

8. Fit protective cover over fascia and bonnet.

Removal Using Reciprocating Blade Tool

9. Cut through P.U. adhesive along sides of screen

using flat blade.

10. Using a ’U’ shaped blade, cut through adhesive

bead along upper and lower edges of screen.

CAUTION: Access to adhesive around
lower screen supports is restricted.
Manoeuvre blade to cut as much sealant

from around screen supports as possible.

11. Attach suction lifters to glass. With assistance,

cut through remaining sealant around screen
supports using a sharp knife.

12. With assistance, remove windscreen glass.
