Range Rover. Manual - part 233





CHASSIS AND BODY

27

REPAIR

Refit

8. Passenger side: Fit glove box lock bezel.
9. Fit fixing stud inserts to fascia.

10. Fit veneered panel to fascia.
11. Close glove box.
12. Drivers side: Fit fixing stud inserts to fascia.
13. Fit veneered panel to fascia.
14. Drivers side: Fit fascia closing panel.

See this

section.

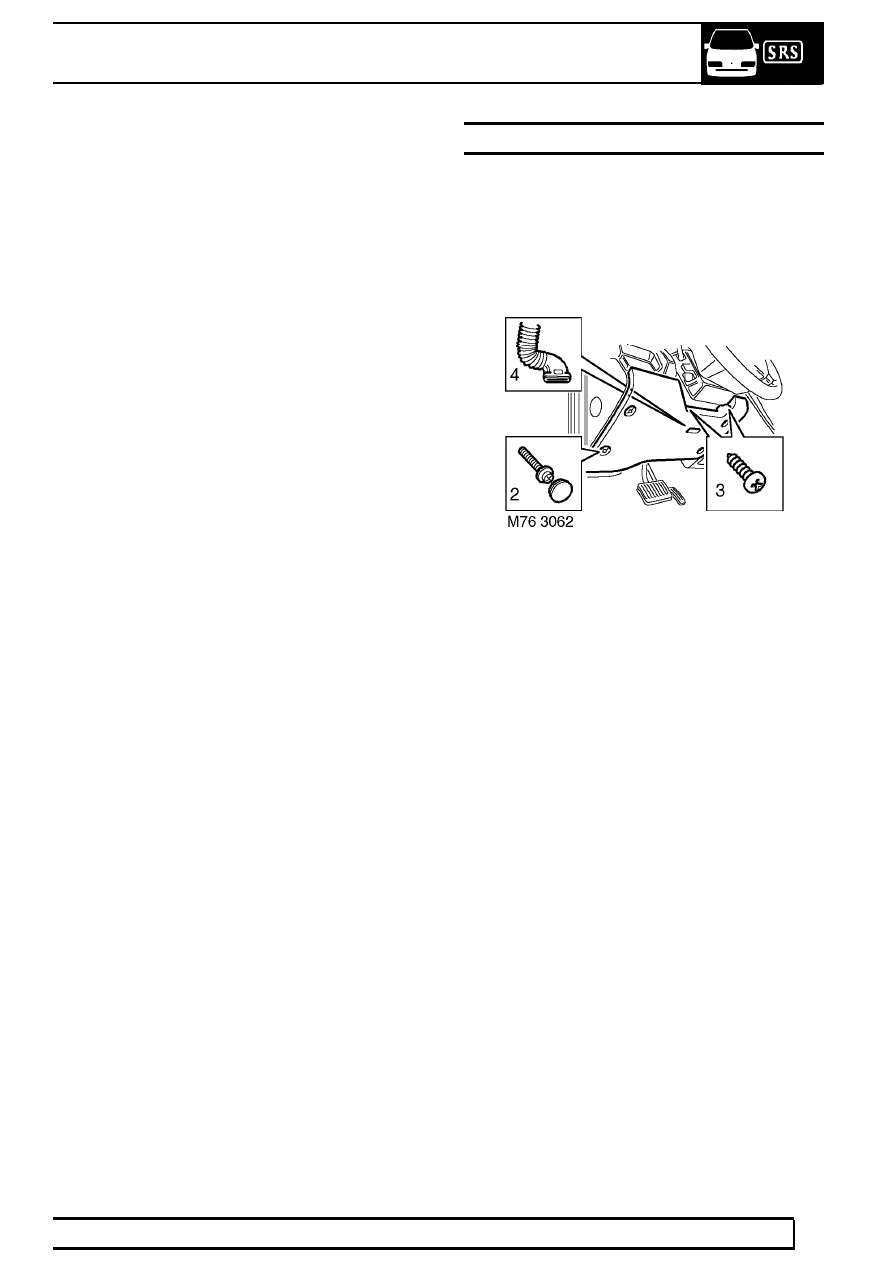

PANEL - FASCIA CLOSING

Service repair no - 76.46.28

Remove

1. Release steering column adjustment lock, raise

and extend column for access to panel upper
screws.

2. Remove 4 screw covers from fascia closing

panel and remove screws.

3. Remove 2 screws securing top of closing panel.
4. Disconnect air tube and remove closing panel.

Refit

5. Position closing panel and connect air tube.
6. Fit closing panel to fascia and secure with

screws.

7. Fit screw covers and reposition steering column.

76

CHASSIS AND BODY

NEW RANGE ROVER

28

REPAIR

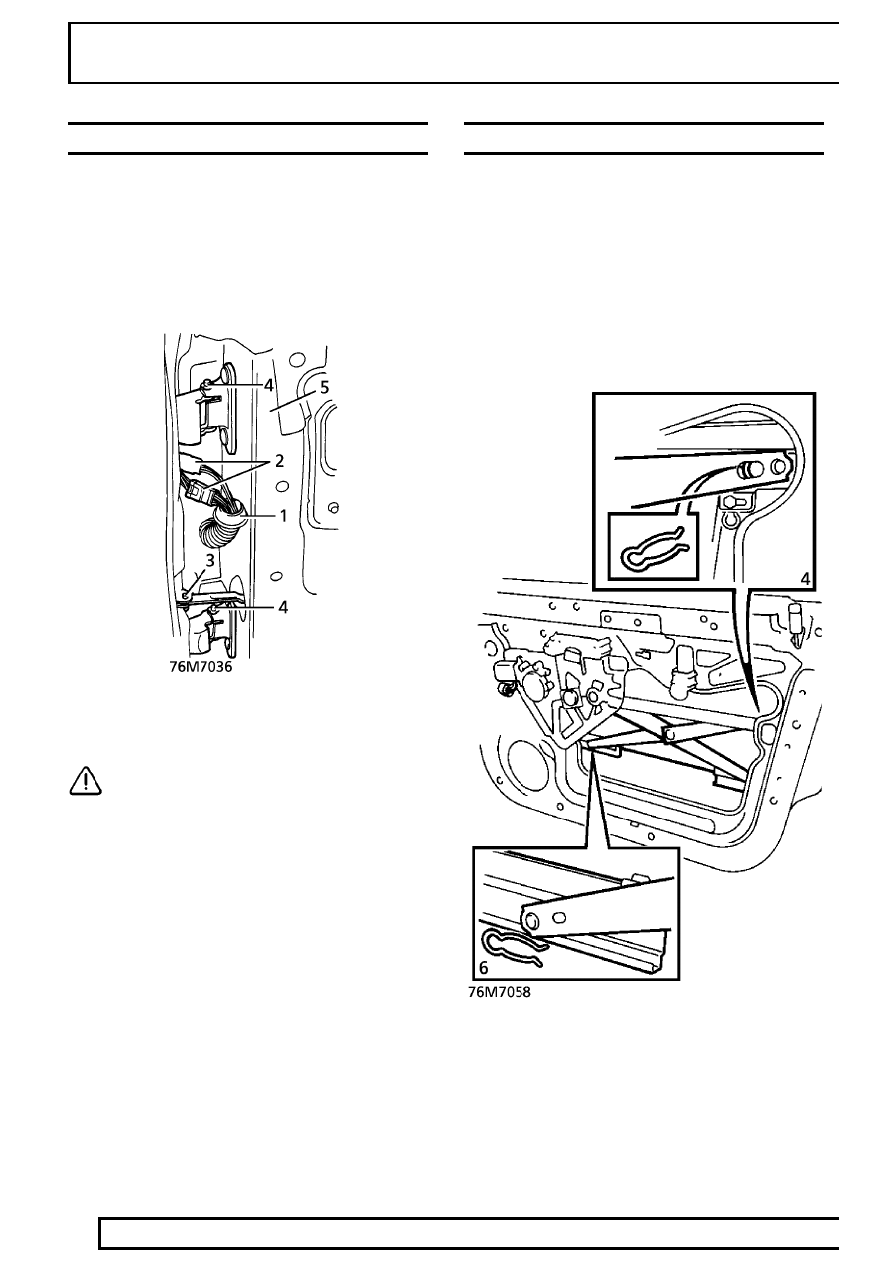

FRONT DOOR ASSEMBLY

Service repair no - 76.28.01/99

Remove

1. Release door harness protective sleeve from ’A’

post.

2. Disconnect door harness multiplugs.

3. Remove door check strap retaining pin.

CAUTION: Apply protective tape to ’A’
post before drifting out retaining pin.

4. Remove door hinge pin retaining clips.
5. With assistance, remove door assembly.

Refit

6. With assistance, position door on hinges. Fit

retaining clips.

7. Align door check strap. Fit retaining pin.
8. Remove protective tape from ’A’ post.
9. Connect harness multiplugs. Secure protective

sleeve to ’A’ post.

10. If necessary adjust door.

See Adjustment.

GLASS - FRONT DOOR

Service repair no - 76.31.01

Remove

1. Remove front door outer waist seal.

See this

section.

2. Remove front door plastic sheet.

See this

section.

3. Turn ignition ON.
4. Lower glass approximately 120mm (5 in.)

Remove rear regulator arm retaining clip.

5. Lower glass to align forward clip with the

regulator plate lower retaining rivet. Turn ignition
OFF.

CHASSIS AND BODY

29

REPAIR

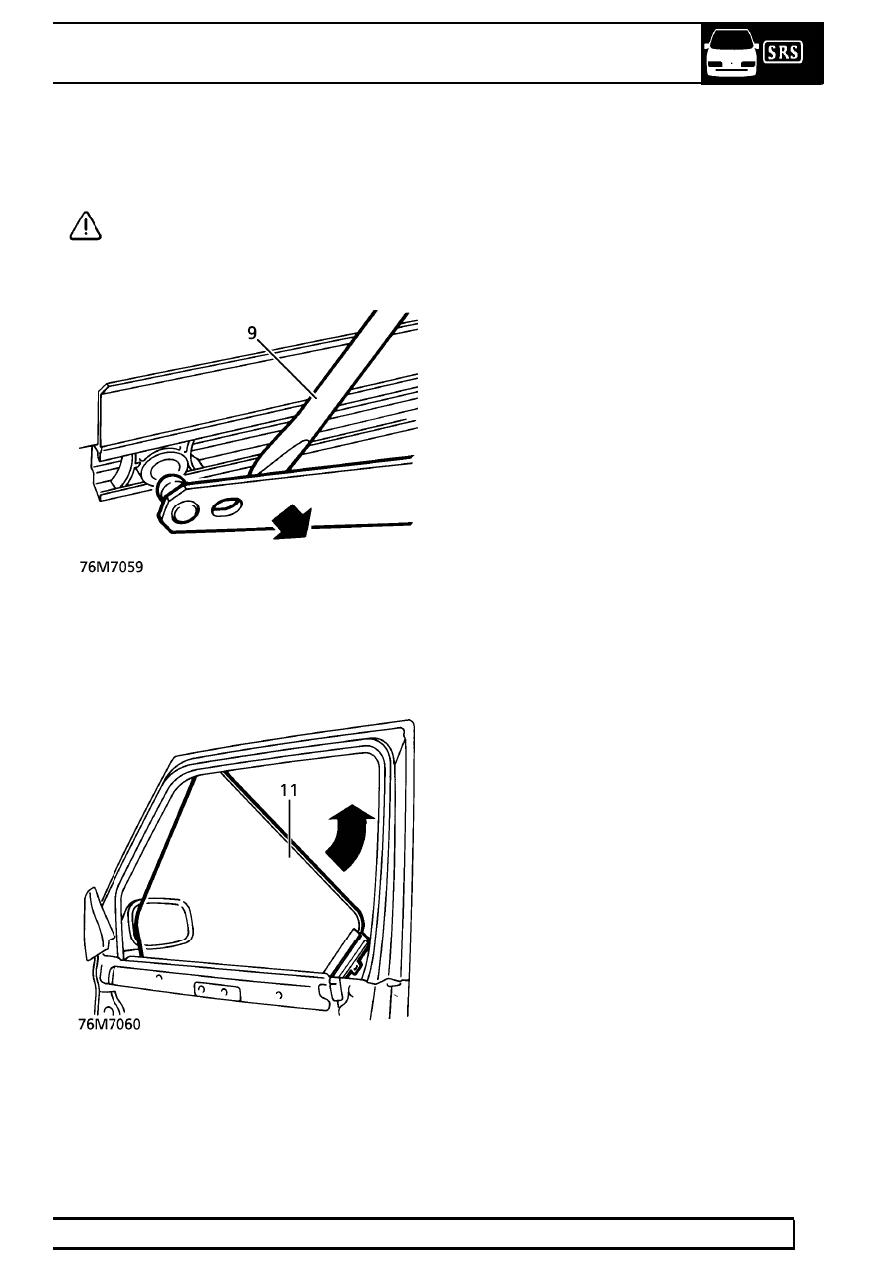

6. Remove front lower fixing clip.
7. Remove nut securing bracket to vertical slide.
8. Release bracket from slide.

CAUTION: Chock glass with wooden
block, or retain with tape, to prevent glass
dropping when regulator arms are

released.

9. Using a suitable lever, release 2 regulator arms

from glass lower fixings.

10. Support weight of glass. Remove wooden chock

or tape.

11. Rotate glass anti-clockwise to release from

runners.

12. Remove front door glass.

Refit

13. Refit front door glass.
14. Rotate glass anti-clockwise, fit to runners.
15. Secure glass fixings to regulator arms.
16. Position glass bracket to vertical runner, fit

retaining nut.

17. Fit clip securing regulator arm to glass runner.
18. Turn ignition ON.
19. Raise door glass approximately 120mm (5 in.)

Fit rear glass retaining clip.

20. Raise door glass.
21. Turn ignition OFF.
22. Fit front door plastic sheet.

See this section.

23. Fit front door outer waist seal.

See this section.

76

CHASSIS AND BODY

NEW RANGE ROVER

30

REPAIR

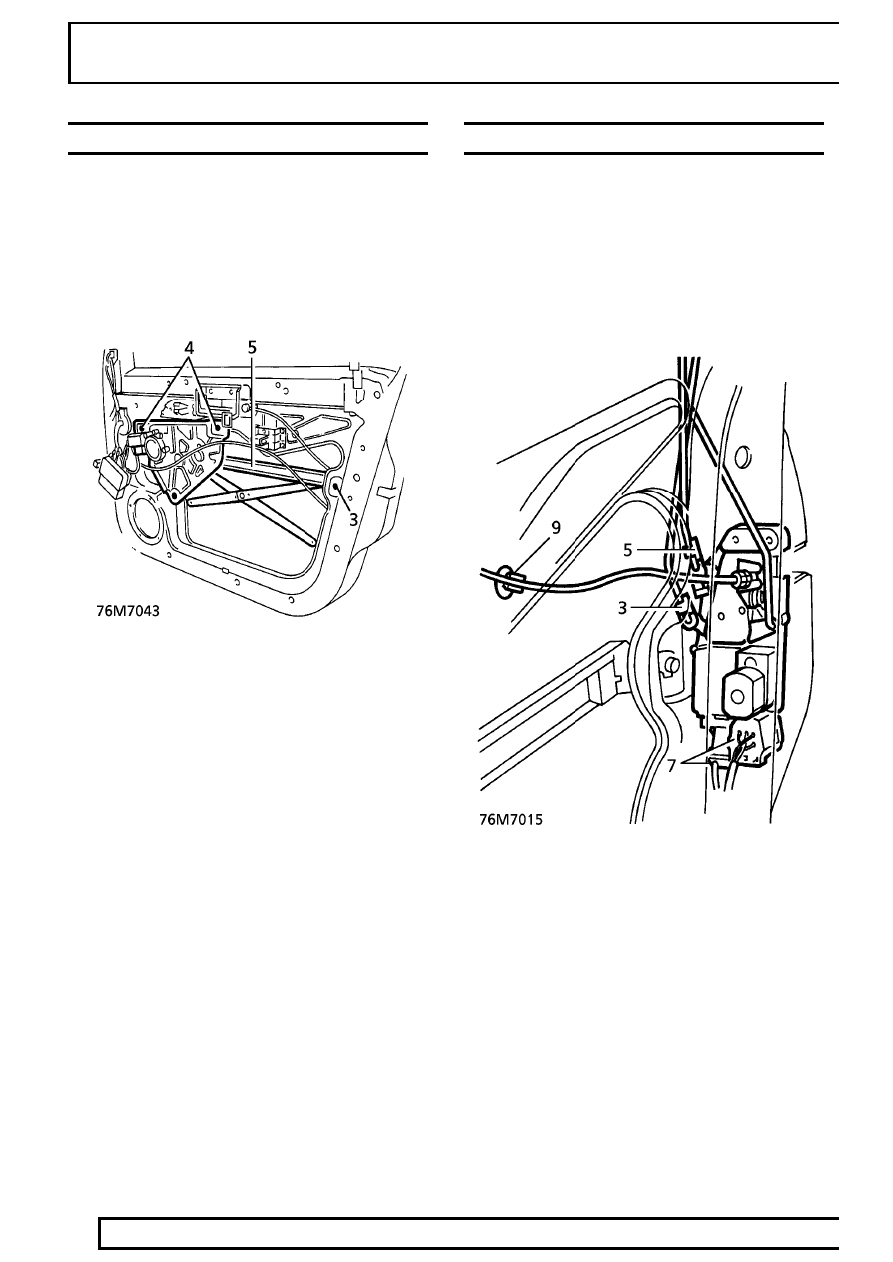

GLASS REGULATOR - FRONT DOOR

Service repair no - 76.31.45

Remove

1. Remove front door glass.

See this section.

2. Disconnect window lift motor harness connector.
3. Remove rivet securing regulator runner to door

panel.

4. Remove 3 rivets.
5. Remove regulator assembly.

Refit

6. Reverse removal procedure.

LATCH - FRONT DOOR

Service repair no - 76.37.12

Remove

1. Remove front door trim casing.

See this

section.

2. Release rear of plastic sheet.
3. Release retaining clip, private lock to latch

operating rod, at latch end.

4. Release control rod from latch.
5. Release retaining clip, outside handle to latch

operating rod, at latch end.

6. Release control rod from latch.
7. Disconnect 2 latch motor multiplugs.
8. Remove door sill button from operating rod.
9. Release remote handle to latch operating cable

from clip.

10. Remove 3 screws securing latch.
11. Release latch from door.
12. Remove sill button operating rod from latch.
