CHASSIS AND BODY

19

REPAIR

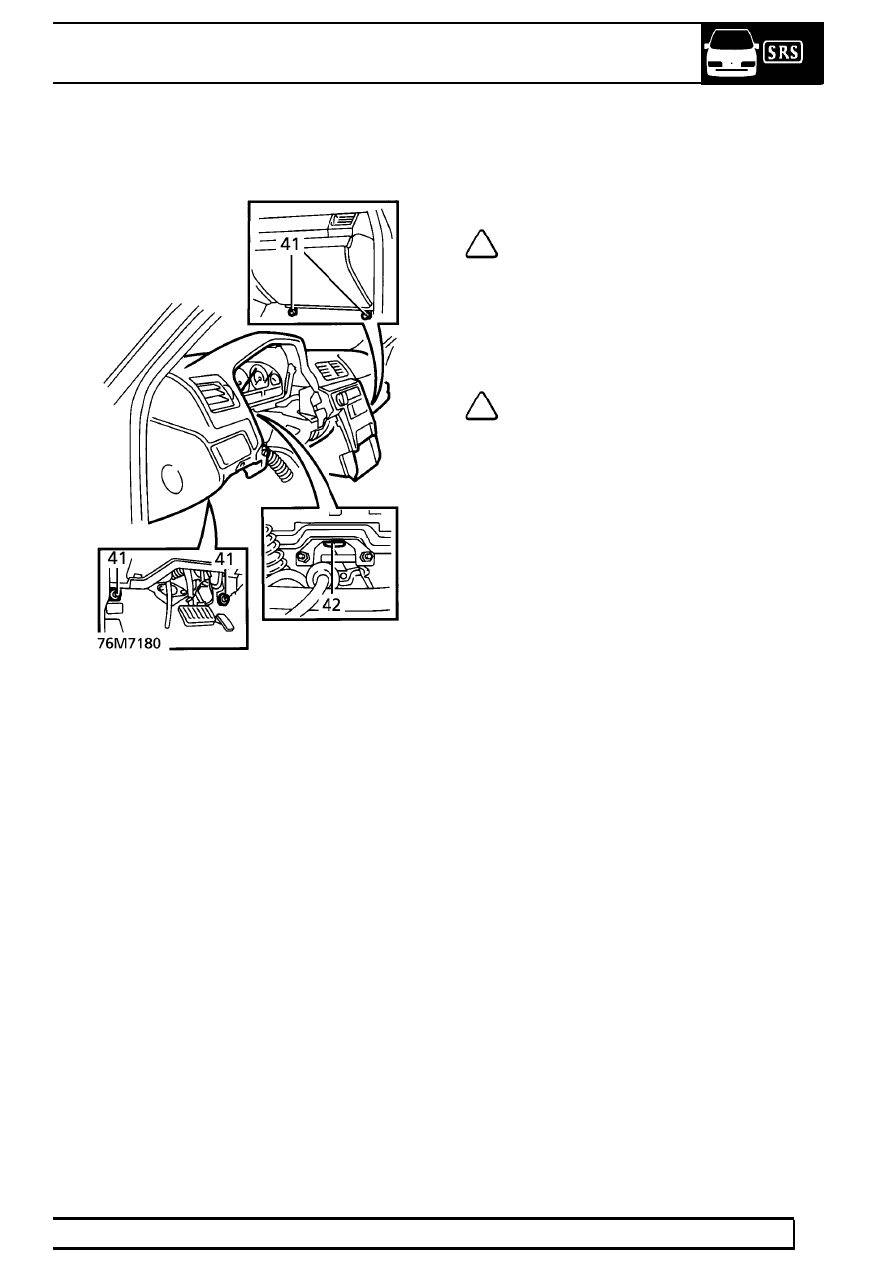

41. Remove nuts and washers securing fascia to

base of ’A’ posts.

42. Remove bolt securing fascia to pedal box.
43. Using assistance, carefully manoeuvre the

fascia through the driver’s door aperture. Place
fascia on a soft covered work surface, supported
on suitable wooden blocks.

44. Remove rubber seals from air intake ducts.
45. Collect rear heater duct connecting tubes.

Refit

46. Fit intake seals to blower motor ducts. Tape

rubbers inside blower ducts to aid fitment.

NOTE: Tape the rubbers at this stage, as
they are almost impossible to locate after
dash fitment.

47. Fit guide pins LRT-76-001 to outer fascia studs.
48. With assistance, manoeuvre fascia into position

through driver’s front door aperture. Locate
guide pins.

NOTE: Assistance from a third person may
be necessary when guiding heater pipes
through bulkhead.

49. Loosely fit 1 tube bolt, fascia to scuttle.
50. Fit bolt securing fascia to pedal box. Tighten to

25 Nm. (18 lbf.ft)

51. Fit nuts and washers at base of A posts. Tighten

to

25 Nm. (18 lbf.ft)

52. Remove guide pins.
53. Fit remaining tube bolts. Tighten to

25 Nm.

(18 lbf.ft)

54. Fit rear heater duct connecting pipes.
55. Remove tape from intake seals.
56. Engage lips of sealing rubbers around scuttle

apertures.

57. Fit pollen filter housings, tighten bolts.
58. Fit scuttle side panel to passenger side of

vehicle, tighten bolts.

59. Connect heated screen multiplug, fit to side

panel clip.

60. Connect hoses to heater pipes. Tighten clips.
61. Air conditioning vehicles: Remove seals from

air conditioning pipes and TXV ports.

62. Lubricate new O rings with clean compressor oil,

fit to pipes.

63. Locate pipes in TXV ports, position clamp and fit

clamp bolt.

64. Engage evaporator drain tubes over pipes in

transmission tunnel.

65. Vehicles with SRS only: Route SRS crash

sensor harnesses through bulkhead into wheel
arches, locate harness grommets.

66. Secure harness clips beneath wheel arches,

route harnesses through valances into engine
bay, locate harness grommets.

76

CHASSIS AND BODY

NEW RANGE ROVER

20

REPAIR

67. Raise battery tray and air cleaner for access.

Route crash sensor harnesses, secure harness
clips, connect multiplugs to crash sensors.

68. Tighten battery tray and air cleaner bolts.
69. Connect multiplug to SRS control module.
70. Connect SRS harness multiplug to main

harness.

71. Fit air cleaner baffle beneath LH wheel arch,

secure with scrivet fasteners.

72. Fit wheel arch liners.

See this section.

73. All models:Route harness along sill, connect

multiplugs to BeCM.

74. Connect multiplugs at base of ’A’ posts and

secure plugs to brackets.

75. Fit earth wires to stud, tighten captive nut.
76. Connect vacuum hose and multiplugs to brake

and clutch pedal switches.

77. Position closing panel beneath passenger side

of fascia. Secure diagnostic plug, connect
footwell lamp. Align closing panel, secure with
scrivet fasteners.

78. Fit carpet retainer, engage sprag clips.
79. Fit seat base trim panel, secure trim studs,

tighten screw.

80. Fit fuse cover to seat base trim.
81. Fit both ’A’ post lower trim panels, secure sprag

clips. Engage door aperture seals.

82. LHD automatic vehicles only: Fit foot rest,

secure with bolts.

83. Fit radio.

See ELECTRICAL, Repair.

84. Fit wiper motor and linkage.

See WIPERS AND

WASHERS, Repair.

85. Fit steering column.

See STEERING, Repair.

86. Fit centre console.

See this section.

87. Refill cooling system.

See COOLING SYSTEM,

Repair.

88. Vehicles with SRS only: Fit battery.

See

ELECTRICAL, Repair.

89. Reconnect battery negative lead.
90. Evacuate and recharge air conditioning.

See

AIR CONDITIONING, Adjustment.

FASCIA ASSEMBLY - VEHICLES WITH SINGLE
POINT SENSED SRS

Service repair no - 76.46.23/99

WARNING: Refer to SRS safety
precautions before commencing repair.

WARNING: The fascia assembly houses
the heater distribution unit, blower
assemblies and air conditioning

evaporator and is therefore heavy. Assistance is
essential during removal and refit procedures.

CAUTION: When removed from the
vehicle, the fascia should be placed on a
work surface with a soft covering and

supported on suitable wooden blocks.

Remove

1. Remove key from starter switch and wait 10

minutes for SRS back up power circuit to
discharge.

2. Disconnect both battery terminals, earth lead

first.

3. Drain cooling system.

See COOLING SYSTEM,

Repair.

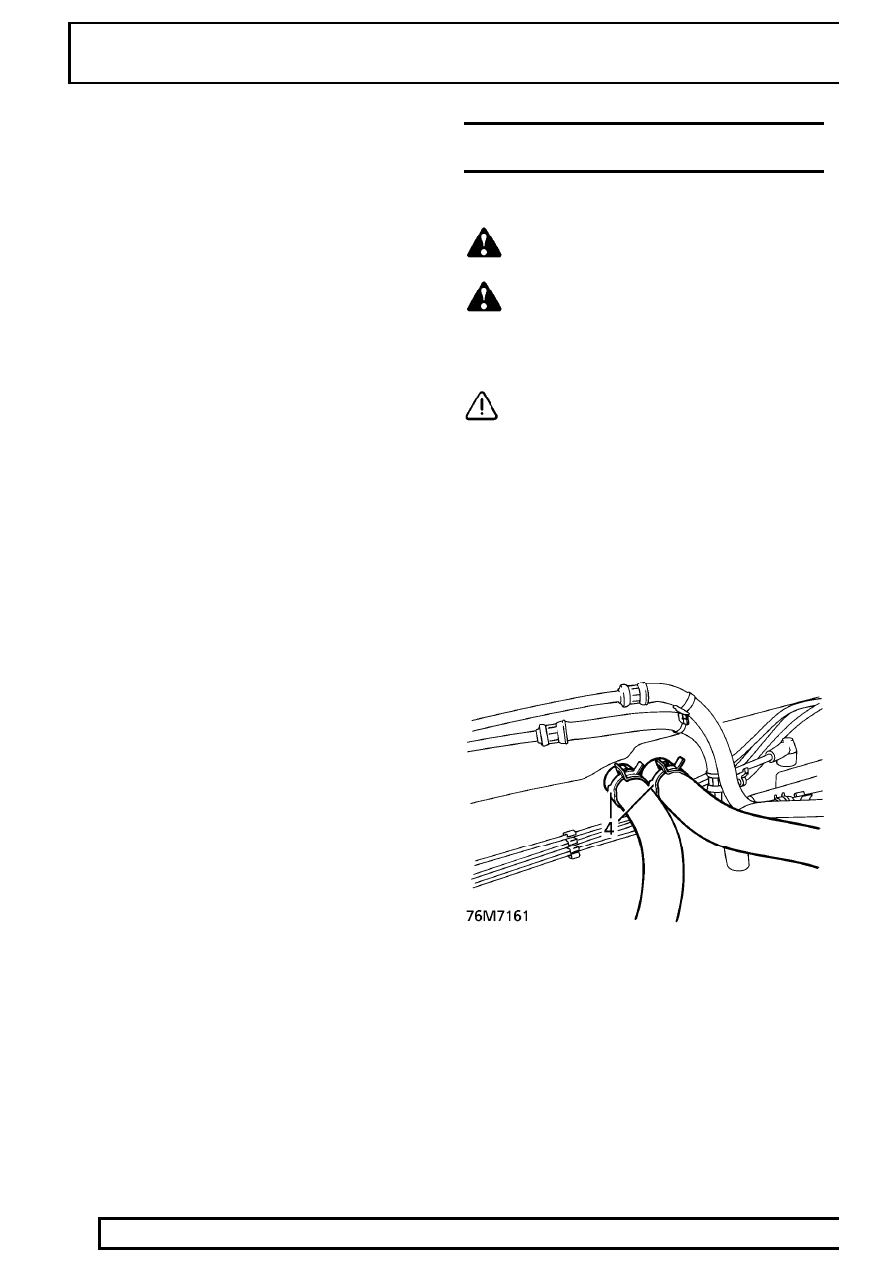

4. Release 2 clips securing heater hoses to heater

matrix and disconnect hoses.

5. Cap both heater matrix pipes to prevent coolant

spillage inside vehicle during fascia removal.

6. Recover refrigerant from air conditioning system.

See AIR CONDITIONING, Adjustment.

CHASSIS AND BODY

21

REPAIR

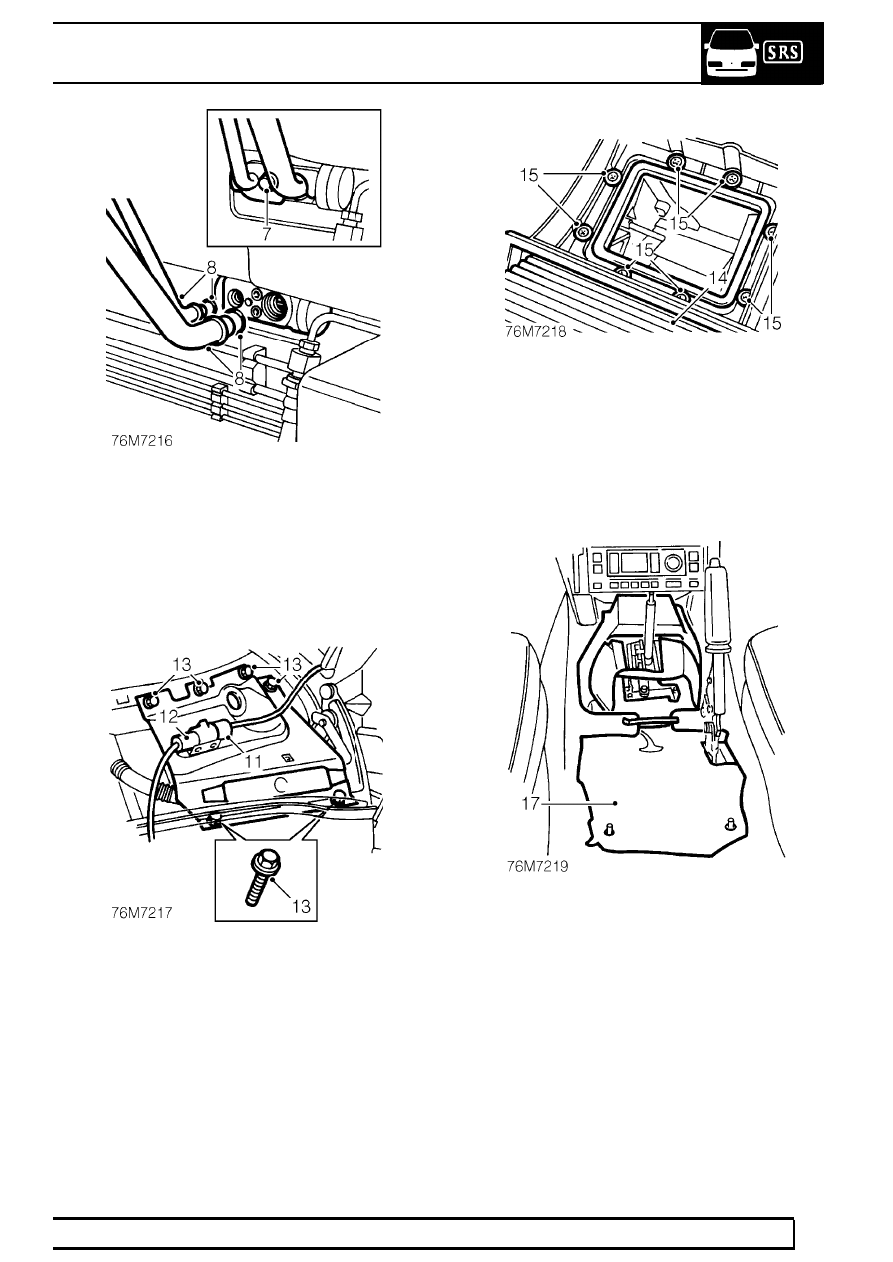

7. Remove bolt securing pipe clamp to thermostatic

expansion valve (TXV) and release pipes.

8. Remove and discard ’O’ ring seals from air

conditioning pipes.

9. Immediately cap both air conditioning pipes and

TXV ports to prevent moisture entering the air
conditioning system.

10. Remove wiper motor and linkage.

See WIPERS

AND WASHERS, Repair.

11. Disconnect passenger side heated screen

multiplug.

12. Release heated screen multiplug from scuttle

side panel and position aside.

13. Remove 6 bolts securing scuttle side panel to

scuttle and remove panel.

14. Remove pollen filter from both heater intake

housings.

15. Remove 8 screws securing each heater intake

housing to scuttle and remove intake housings.
Release sealing rubbers from scuttle panel
aperture.

16. Remove centre console.

See this section.

17. Remove transmission tunnel insulation pad.

76

CHASSIS AND BODY

NEW RANGE ROVER

22

REPAIR

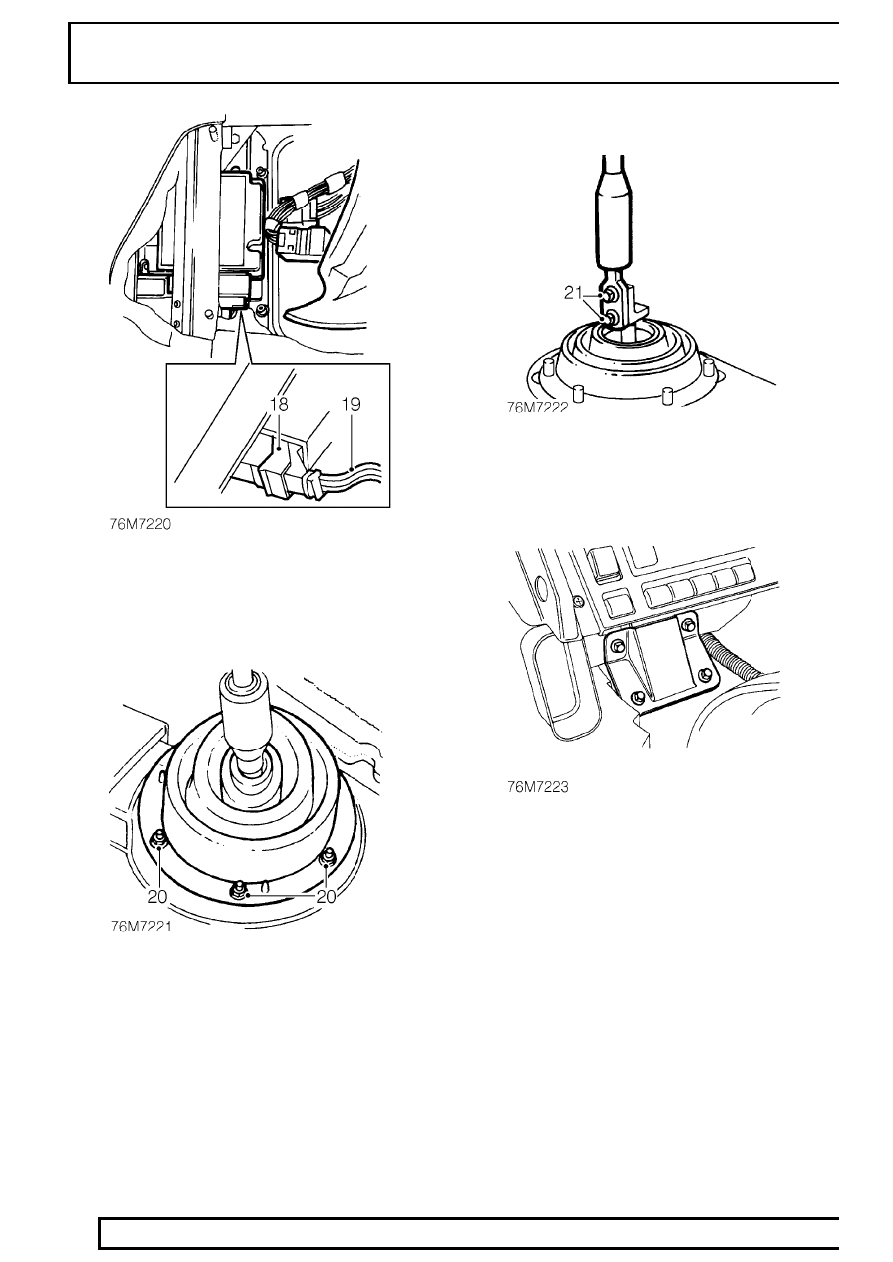

18. Release latching mechanism and disconnect

multiplug from airbag diagnostic and control unit
(DCU).

19. Release SRS harness from transmission tunnel

and position to fascia to avoid snagging.

20. Remove 6 nuts securing gear lever gaiter ring to

transmission tunnel and release gaiter.

21. Remove 2 bolts securing gear lever to gearbox

remote and remove gear lever.

22. Disconnect high/low switch multiplug.
23. Remove 4 bolts securing fascia centre bracket to

fascia and transmission tunnel.

24. Remove fascia centre bracket.
25. Remove radio.

See ELECTRICAL, Repair.

26. Remove steering column.

See STEERING,

Repair.
