SUPPLEMENTARY RESTRAINT SYSTEM

1

REPAIR

AIRBAG MODULE - PASSENGER SIDE

Service repair no - 76.73.69

WARNING: All the airbag system
components, including the wiring harness,
MUST be renewed after the airbags have

deployed.

Remove

1. Disconnect both battery terminals, disconnect

negative lead first.

2. Remove glove box assembly.

See CHASSIS

AND BODY, Repair.

3. Remove veneered panel from passenger side of

fascia.

See CHASSIS AND BODY, Repair.

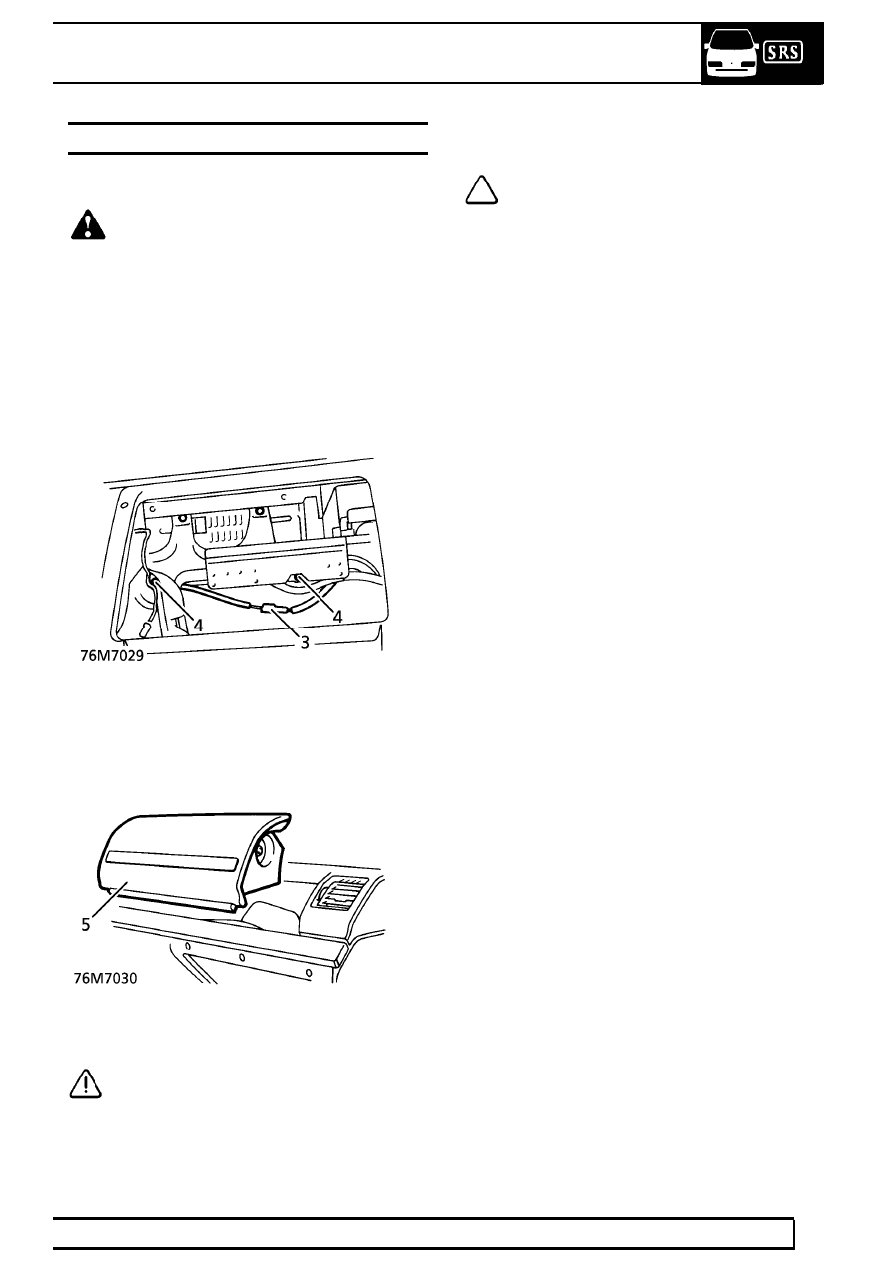

4. Release and disconnect air bag module

multiplug.

5. Remove 4 bolts and washers (E-10 Torx Bit)

securing air bag module to fascia frame.

6. Carefully release and remove air bag module.

CAUTION: Store the airbag module
correctly.

See this section.

Refit

NOTE: If a new airbag module is being
fitted the serial numbers must be
recorded.

7. Carefully fit air bag module to fascia. Fit Torx

bolts, and washers.

8. Tighten bolts to

9 Nm. (7 lbf.ft)

9. Connect air bag module multiplug and secure to

location.

10. Fit glove box assembly.

See CHASSIS AND

BODY, Repair.

11. Connect battery terminals, fit battery cover and

secure with turnbuckles.

12. Check Supplementary Restraint System using

TestBook .

75

SUPPLEMENTARY RESTRAINT SYSTEM

NEW RANGE ROVER

2

REPAIR

SRS DCU

Service repair no - 76.73.72

Remove

WARNING: Always disconnect negative
lead from battery first. Disconnection of
positive lead with negative lead connected

risks short circuit and severe sparking through
accidental grounding of spanner. Personal injury
could result.

1. Disconnect both battery terminals.
2. Remove centre console.

See CHASSIS AND

BODY, Repair.

3. Lift rear of sound deadener pad from

transmission tunnel.

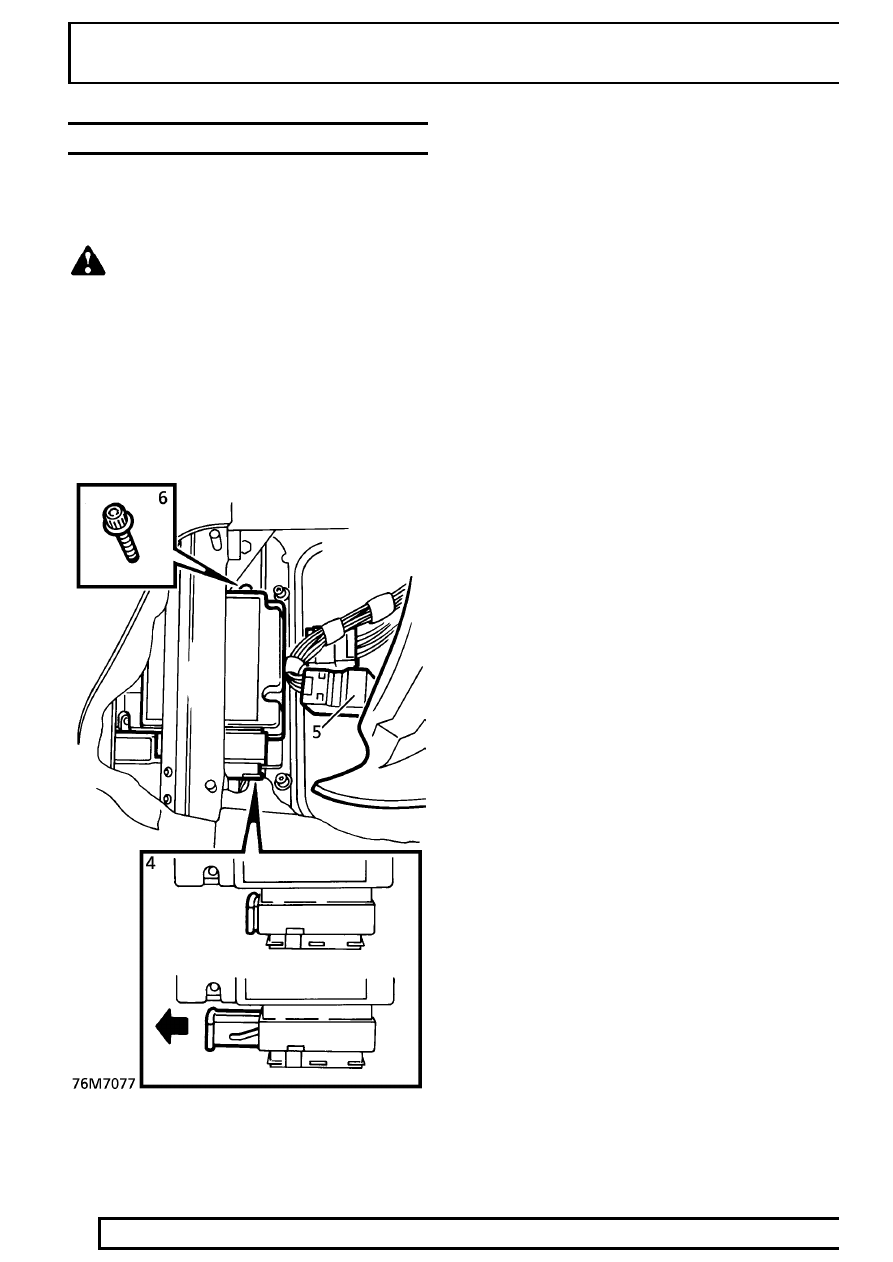

4. Disconnect SRS DCU multiplug.

5. Release 2 multiplugs from bracket.
6. Remove 2 bolts securing DCU to bracket.

Remove DCU.

Refit

7. Reverse removal procedure.

SUPPLEMENTARY RESTRAINT SYSTEM

3

REPAIR

SRS HARNESS - SINGLE POINT SENSED SYSTEM

Service repair no - 76.73.73

The SRS harness is incorporated into the fascia
harness.

See ELECTRICAL, Repair.

SRS HARNESS - DISTRIBUTED SYSTEM

Service repair no - 76.73.73

Remove

1. Raise the vehicle.

WARNING: Support on safety stands.

2. Remove battery.

See ELECTRICAL, Repair.

3. Remove centre console.

See CHASSIS AND

BODY, Repair.

4. Remove passenger air bag module.

See this

section.

5. Remove radio.

See ELECTRICAL, Repair.

6. Remove instrument pack binnacle.

See

INSTRUMENTS, Repair.

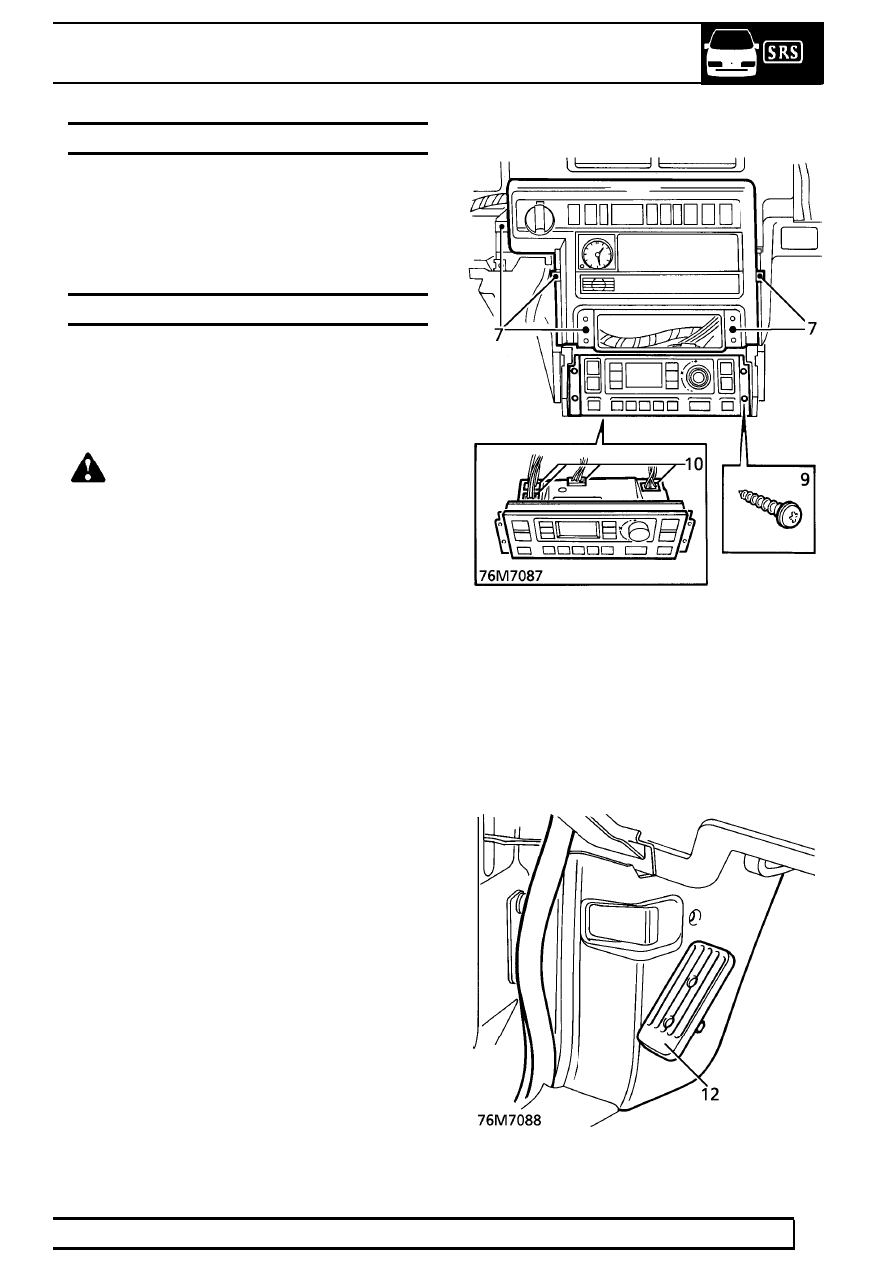

7. Remove 5 screws securing switch pack to

fascia.

8. Disconnect switches, clock and temperature

sensor. Remove switch pack.

9. Remove 4 screws securing heater control panel.

10. Disconnect multiplugs. Remove control panel.
11. Release door aperture seal adjacent to A post

lower trim panels.

12. Driver’s side - LHD automatic vehicles only:

Remove 3 bolts securing foot rest. Remove foot
rest.

75

SUPPLEMENTARY RESTRAINT SYSTEM

NEW RANGE ROVER

4

REPAIR

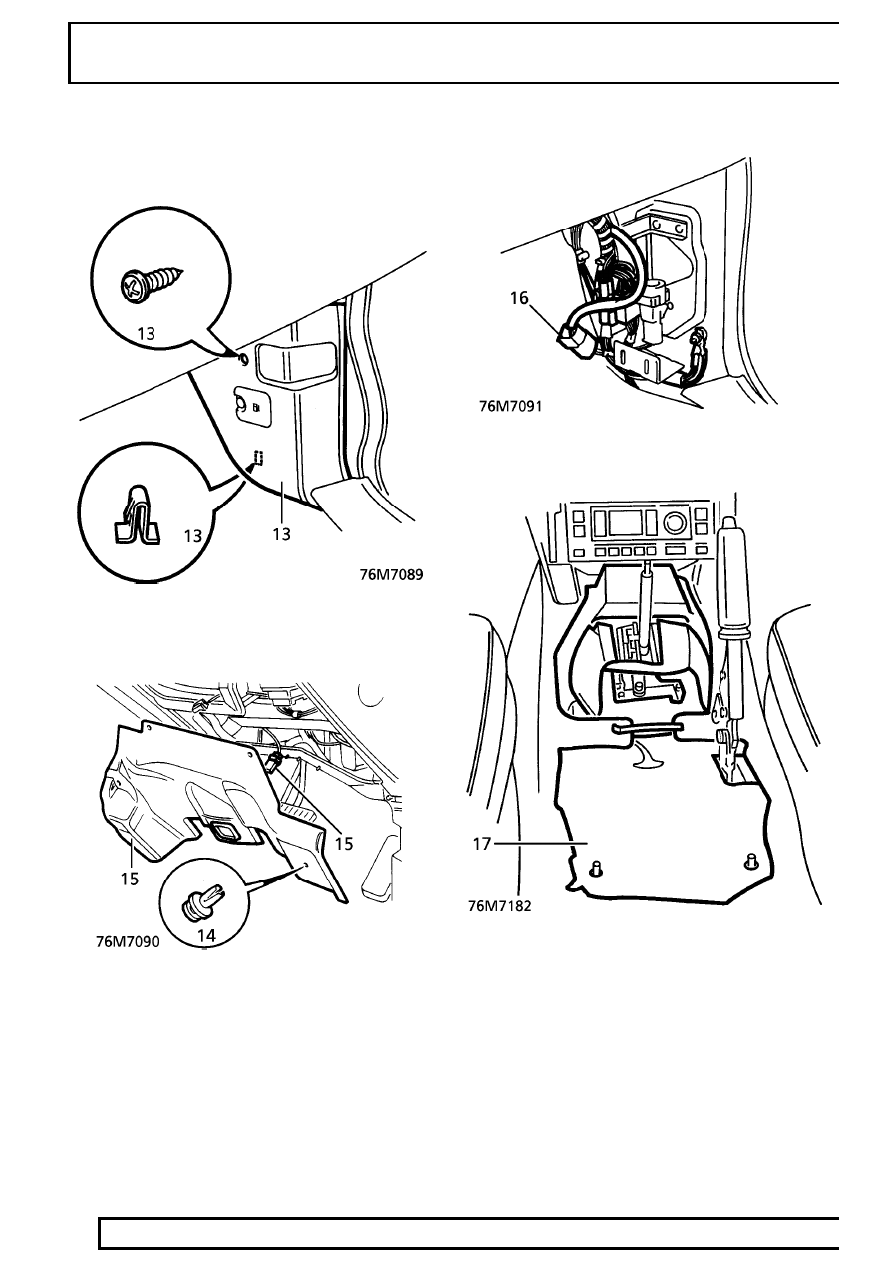

13. Remove screw securing each A post lower trim

panel. Release panels from sprag clips. Remove
both trim panels.

14. Remove 4 scrivet fasteners securing driver’s

side lower closing panel.

15. Disconnect footwell lamp multiplug. Remove

closing panel.

16. Disconnect SRS harness from main harness.

Release multiplug from clip.

17. Remove sound deadener pad from transmission

tunnel.

18. Disconnect multiplug from SRS DCU. Release 3

harness clips.

19. Remove both front wheel arch liners.

See

CHASSIS AND BODY, Repair.
