STEERING

7

REPAIR

Refit

11. Position feed hose to vehicle.
12. Remove plugs from hose and PAS pump.
13. Clean hose and PAS pump union.
14. V8 up to 99MY: Connect feed hose union to

PAS pump and tighten to

16 Nm (12 lbf.ft).

V8 from 99MY and diesel: Connect feed hose
to pump using new sealing washers. Tighten
banjo bolt to

25 Nm (18 lbf.ft) (V8 models) or 30

Nm (22 lbf.ft) (diesel models).

15. Remove plugs from hose and steering box.
16. Clean hose and steering box union.
17. Position PAS hose brackets to steering box and

secure with nut.

18. Fit banjo bolt and new washers to feed hose and

fit to steering box. Tighten banjo bolt to

30 Nm

(22 lbf.ft)

19. Position feed hose and secure to radiator lower

bracket clips.

20. Bleed steering system.

See this section.

21. Remove stand(s) and lower vehicle.

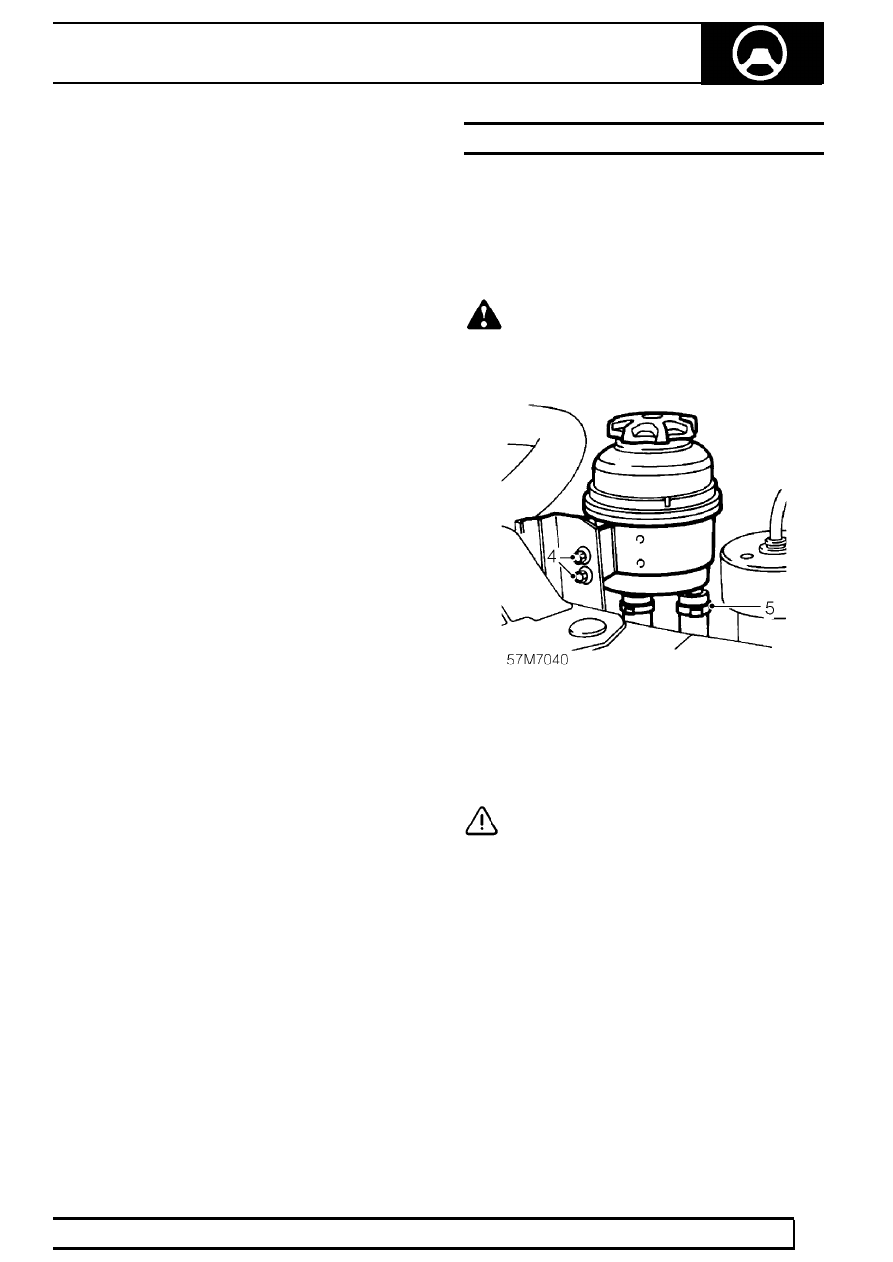

STEERING BOX RETURN HOSE

Service repair no - 57.15.22

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Position container to catch spillage.

4. Remove 2 bolts securing PAS fluid reservoir to

radiator bracket.

5. Remove clip securing return hose to PAS fluid

reservoir and disconnect return hose.

CAUTION: Plug the connections.

6. Position cloth to catch spillage.

57

STEERING

NEW RANGE ROVER

8

REPAIR

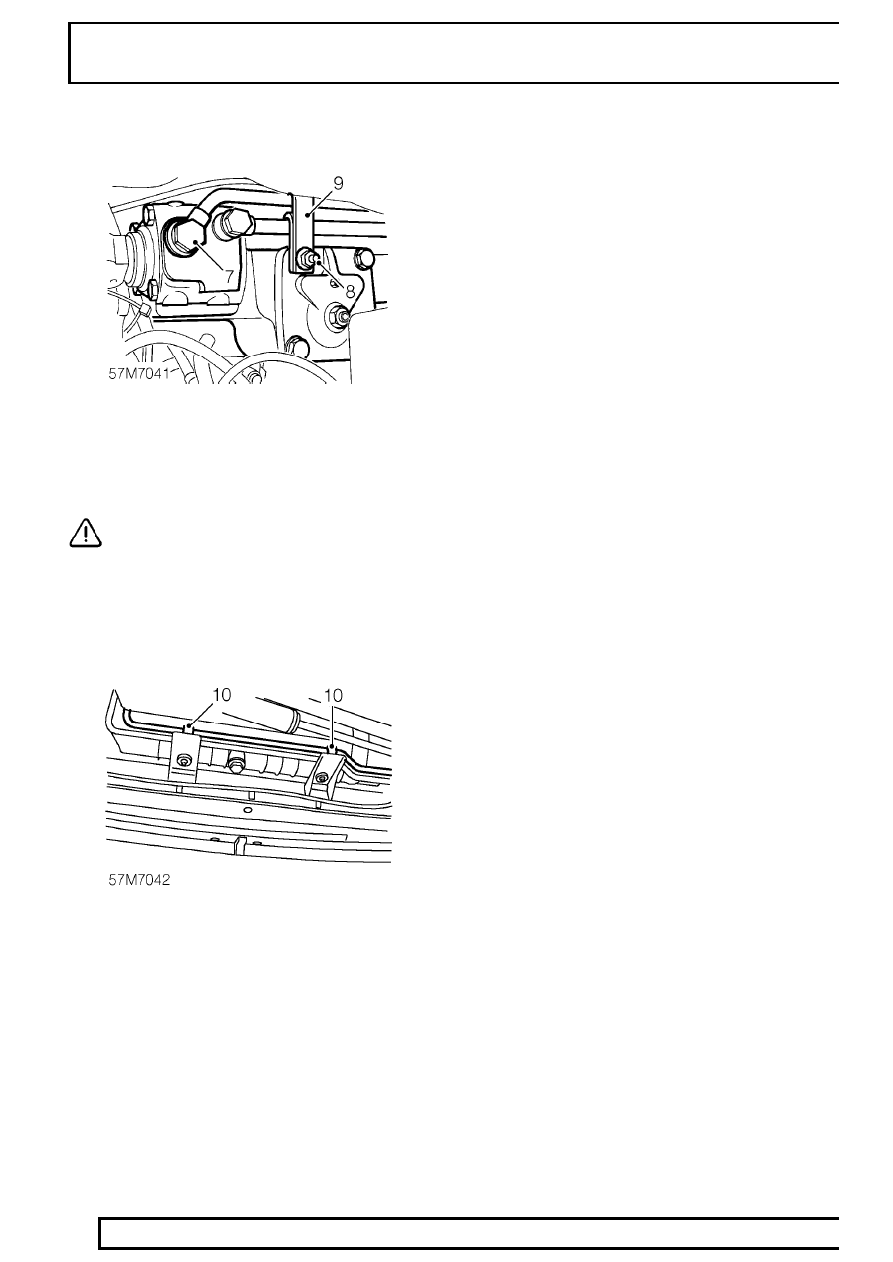

7. Remove banjo bolt securing pump return hose to

steering box and discard 2 washers.

CAUTION: Plug the connections.

8. Remove nut securing PAS hose brackets to

steering box.

9. Release PAS hose brackets from stud.

10. Release PAS pipe from 2 radiator lower bracket

clips.

11. Remove pump return hose.

Refit

12. Position return hose to vehicle.
13. Remove plugs from hose and PAS fluid

reservoir.

14. Clean hose and PAS pump union.
15. Connect return hose union to PAS fluid reservoir

and secure with clip.

16. Remove plugs from hose and steering box.
17. Clean hose and steering box union.
18. Position PAS hose brackets to steering box and

secure with nut.

19. Fit banjo bolt and NEW washers to return hose

and fit to steering box. Tighten banjo bolt to

50

Nm (37 lbf.ft)

20. Position return hose and secure to radiator lower

bracket clips.

21. Bleed steering system.

See this section.

22. Remove stand(s) and lower vehicle.

STEERING

9

REPAIR

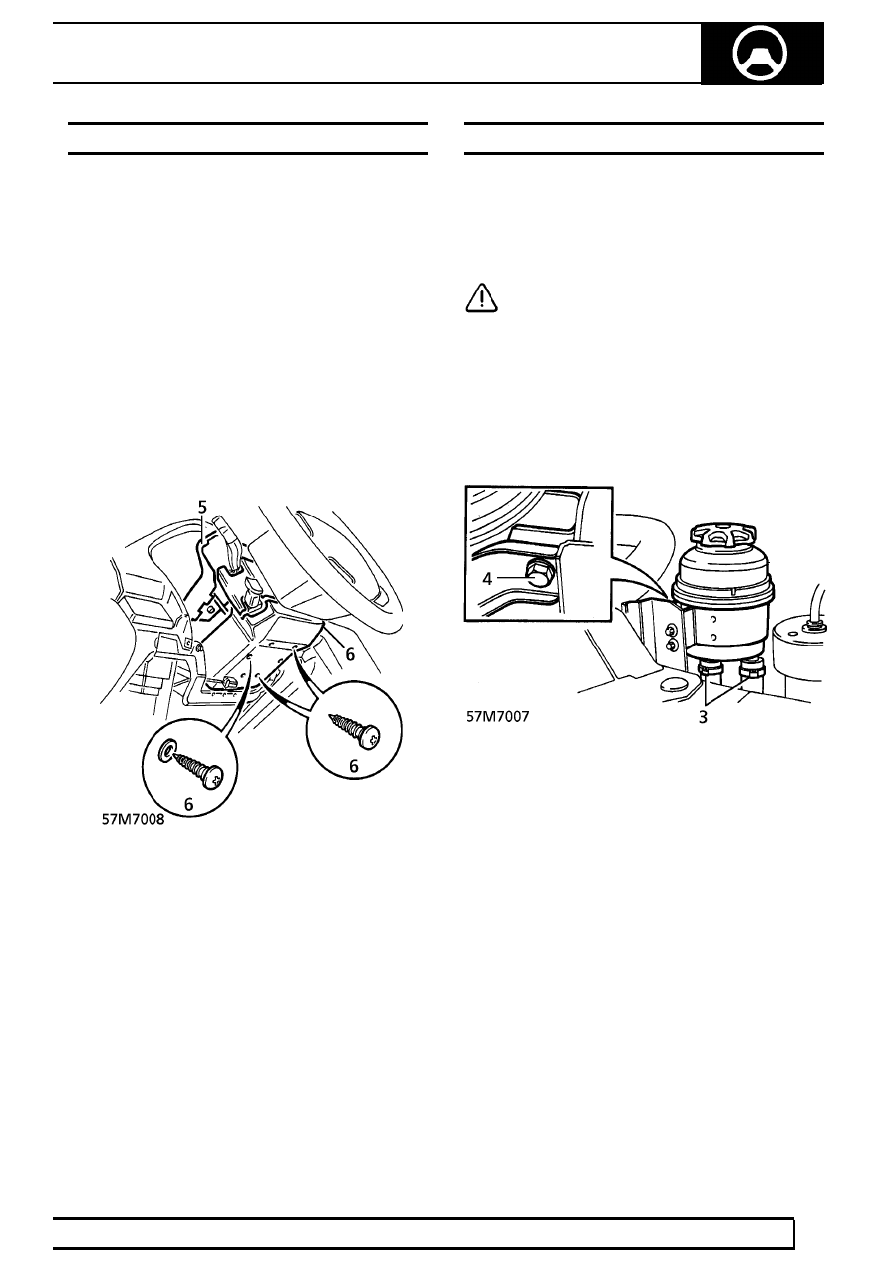

COLUMN NACELLE

Service repair no - 57.40.29

Remove

1. Remove ignition key.
2. Remove instrument binnacle.

See

INSTRUMENTS, Repair.

3. Release steering column tilt lever, fully extend

and tilt column down.

4. Remove 2 screws securing upper column

nacelle.

5. Release upper column nacelle from side fillet

clips and remove upper nacelle.

6. Remove 4 screws securing lower nacelle,

disengage from side fillet clips and remove
nacelle.

7. Collect side fillets.

Refit

8. Position upper and lower nacelles, loosely fit

screws.

9. Position side fillets, engage clips.

10. Tighten nacelle screws.
11. Fit instrument binnacle.

See INSTRUMENTS,

Repair.

12. Return steering column to original position.
13. Fit ignition key.

OIL RESERVOIR

Service repair no - 57.15.08.

Remove

1. Place tray to catch fluid.

CAUTION: Power steering fluid damages
paintwork. Any spillage must be cleaned
immediately.

2. Disconnect battery negative lead.
3. Remove clips securing hoses to reservoir.

Release hoses.

4. Slacken clamp screw securing reservoir.

Remove reservoir.

Refit

5. Position reservoir. Tighten clamp screw.
6. Connect hoses to reservoir. Secure with new

clips.

7. Fill reservoir.

See LUBRICANTS, FLUIDS AND

CAPACITIES, Information.

8. Reconnect battery negative lead.
9. Bleed power steering.

See this section.

57

STEERING

NEW RANGE ROVER

10

REPAIR

POWER STEERING SYSTEM - BLEED

Service repair no - 57.15.02

1. Fill reservoir to upper mark on dipstick.

See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information.

2. Turn steering wheel 45

°

in both directions to

open valves inside steering box.

3. Top up steering reservoir fluid level.

CAUTION: Do not run engine with less
than minimum fluid level in reservoir. Top
up as necessary during bleed procedure.

4. Start engine. Allow to idle.
5. Turn steering wheel back and forth to open

valves inside steering box.

WARNING: Fluid is under high pressure,
open bleed screw with caution.

6. With engine running, carefully open bleed screw

until fluid starts to flow. Tighten bleed screw to
4 Nm (3 lbf.ft)

7. Switch off engine. Top up reservoir.

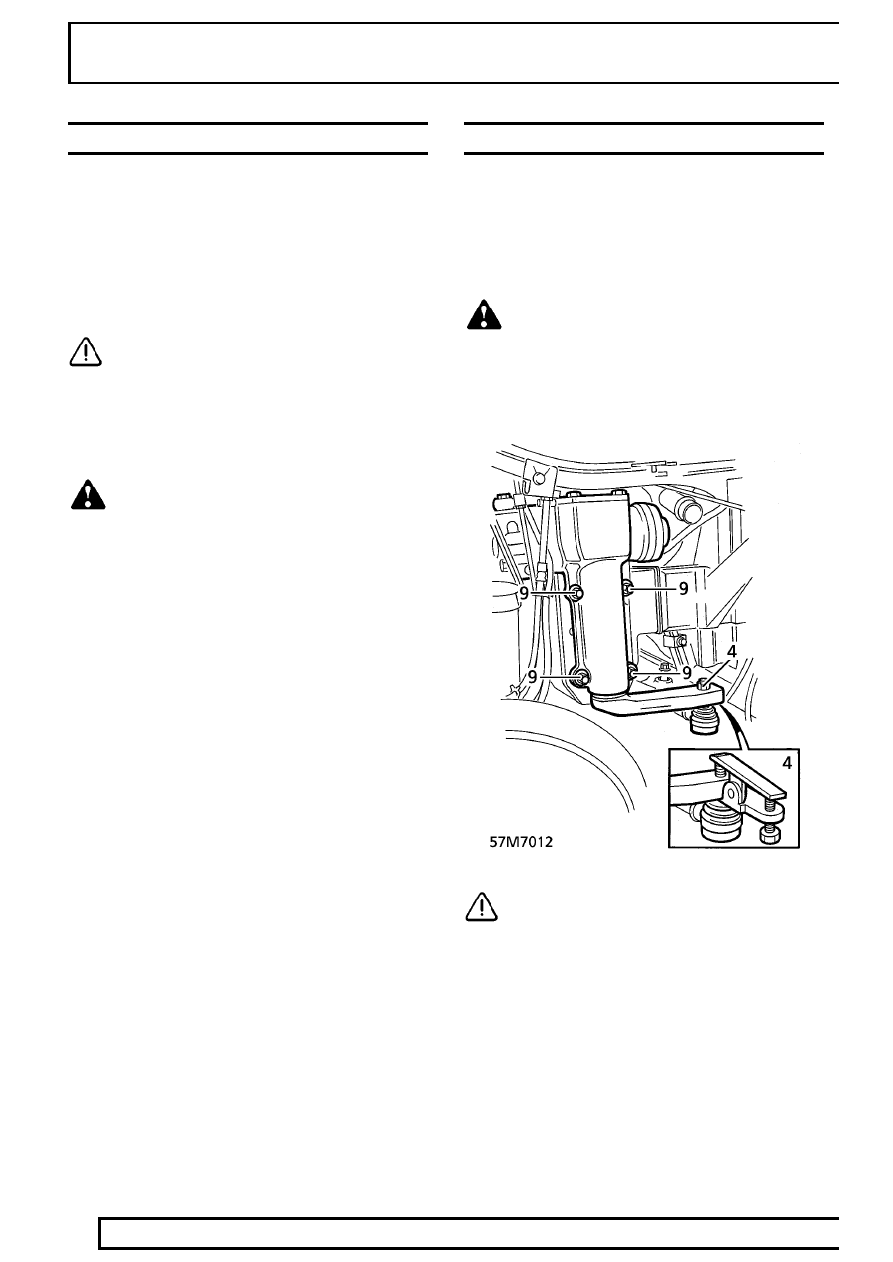

STEERING BOX

Service repair no - 57.30.01

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove washer reservoir RHD only.

See

WIPERS AND WASHERS, Repair.

4. Remove nut connecting drag link to drop arm.

Separate drag link from drop arm with
LRT-57-018.

CAUTION: To prevent damage to rotary
coupler, remove key from ignition switch.
Engage steering lock.

5. Remove bolts securing steering column lower

universal joint to steering box.
