FRONT AXLE AND FINAL DRIVE

1

REPAIR

DIFFERENTIAL ASSEMBLY

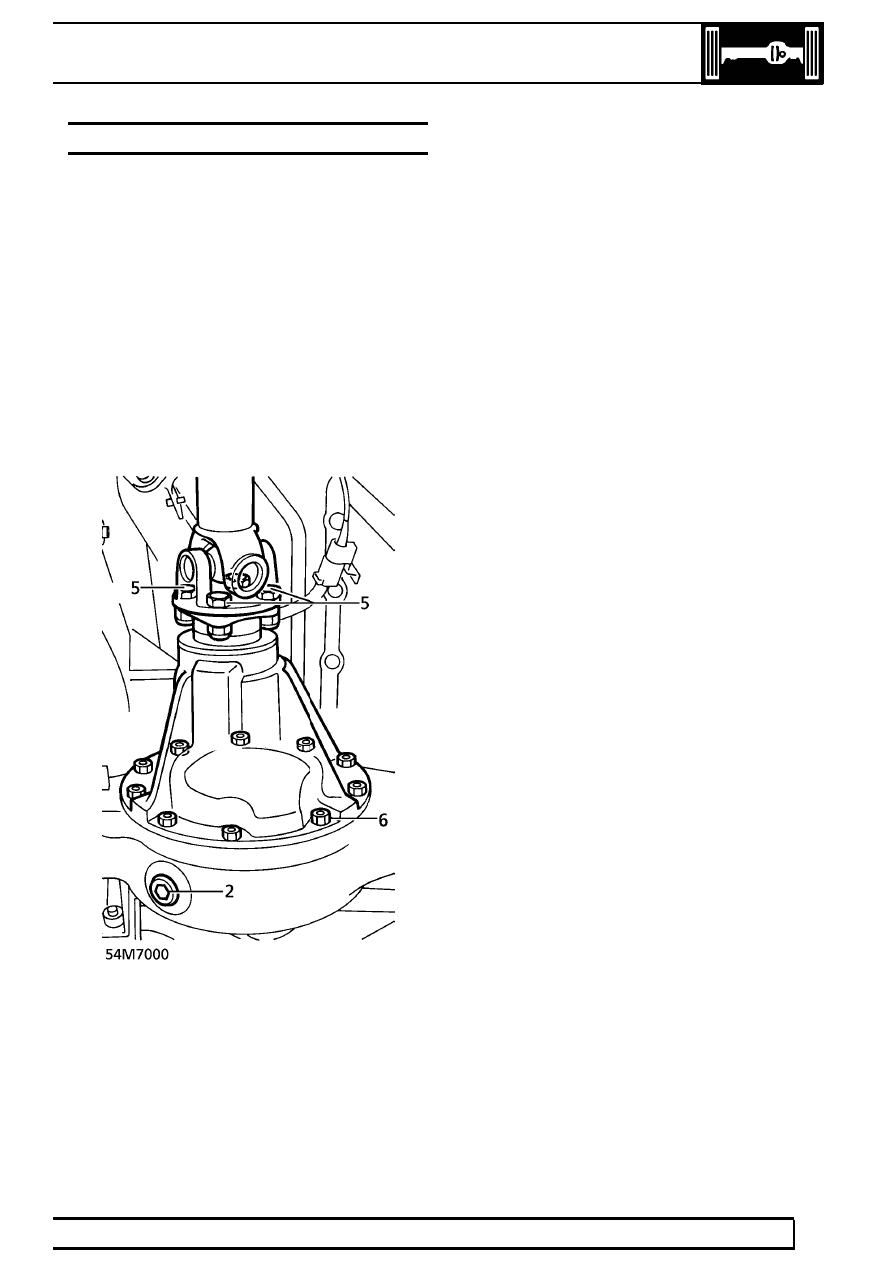

Service repair no - 54.10.01

Remove

1. Remove track rod.

See STEERING, Repair.

2. Drain axle oil.
3. Remove hub assemblies.

See FRONT

SUSPENSION, Repair.

4. Mark differential and propeller shaft flanges to

aid reassembly.

5. Remove 4 nuts and bolts securing propeller

shaft to differential; discard nuts. Release shaft,
tie aside.

6. Remove 10 nuts securing differential to axle

case. Remove differential.

Refit

7. Ensure mating faces are clean.
8. Apply a bead of RTV sealant to axle case.
9. Position differential. Secure with nuts. Tighten to

40 Nm (30 lbf.ft)

10. Position propeller shaft. Align marks on flanges.
11. Secure shaft with bolts and new nuts. Tighten to

48 Nm (35 lbf.ft)

12. Refit hub assemblies.

See FRONT

SUSPENSION, Repair.

13. Refit track rod.

See STEERING, Repair.

14. Replenish axle oil.

See LUBRICANTS, FLUIDS

AND CAPACITIES, Information.

54

FRONT AXLE AND FINAL DRIVE

NEW RANGE ROVER

2

REPAIR

FRONT AXLE

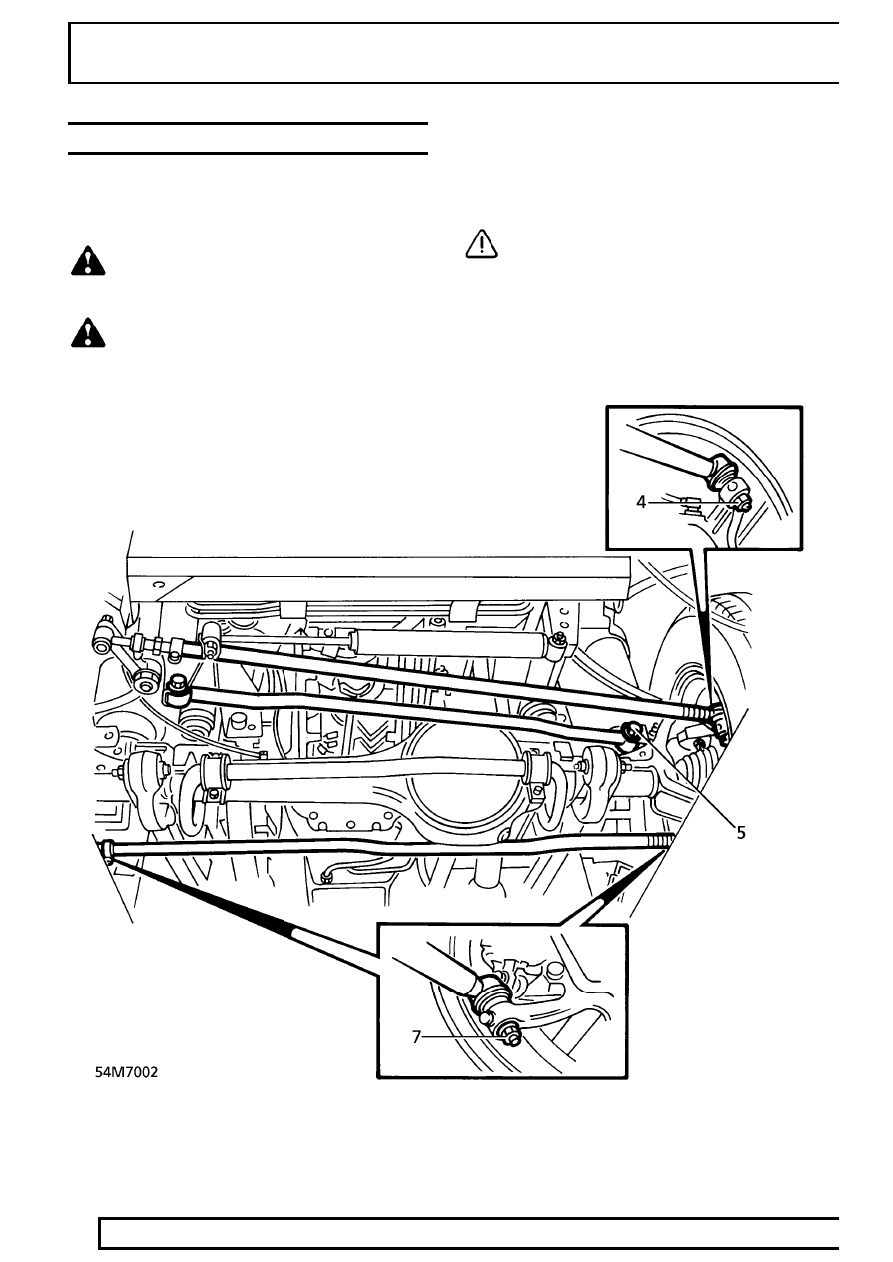

Service repair no - 54.15.01

Remove

WARNING: When lowering or
repositioning axle, an additional two
persons are required.

WARNING: Before commencing work,
depressurise air suspension.

See FRONT

SUSPENSION, Repair.

1. Remove brake pads.

See BRAKES, Repair.

2. Remove 2 bolts securing each brake caliper

assembly to steering knuckles. Release caliper.
Tie aside.

CAUTION: If a sensor is removed for any
reason, a NEW sensor bush must be fitted.

3. Remove ABS sensors and brake hoses from

steering knuckles.

4. Remove nut securing drag link to steering

knuckle. Release taper joint.

FRONT AXLE AND FINAL DRIVE

3

REPAIR

5. Remove bolt securing Panhard rod to axle.

Release panhard rod. Tie aside.

6. Remove anti roll bar.

See FRONT

SUSPENSION, Repair.

7. Remove 2 nuts securing track rod ball joints to

steering knuckles. Release taper joints. Remove
track rod.

8. Mark differential and propeller shaft flanges to

aid reassembly.

9. Remove 4 nuts and bolts securing propeller

shaft to differential; discard nuts. Release shaft
and tie aside.

10. Release height sensors from radius arms.

11. Remove banjo bolt securing breather hose to

axle case. Collect sealing washers. Plug hose
and connection.

12. Support front axle.
13. Remove bolts securing air spring retaining pins.

Remove pins.

14. Release air springs from axle.

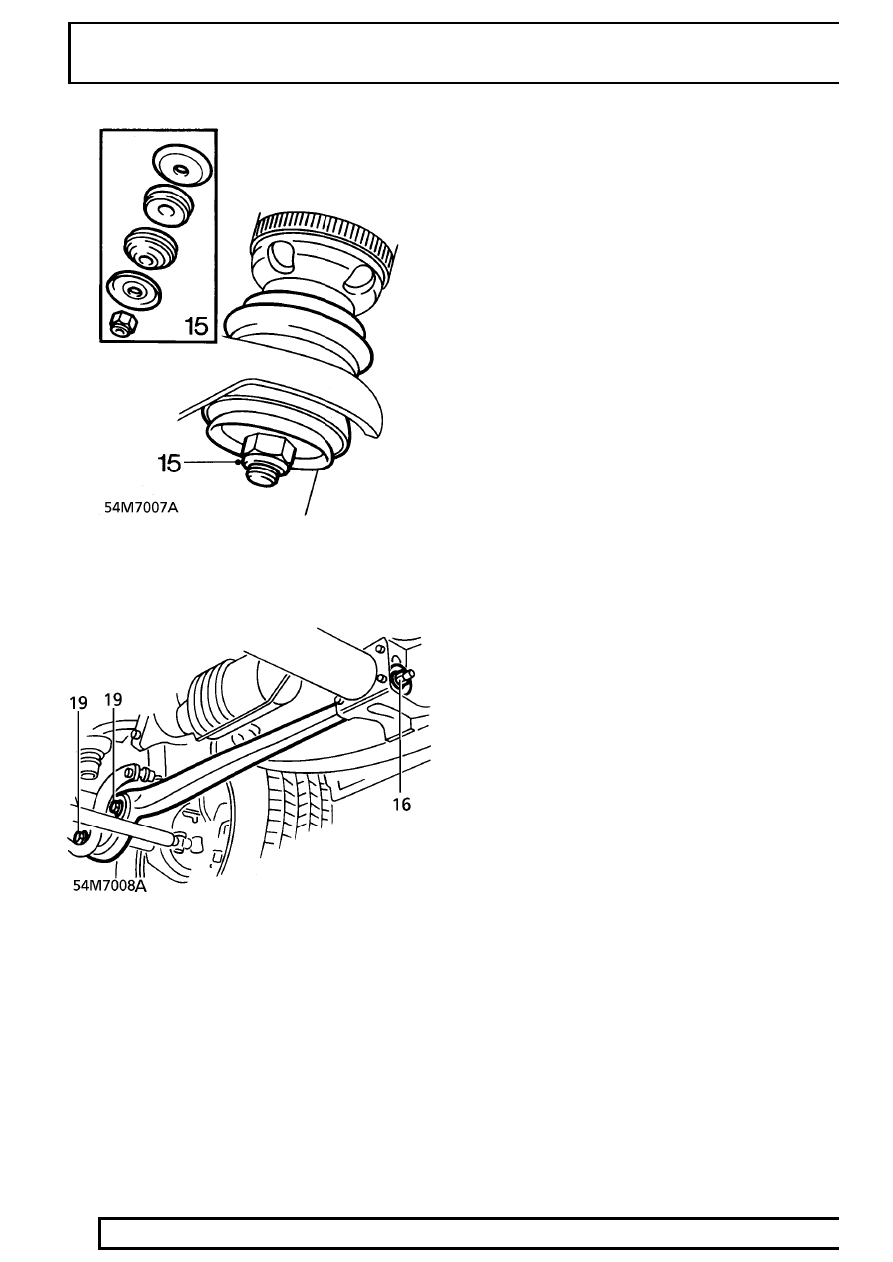

15. Remove 2 nuts securing shock absorbers to

axle. Release shock absorbers. Collect
mounting rubbers.

54

FRONT AXLE AND FINAL DRIVE

NEW RANGE ROVER

4

REPAIR

16. Remove 2 nuts securing radius arms to chassis

brackets.

17. With assistance, lower and move axle forward.

Release radius arms from chassis brackets.
Collect rubber bushes.

18. Remove axle from vehicle.
19. Remove 2 nuts and bolts securing each radius

arm. Remove radius arms.

Refit

20. Ensure mating faces are clean.
21. Position radius arms to axle. Secure with nuts

and bolts. Tighten to

125 Nm (92 lbf.ft)

22. Position axle under vehicle.
23. With assistance, raise axle, locating radius arms

and rubber bushes into chassis locations.

24. Secure radius arms with nuts.

Tighten to

160 Nm (118 lbf.ft)

25. Position shock absorbers with mounting rubbers

to axle. Secure with nuts.

Tighten to

45 Nm (33 lbf.ft)

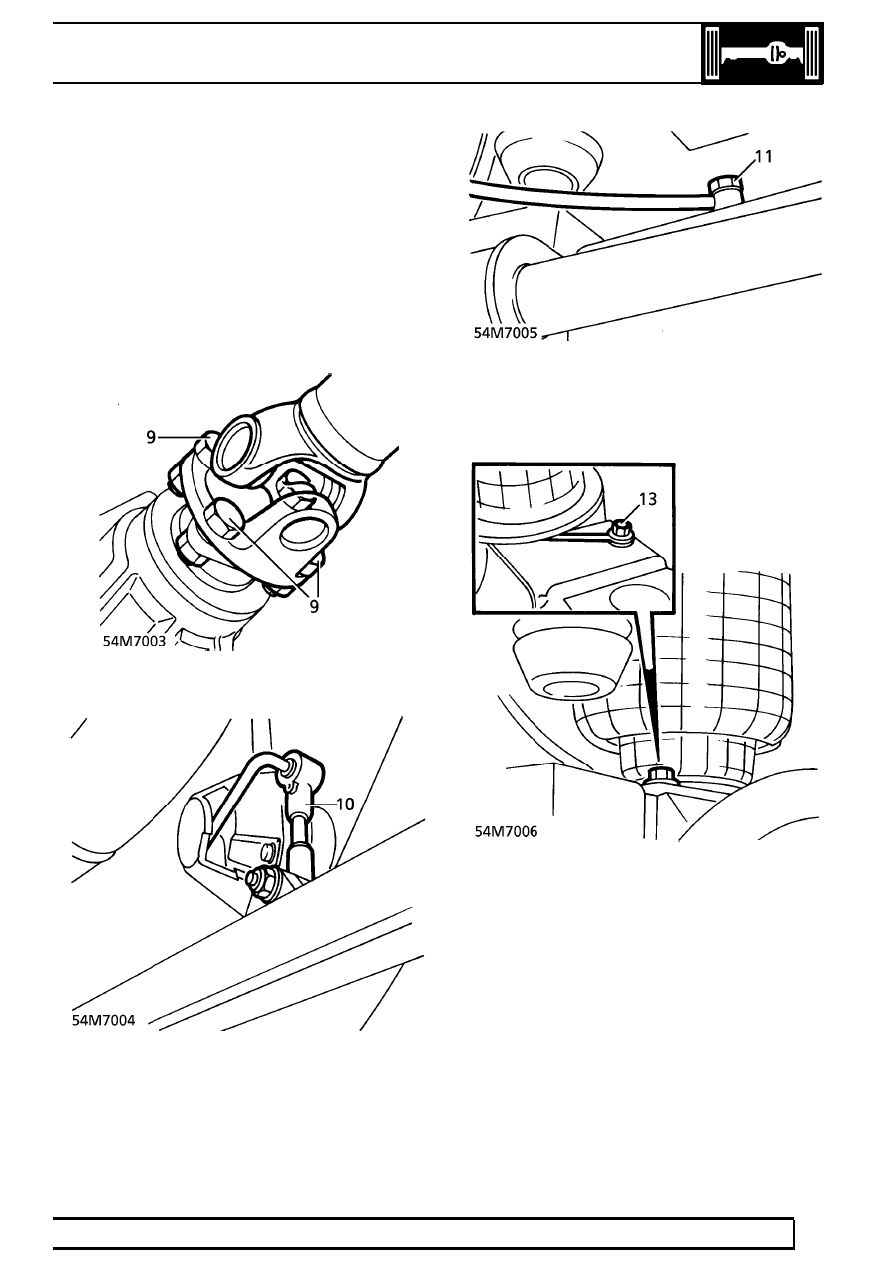

26. Align air springs. Fit securing pins. Fit pin

retaining bolts. Tighten to

20 Nm (15 lbf.ft)

27. Remove plugs from breather hose and

connections. Secure to axle with banjo bolt and
new sealing washers.

28. Connect height sensor links to radius arms.
29. Position propeller shaft to differential flange.

Align marks.

30. Secure propeller shaft with bolts and new nuts.

Tighten to

48 Nm (35 lbf.ft)

31. Position track rod to steering knuckles. Secure

with nuts. Tighten to

50 Nm (37 lbf.ft)

32. Fit anti roll bar.

See FRONT SUSPENSION,

Repair.

33. Position panhard rod. Secure with bolt. Tighten

to

200 Nm (148 lbf.ft)

34. Position drag link on steering knuckle. Secure

with nut. Tighten to

50 Nm (37 lbf.ft)

35. Lightly coat ABS sensors with silicone grease.

See LUBRICANTS, FLUIDS AND
CAPACITIES, Information.

36. Fit ABS sensors, new bushes and brake hoses

to steering knuckles.

37. Position caliper assemblies to steering knuckles.

Secure with bolts. Tighten to

220 Nm

(162 lbf.ft)

38. Fit brake pads.

See BRAKES, Repair.

39. Replenish axle oil.

See LUBRICANTS, FLUIDS

AND CAPACITIES, Information.
