PROPELLER SHAFTS

1

REPAIR

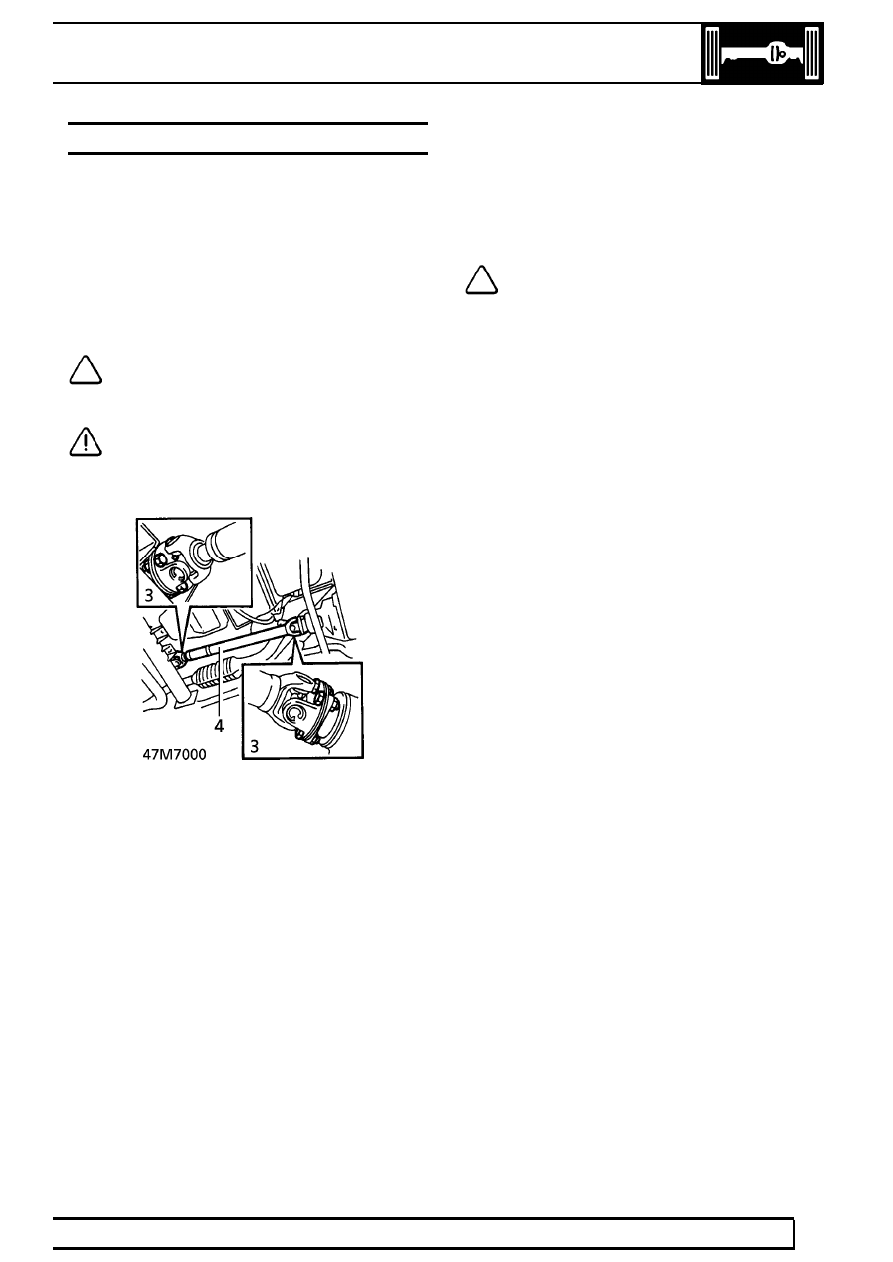

PROPELLER SHAFT - FRONT

Service repair no - 47.15.02

Remove

1. Raise vehicle on four post lift.
2. Mark propeller shaft and drive flanges for

reassembly.

3. With assistance, remove 4 nuts and bolts

securing each propeller shaft flange.

NOTE: Raise 1 front road wheel and rotate
propeller shaft as necessary to gain
access to all fixings.

CAUTION: Assistance is necessary to
support propeller shaft when fixings are
removed.

4. Remove propeller shaft.

Refit

5. Clean mating faces of flanges.
6. Position propeller shaft. Align flange markings.
7. Fit bolts and new Nyloc nuts. Tighten to

48 Nm

(35 lbf.ft)

NOTE: Fit bolts with heads toward transfer
box and away from differential.

8. Lower vehicle.

47

PROPELLER SHAFTS

NEW RANGE ROVER

2

REPAIR

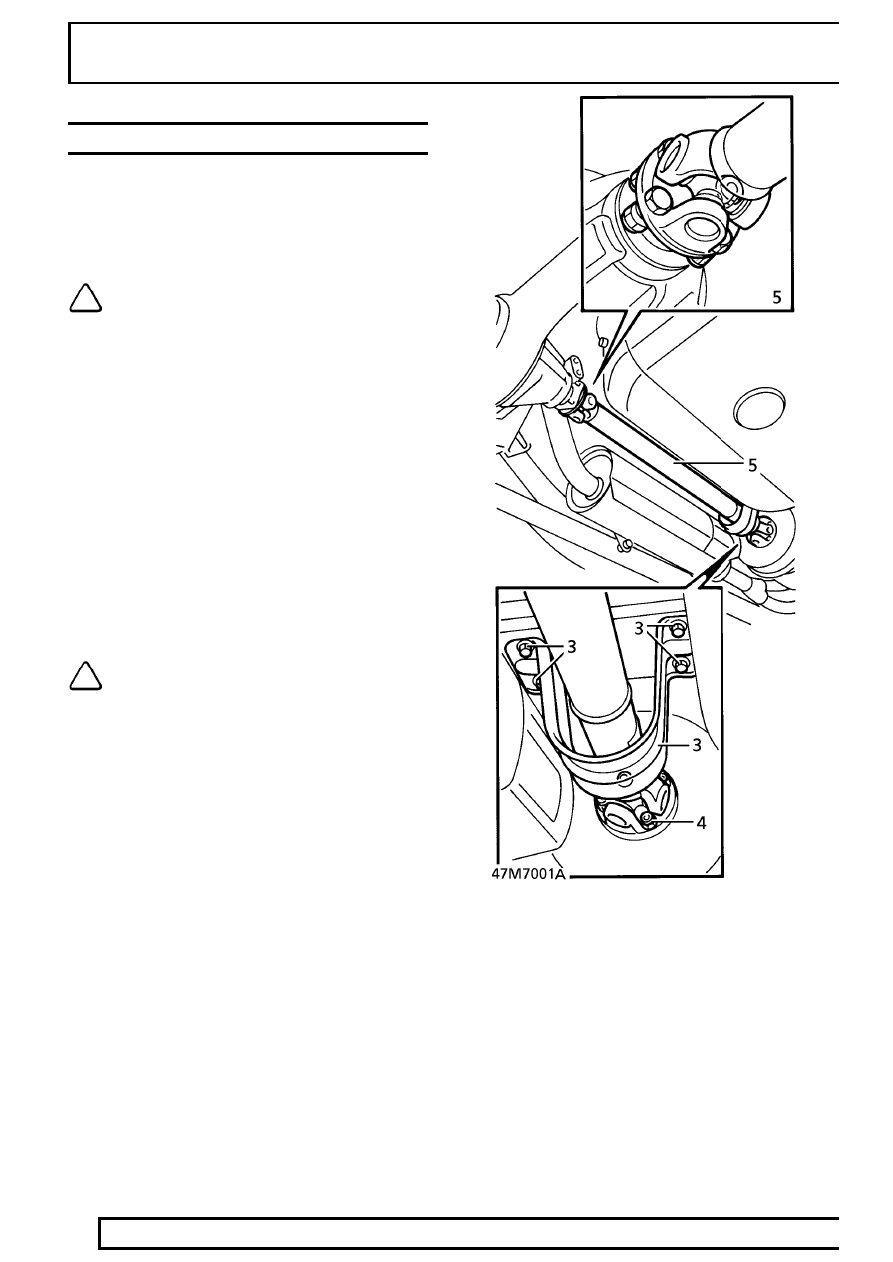

PROPELLER SHAFT - REAR

Service repair no - 47.15.03

Remove

1. Raise vehicle on four post lift.

NOTE: Raise road wheel to allow rotation
of propeller shaft.

2. Mark propeller shaft and drive flanges to aid

re-assembly.

3. Remove 4 bolts securing propeller shaft guard to

floor pan. Remove guard.

4. Remove 4 nuts securing propeller shaft to brake

drum.

5. With assistance, remove 4 nuts and bolts

securing propeller shaft to differential drive
flange. Remove shaft.

Refit

6. Ensure mating faces are clean.
7. Position shaft to differential drive flange. Align

marks.

8. Secure with bolts new Nyloc nuts. Tighten to

48 Nm. (35 lbf.ft)

NOTE: Bolts fitted with heads away from
differential.

9. Position shaft to brake drum. Align marks.

Secure with nuts. Tighten to

48 Nm. (35 lbf.ft)

10. Position propeller shaft guard. Secure with bolts.
11. Lower lift.

51 - REAR AXLE AND FINAL DRIVE

CONTENTS

Page

REPAIR

REAR AXLE

1

.........................................................................................................

DIFFERENTIAL ASSEMBLY

4

...............................................................................

OIL SEAL - PINION

5

..............................................................................................

MASS DAMPER

6

...................................................................................................
