41 - TRANSFER BOX

CONTENTS

Page

DESCRIPTION AND OPERATION

TRANSFER BOX - DESCRIPTION

4

......................................................................

TRANSFER BOX - OPERATION

12

.......................................................................

REPAIR

ELECTRONIC CONTROL UNIT

1

..........................................................................

RATIO CONTROL MOTOR

2

.................................................................................

INPUT SHAFT OIL SEAL

2

.....................................................................................

OUTPUT SHAFT OIL SEAL - FRONT

3

.................................................................

OUTPUT SHAFT OIL SEAL - REAR

5

....................................................................

TRANSFER BOX - UP TO 99MY

6

.........................................................................

TRANSFER BOX - FROM 99MY

10

.......................................................................

TRANSFER BOX

1

DESCRIPTION AND OPERATION

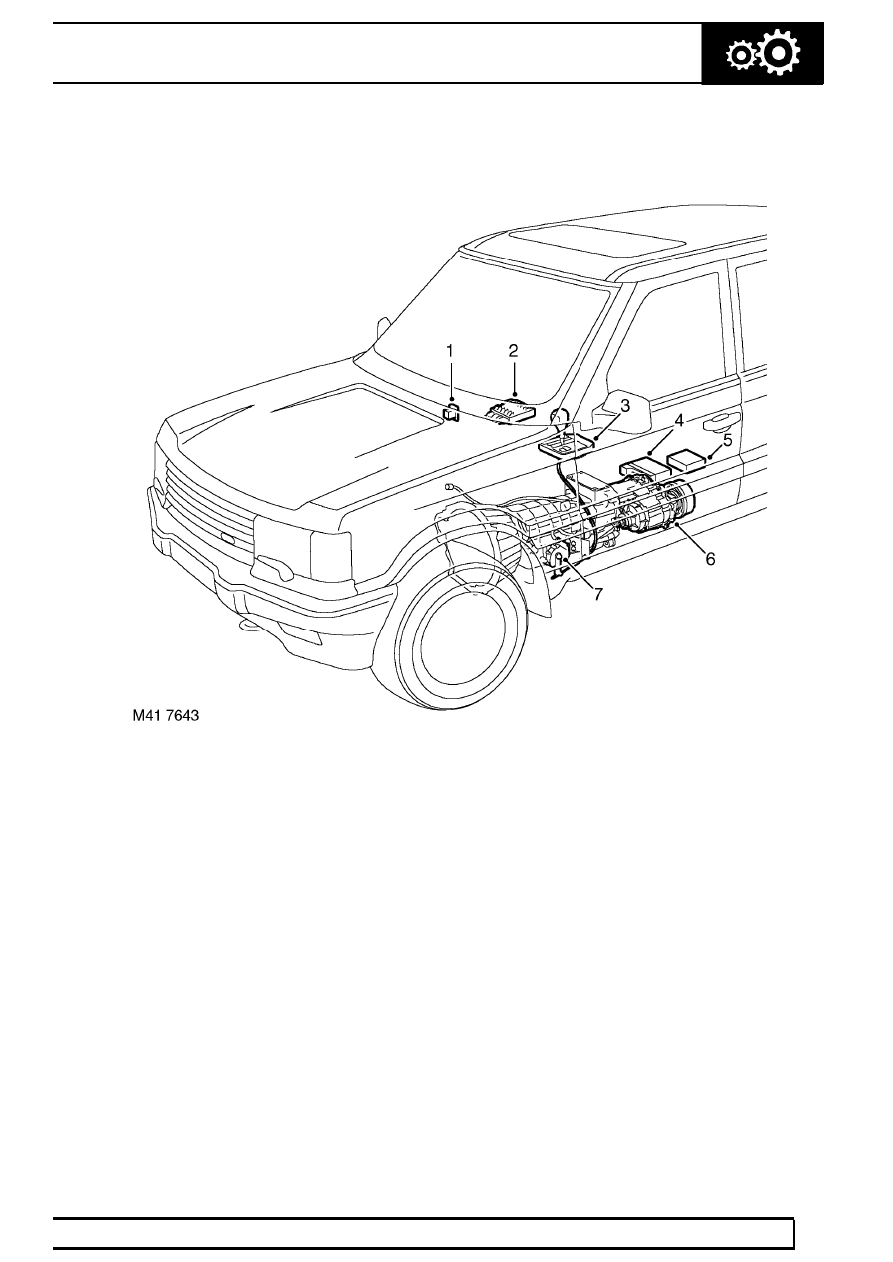

Transfer box component layout

1. High/low switch (Manual vehicles only)
2. BeCM
3. Selector lever assembly (Automatic transmission vehicles only)
4. EAT ECU (Automatic transmission vehicles only)
5. Transfer box ECU
6. Transfer box
7. Gearbox (Automatic transmission shown)

41

TRANSFER BOX

NEW RANGE ROVER

2

DESCRIPTION AND OPERATION

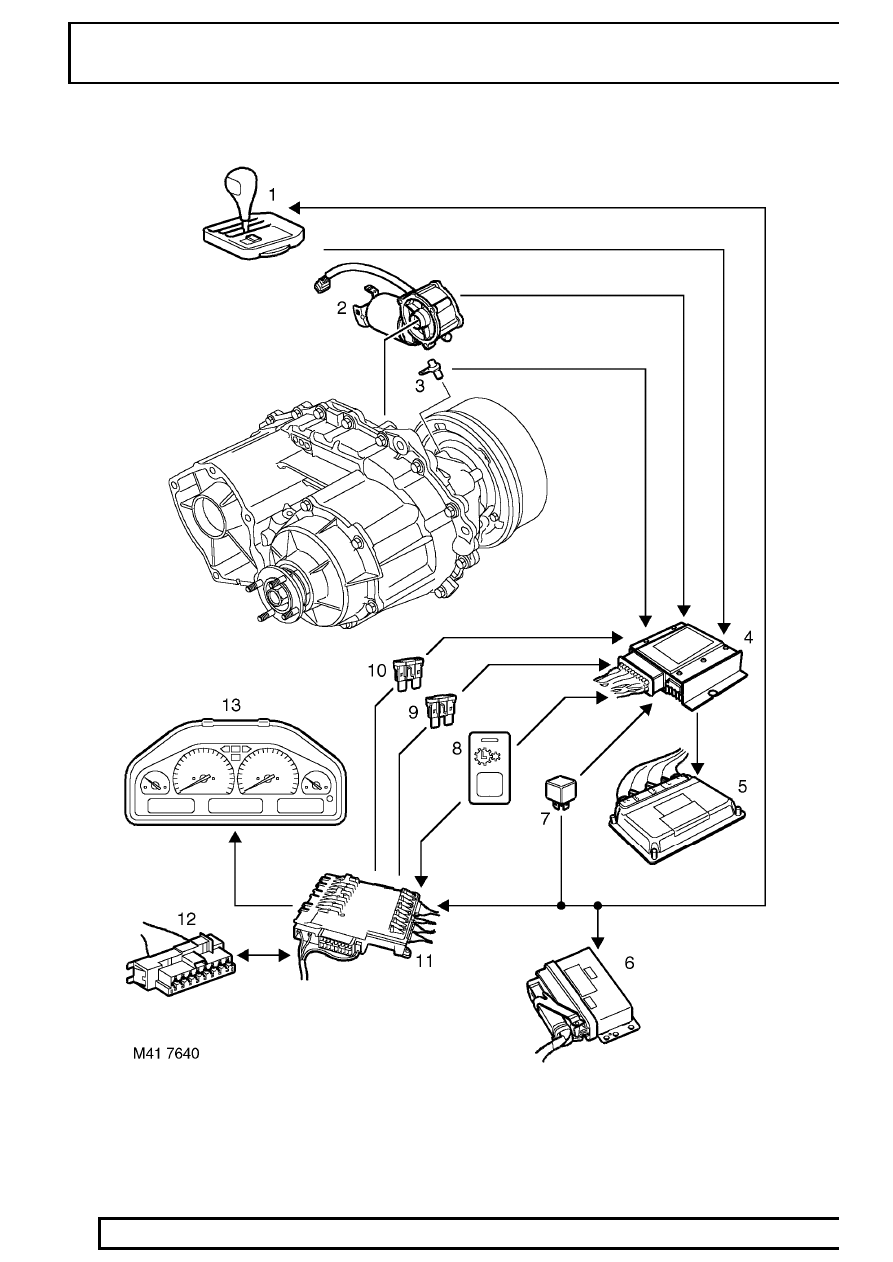

Transfer box control schematic
