Range Rover. Manual - part 139





R380 GEARBOX

1

REPAIR

GEARBOX

Service repair no - 37.20.02 - Gearbox Renew
Service repair no - 37.20.02/99 - Gearbox Remove
for Access

Remove

1. Raise vehicle on four post lift.
2. Disconnect battery negative lead.
3. Petrol Vehicles: Release 2 clips securing

cooling fan cowling to radiator. Remove cowl.

4. Remove centre console.

See CHASSIS AND

BODY, Repair.

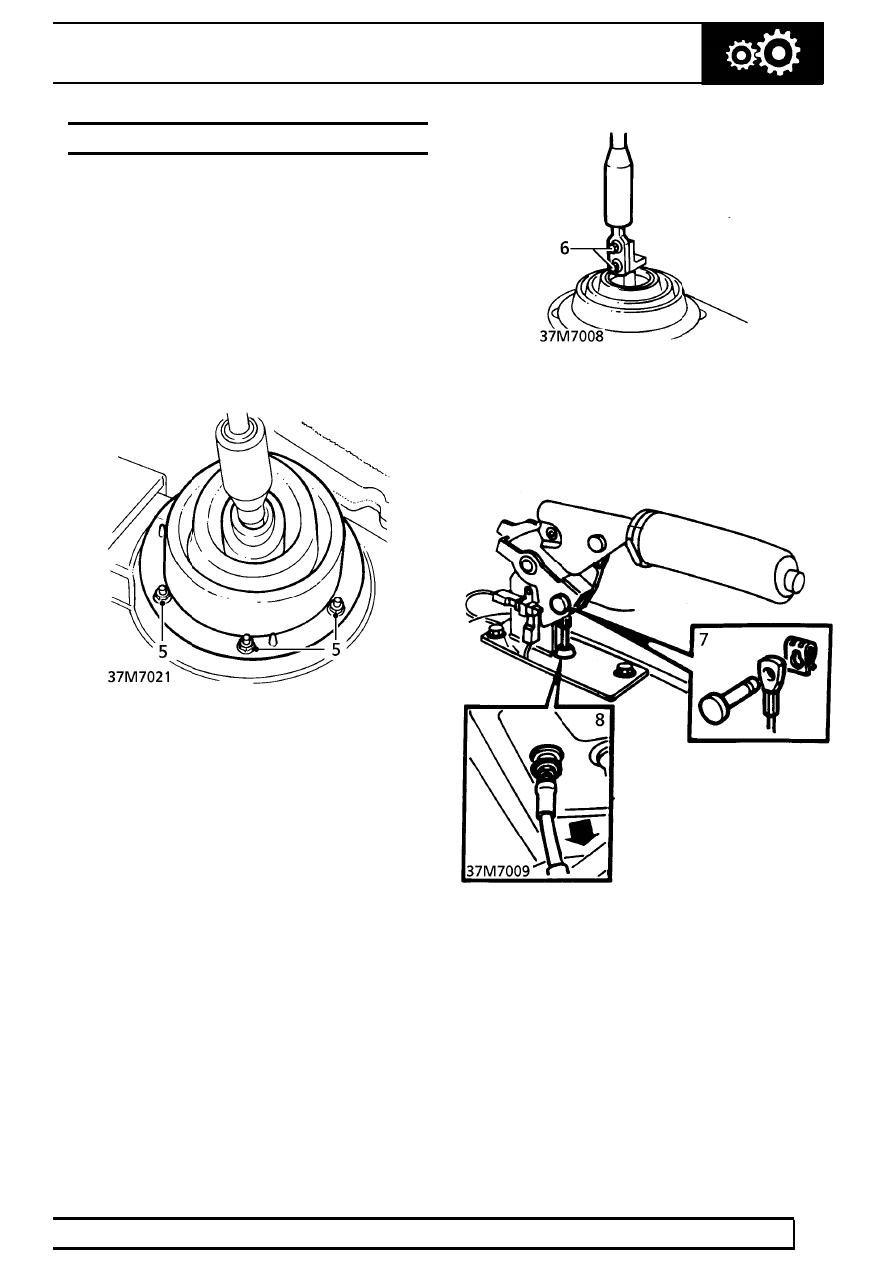

5. Remove 6 nuts securing gaiter ring. Remove

ring and gaiter

6. Remove 2 bolts securing gear lever. Remove

lever.

7. Remove handbrake cable clevis pin.
8. Release handbrake cable from grommet in

tunnel. Refit cable grommet to tunnel.

9. Raise lift. Drain gearbox and transfer box oil.

See SECTION 10, Maintenance.

10. Remove exhaust front pipe.

See MANIFOLD

AND EXHAUST SYSTEM, Repair.

11. Diesel Vehicles: Remove chassis

crossmember.

See CHASSIS AND BODY,

Repair.

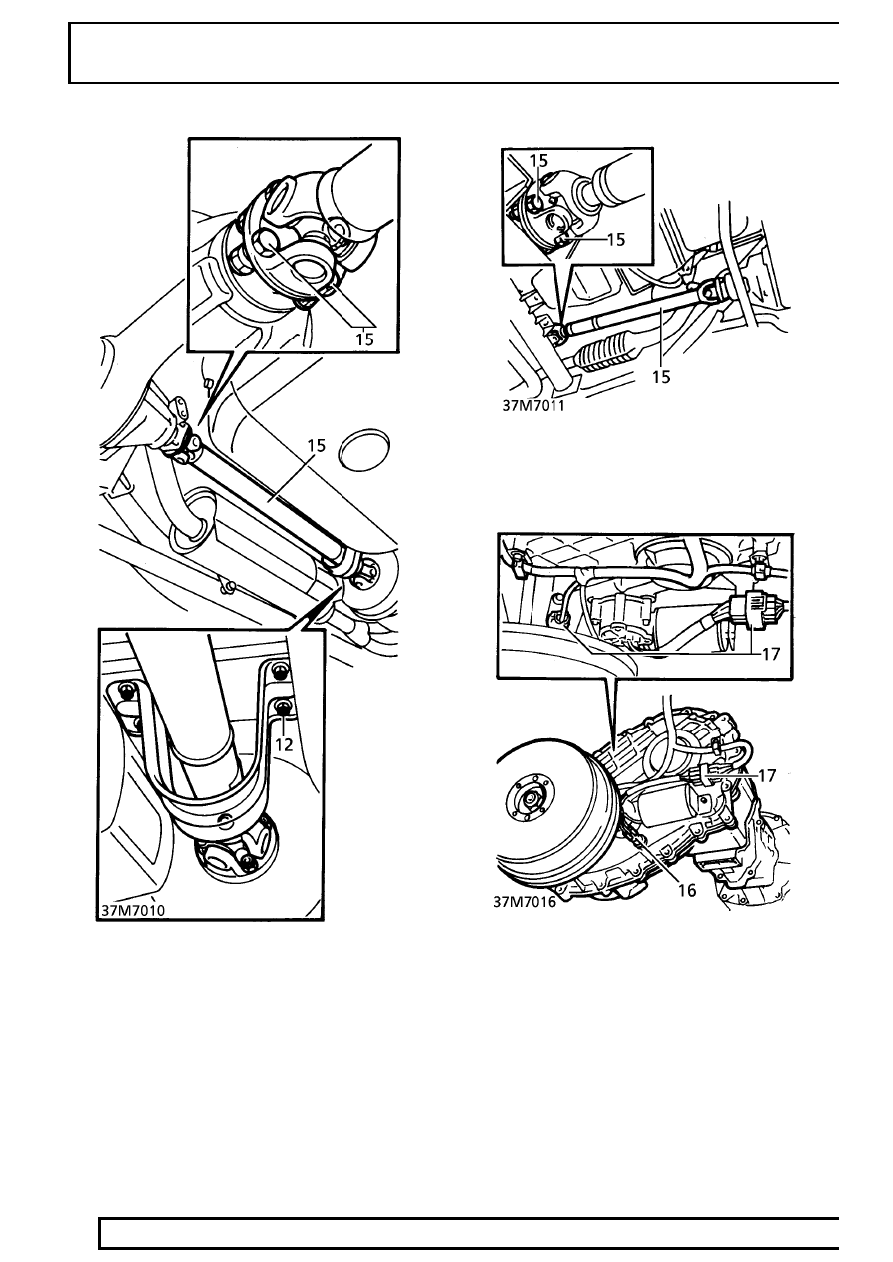

12. Remove 4 bolts securing rear propeller shaft

guard. Remove guard.

37

MANUAL GEARBOX

NEW RANGE ROVER

2

REPAIR

13. Mark transfer box and propeller shaft flanges to

aid re-assembly.

14. Raise one wheel on each axle to allow rotation

of propeller shafts.

15. Remove 4 nuts and bolts from each flange.

Disconnect propeller shafts. Tie aside.

16. Disconnect 2 Lucars from transfer box oil

temperature sensor.

17. Disconnect multiplugs from high/low motor and

output shaft speed sensor.

R380 GEARBOX

3

REPAIR

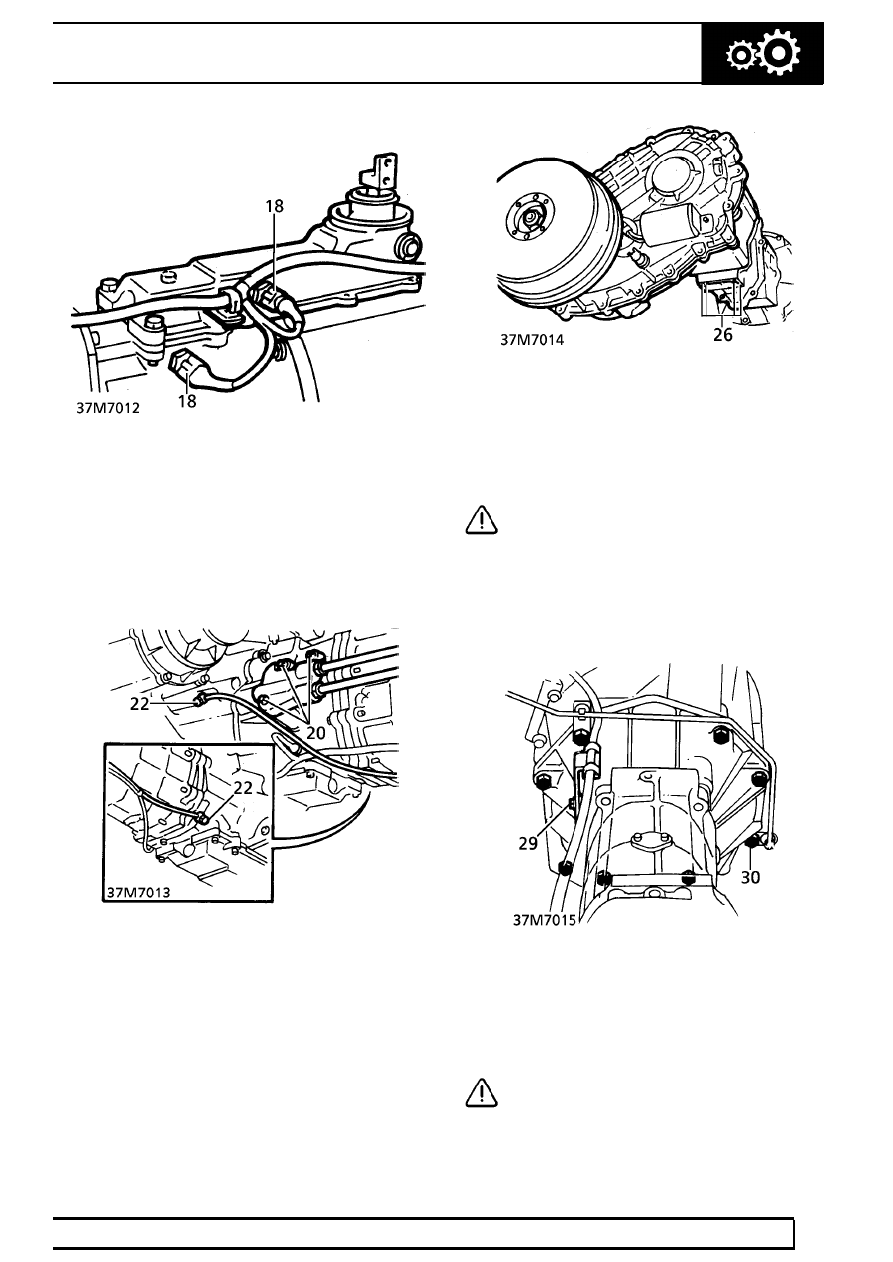

18. Disconnect multiplugs from reverse and neutral

switches.

19. Release harness from clips.
20. Remove 3 bolts securing oil cooler pipe adaptor

to gearbox.

21. Release adaptor, collect 2 ’O’ rings and discard.

Plug connections.

22. Remove banjo bolts securing breather pipes to

gearbox and transfer box.

23. Collect 2 sealing washers from each union and

discard. Plug pipes and connections.

24. Tie breather and oil cooler pipes aside.
25. Position adaptor plate to transmission lift. Secure

with bolts.

26. Raise transmission lift into position. Secure

adaptor plate to gearbox mounting bracket holes
with 4 bolts.

27. Remove transmission stand.
28. Lower transmission for access.

CAUTION: Place a wooden block between
axle case and sump to support engine.

29. Remove bolt securing harness bracket to

gearbox.

30. Remove 8 bolts securing gearbox to bell

housing.

CAUTION: Do not allow the weight of the
gearbox to be supported by the clutch.

37

MANUAL GEARBOX

NEW RANGE ROVER

4

REPAIR

31. With assistance, release gearbox from clutch

plate splines.

32. Lower transmission assembly away from vehicle.
33.

Do not carry out further dismantling if
component is removed for access only.

34. Attach lifting eyes to transmission.
35. Attach hoist to lifting eyes. Take weight of

transmission.

36. Remove lift adaptor. Hoist transmission

assembly onto bench.

37. Fit lifting eye to transmission brake drum. Raise

gearbox on end.

CAUTION: Position packers beneath bell
housing extension to provide clearance for
input shaft.

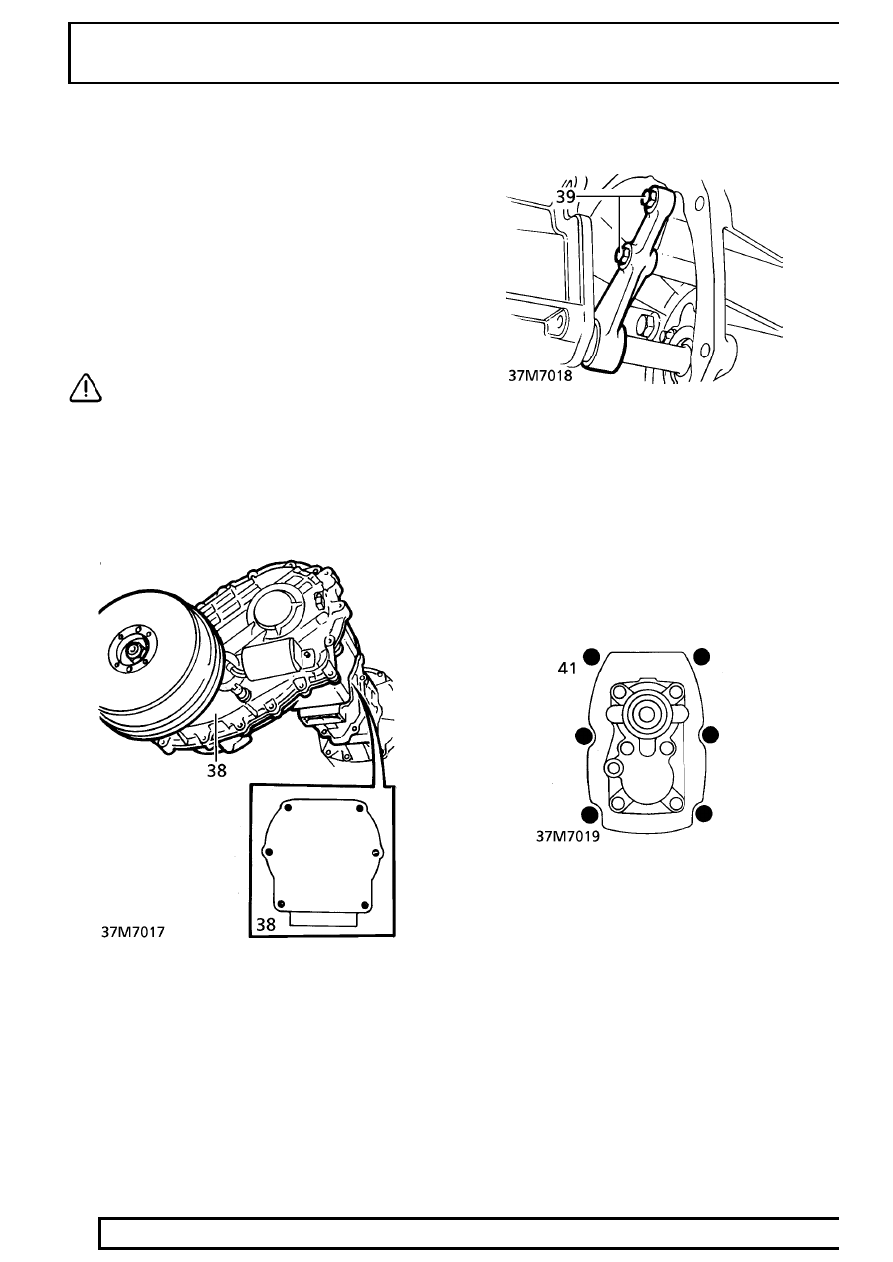

38. Remove 6 bolts securing transfer box to

gearbox. Release from 2 ring dowels. Remove
transfer box.

39. Remove 2 bolts securing clutch release bearing

spigot. Remove spigot.

40. Lay gearbox on side. Position bell housing

extension over edge of bench.

41. Remove 6 bolts securing bell housing extension.

Release from 2 ring dowels. Remove from
gearbox.

42. Ensure mating faces are clean.
43. Clean release bearing spigot. Lightly coat

running surface with grease.

See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information.

44. Position bell housing extension to gearbox.

Engage ring dowels. Secure with bolts. Tighten
to

45 Nm (33 lbf.ft)

45. Position clutch release bearing spigot. Secure

with bolts. Tighten to

18 Nm (13 lbf.ft)
