MANIFOLD AND EXHAUST SYSTEM

7

REPAIR

6. Remove exhaust manifold. Collect gaskets and

discard.

NOTE: The gasket fitted to No. 1 & 2
exhaust ports acts as a turbocharger heat
shield.

Refit

7. Ensure mating faces are clean.
8. Position new gaskets and turbocharger heat

shield to cylinder head studs. Ensure tabs face
outwards.

9. Position exhaust manifold. Secure with nuts and

flat washers. Working from centre outwards,
progressively tighten to

22 Nm (16 lbf.ft).

10.

Vehicles with EGR: Secure EGR pipe flange to
manifold with bolts. Tighten to

22 Nm

(16 lbf.ft).

11. Position turbocharger with new gasket to

exhaust manifold. Secure with bolts. Tighten to
45 Nm (33 lbf.ft).

12. Fit heat shield.

See this section.

13. Remove safety stands. Lower vehicle.
14. Reconnect battery negative lead.

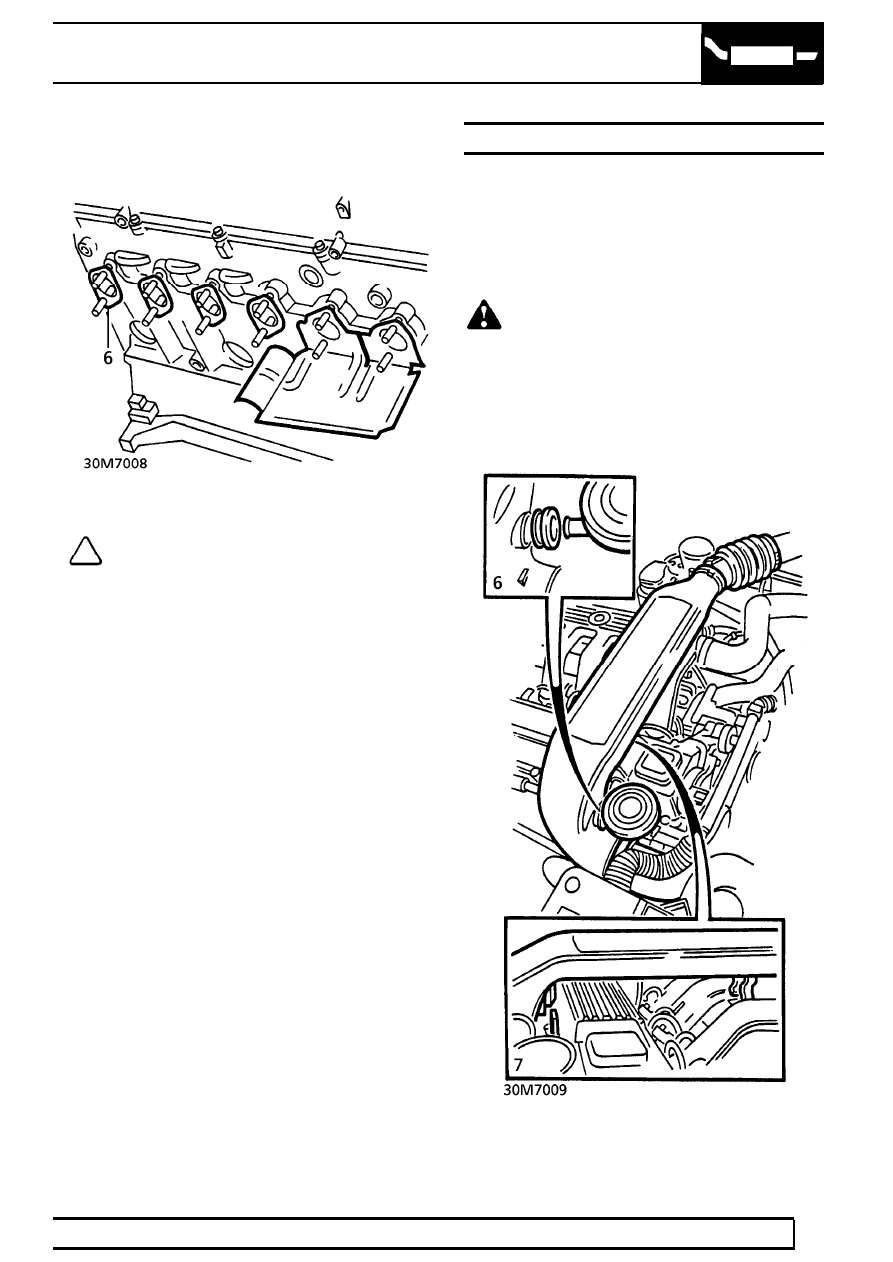

EXHAUST MANIFOLD HEAT SHIELD - DIESEL

Service repair no - 30.15.09

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove cooling fan cowl.

See COOLING

SYSTEM, Repair.

4. Release intake hose from ducting.
5. Release turbocharger intake hose from ducting.
6. Release breather valve from intake ducting

grommet.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

8

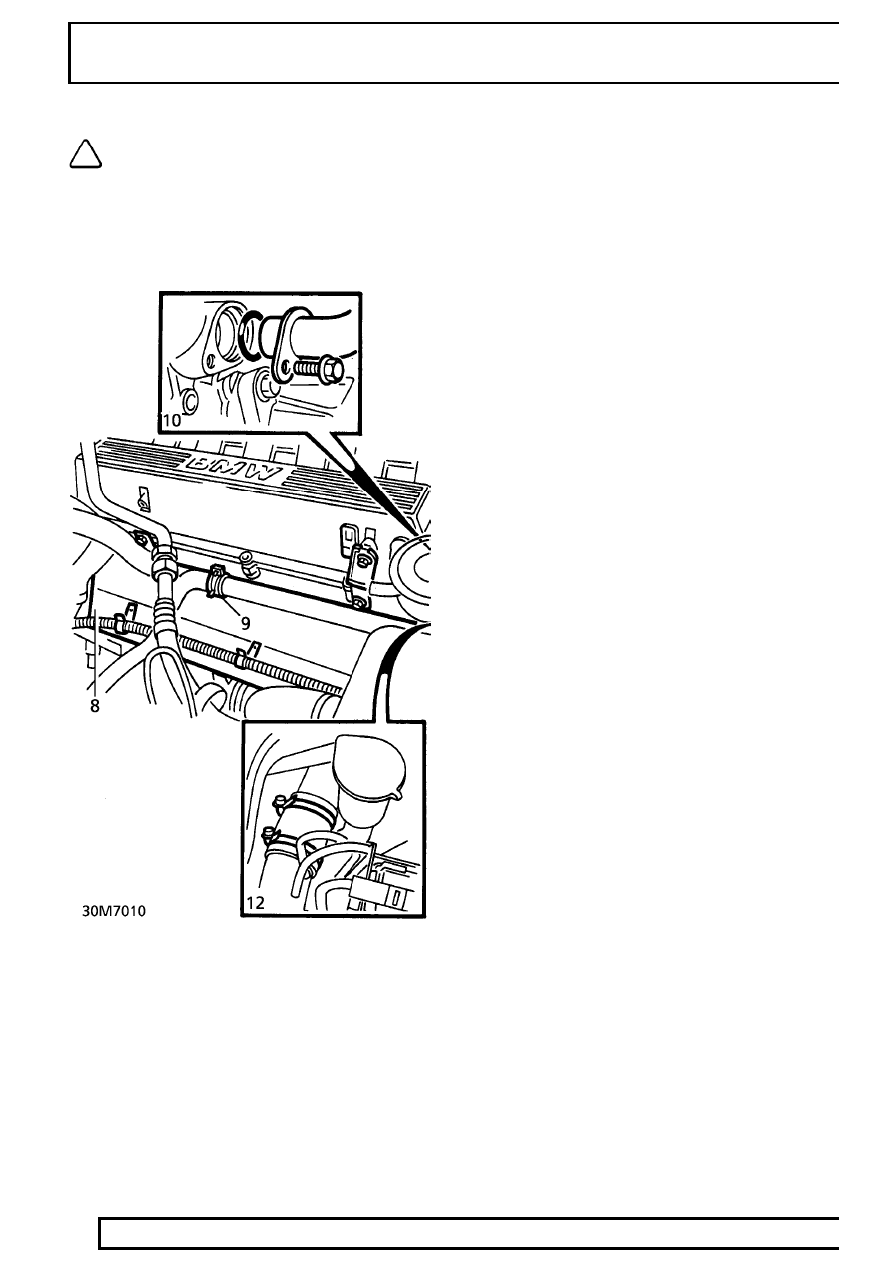

REPAIR

NOTE: Collect grommet. Refit to ducting.

7. Disengage 2 clips securing intake ducting.

Remove ducting.

8. Remove 3 bolts securing intake ducting bracket

and exhaust manifold heat shield to camshaft
cover. Collect bracket.

9. Disconnect heater hose from coolant connecting

pipe.

10. Remove bolt securing coolant connecting pipe to

engine front cover.

11. Remove coolant pipe. Remove ’O’ ring and

discard.

12. Slacken clips securing turbocharger outlet hose

to turbocharger and intercooler.

13. Remove turbocharger outlet hose assembly.
14. Release harness from 2 heat shield clips.
15. Remove heat shield.

Refit

16. Position heat shield.
17. Secure harness to heat shield clips.
18. Position outlet hose to turbocharger and

intercooler. Secure with clips.

19. Using a new ’O’ ring, position coolant pipe.

Engage to engine front cover.

20. Secure connecting pipe to front cover with bolt.

Tighten to

10 Nm (7 lbf.ft)

21. Connect heater hose. Secure with clip.
22. Align exhaust manifold heat shield. Position

intake ducting bracket.

23. Secure ducting bracket and heat shield with

bolts.

24. Position intake ducting. Engage clips.
25. Engage breather valve into ducting grommet.
26. Connect ducting to turbocharger intake hose.

Secure with clip.

27. Connect intake hose to ducting. Secure with clip.
28. Fit cooling fan cowl.

See COOLING SYSTEM,

Repair.

29. Remove safety stands. Lower vehicle.
30. Reconnect battery negative lead.

MANIFOLD AND EXHAUST SYSTEM

9

REPAIR

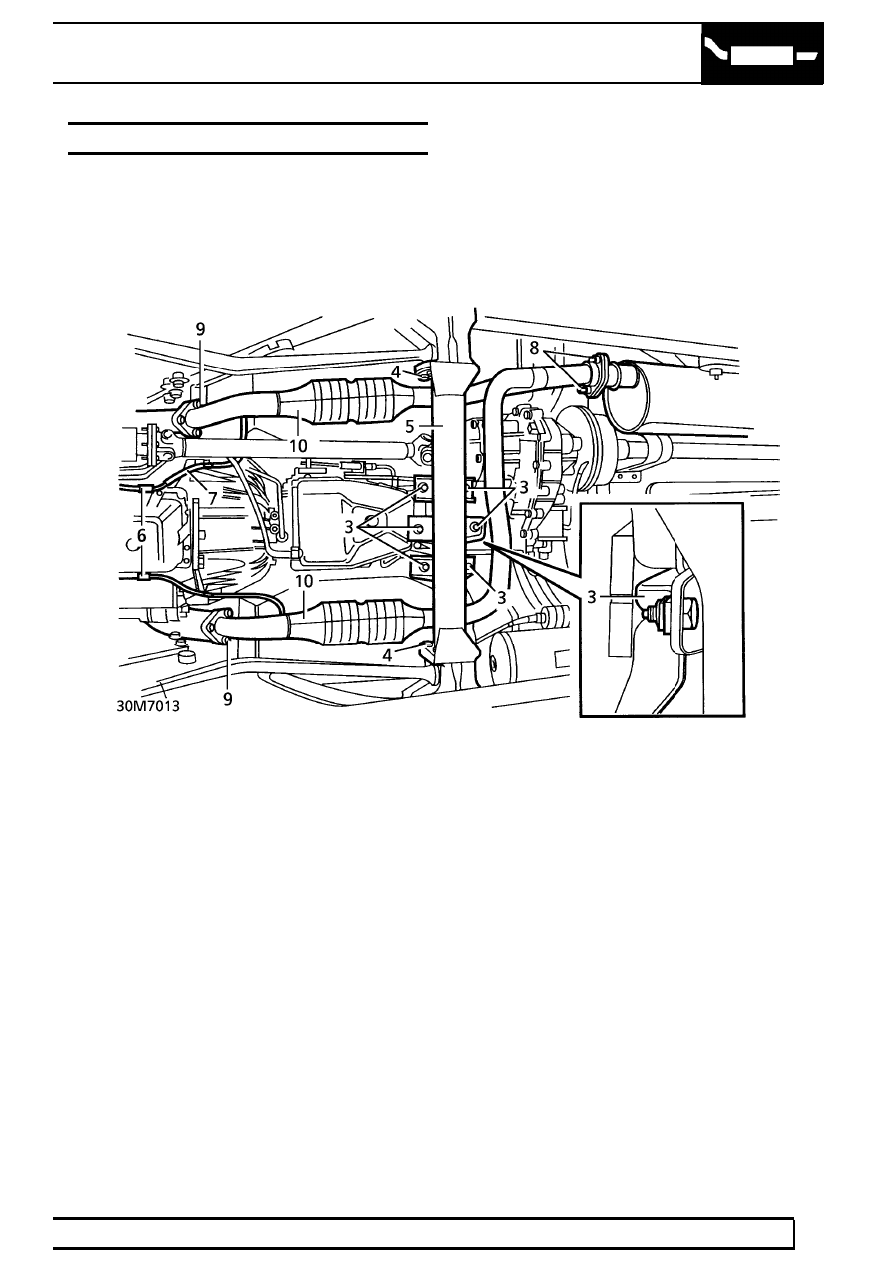

EXHAUST FRONT PIPE - V8

Service repair no - 30.10.09

Remove

1. Raise vehicle on four post lift.
2. Support transmission with a suitable stand.

3. Remove 6 nuts securing transmission mount to

crossmember. Remove snubber bar. Discard
nuts.

4. Remove 3 of 4 nuts and bolts securing each side

of crossmember to chassis.

5. With assistance, remove remaining bolt securing

crossmember. Remove crossmember.

6. Disconnect heated oxygen sensor (HO2S)

harnesses. Release multiplugs from sump
brackets.

7. Remove cable tie securing L.H. HO2S harness

to gearbox bracket.

8. Remove 2 nuts securing front pipe to

intermediate pipe flanges.

9. Remove 6 nuts securing front pipe to exhaust

manifold flanges.

10. Remove front pipe. Collect front pipe to manifold

gaskets.

11. If necessary, remove HO2S.

See FUEL

SYSTEM, Repair.

Refit

12. Ensure mating faces are clean.
13. If removed, fit HO2S.

See FUEL SYSTEM,

Repair.

14. Position front pipe assembly with gaskets to

manifolds. Secure with nuts. Tighten to

50 Nm

(37 lbf.ft)

15. Secure front pipe to intermediate pipe flange

with nuts. Tighten to

25 Nm (18 lbf.ft)

16. Secure LH HO2S harness to gearbox bracket

with cable tie.

17. Connect HO2S harnesses. Secure multiplugs to

sump brackets.

18. With assistance, position transmission

crossmember on chassis. Secure with nuts and
bolts. Tighten to

45 Nm (33 lbf.ft)

19. Fit snubber bar. Secure transmission mount to

crossmember with new flange nuts. Tighten to
45 Nm (33 lbf.ft)

20. Remove support from transmission.
21. Lower vehicle.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

10

REPAIR

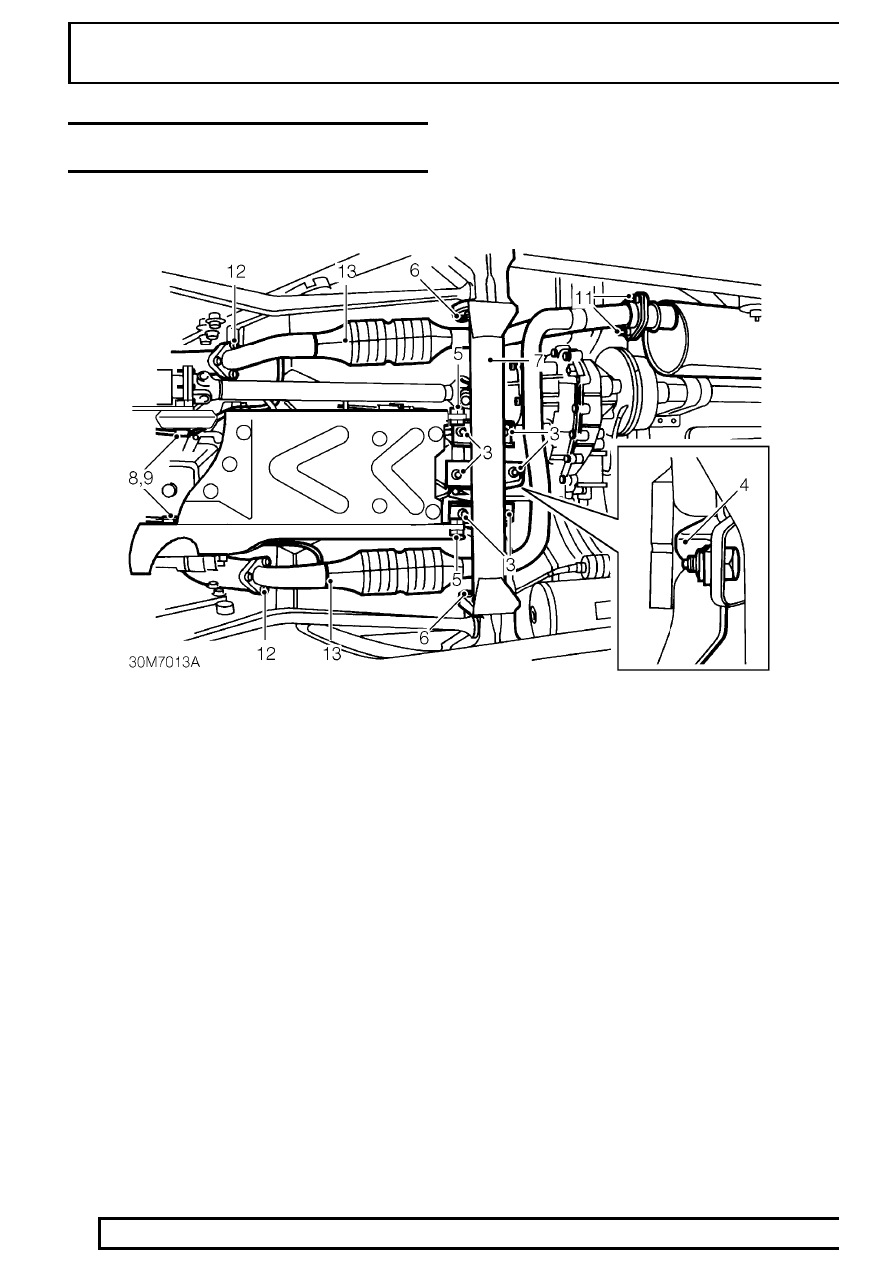

EXHAUST FRONT PIPE - V8 - FROM 97MY UP TO
99MY

Service repair no - 30.10.09

Remove

1. Raise vehicle on 4 post ramp.
2. Support transmission using a suitable stand.
3. Remove 4 nuts and 2 bolts securing

transmission mount to crossmember and discard
nuts.

4. Remove transmission snubber bar.
5. Remove 2 bolts securing rear of side acoustic

covers to crossmember.

6. Remove 3 of 4 nuts and bolts securing each side

of crossmember to chassis.

7. With assistance, remove remaining bolt securing

crossmember and remove crossmember.

8. Disconnect 2 oxygen sensor harness multiplugs

from oxygen sensor flylead.

9. Release 2 oxygen sensor flylead multiplugs from

brackets.

10. Release flyleads from 2 clips.
11. Remove 2 nuts securing front pipe to

intermediate pipe flange.

12. Remove 6 nuts securing front pipe to exhaust

manifold down pipe flanges

13. Using assistance, remove front pipe and collect

2 front pipe to manifold gaskets.

Do not carry out further dismantling if
component is removed for access only.

14. Remove 2 heated oxygen sensors from front

pipe and discard sealing washers.

15. Fit NEW sealing washers to heated oxygen

sensors.

16. Fit heated oxygen sensors to front pipe and

tighten to

20 Nm (15 lbf.ft)
