MANIFOLD AND EXHAUST SYSTEM

3

REPAIR

Refit

18. Ensure mating faces are clean.
19. Position manifold on cylinder head. Align new

gaskets.

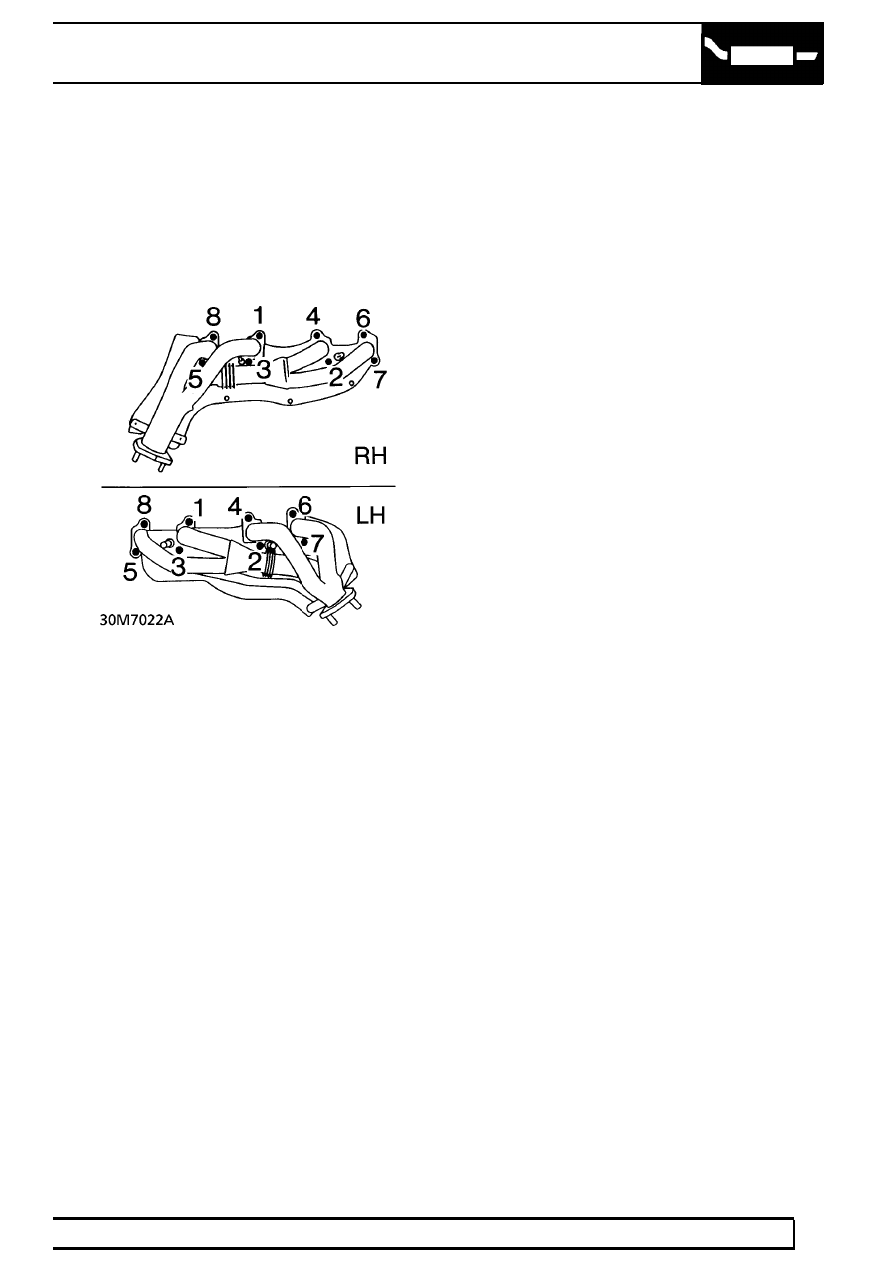

20. Secure manifold with bolts. Tighten to

55 Nm

(40 lbf.ft) in sequence shown.

21. Fit outer heat shield. Secure with bolts. Tighten

to

8 Nm (6 lbf.ft)

22. Position purge valve on shock absorber turret.

Secure with bolt.

23. Connect purge hose to ram pipe housing.
24. Fit air flow meter/hose assembly to plenum

chamber. Secure with clip.

25. Connect multiplug to air flow meter.
26. Fit ’O’ ring to air flow meter. Secure meter to air

cleaner with clips.

27. Engage harness in intake hose clip.
28. Tighten RH shock absorber top mounting bolt to

85 Nm (63 lbf.ft)

29. Position H.T. lead clip on rocker cover. Secure

with screw.

30. Route H.T. leads. Secure in clips. Connect plug

caps.

31. If removed, fit intermediate steering shaft.

See

STEERING, Repair.

32. Raise lift.
33. Fit new gasket to front pipe. Position pipe to

exhaust manifold. Secure with nuts. Tighten to
50 Nm (37 lbf.ft)

34. Reconnect battery negative lead.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

4

REPAIR

EXHAUST MANIFOLD GASKETS - V8 - FROM
99MY

Service repair no - 30.15.16 - Right Hand
Service repair no - 30.15.17 - Left Hand

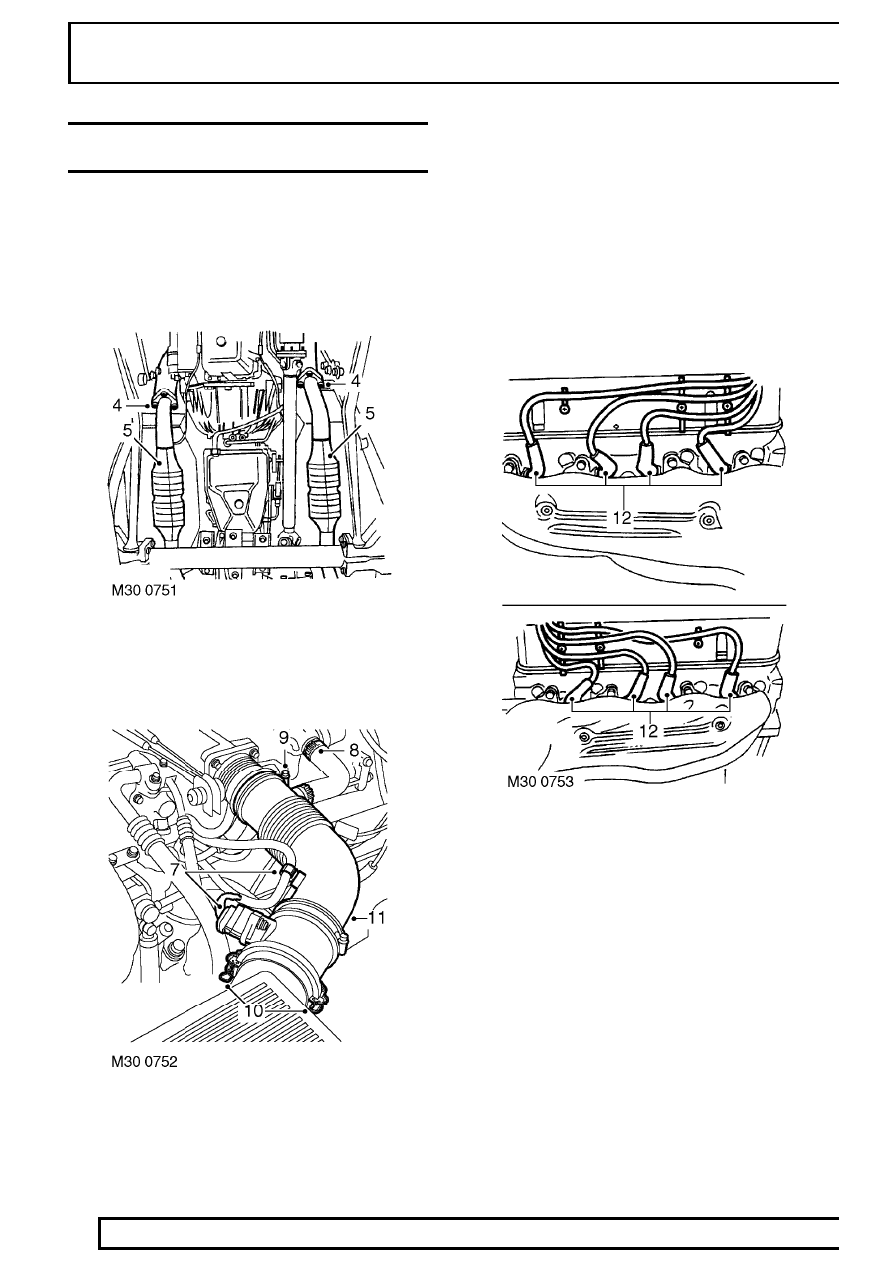

1. Release 3 fixings and remove battery cover.
2. Disconnect battery negative lead.
3. Raise vehicle on four post lift.

4. Remove 3 nuts securing each front pipe flange

to exhaust manifold.

5. Release front pipe from exhaust manifold.

Collect gaskets.

6. Lower lift.

7. Disconnect multiplug from MAF sensor and

release harness from clip on air intake hose.

8. Release clip and disconnect hose from IAC

valve.

9. Loosen clip and disconnect air intake hose from

throttle body.

10. Release two clips securing MAF sensor to air

cleaner.

11. Remove MAF sensor and hose assembly.

Collect ’O’ ring.

12. Release spark plug caps. Release H.T. leads

from clips on rocker cover. Place leads aside.

MANIFOLD AND EXHAUST SYSTEM

5

REPAIR

13. RH Manifold Only. Loosen RH shock absorber

top mounting bolt (to provide clearance for heat
shield removal).

NOTE: Do not remove bolt.

14. RHD, RH Manifold Only. Remove steering

column intermediate shaft.

See STEERING,

Repair.

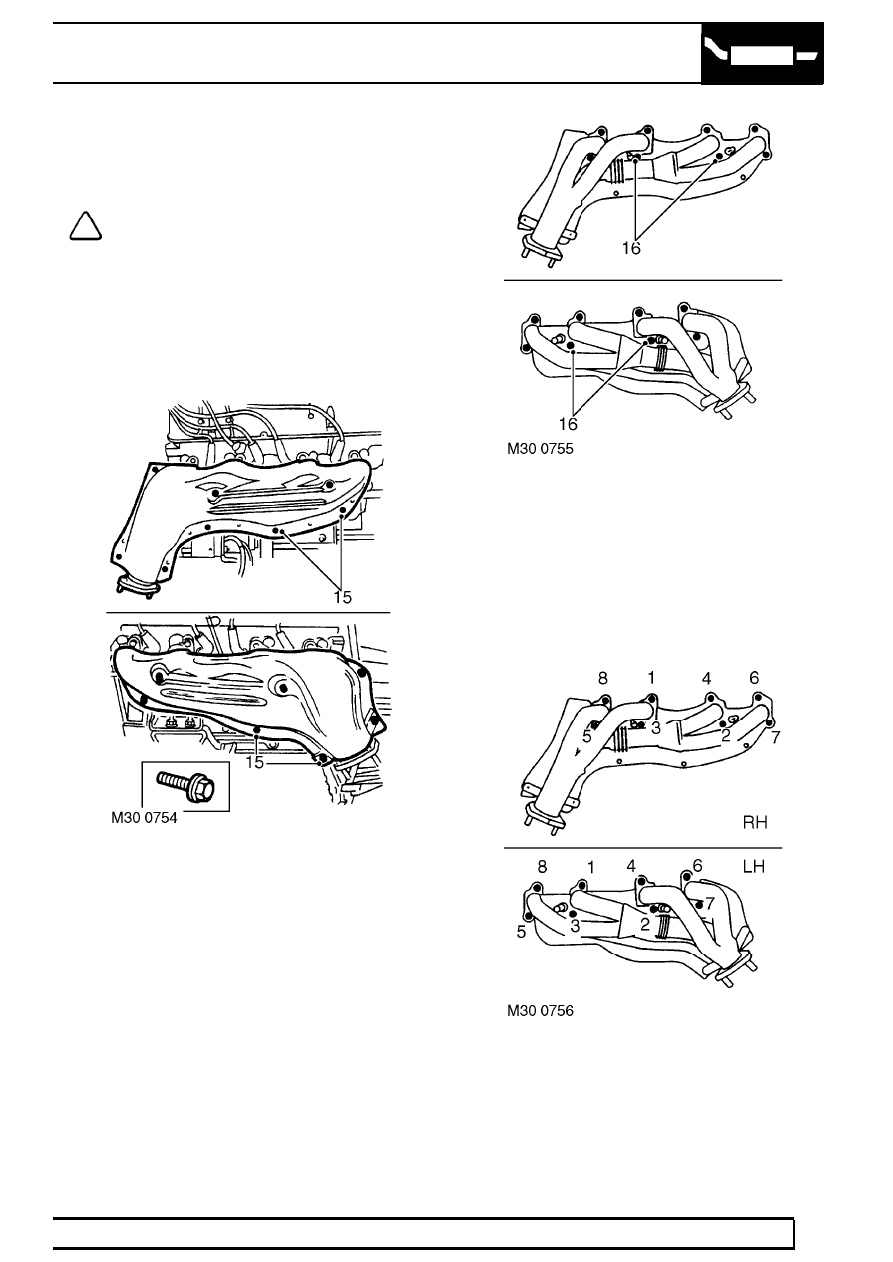

15. Remove 8 (RH exhaust manifold) or 7 (LH

exhaust manifold) bolts securing outer heat
shield to manifold. Remove heat shield.

16. Remove 8 bolts securing exhaust manifold to

cylinder head. Remove exhaust manifold and
collect gaskets.

Refit

17. Ensure mating faces are clean.
18. Position manifold on cylinder head. Align new

gaskets.

19. Secure manifold with bolts. Tighten to

55 Nm

(40 lbf.ft) in sequence shown.

30

MANIFOLD AND EXHAUST SYSTEM

NEW RANGE ROVER

6

REPAIR

20. Fit outer heat shield. Secure with bolts. Tighten

to

8 Nm (6 lbf.ft).

21. Fit MAF sensor and hose assembly to throttle

body. Secure with clip.

22. Fit ’O’ ring to MAF sensor. Secure MAF sensor

to air cleaner with clips.

23. Connect multiplug to MAF sensor. Engage

harness in clip on air intake hose.

24. RH Manifold Only. Tighten RH shock absorber

top mounting bolt to

85 Nm (63 lbf.ft).

25. Route H.T. leads. Secure in clips. Connect plug

caps.

26. RHD, RH Manifold Only. Fit steering column

intermediate shaft.

See STEERING, Repair.

27. Raise lift.
28. Fit new gasket to front pipe. Position pipe to

exhaust manifold. Secure with nuts. Tighten to
50 Nm (37 lbf.ft).

29. Reconnect battery negative lead.
30. Fit battery cover and secure with fixings.

EXHAUST MANIFOLD GASKETS - DIESEL

Service repair no - 30.15.12

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove heat shield.

See this section.

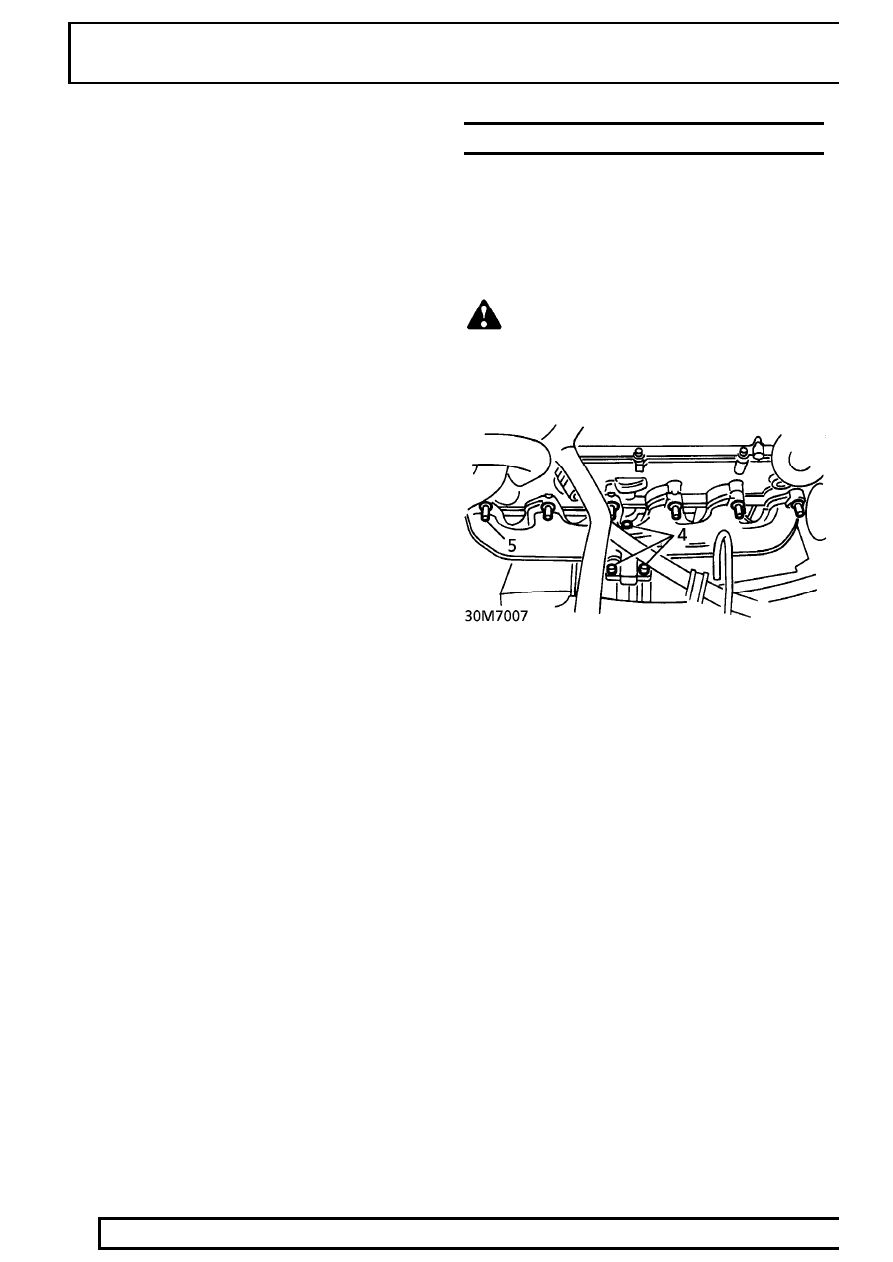

4. Remove 3 bolts securing turbocharger to

exhaust manifold. Collect gasket and discard.

5. Remove 12 nuts and flat washers securing

exhaust manifold to cylinder head.

Vehicles with

EGR: Remove 2 bolts securing EGR pipe flange
to manifold. Position pipe aside.
