LAND ROVER V8

3

DESCRIPTION AND OPERATION

ENGINE COOLING - DESCRIPTION

General

The complete cooling system installed in vehicles with
V8 engines incorporates three independent functions:-
Engine (coolant) cooling; Engine oil cooling; Gearbox
oil cooling.

Engine and gearbox oil coolers are mounted in front of
the radiator and linked to their separate systems by
pre-formed pipes and hoses.

The cooling system used on the V8 engine is a
pressurised, by-pass type system which allows
coolant to circulate around the engine block and
heater matrix when the thermostat is closed. With
coolant not passing through the radiator, faster heater
warm-up is promoted which in turn improves
passenger comfort.

A coolant pump is located in a housing at the front of
the engine and is driven by a drive belt. The water
pump is connected into the coolant passages cast into
the cylinder block and pumps coolant from the radiator
through the cylinder block and heater circuit.

A viscous fan is attached to the water pump drive
pulley. The fan is secured by a left hand threaded nut
to the pulley spindle. The fan draws air through the
radiator to assist in cooling when the vehicle is
stationary. The fan rotational speed is controlled
relative to the running temperature of the engine by a
thermostatic valve regulated by a bi-metallic coil.

The cooling system uses a 50/50 mix of anti-freeze
and water.

Thermostat housing

A ’four way’ thermostat housing, located at the bottom
of the fan cowling behind the radiator, is used to link
the main components within the engine cooling
system. The four connections locate the radiator
bottom hose, top hose, by-pass hose and coolant
pump feed hose.

The plastic housing contains a wax element
thermostat. The thermostat and housing are a sealed
unit and cannot be replaced individually. The
thermostat is used to maintain the coolant at the
optimum temperature for efficient combustion and to
aid engine warm-up.

The thermostat is closed at temperatures below
approximately 80

°

C (176

°

F). When the coolant

temperature reaches between 80 to 84

°

C

(176 to 183

°

F) the thermostat starts to open and is

fully open at approximately 96

°

C (204

°

F). In this

condition the full flow of coolant is directed through the
radiator.

Inlet manifold cooling connections

With the thermostat open, coolant leaves the cylinder
block via an outlet pipe and top hose attached to the
front of the inlet manifold. The top hose is connected
to the top of the radiator.

Hot coolant from the cylinder block is also directed
from the inlet manifold via pipes and hoses to the
heater matrix. Coolant is circulated through the heater
matrix at all times when the engine is running.

Plenum chamber - up to 99MY

The plenum chamber is heated with a supply of
coolant from a supply pipe from the inlet manifold to a
plate on the underside of the throttle on the plenum.
The hot coolant prevents the air intake and throttle
linkage from icing. A bleed pipe returns coolant from
the plenum chamber to the expansion tank.

Throttle housing - from 99MY

A tapping from the inlet manifold supplies coolant to
the throttle housing via a hose. The coolant circulates
through a plate attached to the bottom of the throttle
housing and is returned through a plastic bleed pipe to
the expansion tank. The hot coolant heats the throttle
housing preventing ice from forming.

26

COOLING SYSTEM

NEW RANGE ROVER

4

DESCRIPTION AND OPERATION

ECT sensor and temperature gauge sender unit -
up to 99MY

An Engine Coolant Temperature (ECT) sensor and a
temperature gauge sender unit are located on the inlet
manifold adjacent to the outlet pipe. The ECT sensor
monitors coolant temperature emerging from the
engine and sends signals relating to coolant
temperature to the ECM for engine management. The
temperature gauge sender unit operates the warning
lamp and temperature gauge in the instrument pack.
See FUEL SYSTEM - Engine Management,
Description and operation.

ECT sensor - from 99MY

An Engine Coolant Temperature (ECT) sensor is
located on the inlet manifold adjacent to the outlet
pipe. The ECT sensor monitors coolant temperature
emerging from the engine and sends signals relating
to coolant temperature to the ECM for engine
management and to the instrument pack for
temperature gauge operation.

See FUEL SYSTEM -

Engine Management, Description and operation.

Expansion tank

The expansion tank is located in the engine
compartment and attached to the right hand inner
wing. The tank is made from moulded plastic and has
a maximum coolant level when cold mark moulded on
the side.

Excess coolant created by heat expansion is returned
to the expansion tank from the bleed pipe at the top of
the radiator. An outlet pipe is connected into the
thermostat housing and replaces coolant displaced by
heat expansion into the system when the engine is
cool.

The tank is fitted with a sealed pressure cap. The cap
contains a pressure relief valve which opens to allow
excessive pressure and coolant to vent through the
overflow pipe. The relief valve opens at a pressure of
1.4 bar (20 lbf.in) and above.

Heater matrix

The heater matrix is fitted in the distribution unit of the
heating and ventilation system inside the passenger
compartment. Two pipes pass through the bulkhead
and provide coolant flow to and from the matrix.

The matrix is constructed from aluminium with two
end tanks interconnected with tubes. Aluminium fins
are located between the tubes and conduct heat away
from the hot coolant flowing through the tubes. Air
from the heater assembly is warmed as it passes
through the matrix fins. The warm air is then
distributed into the passenger compartment as
required.

See HEATING AND VENTILATION,

Description and operation.

Radiator

The radiator is located at the front of the vehicle. The
vertical flow radiator is manufactured from aluminium
with moulded plastic tanks at the top and bottom,
interconnected with tubes. Aluminium fins are located
between the tubes and conduct heat from the hot
coolant flowing through the tubes, reducing the
coolant temperature as it passes through the radiator.
Air intake from the front of the vehicle when moving
carries heat away from the fins. When the vehicle is
stationary, the viscous fan draws air through the fins
to prevent the engine from overheating.

Two connections at the top of the radiator provide for
the attachment of the top hose and bleed pipe. A
connection at the bottom of the radiator allows for the
attachment of the bottom hose to the thermostat
housing.

Two coolers are located in front of the cooling
radiator. The upper cooler provides cooling of the
engine oil and the lower cooler provides cooling for
the gearbox oil.

See MANUAL GEARBOX, Description and

operation.

See AUTOMATIC GEARBOX, Description and

operation.

See ENGINE, Description and operation.

Pipes and hoses

The coolant circuit comprises flexible hoses and metal
formed pipes which direct coolant into and out of the
engine, radiator and heater matrix. Plastic pipes are
used for the bleed and overflow pipes to the
expansion tank.

A drain plug is fitted to each cylinder bank in the
cylinder block. These are used to drain the block of
coolant.

LAND ROVER V8

5

DESCRIPTION AND OPERATION

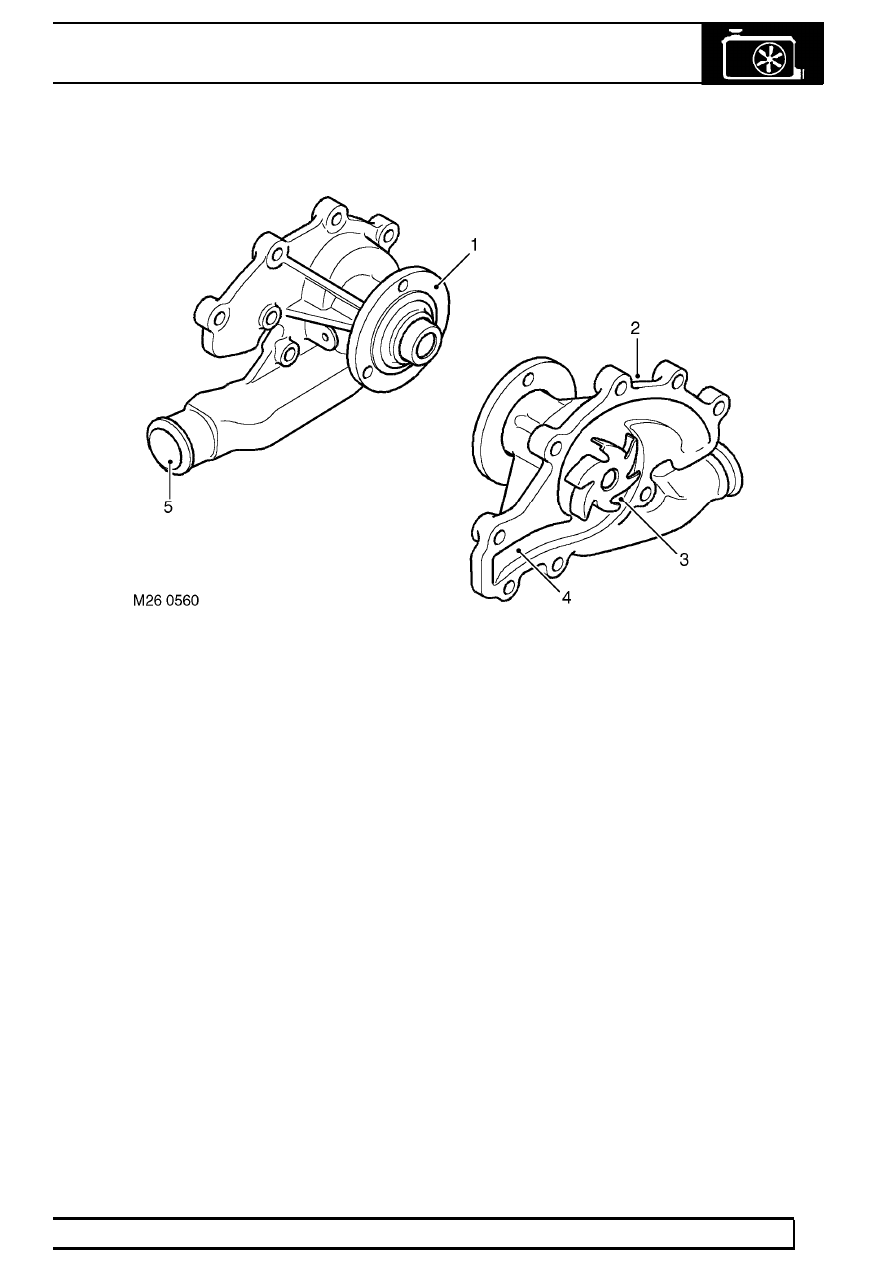

Coolant pump

1. Pulley flange
2. Body
3. Impeller

4. Gallery
5. Inlet connection

The coolant pump is attached to the front of the
cylinder block with nine bolts and sealed between the
pump housing and the cylinder block with a gasket.
The pump comprises a shaft which passes through an
alloy housing.

The outer end of the shaft has a flange which allows
for the attachment of the pump drive pulley which is
secured with three bolts. The drive pulley is driven by
the grooved auxiliary drive belt and rotates at the
same speed as the crankshaft. The inner end of the
shaft is fitted with an impeller which draws coolant
from the thermostat housing and circulates it through
galleries in the cylinder block and through the heater
matrix.

The shaft is supported on bearings in the housing
which are packed with grease and sealed for life. A
seal is positioned in the housing to further protect the
bearings from the ingress of coolant. The seal is
manufactured from a synthetic material which will
allow for the expansion of the casing when hot coolant
is present.

The cast alloy housing has a hose connection which
provides the attachment for the coolant pump feed
hose. The housing connects with galleries in the
cylinder block and distributes coolant from the pump
impeller into the galleries and water jackets.

26

COOLING SYSTEM

NEW RANGE ROVER

6

DESCRIPTION AND OPERATION

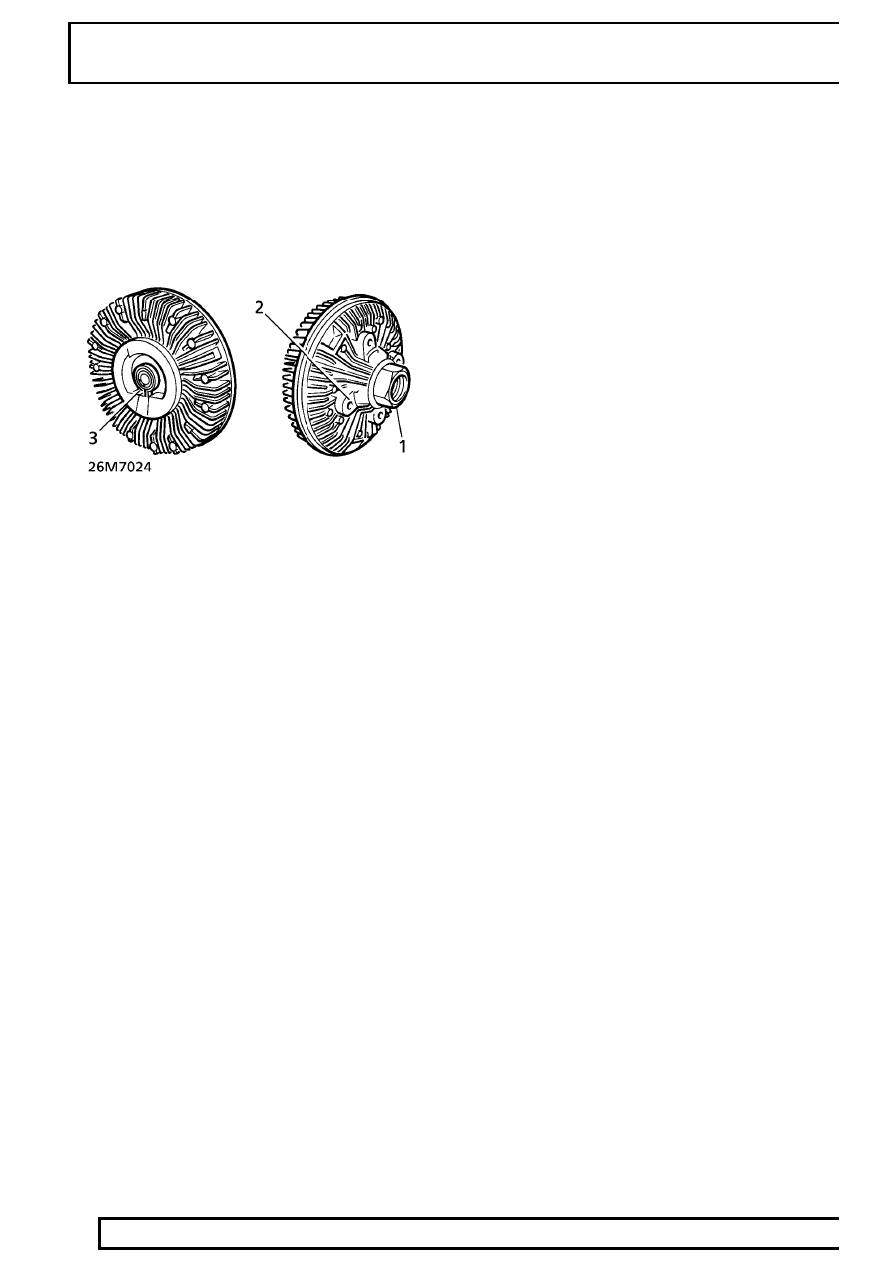

Viscous fan

The viscous drive unit for the engine cooling fan
provides a means of controlling the speed of the fan
relative to the temperature of the engine. The viscous
fan unit is a type of fluid coupling, which drives the fan
blades by means of ’silicon fluid’.

1. Input (drive) member
2. Output (driven) member
3. Sensing mechanism (bi-metal coil)
