Range Rover. Manual - part 119





BMW DIESEL

1

REPAIR

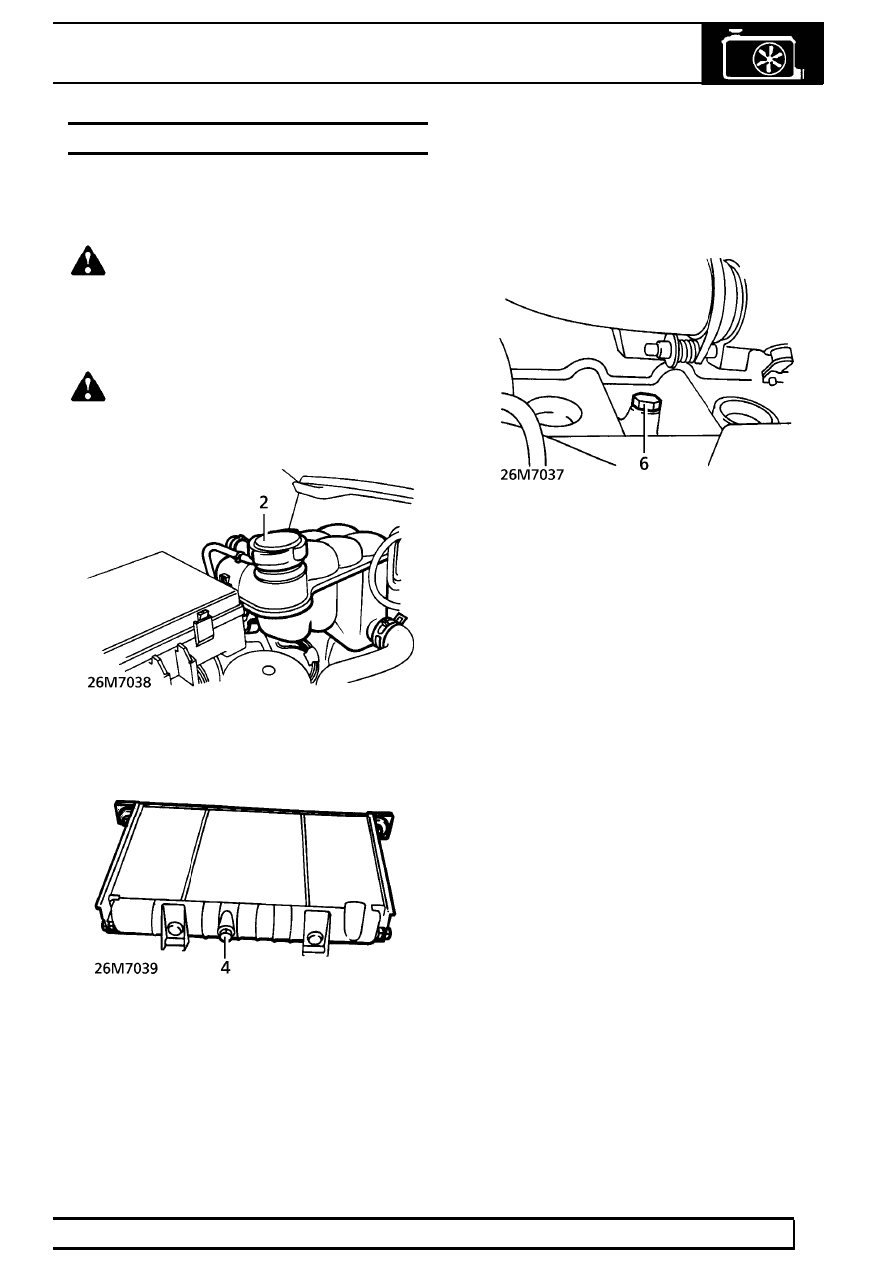

COOLANT - DRAIN AND REFILL

Service repair no - 26.10.01

Drain

WARNING: Do not remove expansion tank
filler cap when engine is hot. The cooling
system is pressurised. Personal scalding

could result.

1. Raise the vehicle.

WARNING: Support on safety stands.

2. Remove expansion tank filler cap to assist

draining.

3. Position container beneath radiator.
4. Remove plug from base of radiator. Allow

coolant to drain.

5. If system is only being partially drained, continue

at Refill.

6. Reposition container. Remove cylinder block

drain plug. Allow coolant to drain.

7. Clean drain plug threads. Apply a coating of

’Loctite 577’. Refit plug to block. Tighten
securely.

26

COOLING SYSTEM

NEW RANGE ROVER

2

REPAIR

Refill

8. Ensure sufficient coolant solution is available.

See LUBRICANTS, FLUIDS AND
CAPACITIES, Information.

9. Inspect radiator drain plug ’O’ ring, renew if

required.

10. Fit drain plug to radiator. Tighten to

Max 6 Nm

(4 lbf.ft)

11. Remove safety stands. Lower vehicle.

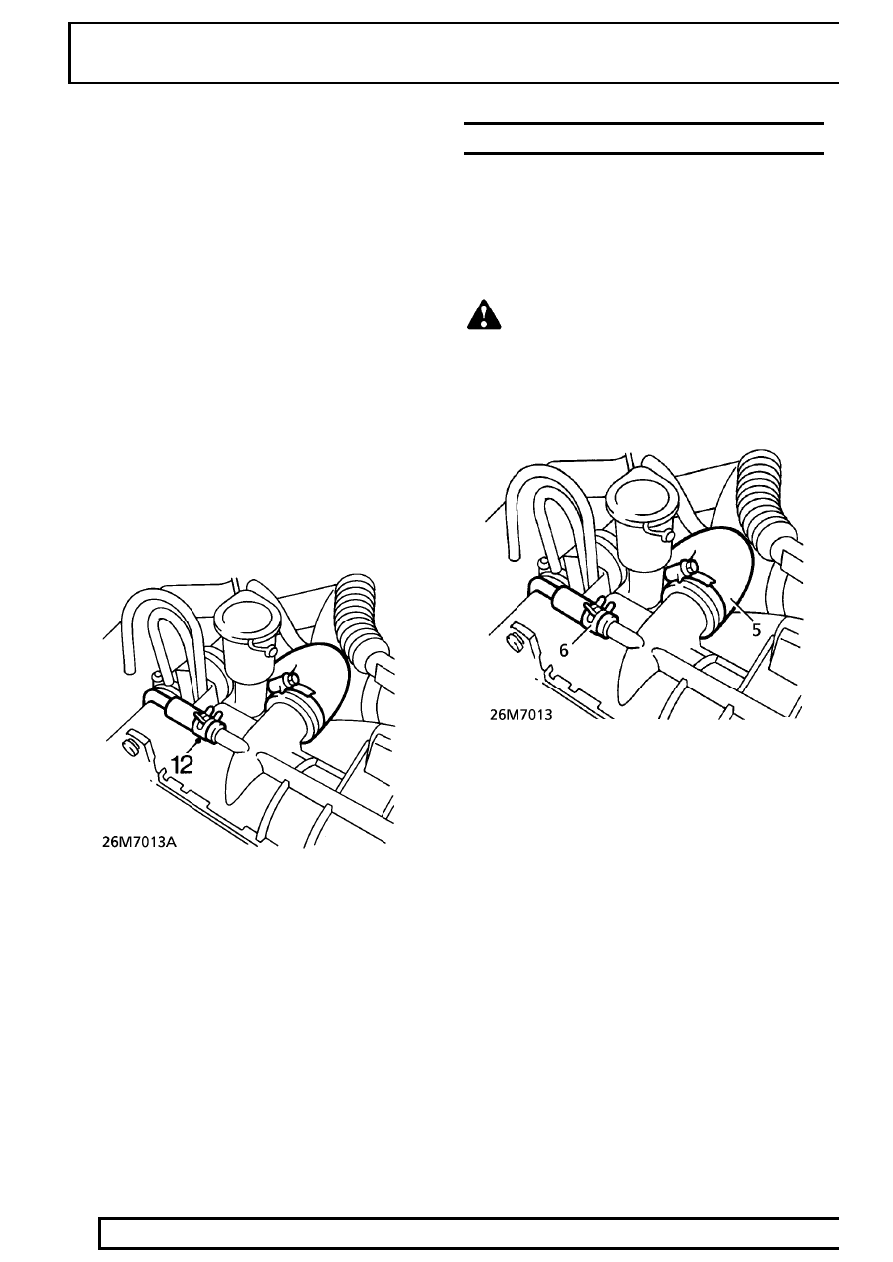

12. Disconnect radiator bleed hose at the radiator.
13. Blow through hose to clear any residual coolant.

Reconnect hose.

14. Fill expansion tank until coolant is level with

base of neck.

15. Start engine, continue filling at expansion tank

until coolant level stabilises at the ’COLD
LEVEL’ marking.

16. Run the engine until the thermostat opens (top

hose becomes warm).

17. Stop engine, allow to cool.
18. Check coolant level, top-up as necessary.
19. Refit expansion tank filler cap.

RADIATOR

Service repair no - 26.40.04

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Drain cooling system.

See this section.

4. Remove viscous coupling.

See this section.

5. Release bottom hose from radiator.
6. Release expansion tank hose from radiator.

7. Manual Vehicles:Disconnect gearbox oil cooler

pipes from radiator. Remove ’O’ rings and
discard.

8. Manual Vehicles:Plug oil cooler pipes and

connections.

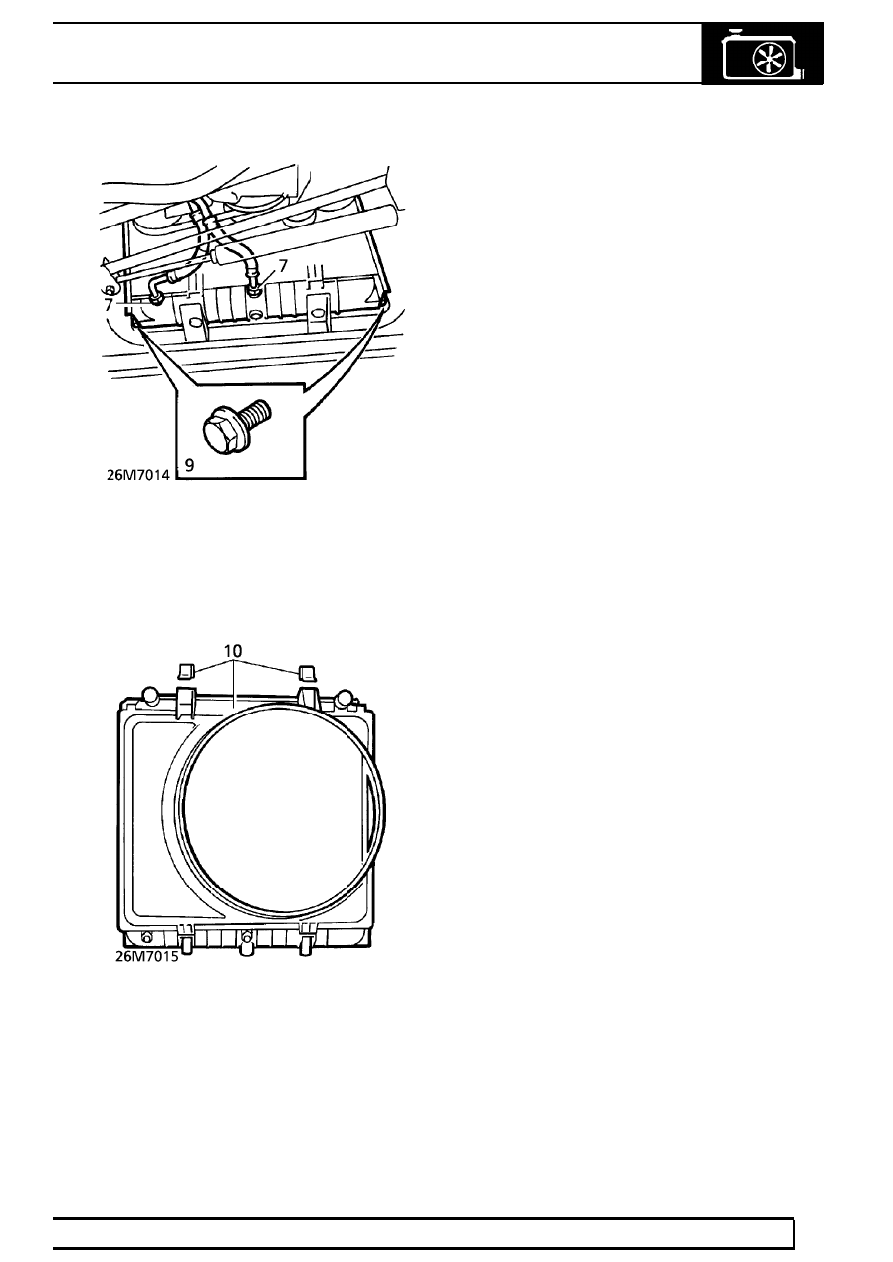

9. Remove 2 bolts securing radiator to bracket.

Remove radiator assembly.

BMW DIESEL

3

REPAIR

10. If necessary, remove 2 clips securing cowl to

radiator. Remove cowl.

Refit

11. Ensure that lower mounting rubbers are

positioned.

12. With assistance, position radiator. Engage

mountings. Secure with bolts.

13. Manual Vehicles:Remove plugs from oil cooler

pipes and connections.

14. Manual Vehicles:Using new ’O’ rings, connect

gearbox oil cooler pipes. Tighten to

30 Nm

(22 lbf.ft)

15. Fit viscous coupling.

See this section.

16. Connect cooling hoses to radiator. Secure with

clips.

17. Refill cooling system.

See this section.

18. Remove safety stands. Lower vehicle.
19. Reconnect battery negative lead.
20. Manual Vehicles:Top-up gearbox fluid.

See

SECTION 10, Maintenance.

26

COOLING SYSTEM

NEW RANGE ROVER

4

REPAIR

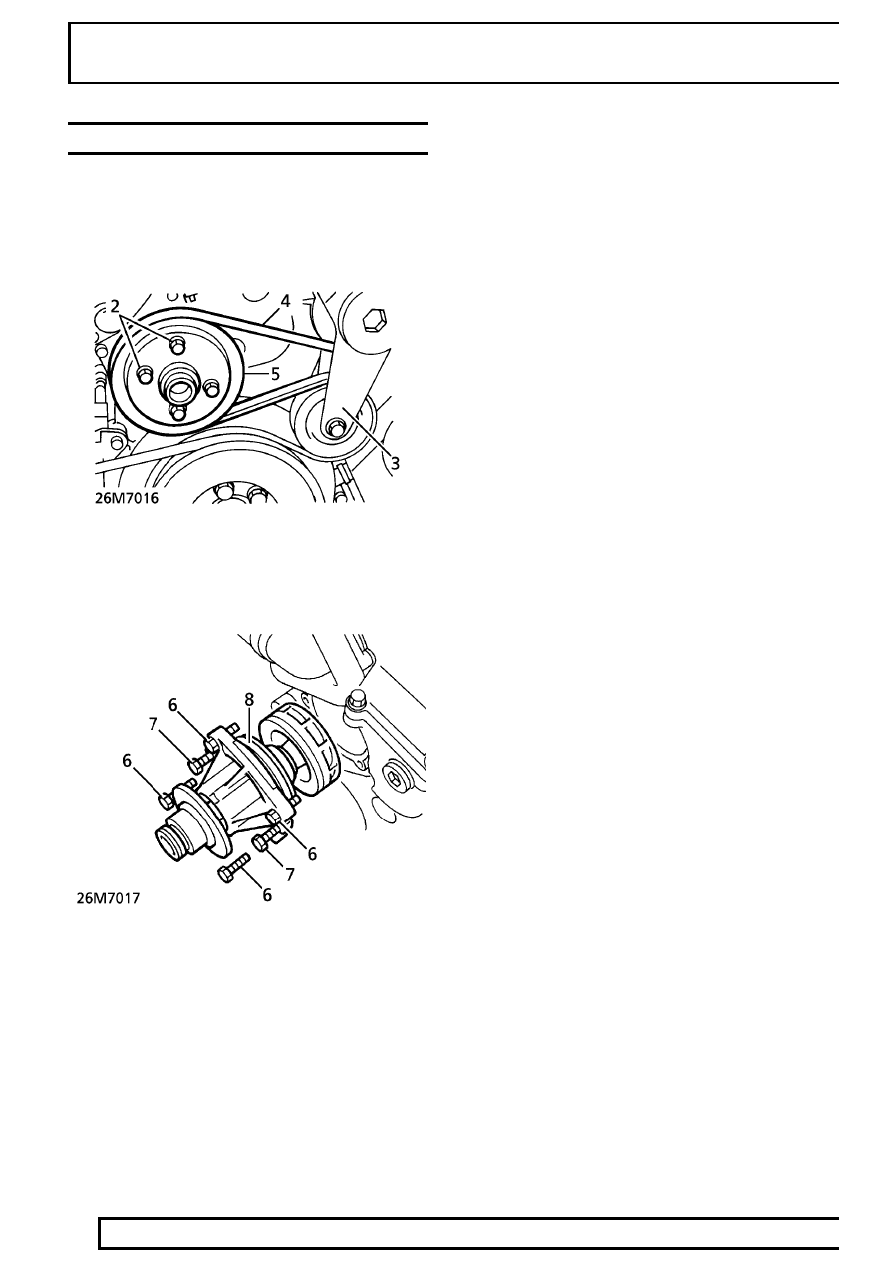

WATER PUMP

Service repair no - 26.50.01

Remove

1. Remove radiator assembly.

See this section.

2. Slacken 4 water pump pulley bolts.

3. Release tension from auxiliary drive belt.
4. Release belt from water pump pulley.
5. Remove pulley bolts. Remove pulley.
6. Remove 4 bolts securing water pump.

7. Fit 2 M6 bolts into tapped holes of water pump.

Extract pump.

8. Remove ’O’ ring and extraction bolts.

Refit

9. Ensure mating faces are clean.

10. Lubricate ’O’ ring with petroleum jelly. Fit to

water pump.

11. Fit water pump. Secure with bolts. Tighten to

10 Nm (7 lbf.ft)

12. Fit water pump pulley. Secure with bolts. Tighten

to

10 Nm (7 lbf.ft)

13. Rotate tensioner. Fit auxiliary drive belt.
14. Fit radiator assembly.

See this section.
