Range Rover. Manual - part 102





LAND ROVER V8

9

REPAIR

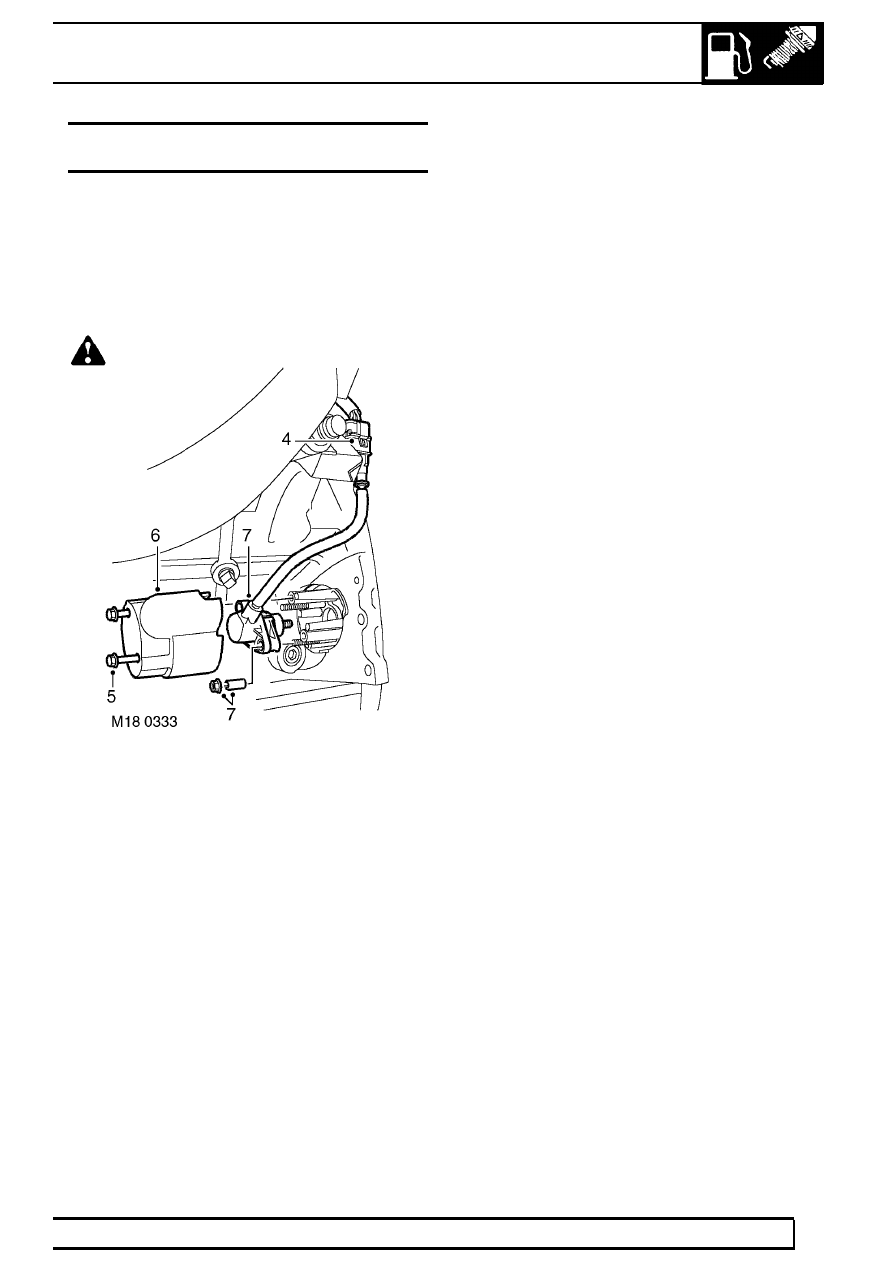

CRANKSHAFT POSITION (CKP) SENSOR - from
99MY

Service repair no - 18.30.12

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Raise front of vehicle.

WARNING: Support on safety stands.

4. Release CKP sensor multiplug from bracket and

disconnect multiplug from engine harness.

5. Remove 2 bolts securing CKP sensor heat

shield.

6. Remove heat shield.
7. Remove 2 nuts securing CKP sensor, remove 2

spacers, sensor and sensor mounting.

Refit

8. Ensure all components are clean.
9. Fit sensor mounting, CKP sensor, 2 spacers and

tighten sensor retaining nuts to

6 Nm (5 lbf.ft).

10. Fit CKP sensor heat shield and secure with

bolts.

11. Connect sensor multiplug to engine harness and

fit multiplug to bracket.

12. Remove stand(s) and lower vehicle.
13. Connect battery earth lead.
14. Fit and secure battery cover.

19

FUEL SYSTEM

NEW RANGE ROVER

10

REPAIR

FUEL SYSTEM - DEPRESSURISE

WARNING: Fuel pressure of up to 2.5 bar
will be present in the system, even if the
engine has not been run for some time.

Always depressurise the system before
disconnecting any components in the fuel feed
line (between fuel pump and pressure regulator).
The spilling of fuel is unavoidable during this
operation. Ensure that all necessary precautions
are taken to prevent fire and explosion.

NOTE: Fuel pressure can be relieved at
fuel rail feed union or fuel filter unions.

1. Position cloth around relevant union to protect

against fuel spray.

2. Carefully slacken union.
3. Tighten union to correct torque once pressure

has relieved.

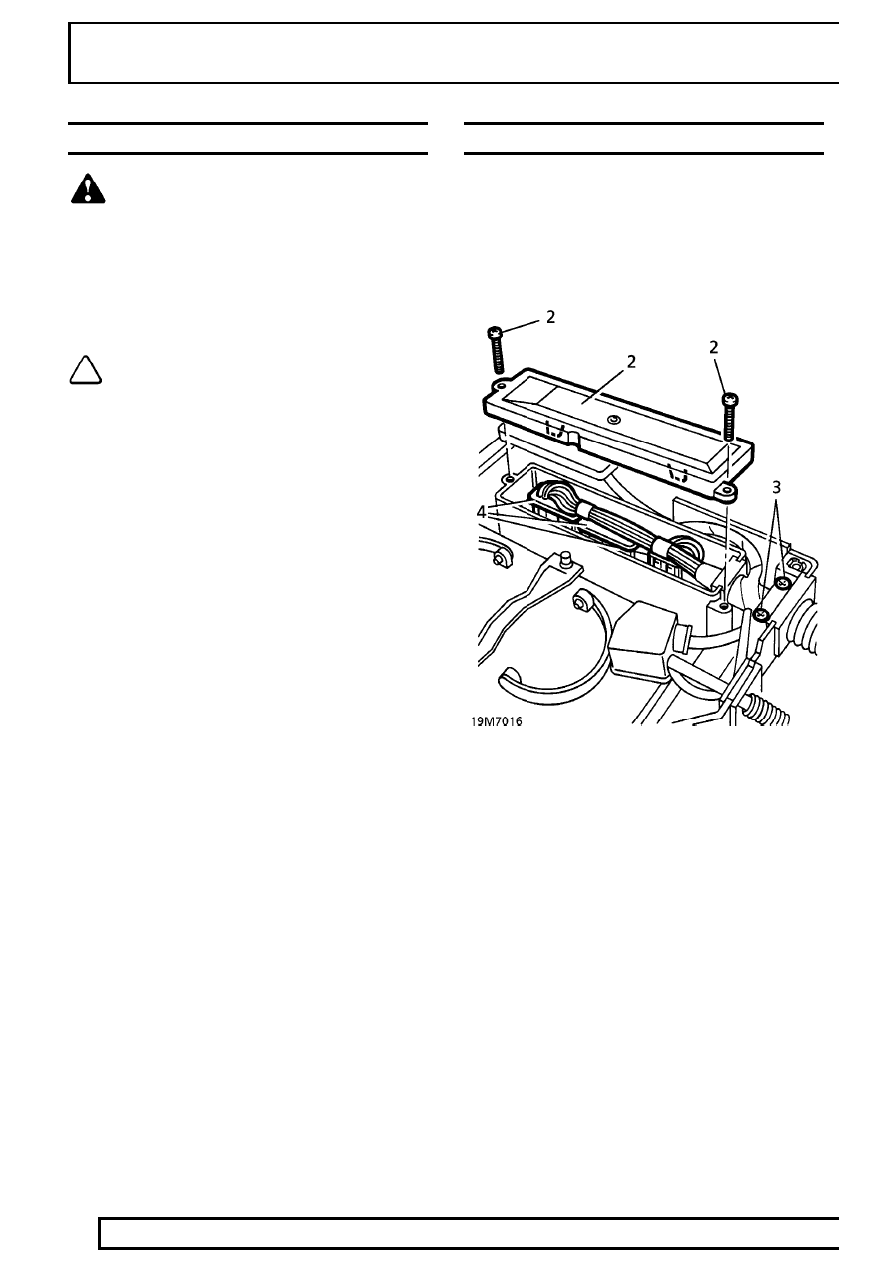

ENGINE CONTROL MODULE (ECM) - up to 99MY

Service repair no - 18.30.01

Remove

1. Disconnect battery negative lead.

2. Remove 2 screws securing ECM housing cover.

Remove cover

3. Slacken 2 harness clamp screws.
4. Lift ECM slightly for access. Disconnect 3

multiplugs.

5. Remove ECM from housing.
6. Remove carrier plate from ECM.

Refit

7. Reverse removal procedure.

LAND ROVER V8

11

REPAIR

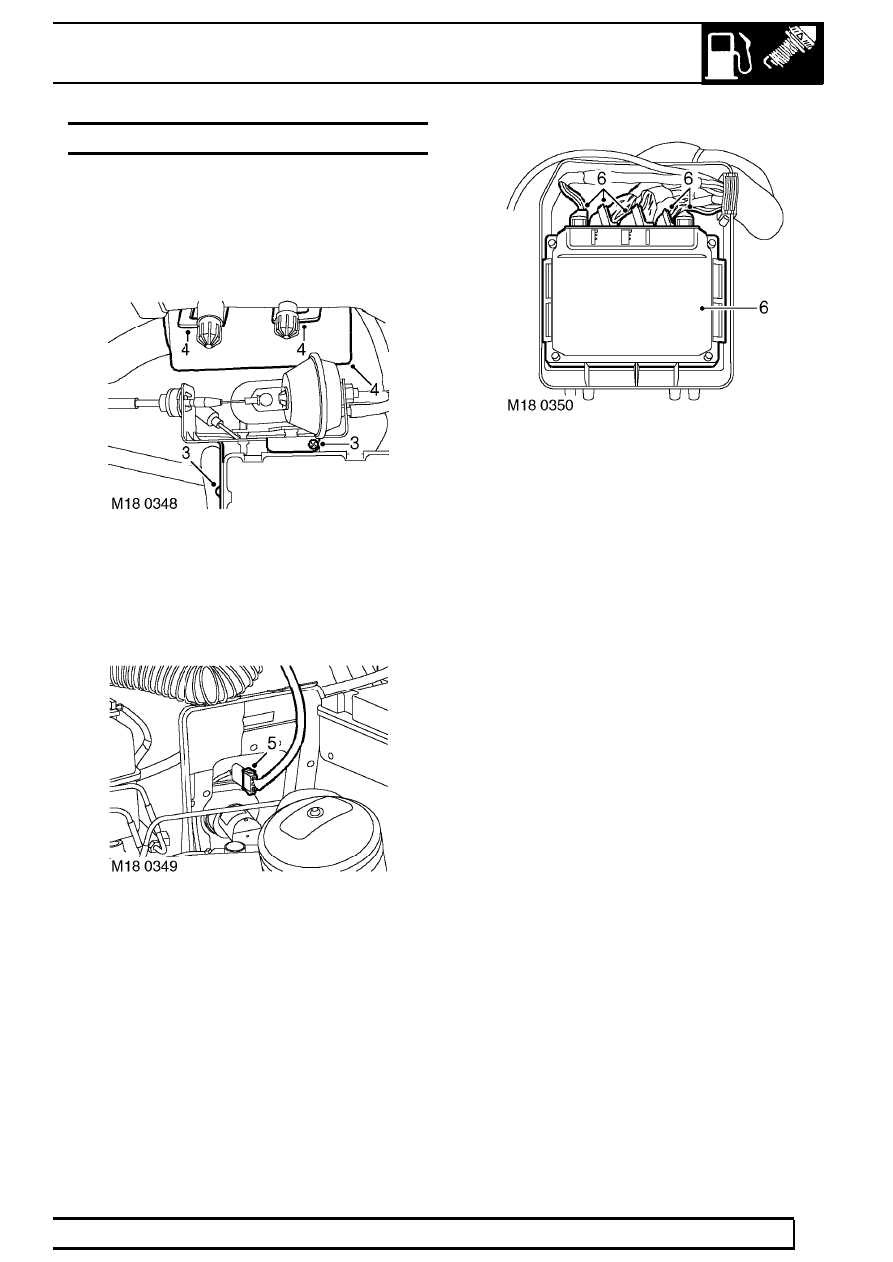

ENGINE CONTROL MODULE (ECM) - from 99MY

Service repair no - 18.30.01

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.

3. Remove 2 screws securing cruise control

assembly to EAS housing cover and position
aside.

4. Release 2 fixings securing ECM housing cover

and release cover.

5. Disconnect ECM cooling fan multiplug.

6. Release ECM from housing cover, disconnect

multiplugs and remove ECM.

Refit

7. Position ECM and connect multiplugs.
8. Fit ECM to housing cover and connect ECM

cooling fan multiplug.

9. Fit ECM housing cover to main housing and

secure with fixings.

10. Position cruise control assembly to EAS housing

cover and secure with screws.

11. Connect battery earth lead.
12. Fit battery cover and secure with fixings.

19

FUEL SYSTEM

NEW RANGE ROVER

12

REPAIR

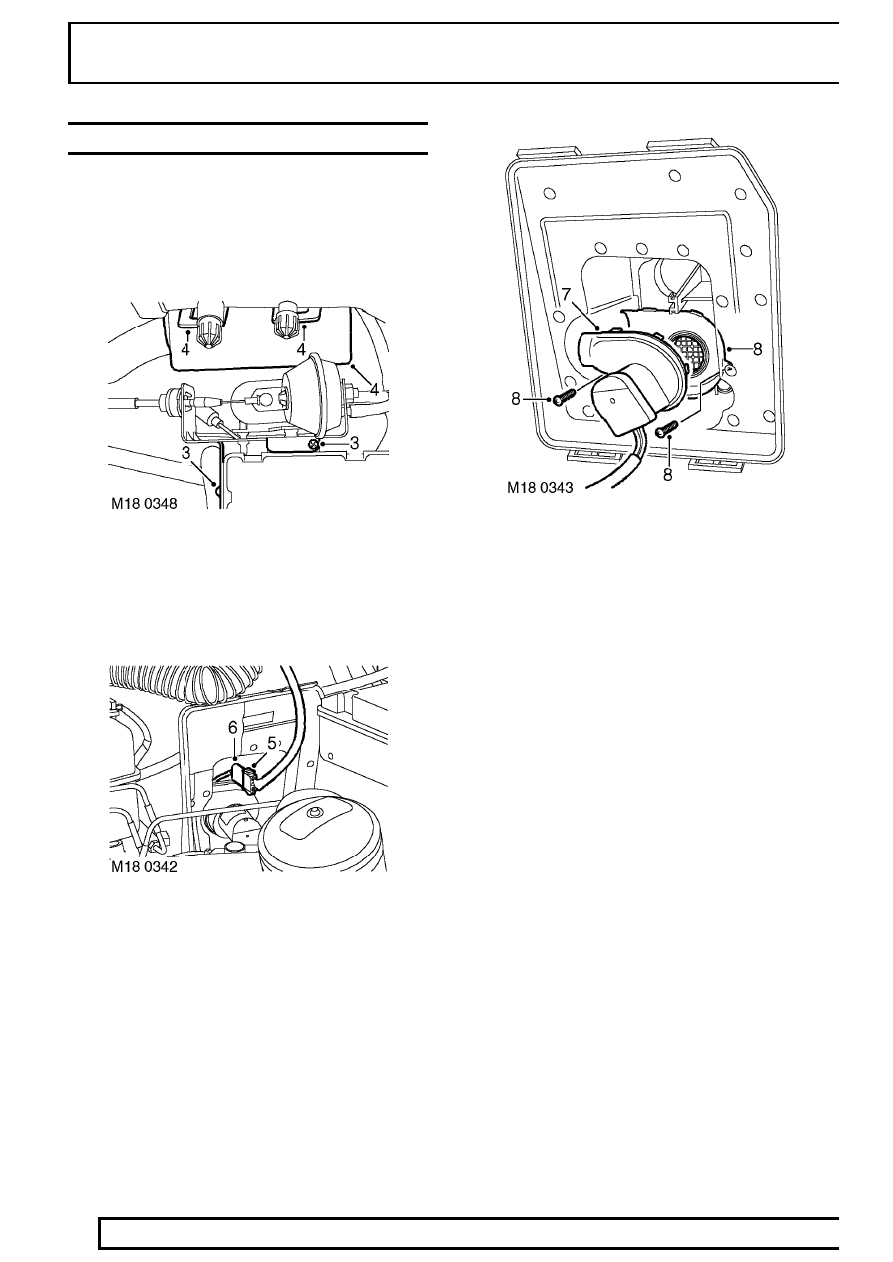

FAN - ECM COOLING - from 99MY

Service repair no - 18.30.80

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.

3. Remove 2 screws securing cruise control

assembly to EAS housing cover and position
aside.

4. Release 2 fixings securing ECM housing cover

and release cover.

5. Disconnect ECM cooling fan multiplug and

position ECM housing cover aside.

6. Release ECM cooling fan multiplug from bracket.

7. Release ECM cooling fan from cooling fan cowl

and remove cooling fan.

8. Remove 2 screws securing cooling fan cowl to

ECM housing and remove cowl.

Refit

9. Remove cooling fan cowl from new cooling fan.

10. Fit cooling fan cowl to ECM housing and secure

with screws.

11. Fit cooling fan to cooling fan cowl and fit

multiplug to bracket.

12. Position ECM housing cover and connect ECM

cooling fan multiplug.

13. Fit ECM housing cover to main housing and

secure with fixings.

14. Position cruise control assembly to EAS housing

cover and secure with screws.

15. Connect battery earth lead.
16. Fit battery cover and secure with fixings.
