EMISSION CONTROL

13

REPAIR

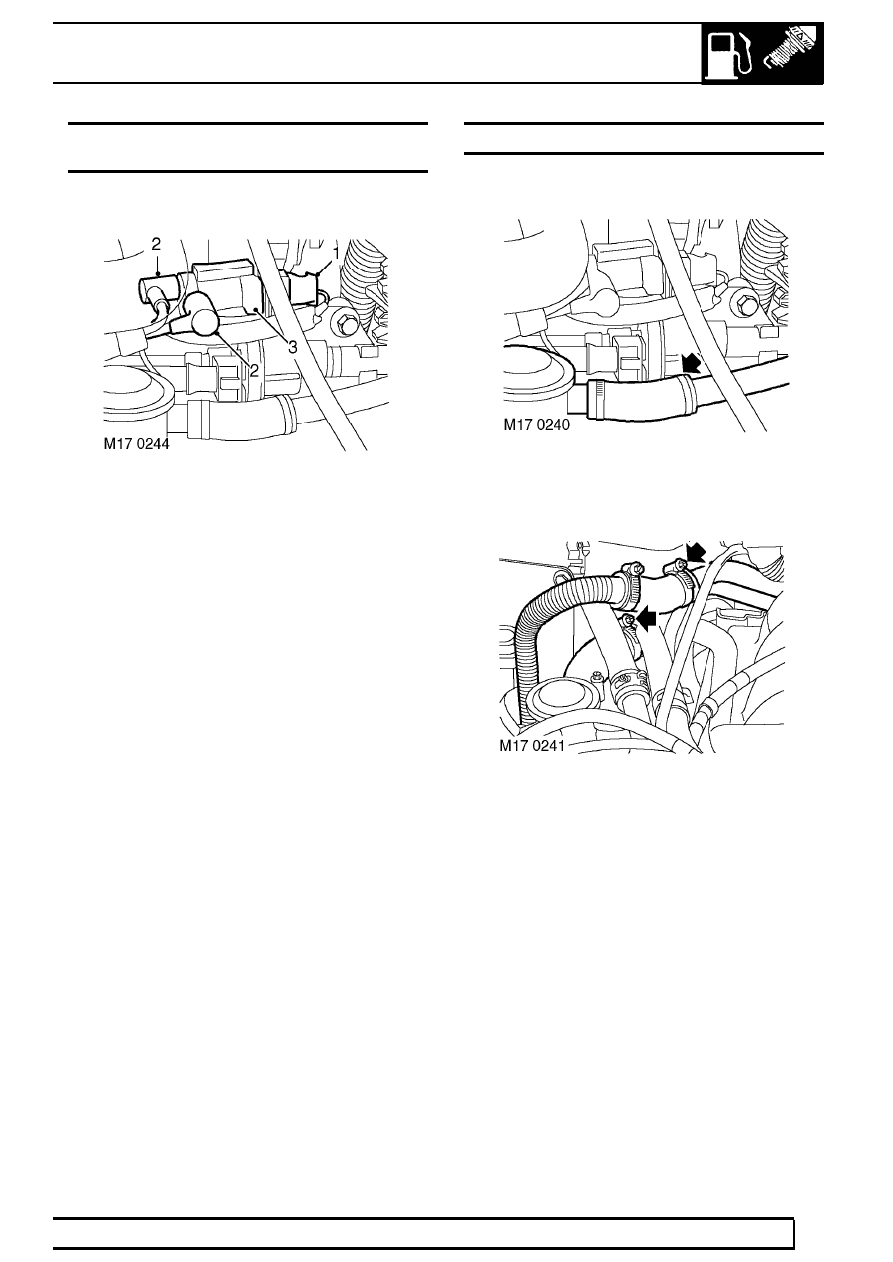

SOLENOID - VACUUM - SECONDARY AIR
INJECTION (SAI)

Service repair no - 17.25.47

Remove

1. Release multiplug from solenoid.
2. Disconnect 2 vacuum hoses from solenoid.
3. Release solenoid from mounting bracket and

remove.

Refit

4. Secure solenoid to mounting bracket.
5. Connect vacuum hoses and multiplug to

solenoid.

PIPE - SECONDARY AIR INJECTION (SAI)

Service repair no - 17.25.59

Remove

1. Loosen clip securing RH SAI control valve hose

to air injection pipe.

2. Release hose from air injection pipe.

3. Loosen clip securing SAI pump hose to air

injection pipe.

4. Release hose from air injection pipe.
5. Loosen clip securing LH SAI control valve hose

to air injection pipe.

6. Release hose from air injection pipe.

17

EMISSION CONTROL

NEW RANGE ROVER

14

REPAIR

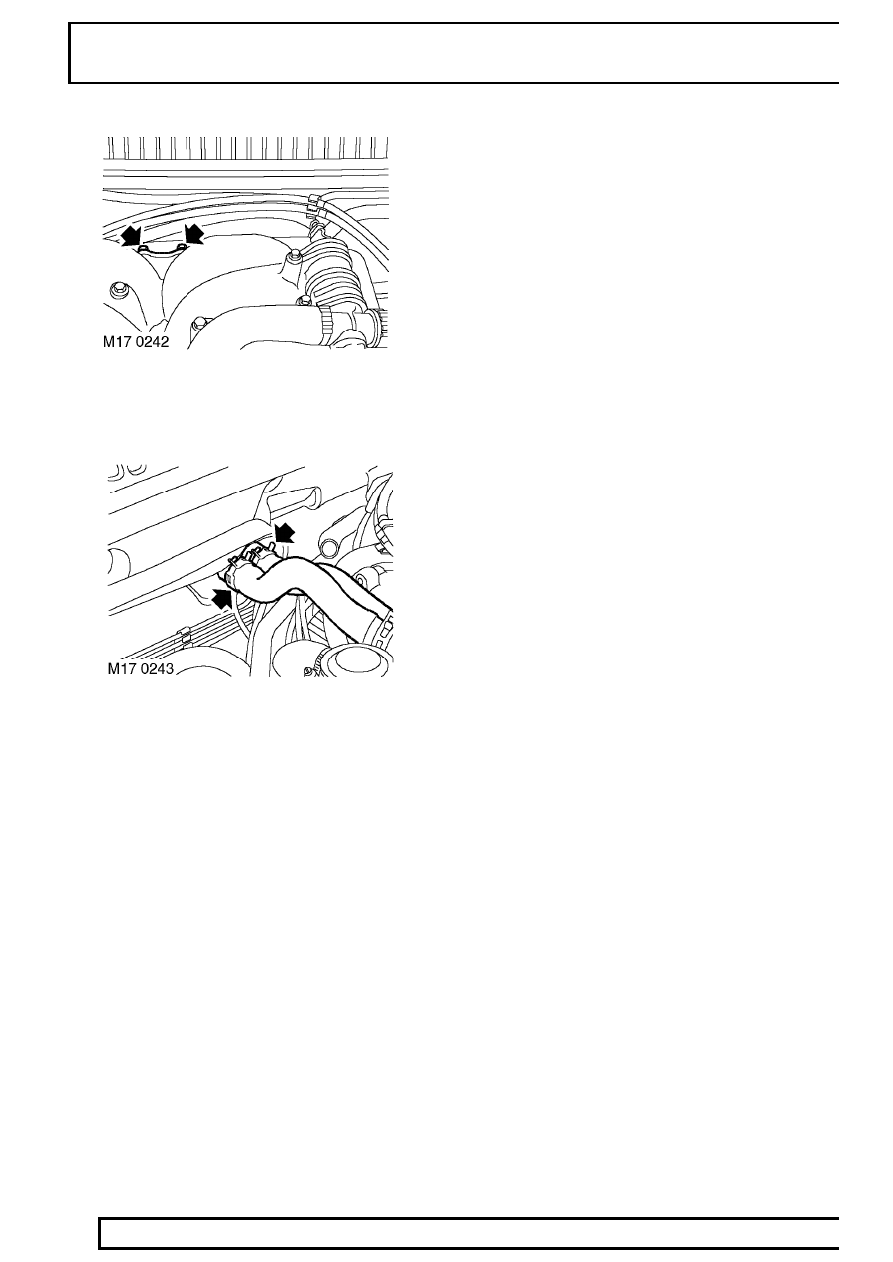

7. Remove 2 nuts securing air injection pipe to air

intake plenum.

8. Position drain tin to collect any coolant spillage.
9. Release clips securing heater hoses to heater.

10. Release hoses from heater.
11. Remove air injection pipe.

Refit

12. Fit air injection pipe to rear of air intake plenum

and tighten nuts.

13. Connect heater hoses to heater and secure with

clips.

14. Connect SAI pump hose to air injection pipe and

secure with clip.

15. Connect LH and RH SAI control valve hoses to

air injection pipe and secure with clips.

16. Remove drain tin.
17. Top up engine coolant.

19 - FUEL SYSTEM

CONTENTS

Page

BMW DIESEL

DESCRIPTION AND OPERATION

DESCRIPTION

1

.....................................................................................................

OPERATION

10

......................................................................................................

ADJUSTMENT

FUEL INJECTION PUMP TIMING - CHECK AND ADJUST

1

................................

REPAIR

GLOW PLUG CONTROL UNIT

1

............................................................................

AIR CLEANER ASSEMBLY

2

.................................................................................

ENGINE COOLANT TEMPERATURE SENSOR (ECT SENSOR)

2

......................

CRANKSHAFT POSITION SENSOR (CKP SENSOR)

3

........................................

ENGINE CONTROL MODULE (ECM)

4

.................................................................

FUEL FILTER

5

.......................................................................................................

FUEL HEATER/FILTER HEAD

6

............................................................................

GLOW PLUGS

6

.....................................................................................................

FUEL INJECTION PUMP (FIP)

7

............................................................................

FUEL INJECTORS

9

...............................................................................................

HIGH PRESSURE PIPES

10

..................................................................................

INTAKE AIR TEMPERATURE SENSOR (IAT SENSOR) - VEHICLES

WITHOUT EGR

11

..................................................................................................

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

11

.....................................

THROTTLE POSITION SENSOR (TP SENSOR)

12

..............................................

TURBOCHARGER

13

.............................................................................................

INTERCOOLER

14

.................................................................................................

FILLER NECK ASSEMBLY

16

................................................................................

FUEL TANK, PUMP AND GAUGE SENDER UNIT

17

...........................................

MASS AIR FLOW (MAF) SENSOR - DIESEL WITH EGR

19

.................................

DUCTING - AIR INTAKE - DIESEL WITH EGR

20

.................................................
