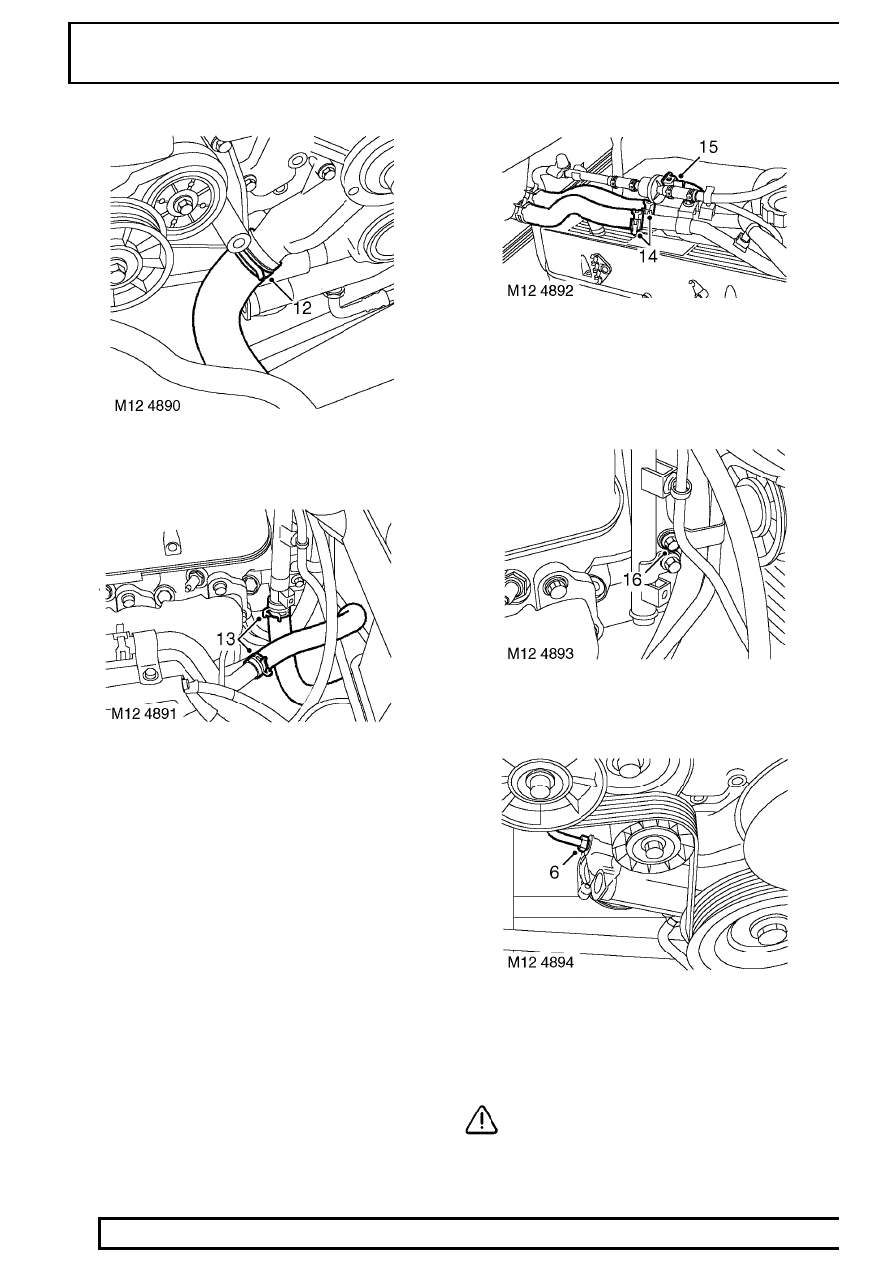

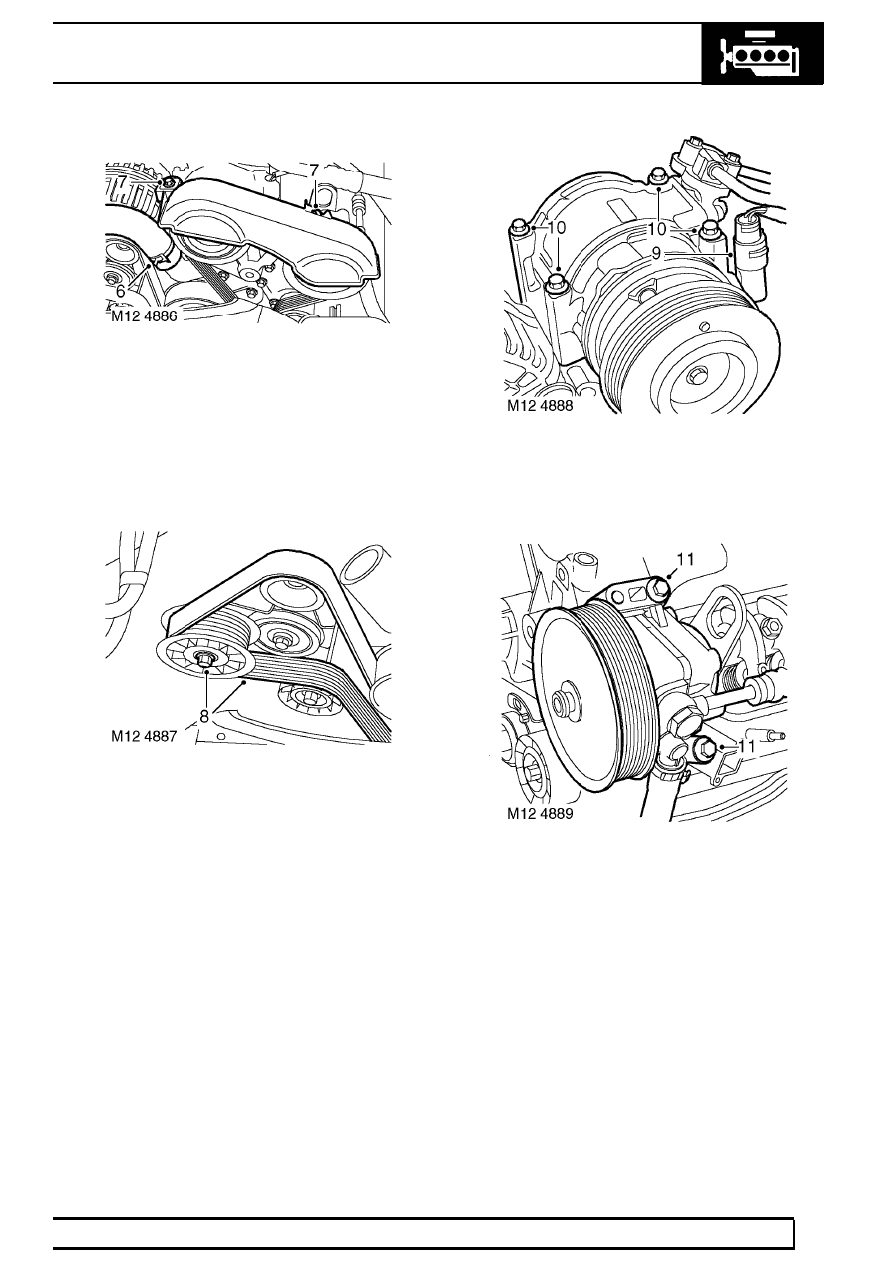

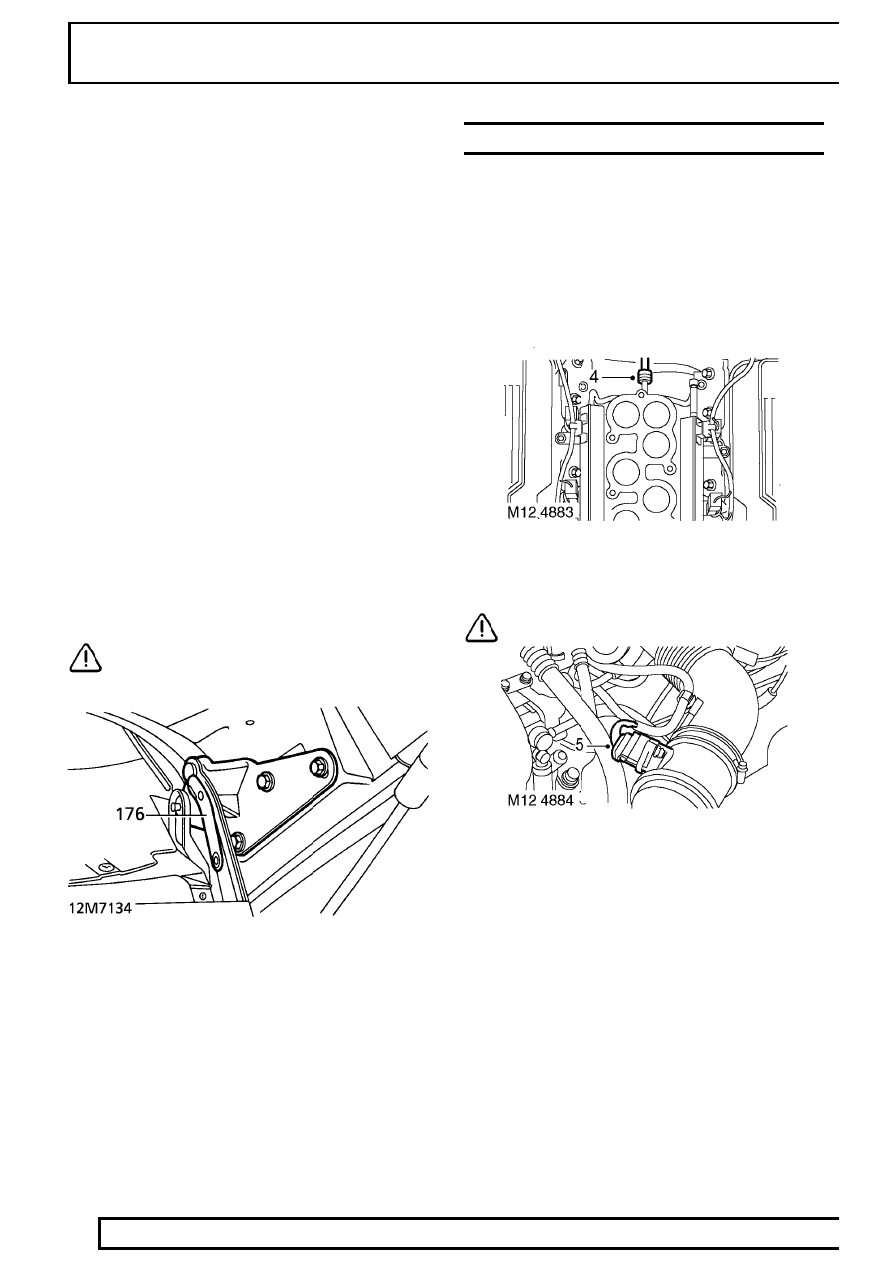

LAND ROVER V8
15
REPAIR
112. Lower lift.
113. Connect handbrake cable to lever, secure with
clevis pin and clip.
Manual Vehicles:
114. Fit seal around gearbox remote housing to
transmission tunnel aperture.
115. Position gear lever. Secure with bolts. Tighten
to
25 Nm (18 lbf.ft)
116. Fit gaiter and ring. Secure with bolts.
117. Fit centre console.
See CHASSIS AND BODY,
Repair.
118. Connect clutch flexible hose. Remove hose
clamp.
119. Secure flexible hose union to gearbox bracket
with clip.
120. Bleed clutch hydraulic system.
See CLUTCH,
Repair.
Automatic Vehicles:
121. Fit window switch pack.
See ELECTRICAL,
Repair.
All Vehicles:
122. With assistance, position radiator/condenser/oil
cooler assembly.
123. Connect multiplugs to condenser cooling fans.
124. Engage radiator in lower mounting rubbers.
Secure with nuts and bolts.
125. Remove plugs from air conditioning compressor
and pipes.
126. Fit new ’O’ rings to compressor pipes. Lubricate
’O’ rings with compressor oil. Connect to
compressor.
127. Fit compressor connection bolts. Tighten to
23
Nm (17 lbf.ft)
128. Remove plugs from air conditioning condenser
and pipes.
129. Fit new ’O’ rings to condenser pipes. Lubricate
’O’ rings with compressor oil. Secure pipes to
condenser. Tighten to
15 Nm (11 lbf.ft)
130. Connect gearbox oil temperature multiplug.
131. Remove plugs from power steering pump and
pipes.
132. Fit new ’O’ rings to power steering pipes.
Lubricate ’O’ rings with power steering fluid.
Secure to power steering pump. Tighten to
16
Nm (12 lbf.ft)
133. Untie power steering reservoir from engine.
Remove plugs. Connect return pipe. Secure
return pipe to reservoir with clip.
134. Position reservoir to radiator. Secure with bolts.
135. Secure fog lamp breather hoses to clips on
either side of radiator.
136. Route plenum chamber hose along front of
engine. Secure in clips.
137. Connect hose to plenum chamber water jacket.
Secure with clip.
138. Connect coolant hoses to radiator, thermostat
housing and inlet manifold. Secure hoses with
clips.
139. Remove plugs from oil coolers and pipes.
140. Lubricate pipes with clean fluid. Fit new ’O’ rings.
Connect to oil coolers. Tighten to
30 Nm (22
lbf.ft)
141. Fit washer bottle filler neck. Secure with bolt and
screw.
142. Fit radiator deflector panels. Secure with studs.
143. Position bonnet platform. Secure bonnet release
cable to platform with clips.
144. Secure bonnet platform with bolts.
145. Fit front grille.
See CHASSIS AND BODY,
Repair.
146. Fit cooling fan and viscous coupling.
See
COOLING SYSTEM, Repair.
147. Evacuate and recharge air conditioning system.
See AIR CONDITIONING, Adjustment.
148. Refill cooling system.
See COOLING SYSTEM,
Repair.
149. Replenish transmission fluids.
See
LUBRICANTS, FLUIDS AND CAPACITIES,
Information.
150. Replenish engine oil.
See LUBRICANTS,
FLUIDS AND CAPACITIES, Information.
151. Fit oil filler cap.
152. Route engine harness along valance. Secure
clip.
153. Connect engine harness multiplugs to main
harness. Secure earth terminal to valance stud.
154. Connect engine harness multiplug to base of
fuse box.
155. Position fuse box. Secure with bolts.
156. Position earth lead to alternator bracket. Secure
with bolt.
157. Fit battery tray. Secure with bolts.
158. Fit starter feed wire to battery positive terminal
clamp. Secure with nut.
159. Position engine harness to battery tray. Secure
harness grommets.
160. Secure harness clamp to battery tray with
screws.
