Frelander 2. Manual - part 703





Wipers and washers

90

L

Blocked jets

If a washer jet becomes blocked, use a thin
strand of wire to unblock the jet by inserting
the wire into the jet. Ensure that the wire is
completely removed after unblocking.

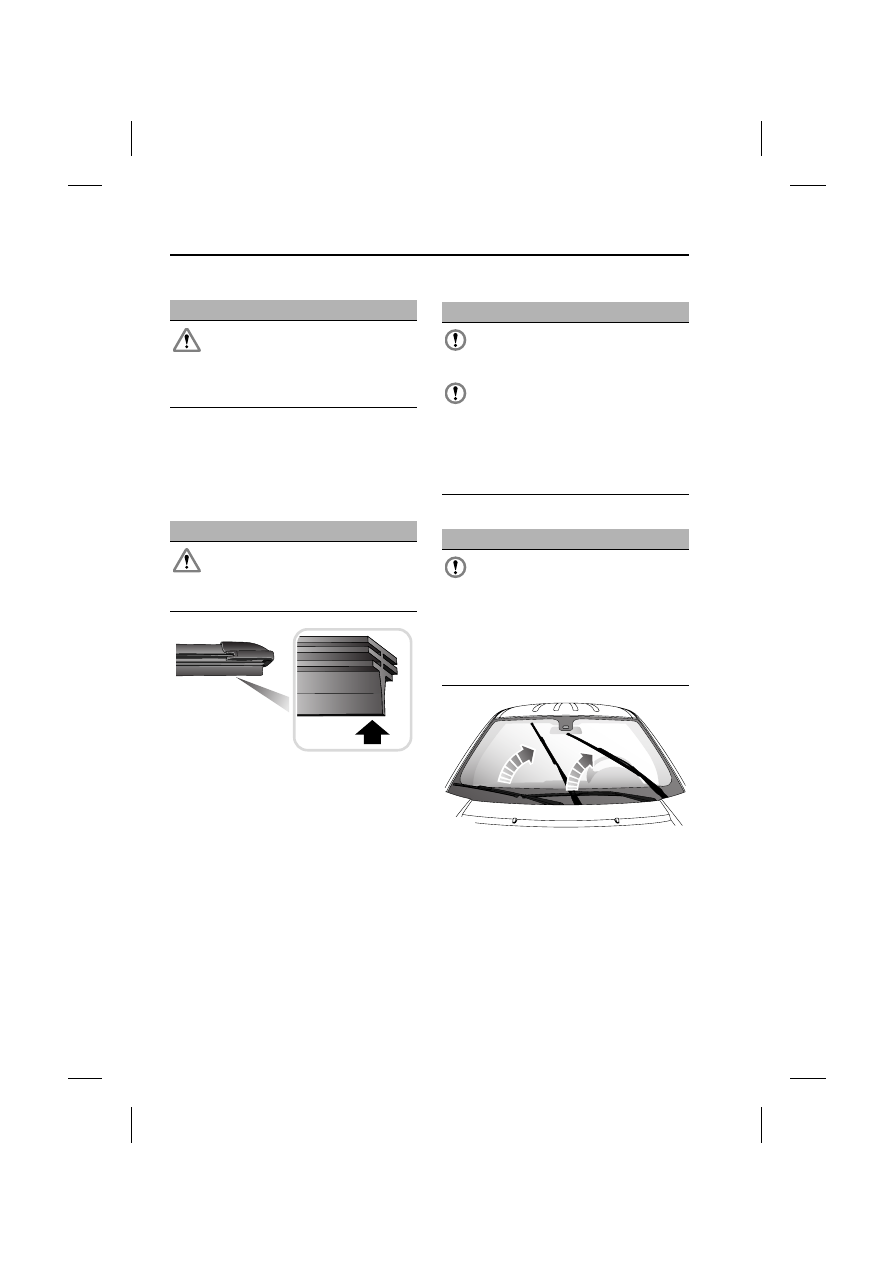

CHECKING THE WIPER BLADES

The wiping edge of the blades should be
checked, and cleaned periodically. Check the
blade rubber for cracks, splits, and roughness.
If any damage, wear, or roughness is detected
the blade should be replaced immediately to
prevent damage to the glass.

Clean the blade edge by wiping with a soft cloth
or sponge, using warm soapy water.

CHANGING THE WIPER BLADES

Service position

The windscreen wiper service position allows
the wipers to be parked in a more accessible
position. This makes it easier to change wiper
blades, or free the wipers from frost/ice.

WARNING

Do not operate the washer jets during
adjustment. Windscreen washer fluid

may cause irritation to the eyes and skin.
Alway read and observe the washer fluid
manufacturers instructions.

WARNING

Only use cleaning products which have
been approved for use on automotive

glass and rubber. Inappropriate products can
cause smearing, and increase glare.

E80573

CAUTIONS

When checking or changing the wiper
blades, they can be set to the service

position, or parked normally.

The wipers will return to their normal
parked position when the ignition is

turned on. To prevent damage to the
mechanism ensure that they are returned to
their position against the windscreen, and that
there are no obstructions, ice, or snow present
on the windscreen.

CAUTION

If the wipers are set to the service
position and left there overnight during

frosty conditions, do not switch the ignition on
until the wipers have been freed from frost/ice.
The wipers will try to park when the ignition is
switched on. If they are frozen to the screen
when this occurs then this may cause damage
to the mechanism.

E80582

91

Wipers and washers

R

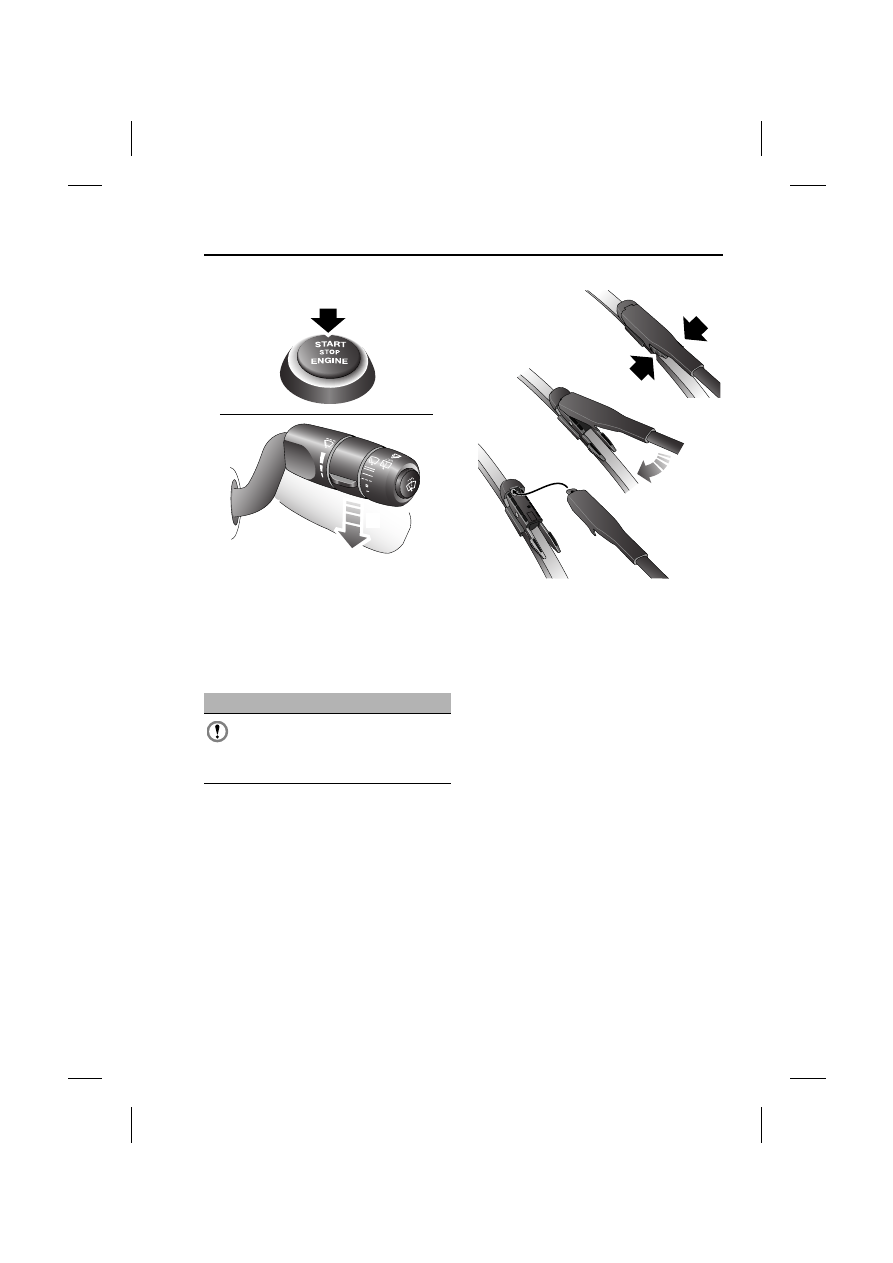

Setting the wipers

1. Switch off the ignition.

2. Within three seconds of switching off the

ignition pull the wiper stalk down to the
single wipe position. Hold the stalk in this
position briefly, and release it.

Changing the front wiper blades

Having set the wipers to the service position,
lift the wiper blade clear of the windscreen. The
removal procedure for the wiper blade is as
follows :-

1. Push the clips together on the underside of

the wiper mounting.

2. Rotate the clips and blade away from the

wiper mounting.

3. Slide the wiper blade off of the wiper arm.

To fit the new blade, follow the removal
procedure in reverse.

CAUTION

Only fit the correct length and type of
wiper blade. Failure to do so may cause

damage to the wiper system, it may also affect
the operation of the rain sensor.

1

2

E80583

1

2

3

E80584

1

Wipers and washers

92

L

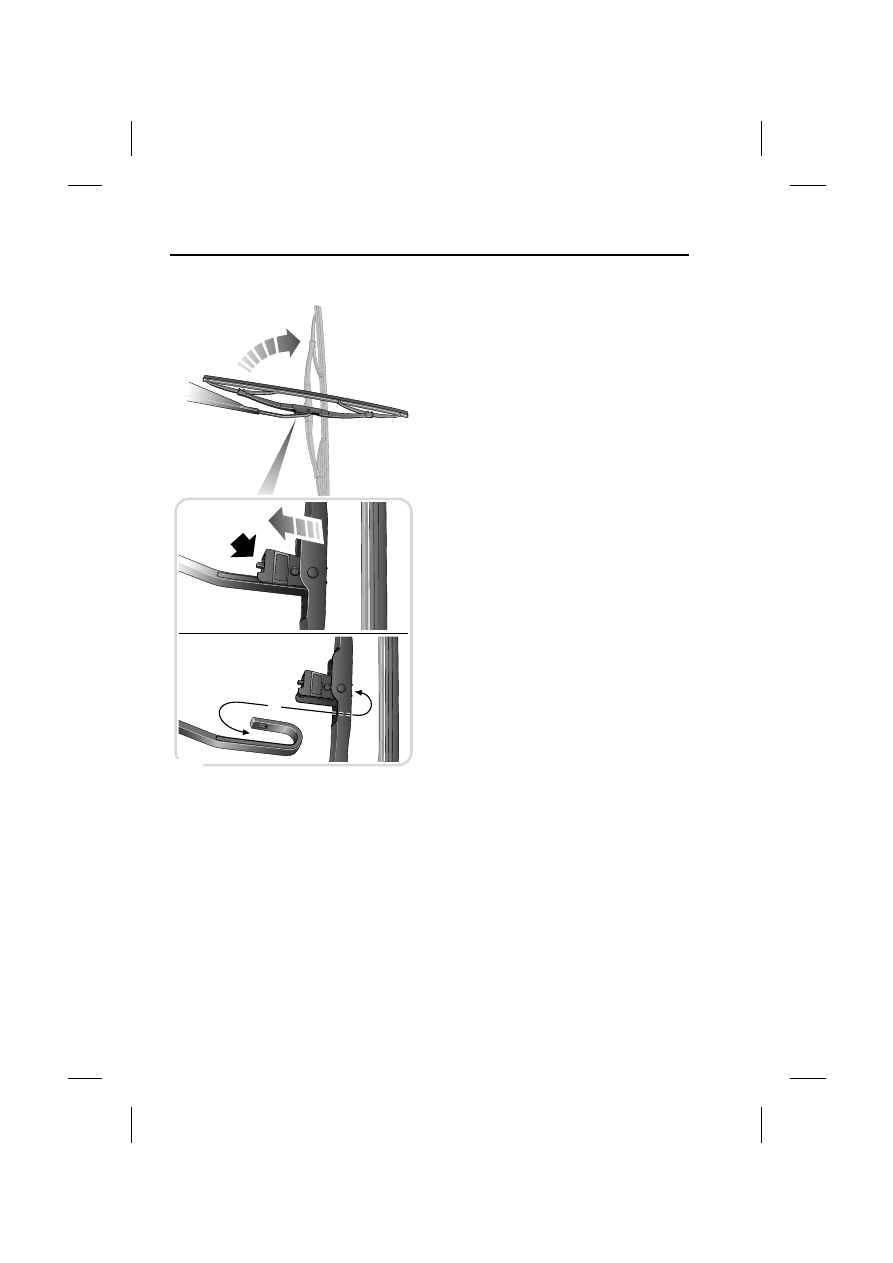

Changing the rear wiper blades

Lift the wiper blade clear of the windscreen.
The removal procedure for the wiper blade is as
follows :-

1. Rotate the wiper blade to gain access to

the retaining clip.

2. Press in the retaining clip on the underside

of the mounting.

3. Slide blade down the wiper arm and clear

of the mounting.

4. Move the blade sideways and lift it clear of

the wiper arm.

To fit the new blade, follow the removal
procedure in reverse.

E80585

1

2

3

4

93

Windows and mirrors

R

Windows and mirrors

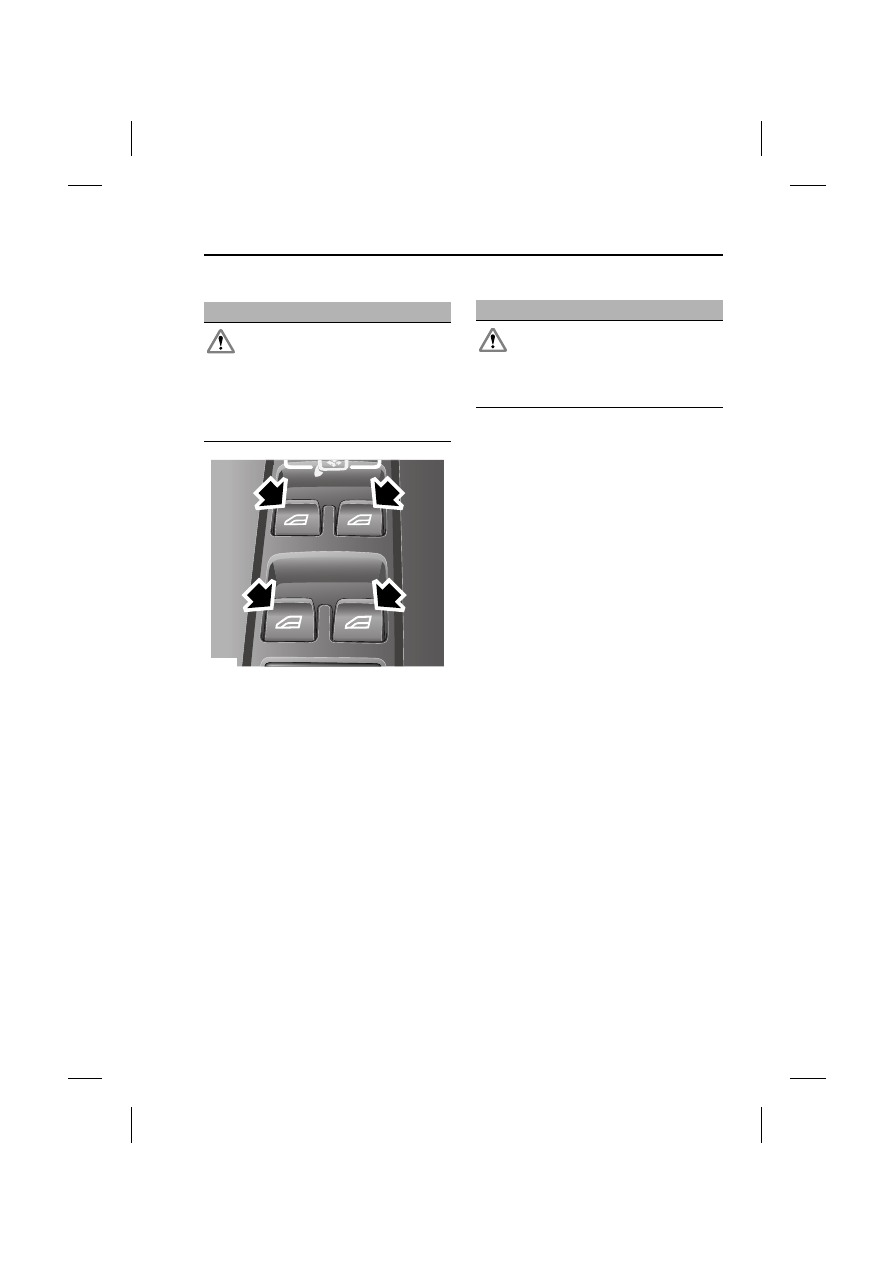

ELECTRIC WINDOWS

With the ignition on, or engine running, press
the switch down to lower the window, pull it up
to raise the window. Release the switch at any
point to stop window movement.

The windows will operate for five minutes after
the engine is switched off, as long as the doors
are not opened.

One shot operation

All four windows have one-shot operation.
Briefly pull the switch up and release, the
window will continue to raise until fully closed.
Briefly press the switch down and release, the
window will continue to lower until fully open.
Pressing or pulling the switch again will stop
the window.

Overriding anti-trap protection

Anti-trap protection will stop window
movement if an obstruction or resistance is
detected. Check the window and it's aperture
and remove any obstructions, ice, etc. If it is
still necessary to raise the window, the override
procedure is as follows :-

1. Attempt to close the window, anti-trap will

prevent closure and lower the window
slightly.

2. Within ten seconds attempt to raise the

window again, anti-trap will prevent
closure and lower the window slightly.

3. Attempt to close the window for a third

time, this time hold the switch in the close
position. The window will raise whilst the
switch is held. Hold until closed.

Note: If this procedure fails to remove the
blockage, the window operation may need to
be reset.

WARNING

All of the windows have an anti-trap
protection system. However, before

closing a window care must be taken to ensure
that none of the occupants have any part of
their body in a position where it could be
trapped. Even with an anti-trap system serious
injury or death can occur.

E81161

WARNING

Ensure that you remove the remote
control when leaving occupants in the

vehicle. This will prevent unsupervised
operation of the windows, which may result in
injury.
