Frelander 2. Manual - part 701

Lighting

82

L

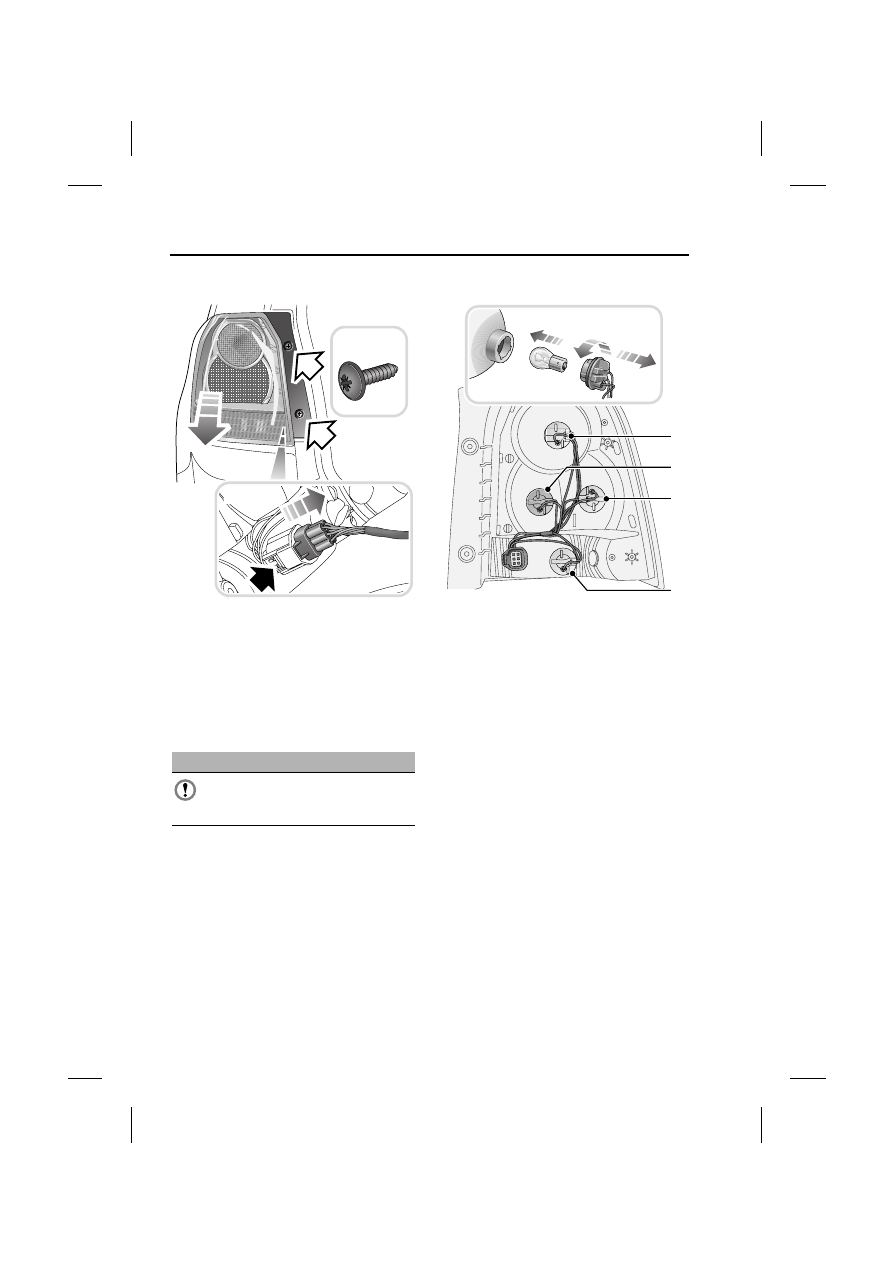

Removing the rear lamp unit

In order to change a rear lamp unit bulb, you
must first remove the rear lamp.

To remove the rear lamp :-

1. Undo, and remove the two retaining

screws.

2. Remove the lamp unit and disconnect the

electrical connection.

Rear lamp bulbs

1. Stop/tail lamp.

2. Direction indicator.

3. Reverse lamp.

4. Rear fog lamp.

All of the rear lamp bulbs are removed in the
same way.
• Rotate the bulb holder (anti-clockwise)

and remove from the lamp unit.

• Press the bulb into the holder, rotate it, and

remove from holder.

CAUTION

Do not place the lamp unit face down
on hard or abrasive surfaces. Doing so
may scratch the surface of the lens.

2

1

E80992

2

1

1

E80996

1

3

2

4

83

Lighting

R

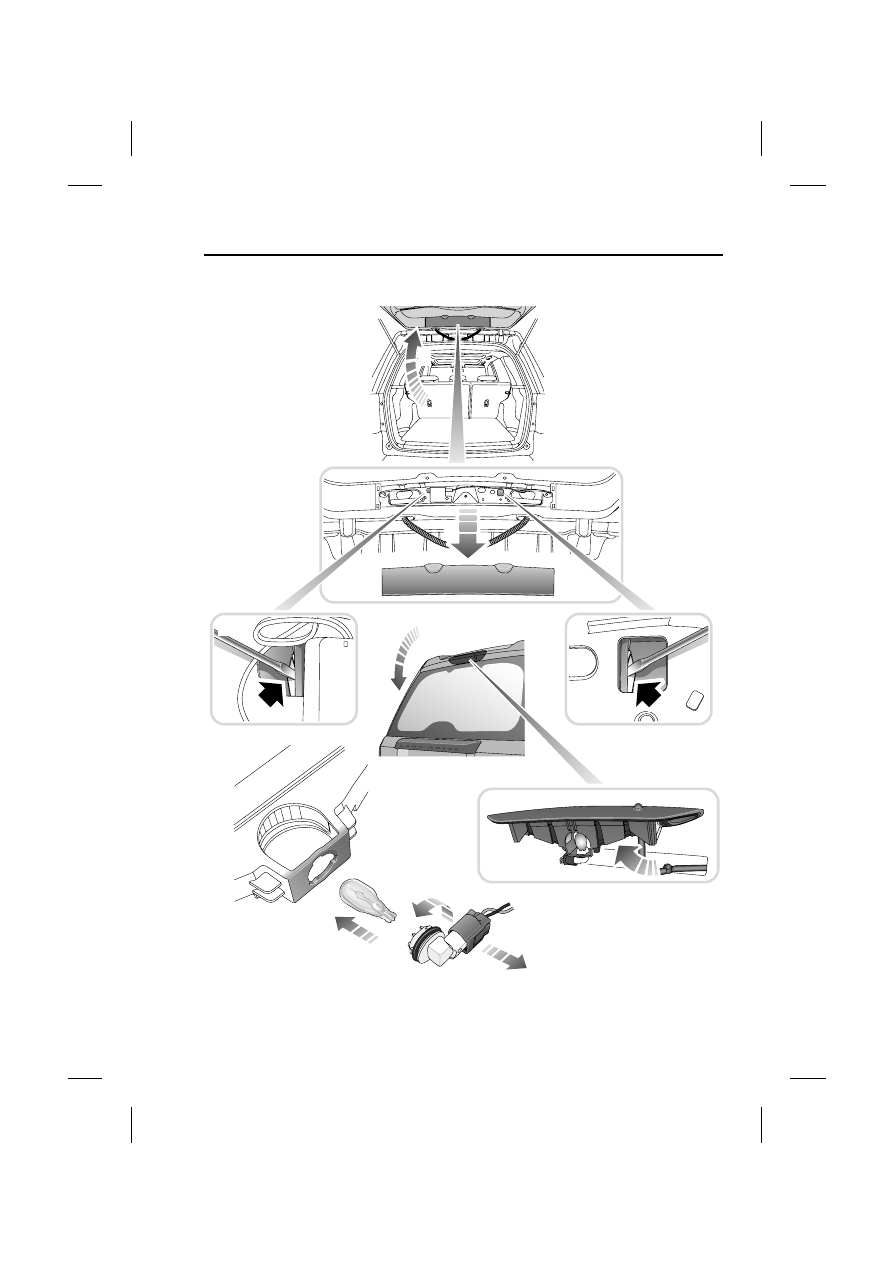

High level brake lamp

6

1

E83610

2

3

4

5

3

Lighting

84

L

1. Open the tailgate.

2. Remove the interior trim cover.

3. Using a suitable implement, press in the

retaining clips.

4. Close the tailgate.

5. Remove the lamp unit from the tailgate.

6. Rotate the bulb holder and remove it from

the lamp unit, then pull the bulb out of the
holder.

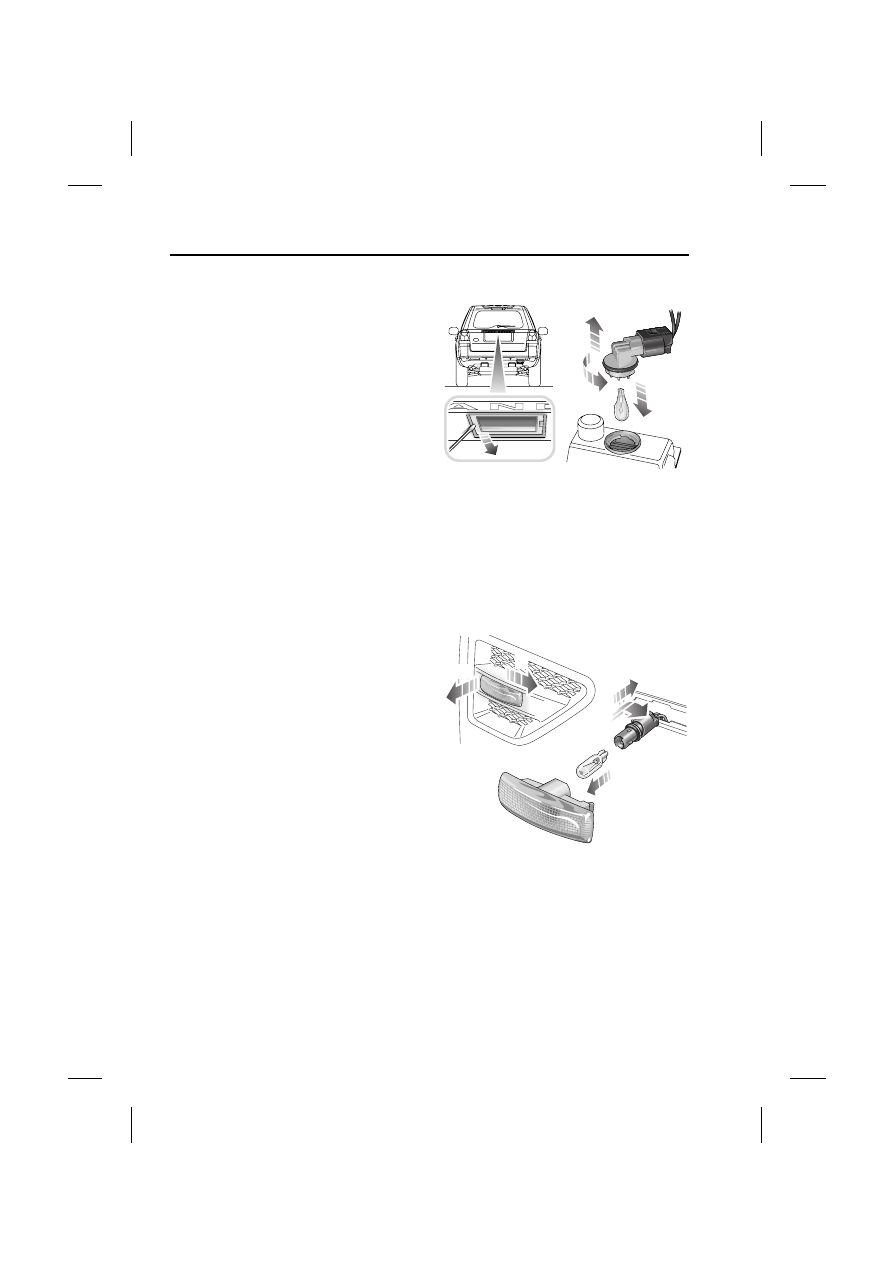

Number plate lamp bulb

1. Using a suitable tool, lever out the side of

the lamp unit and remove it from the
tailgate.

2. Rotate the bulb holder and remove it from

the lamp.

3. the bulb from the holder.

Side repeater lamp

1. Slide the lens forward and lift the rear

edge.

2. Remove the lamp unit.

3. Rotate the bulb holder and remove from

the lamp unit.

4. Pull the bulb out of the holder.

1

E80997

2

3

1

E80998

2

3

4

85

Lighting

R

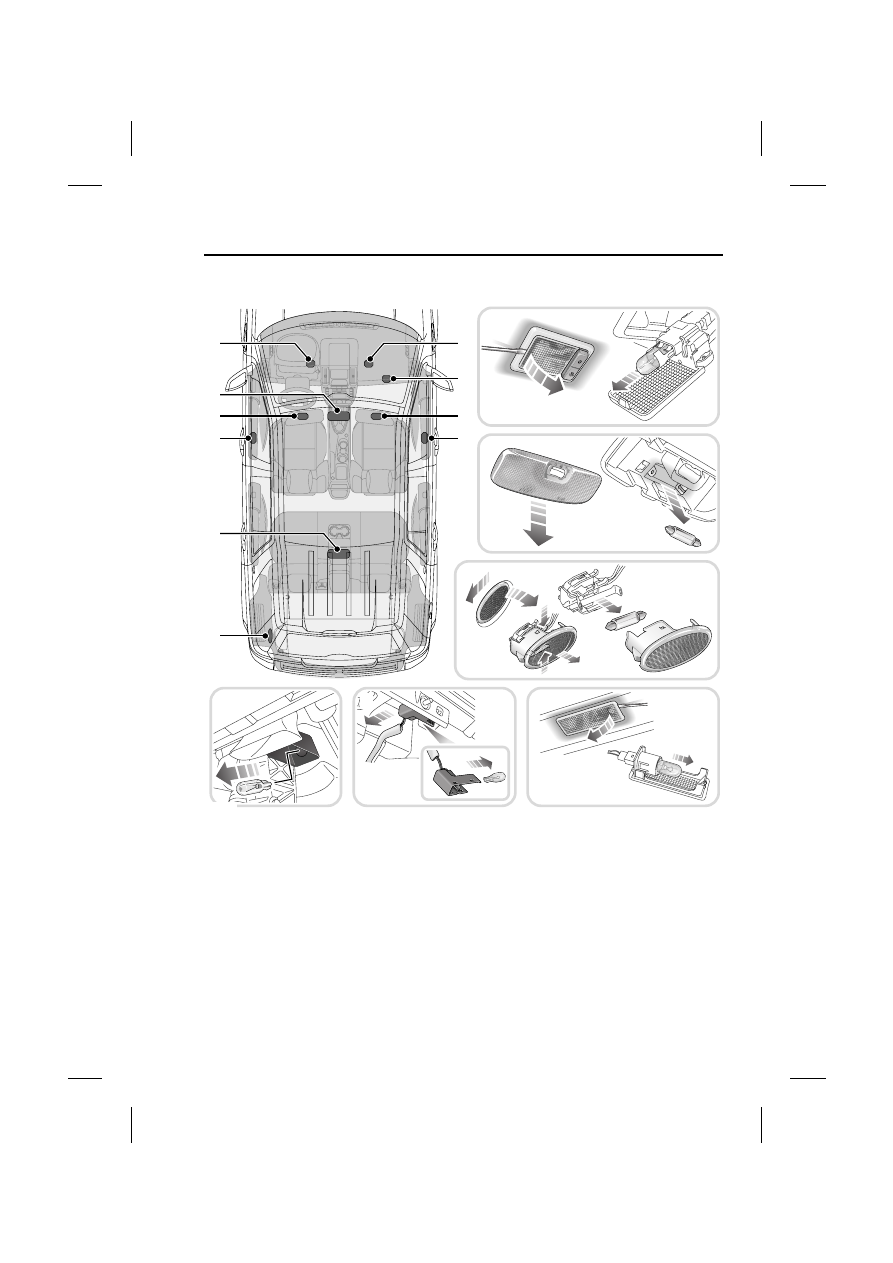

Interior lamp bulbs

1. Sun visor lamps.

2. Map/reading lamps.

3. Luggage compartment lamp.

4. Puddle lamps.

5. Glove box lamp.

6. Footwell lamps.

To access and replace the lamp bulbs follow
the directions given in the illustration.

1

3

2

3

4

5

6

2

4

1

2

6

4

1

5

6

E81001
