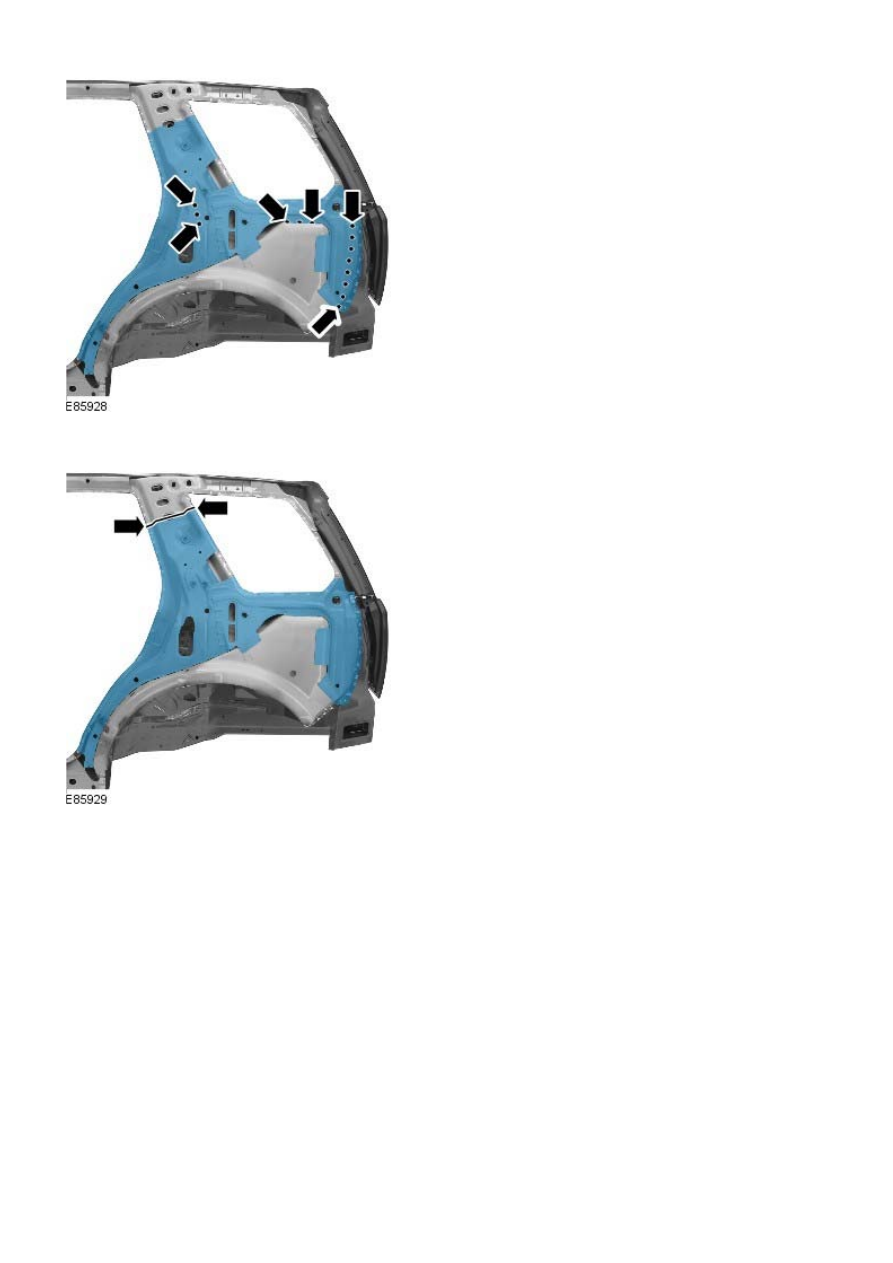

12. MIG plug weld.

13. Dress the tack welds.

14. MIG weld the butt joint.

15. Dress all welded joints.
16. The installation of associated panels and mechanical

components is the reverse of removal.

Rear End Sheet Metal Repairs - Front Inner Quarter Panel

Removal and Installation

Removal

• NOTE: The front inner quarter panel is to be unpicked from the inner quarter panel, it is not serviced separately.

• NOTE: There is a NVH element on this panel, it is not serviced on the new panel. If damaged, a new element will be

required.

1. The front inner quarter panel is replaced in conjunction with:

Rear bumper cover

Quarter panel

Rear door

Quarter glass

2. For additional information relating to this repair procedure

please see the following:

For additional information, refer to:

Body and Frame

 (501-26

Body Repairs - Vehicle Specific Information and Tolerance

Checks, Description and Operation) /

Standard Workshop Practices

 (100-00 General Information,

Description and Operation).

3. Remove the quarter panel.

For additional information, refer to:

Quarter Panel

 (501-30

Rear End Sheet Metal Repairs, Removal and Installation).

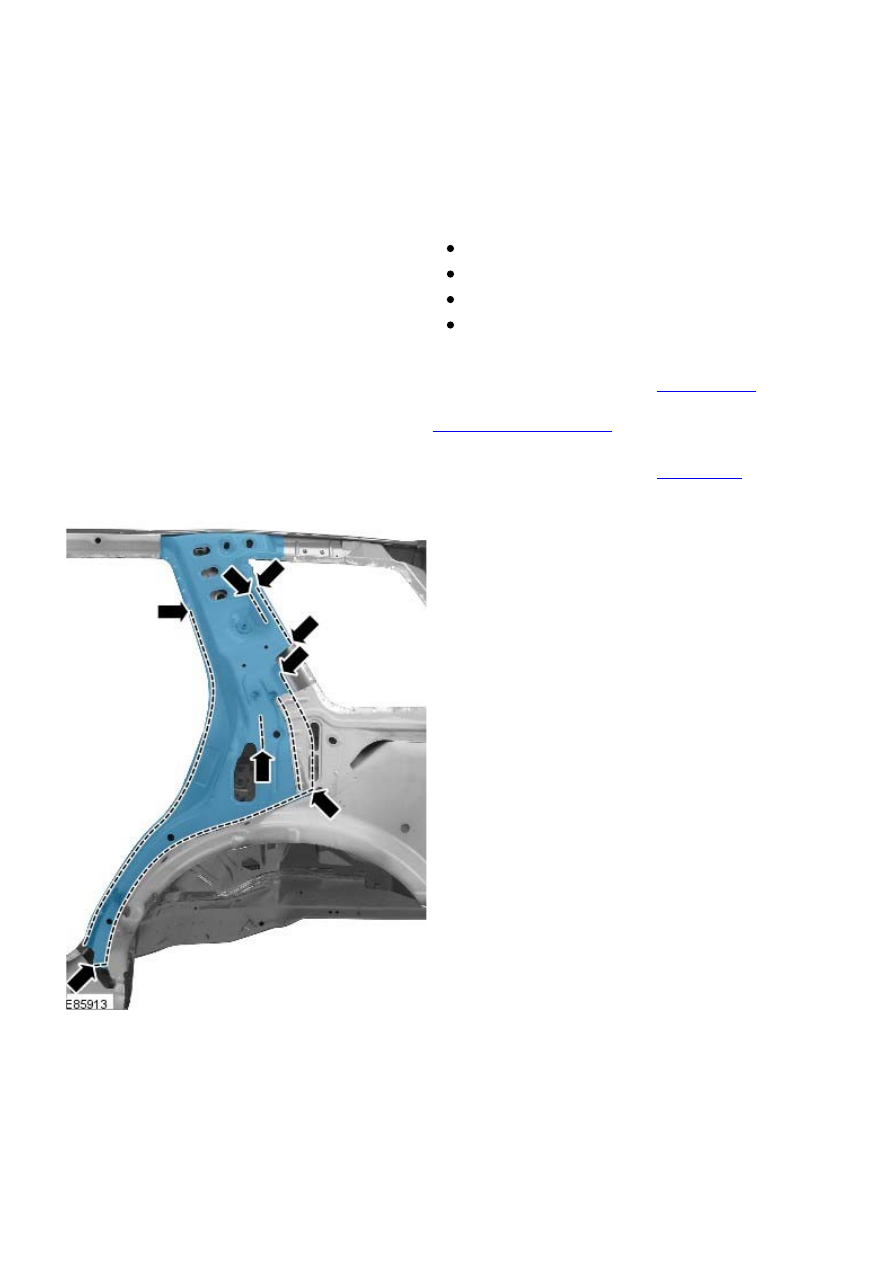

4. Mill out the spot welds.

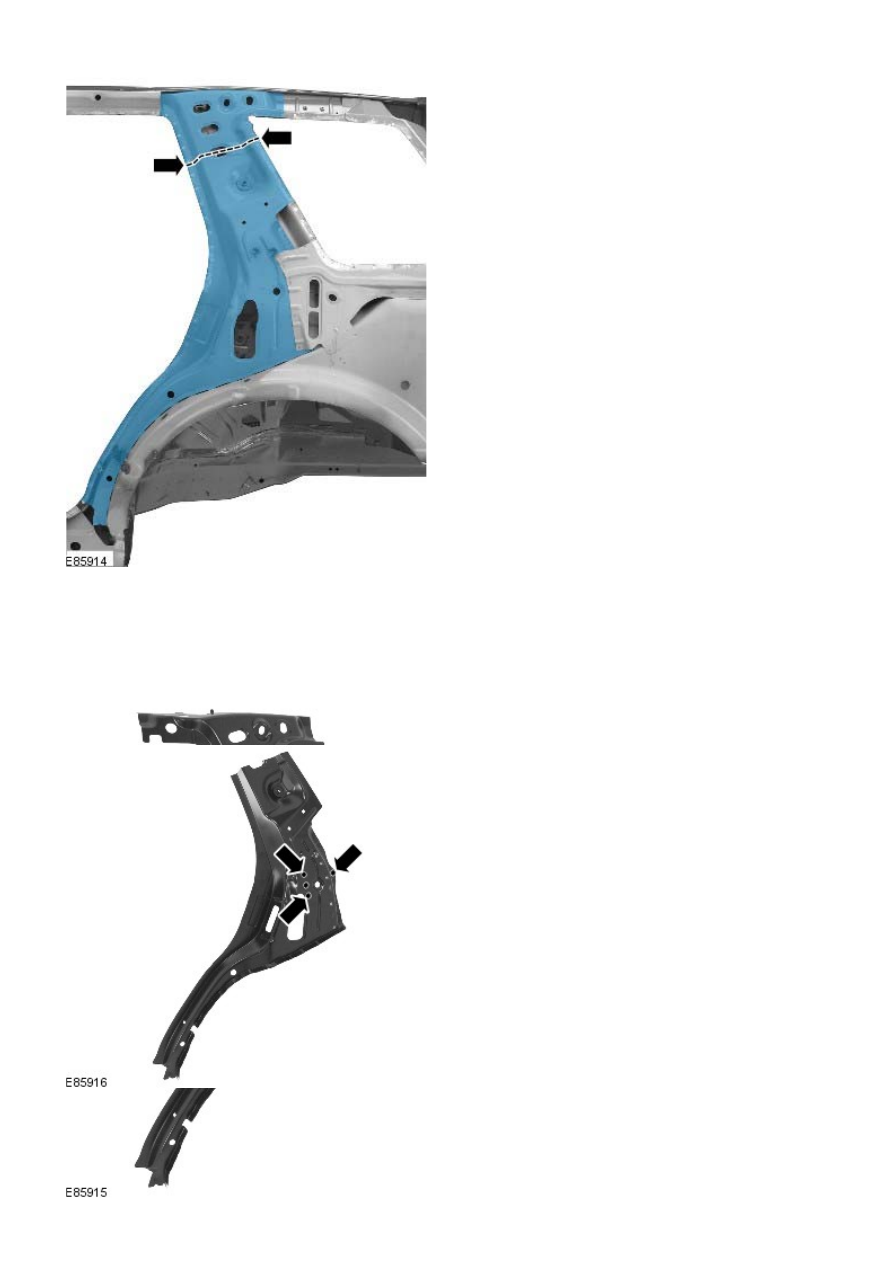

5. Saw cut the old panel at the point illustrated, using the new

panel for reference, ensuring that the new panel overlaps.

6. Separate the joints and remove the old panel, also releasing

the NVH element.

Installation

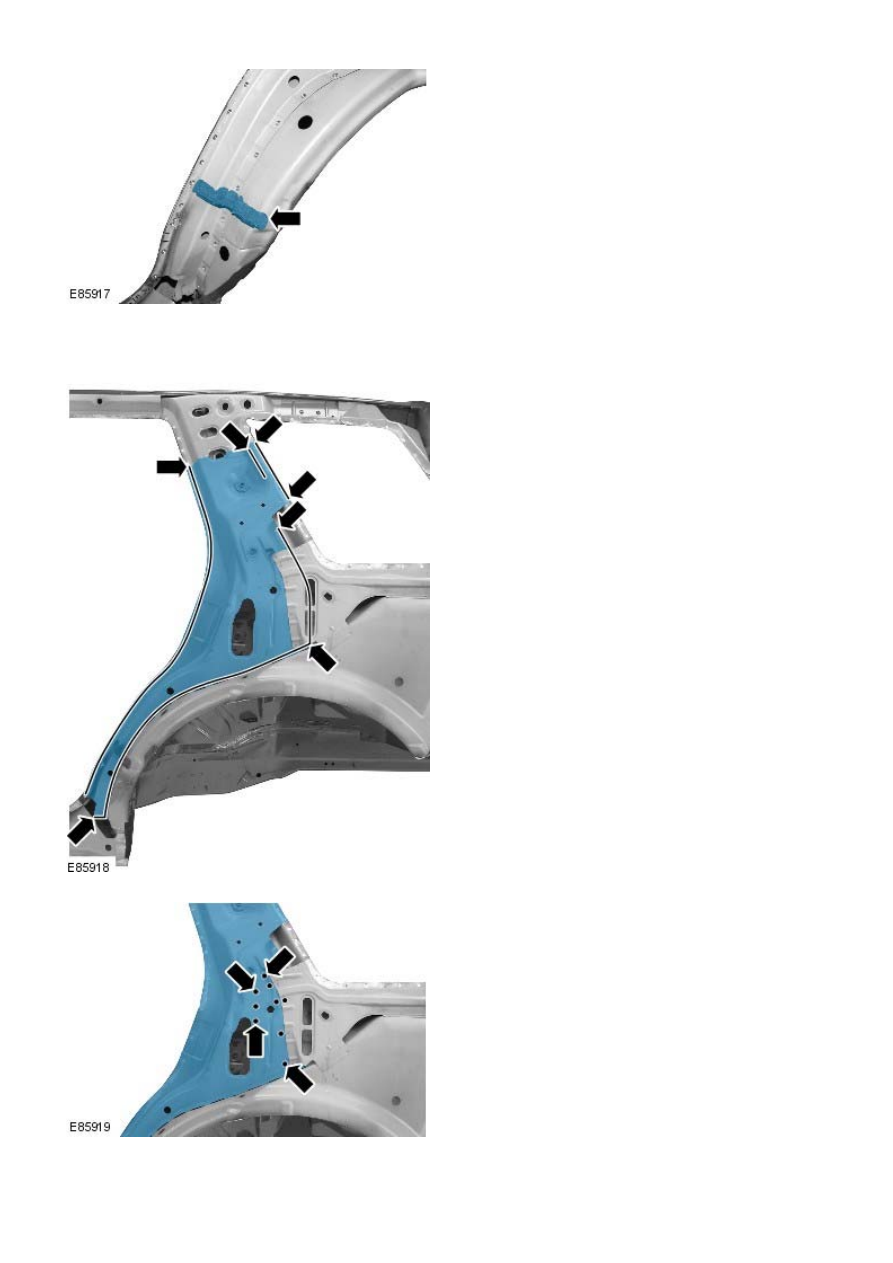

1. Remove the front inner quarter panel from the inner quarter

service panel, mill out 5 spot welds.

2. Offer up and align the new panel and clamp into position,

overlapping the old panel. Saw cut through the new and old

panels at the point where the MIG butt joint is to be made.

3. Remove the new panel and the old remnants.
4. Prepare the old and new panel joint surfaces.

5. Drill holes in the new panel ready for MIG plug welding.

6. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step, if not, rectify and

recheck before proceeding.

7. Remove the new panel.
8. If necessary, renew the NVH element.

9. Apply sealer adhesive to the NVH element.

10. Offer up the new panel and clamp into position.
11. Tack weld the butt joint.

12. Spot weld.

13. MIG plug weld.

14. Dress the tack welds.
