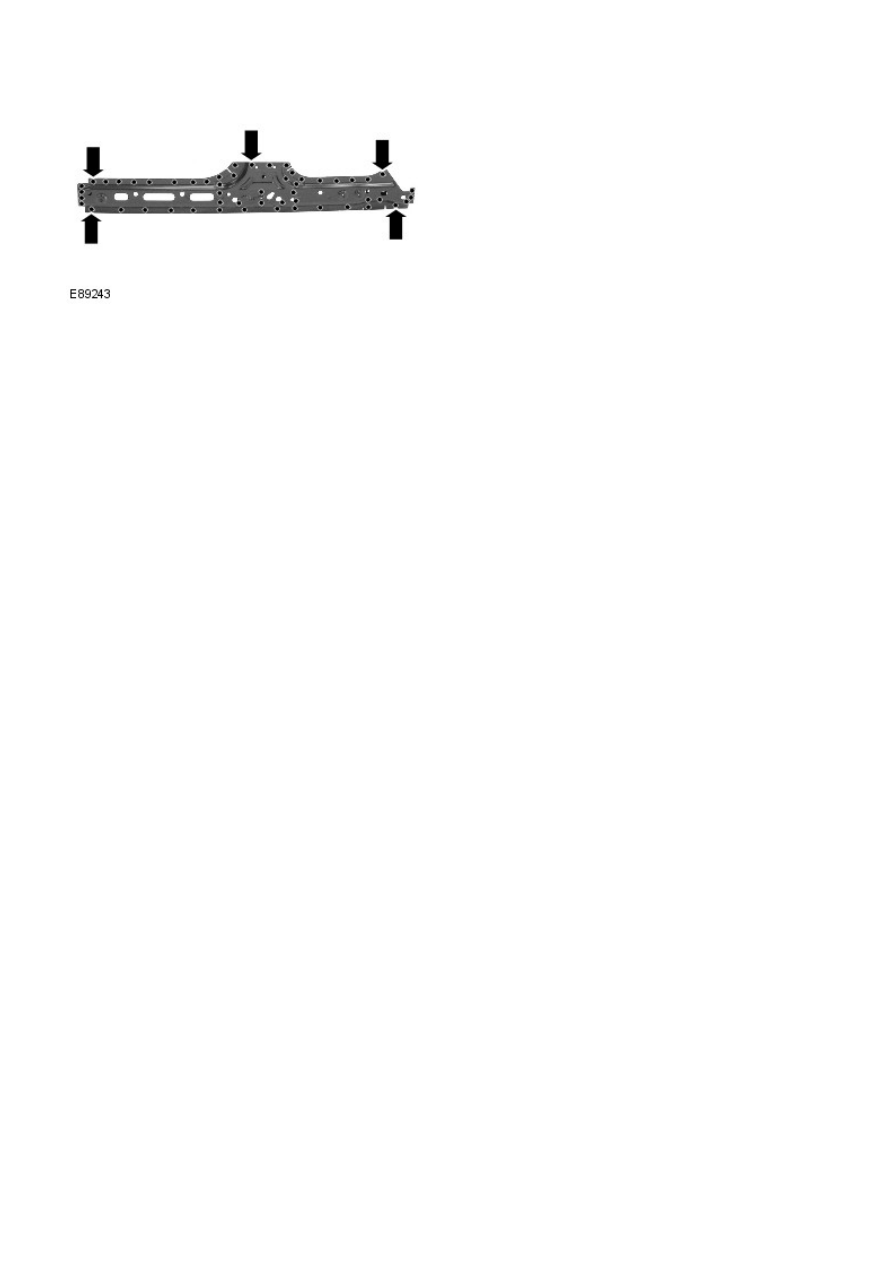

2. Drill holes in the new panel ready for MIG plug welding.

3. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step. If not, rectify and

recheck before proceeding.

4. MIG plug weld.

5. Dress all welded joints.
6. The installation of associated panels and mechanical

components is the reverse of removal.

Side Panel Sheet Metal Repairs - Rocker Panel Inner Reinforcement

Removal and Installation

Removal

• CAUTIONS:

 The rocker panel inner reinforcement is DP600, (Dual Phase steel) and must be MIG plug welded to the inner. Spot

welds must not be used.

 Ensure that all welded joints are suitably sealed and waterproofed, particularly in the areas where the original panel

adhesive / sealer cannot be replicated. Where necessary, seal the joints prior to the fitment of outer panels.

• NOTE: The rocker panel inner reinforcement is unpicked from the side panel reinforcement 'ring-frame', it is not serviced

separately.

1. The rocker panel inner reinforcement is replaced in conjunction

with:

Front bumper cover

Front fender

Front door

Rear door

Rocker panel

2. For additional information relating to this repair procedure

please see the following:

For additional information, refer to:

Body and Frame

 (501-26

Body Repairs - Vehicle Specific Information and Tolerance

Checks, Description and Operation) /

Standard Workshop Practices

 (100-00 General Information,

Description and Operation).

3. Remove the rocker panel.

For additional information, refer to:

Rocker Panel

 (501-29 Side

Panel Sheet Metal Repairs, Removal and Installation).

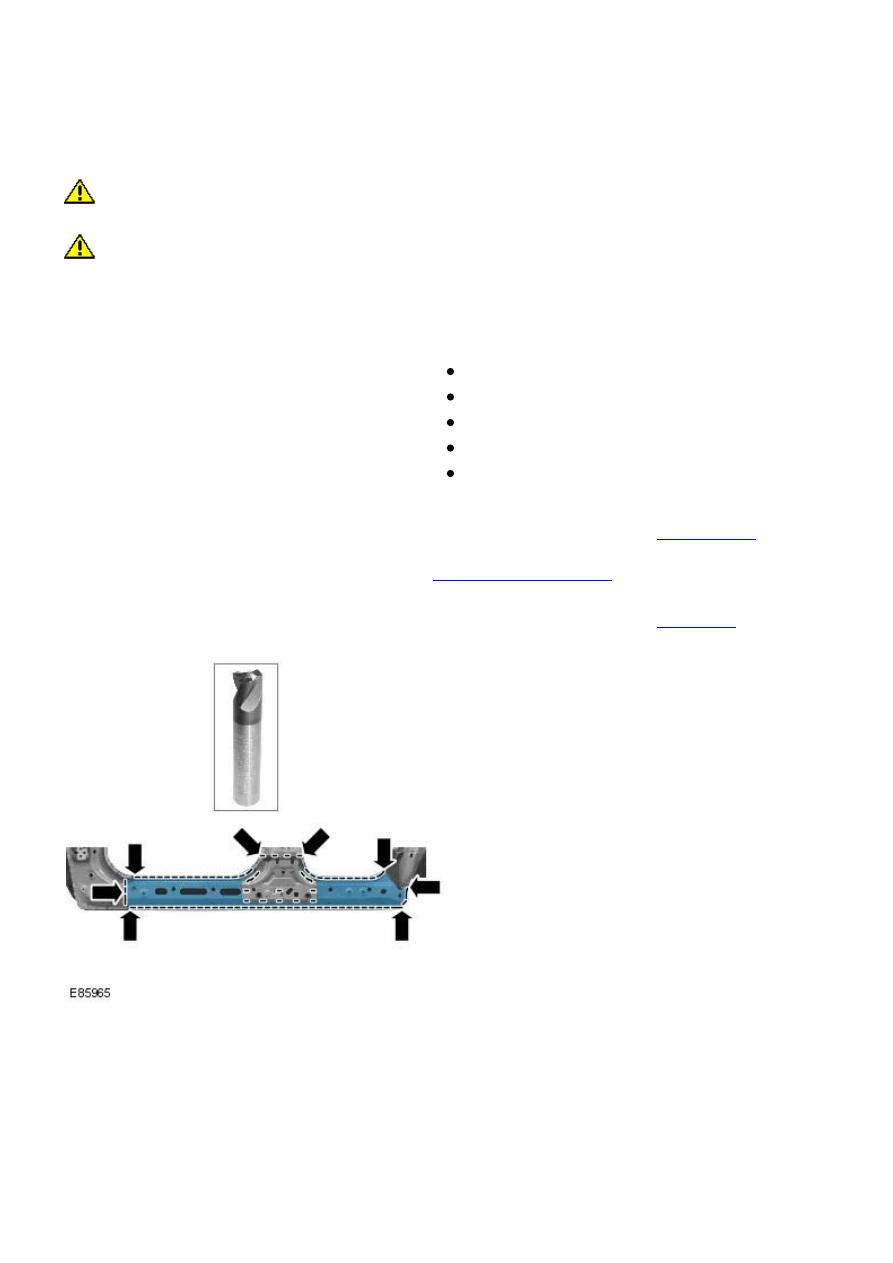

4. Mill out the spot welds, it will be necessary to use a HSS

spot weld drill bit.

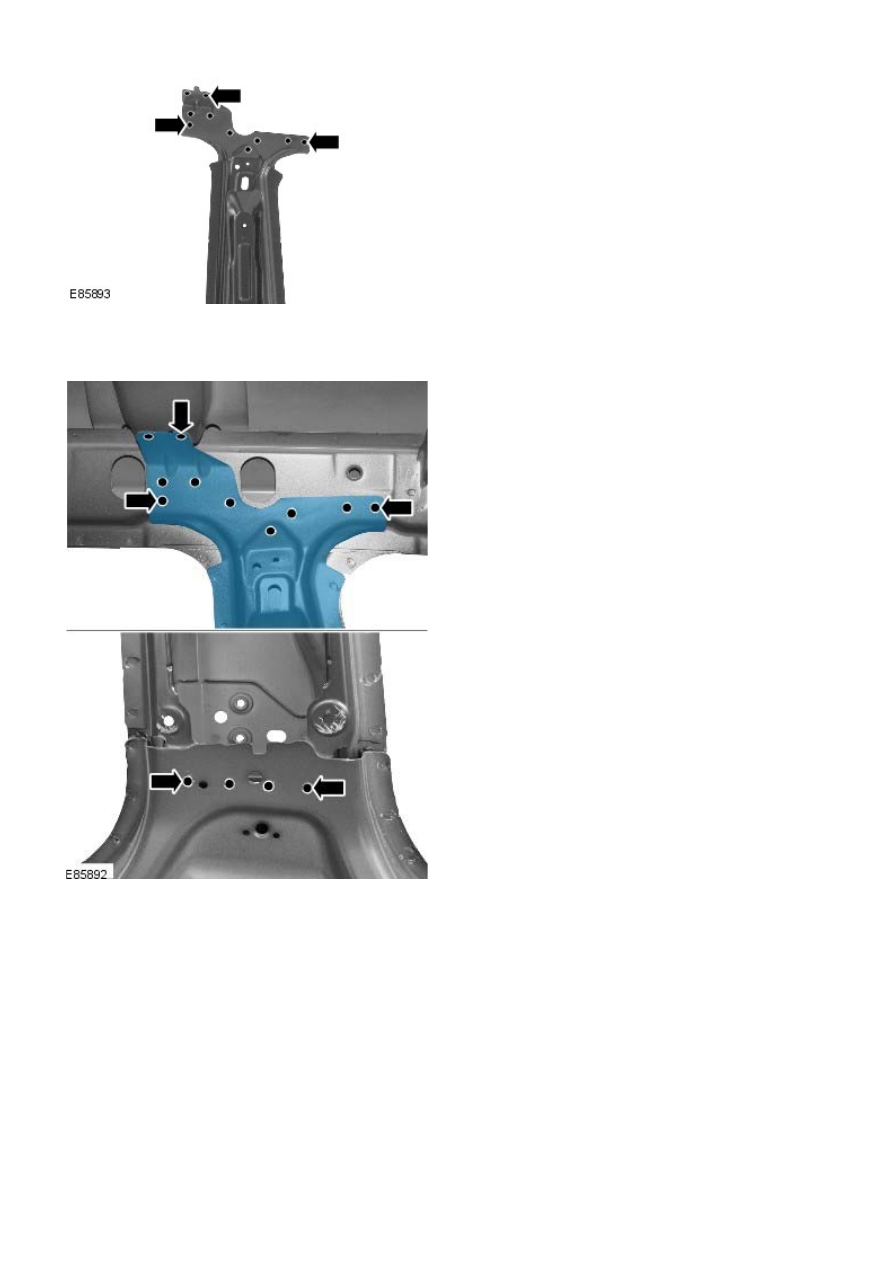

5. If the B-Pillar reinforcement has not been removed it will be

necessary to release it.

Mill out spot welds.

Separate this joint and ease the B-Pillar reinforcement

forward to allow the rocker panel inner reinforcement to

be removed.

6. Separate the joints and remove the old panel.

Installation

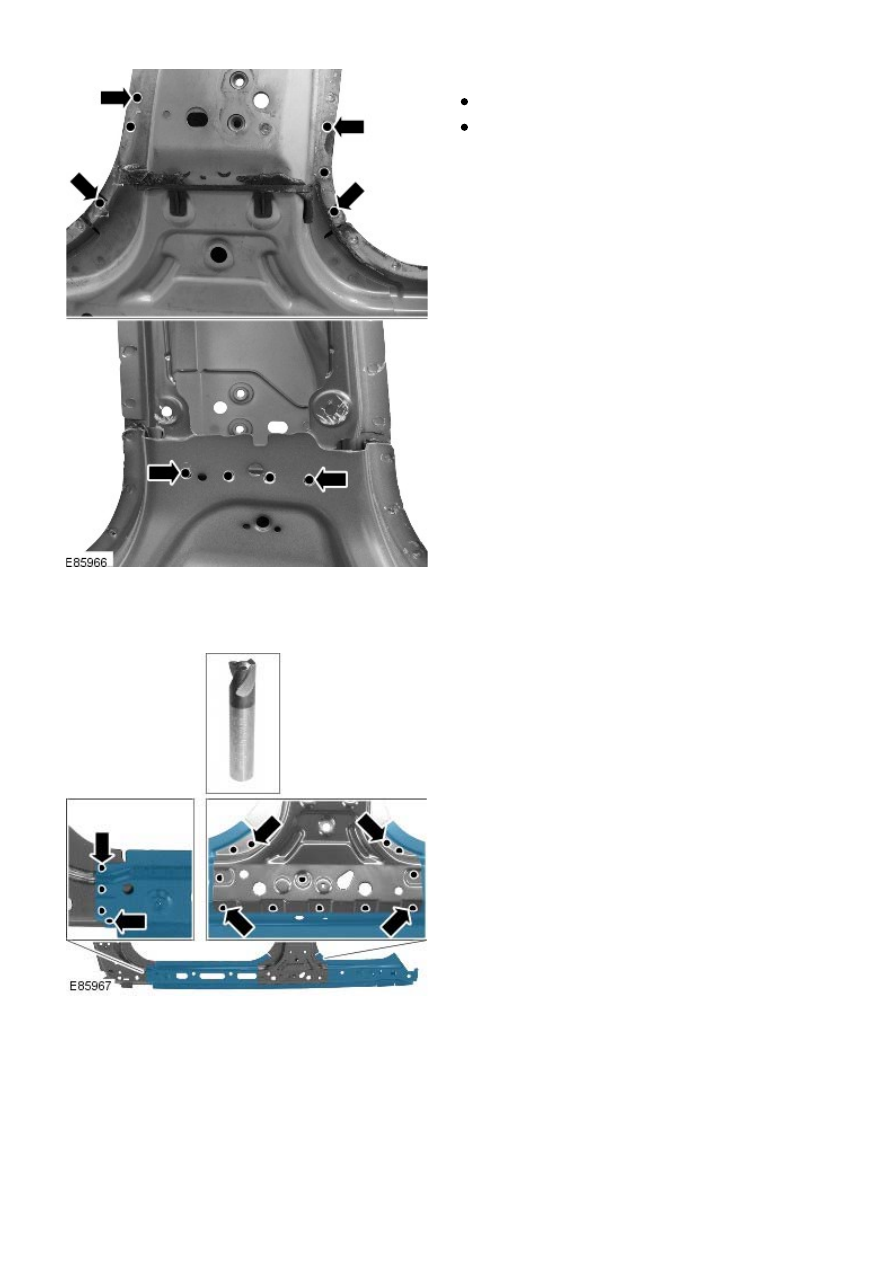

1. Remove the rocker panel reinforcement part from the side

panel reinforcement 'ring-frame', service panel. Mill out the

spot welds using a HSS spot weld drill bit.

2. Prepare the old and new panel joint surfaces.
3. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step, if not, rectify and

recheck before proceeding.

4. NOTE: Holes for MIG plugs would be created during the old

panel removal and separation of the service panel.

• NOTE: MIG plug welds should be installed in the locations of

the original spot welds and where possible, should be installed

through the rocker panel inner.

MIG plug weld.

5. Dress all welded joints.
6. The installation of associated panels and mechanical

components is the reverse of removal.
