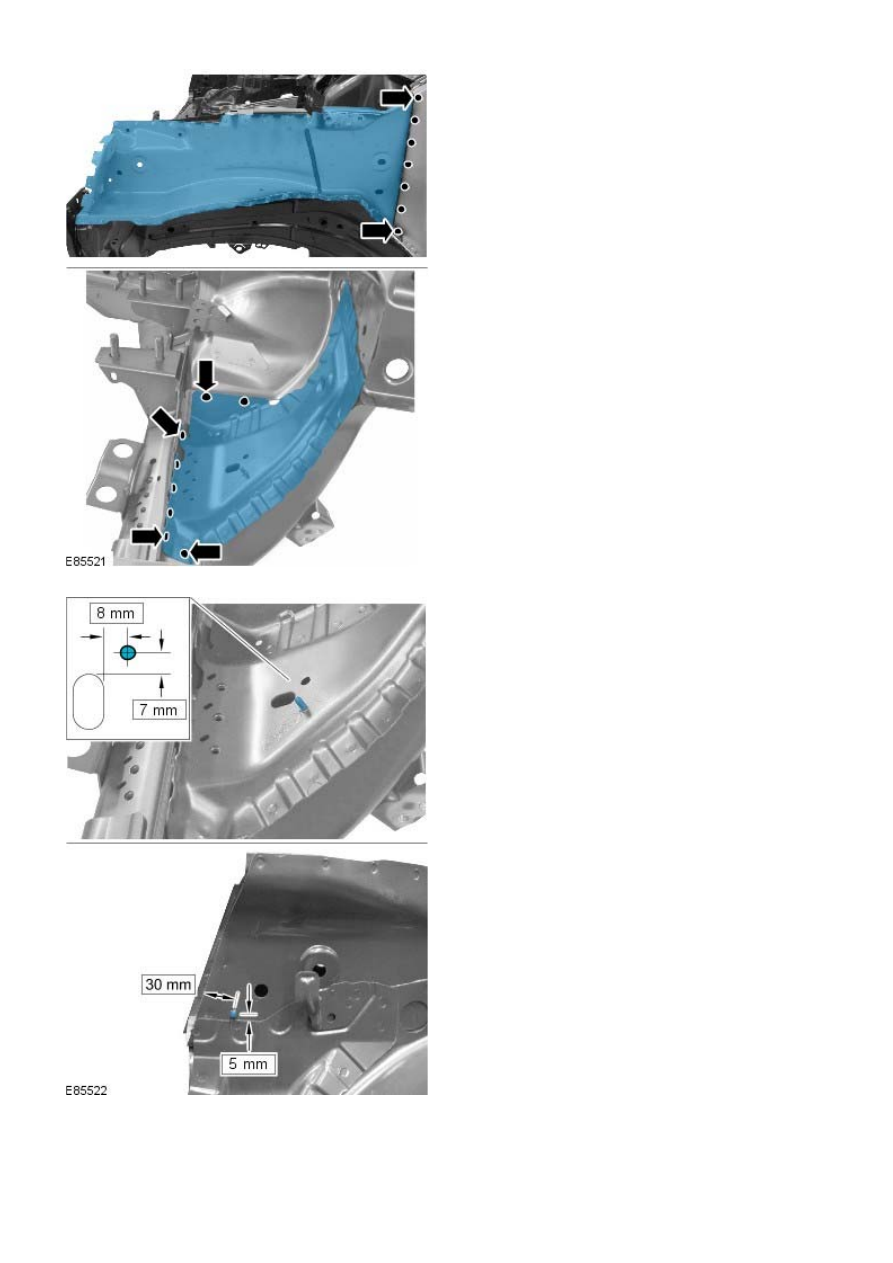

2. Drill holes in the new panel ready for MIG plug welding.

3. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step, if not, rectify and

recheck before proceeding.

4. Spot weld.

5. MIG Plug weld.

6. Install weld studs.

7. Dress all welded joints.
8. The installation of associated panels and mechanical

components is the reverse of removal.

Front End Sheet Metal Repairs - Fender Apron Panel Reinforcement

Removal and Installation

Removal

• NOTE: The fender apron panel reinforcement has to be unpicked from the fender apron panel service panel, it is not

available separately.

• NOTE: The RH panel is serviced less its weld studs

1. The fender apron panel reinforcement is replaced in

conjunction with:

Front bumper cover

Hood latch panel

Both front fenders

Fender apron upper panel

2. For additional information relating to this repair procedure

please see the following:

For additional information, refer to:

Body and Frame

 (501-26

Body Repairs - Vehicle Specific Information and Tolerance

Checks, Description and Operation) /

Standard Workshop Practices

 (100-00 General Information,

Description and Operation).

3. Remove the fender apron upper panel.

For additional information, refer to:

Fender Apron Upper Panel

(501-27 Front End Sheet Metal Repairs, Removal and

Installation).

4. Remove the front shock absorber.

For additional information, refer to:

Front Shock Absorber

(204-01 Front Suspension, Removal and Installation).

5. LH Side: Remove the engine support insulator.

For additional information, refer to:

Engine Upper Support

Insulator

 (303-01B Engine - TD4 2.2L Diesel, Removal and

Installation).

6. LH Side: Remove the battery tray.

For additional information, refer to:

Battery Tray

 (414-01

Battery, Mounting and Cables, Removal and Installation).

7. LH Side: Remove the air intake pipe.
8. LH Side: Release the battery junction box and position aside.
9. RH Side: Remove the windshield washer reservoir.

For additional information, refer to:

Windshield Washer

Reservoir

 (501-16 Wipers and Washers, Removal and

Installation).

10. RH Side: Remove the engine mounting bracket.

For additional information, refer to:

Engine Mount RH

 (303-01B

Engine - TD4 2.2L Diesel, Removal and Installation).

11. RH Side: Release the coolant expansion tank and lay it

aside.

12. RH Side: Evacuate the A/C system.

For additional information, refer to:

Air Conditioning (A/C)

System Recovery, Evacuation and Charging

 (412-00 Climate

Control System - General Information, General Procedures).

13. RH Side: Remove the fender apron A/C pipes.
14. RH Side: Release and lay aside the insulating material at the

bulkhead.

15. Release and lay aside the wiring harness.

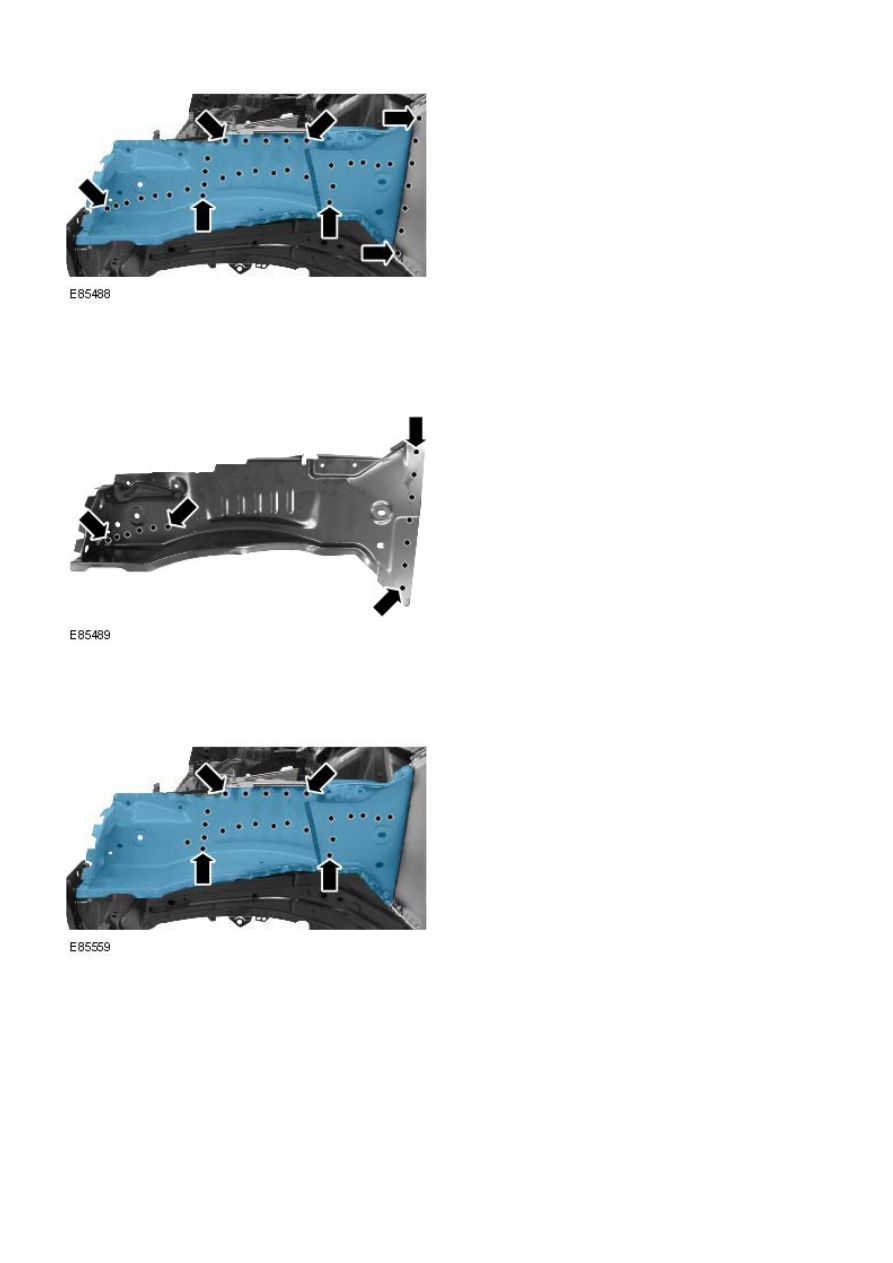

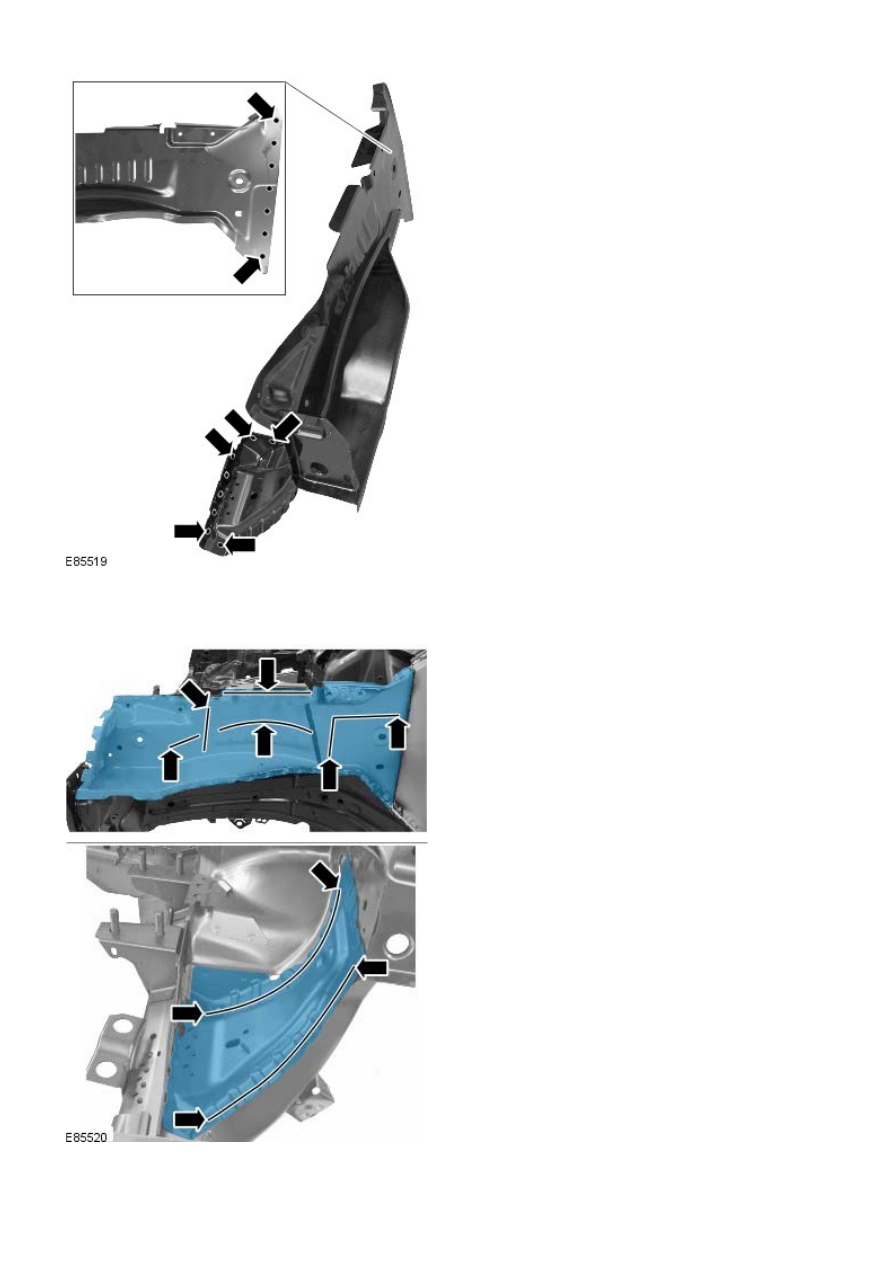

16. Mill out the spot welds.

17. Separate the joints and remove the old panel.

Installation

1. Prepare the old and new panel joint surfaces.

2. Drill holes in the new panel ready for MIG plug welding.

3. Offer up the new panel and clamp into position. Check

alignment, if correct, proceed to next step, if not, rectify and

recheck before proceeding.

4. Spot weld.
