Frelander 2. Manual - part 633





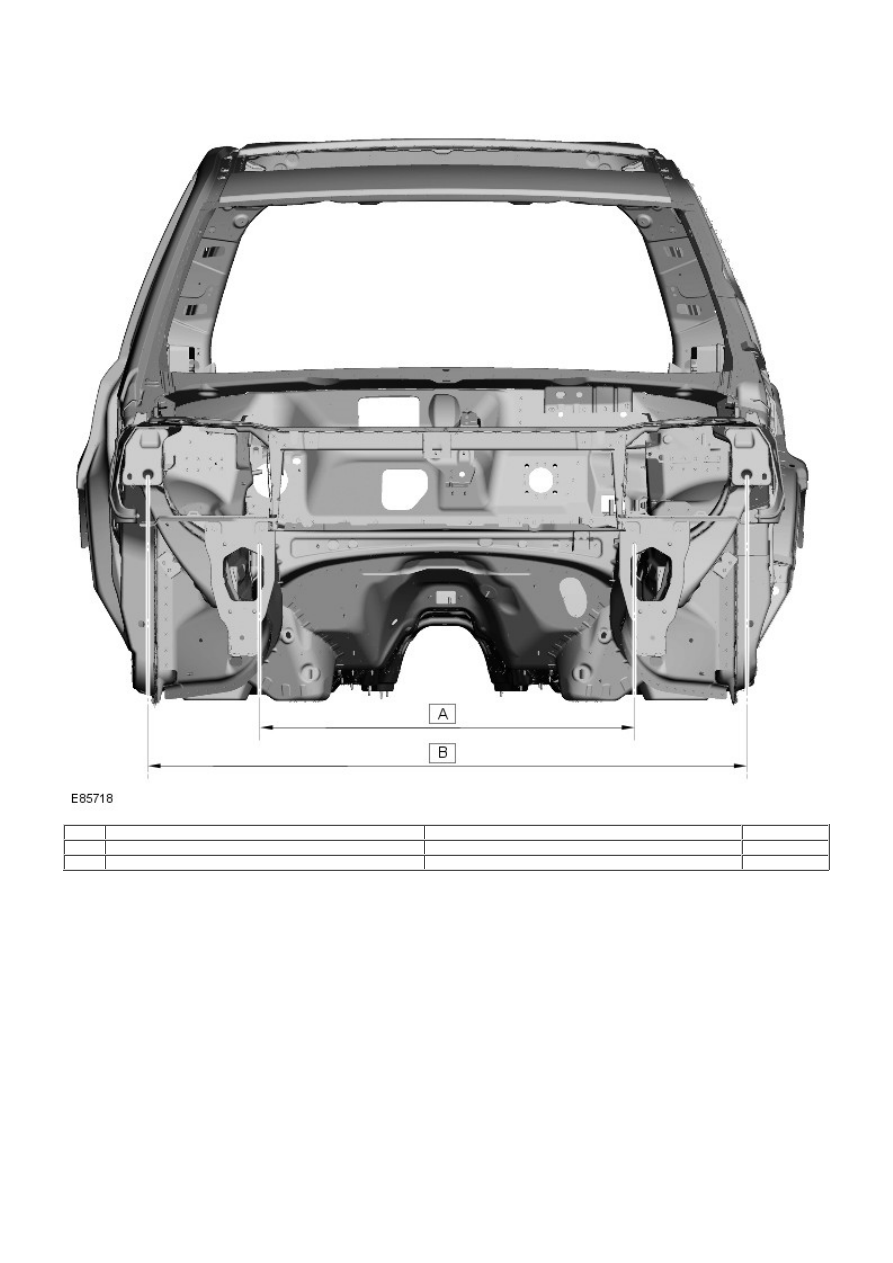

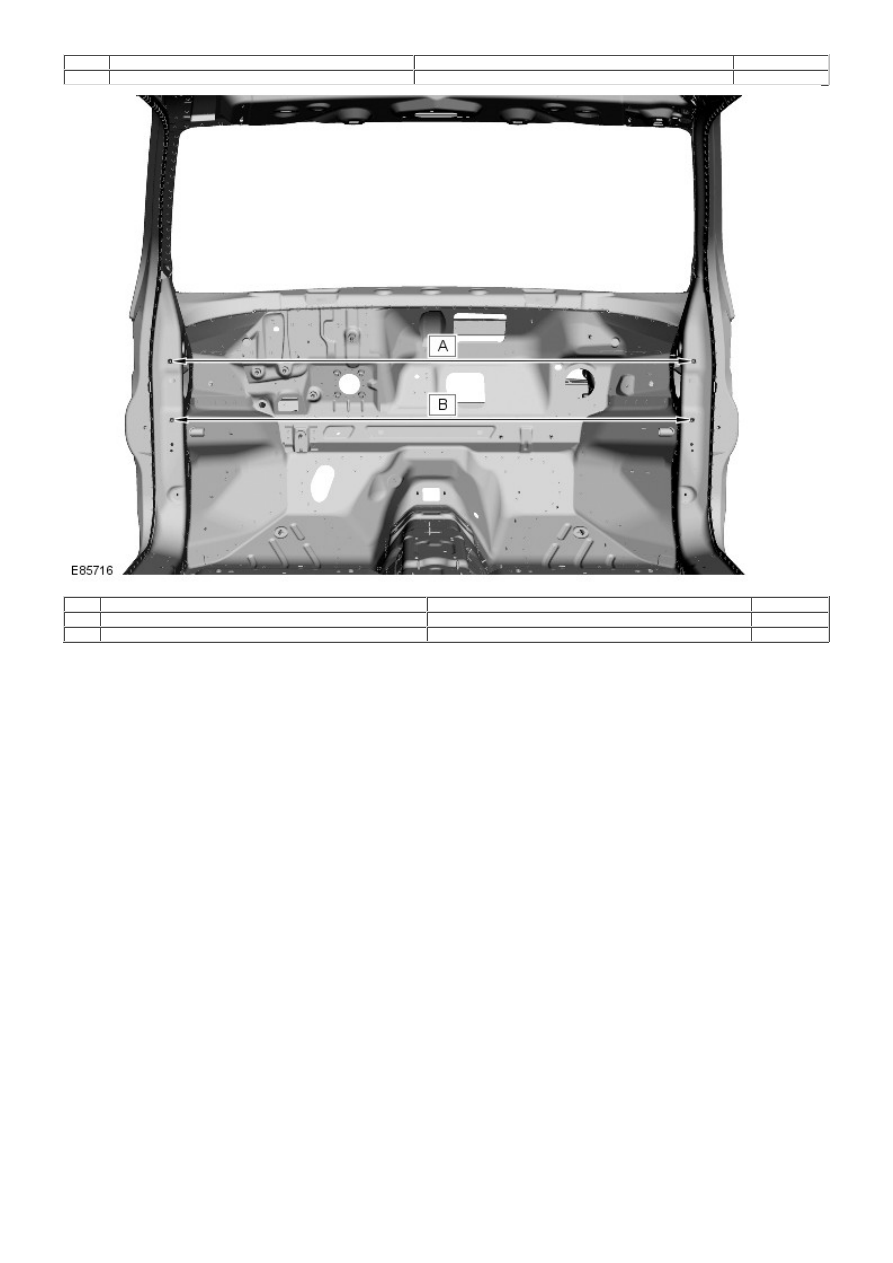

Item

From

To

Dimension

A

Bumper RH top inboard fixing hole

Bumper LH top inboard fixing hole

960

B

RH Valance extension panel tooling hole

LH Valance extension panel tooling hole

1533.7

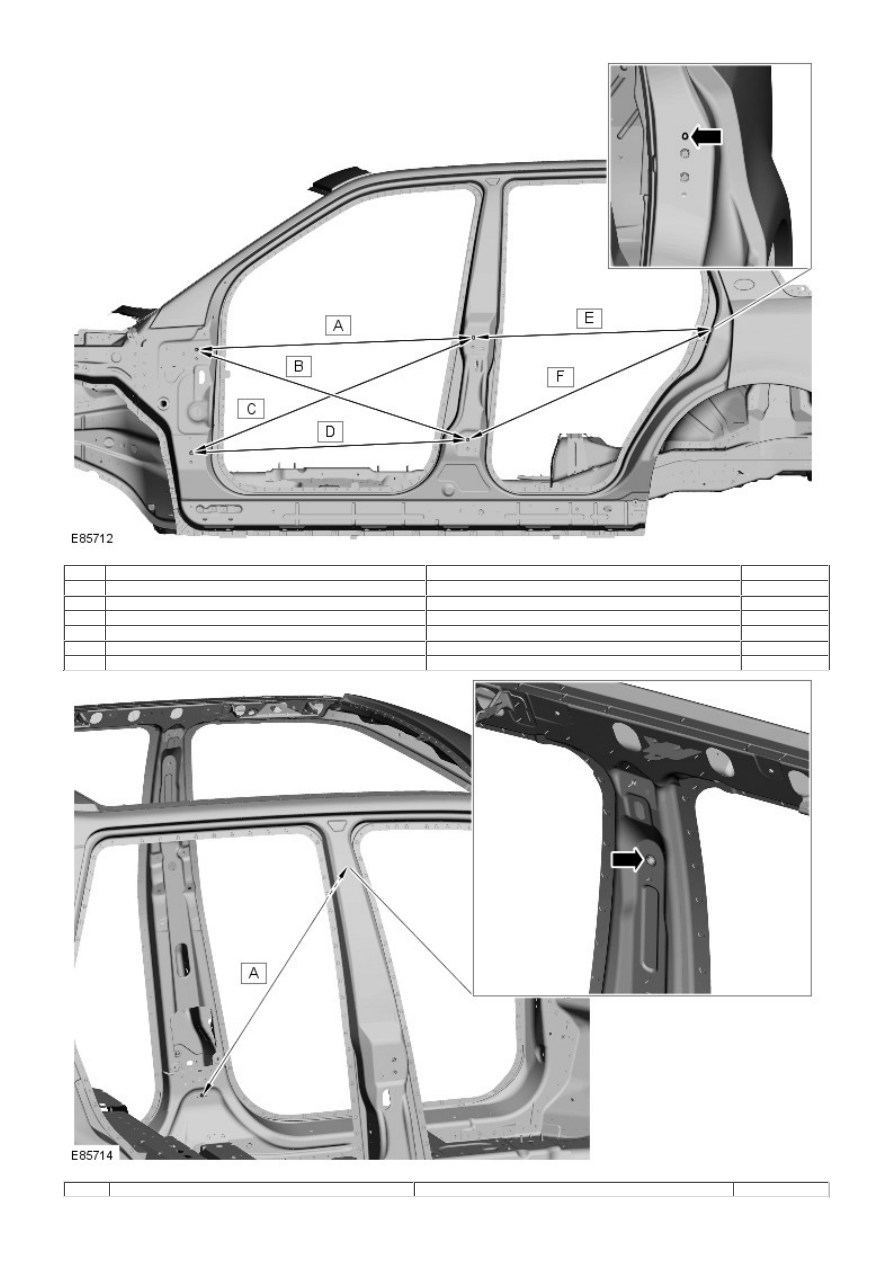

Side Panel Dimensions

Item

From

To

Dimension

A

Front door top hinge fixing hole

Rear door top hinge fixing hole

1034.9

B

Front door top hinge fixing hole

Rear door bottom hinge, top fixing hole

1061.44

C

Front door bottom hinge, top fixing hole

Rear door top hinge fixing hole

1138.7

D

Front door bottom hinge, top fixing hole

Rear door bottom hinge, top fixing hole

1035.5

E

Rear door top hinge fixing hole

Rear door striker top fixing hole

1917.7

F

Rear door bottom hinge, top fixing hole

Rear door striker top fixing hole

983.8

Item

From

To

Dimension

Item

From

To

Dimension

A

Front seat belt retractor fixing hole

Front seat belt anchorage fixing hole

1673.3

Item

From

To

Dimension

A

Instrument panel carrier RH top fixing hole

Instrument panel carrier LH top fixing hole

1447

B

Instrument panel carrier RH bottom fixing hole

Instrument panel carrier LH bottom fixing hole

1447

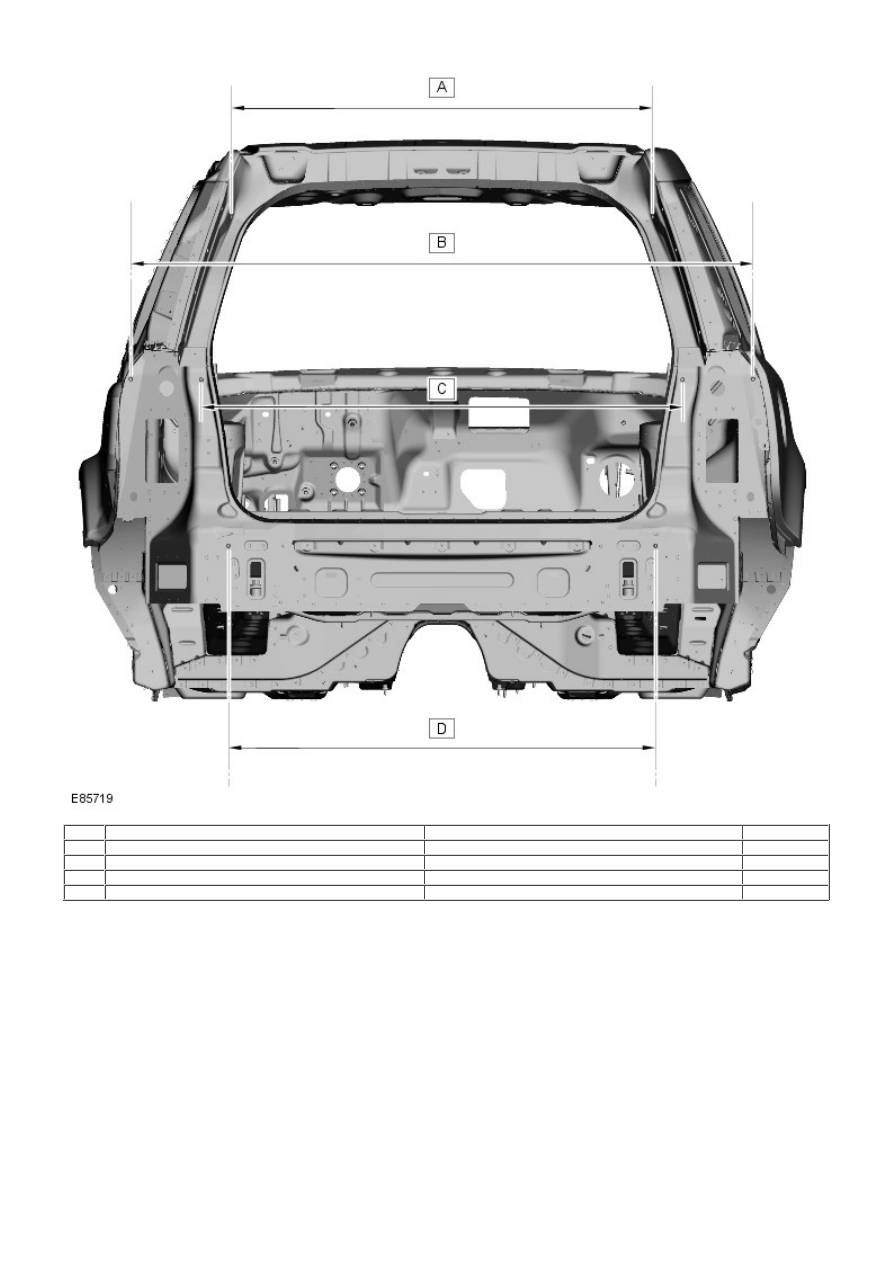

Rear End Body Dimensions

Item

From

To

Dimension

A

RH Gas strut spigot fixing hole

LH Gas strut spigot fixing hole

1086.6

B

RH Rear lamp location hole

LH Rear lamp location hole

1615.2

C

RH Rear lamp top fixing hole

LH Rear lamp top fixing hole

1241.8

D

Rear bumper RH outboard top fixing stud

Rear bumper LH outboard top fixing stud

1101.12
